Container which arranges children using a grid of columns and rows. More...

#include <Grid.hpp>

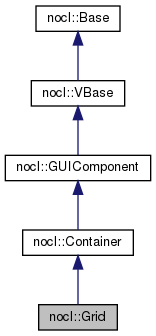

Inheritance diagram for nocl::Grid:

[legend]

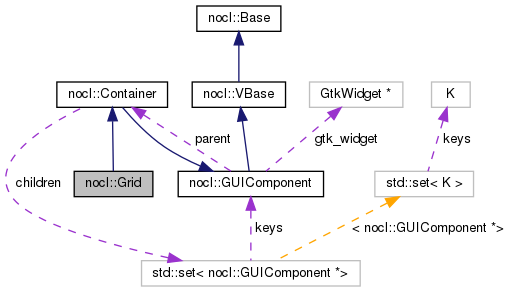

Collaboration diagram for nocl::Grid:

[legend]

Public Member Functions
virtual	~Grid (void)
	Destructor. More...

	Grid (void)
	Constructor. More...

virtual	operator GtkGrid * (void) const
	Convert an instance of nocl::Grid to `GtkGrid*`. More...

virtual Grid &	add_child (GUIComponent &child) override
	Inherited from `nocl::Container`. More...

virtual Grid &	add_child (GUIComponent &child, const int top, const int left, const int width=1, const int height=1)

virtual bool	homogeneous_row (void) const
	Determine whether or not all rows will be the same size. More...

virtual bool	homogeneous_column (void) const
	Determine whether or not all columns will be the same size. More...

virtual Grid &	homogeneous_row (const bool toggle)
	Set whether or not all rows will be the same size. More...

virtual Grid &	homogeneous_column (const bool toggle)
	Set whether or not all columns will be the same size. More...

virtual Grid &	homogeneous (const bool column, const bool row)
	Set whether or not all rows and columns will be the same size. More...

virtual int	spacing_row (void) const
	Get the spacing between each row. More...

virtual int	spacing_column (void) const
	Get the spacing between each column. More...

virtual Grid &	spacing_row (const int spacing)
	Set the spacing between each row. More...

virtual Grid &	spacing_column (const int spacing)
	Set the spacing between each column. More...

virtual Grid &	spacing (const int column, const int row)
	Set the spacing between each row and column. More...

virtual	operator GtkContainer * (void) const
	Convert an instance of Container to `GtkContainer*`. More...

virtual Container &	remove_child (GUIComponent &child)
	Remove a child component from this container. More...

virtual	operator GtkWidget * (void) const
	Convert an instance of GUIComponent to `GtkWidget*`. More...

virtual GUIComponent &	move_to (const Point &p)
	Move to the specified coordinates. More...

virtual Size	natural_size (void)
	Get the natural size of a widget. More...

virtual Size	minimum_size (void)
	Get the minimum size of a widget. More...

virtual GUIComponent &	minimum_size (const Size &s)
	Set the minimum size of a widget. More...

virtual GUIComponent &	minimum_size (const int width, const int height)
	Set the minimum size of a widget. More...

virtual GUIComponent &	show (const bool toggle=true)
	Make the immediate component visible. More...

virtual GUIComponent &	show_all (const bool toggle=true)
	Make the component and all child components visible. More...

virtual GUIComponent &	hide (void)
	Hide a single component. More...

virtual bool	is_visible (void) const
	Determine if the widget is shown. More...

Static Public Member Functions
static WidgetToGUIComponentMap &	widget_to_gui_component_map (void)
	There are times when we have a pointer to a Gtk+ widget, and we need to map it back to the corresponding NOCL GUI component. More...

Public Attributes
std::set< GUIComponent * >	children
	Keep track of all children that have been added to this container. More...

Container *	parent
	Pointer to the parent to which we've been added. Will be `nullptr` if this object hasn't been added to a parent container. More...

GtkWidget *	gtk_widget
	Pointer to the underlying GTK framework. More...

Detailed Description

Container which arranges children using a grid of columns and rows.

This corresponds to GtkGrid. The grid layout is simplistic. An example of where it works well would be to place similarly-sized controls in a way that would resemble a calendar.

See also: nocl::...? Boxes, ListBox, Stack+StackSwitcher, HeaderBar, FlowBox, Notebook; https://developer.gnome.org/gtk3/stable/GtkGrid.html

Constructor & Destructor Documentation

◆ ~Grid()

nocl::Grid::~Grid ( void )

virtual

Destructor.

◆ Grid()

nocl::Grid::Grid ( void )

Constructor.

Exceptions

nocl::Exception Throws if GTK+ fails to create a new window.

References nocl::GUIComponent::gtk_widget, homogeneous(), NOCL_WHERE, and spacing().

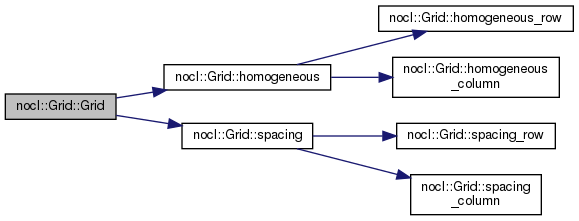

Here is the call graph for this function:

Member Function Documentation

◆ operator GtkGrid *()

nocl::Grid::operator GtkGrid * ( void ) const

virtual

Convert an instance of nocl::Grid to GtkGrid*.

Exceptions

nocl::Exception Object was not created correctly and cannot be converted to GtkGrid*.

References nocl::GUIComponent::gtk_widget, and NOCL_WHERE.

◆ add_child() [1/2]

nocl::Grid & nocl::Grid::add_child ( GUIComponent & child )

overridevirtual

Inherited from nocl::Container.

Adds a child to location [2, 2] on the grid. This way if a grid has a single child, then on a 3x3 grid the child will have been added in the middle of the grid.

Reimplemented from nocl::Container.

◆ add_child() [2/2]

nocl::Grid & nocl::Grid::add_child	(	GUIComponent &	child,
		const int	top,
		const int	left,
		const int	width = `1`,
		const int	height = `1`
	)

virtual

Exceptions

nocl::Exception	Grid location, width, or height is invalid.
nocl::Exception	Child-parent hierarchy doesn't make sense.

References nocl::Container::children, NOCL_WHERE, nocl::GUIComponent::parent, and nocl::Container::remove_child().

Here is the call graph for this function:

◆ homogeneous_row() [1/2]

bool nocl::Grid::homogeneous_row ( void ) const

virtual

Determine whether or not all rows will be the same size.

Referenced by homogeneous().

Here is the caller graph for this function:

◆ homogeneous_column() [1/2]

bool nocl::Grid::homogeneous_column ( void ) const

virtual

Determine whether or not all columns will be the same size.

Referenced by homogeneous().

Here is the caller graph for this function:

◆ homogeneous_row() [2/2]

nocl::Grid & nocl::Grid::homogeneous_row ( const bool toggle )

virtual

Set whether or not all rows will be the same size.

◆ homogeneous_column() [2/2]

nocl::Grid & nocl::Grid::homogeneous_column ( const bool toggle )

virtual

Set whether or not all columns will be the same size.

◆ homogeneous()

nocl::Grid & nocl::Grid::homogeneous	(	const bool	column,
		const bool	row
	)

virtual

Set whether or not all rows and columns will be the same size.

References homogeneous_column(), and homogeneous_row().

Referenced by Grid().

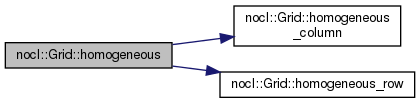

Here is the call graph for this function:

Here is the caller graph for this function:

◆ spacing_row() [1/2]

int nocl::Grid::spacing_row ( void ) const

virtual

Get the spacing between each row.

Referenced by spacing().

Here is the caller graph for this function:

◆ spacing_column() [1/2]

int nocl::Grid::spacing_column ( void ) const

virtual

Get the spacing between each column.

Referenced by spacing().

Here is the caller graph for this function:

◆ spacing_row() [2/2]

nocl::Grid & nocl::Grid::spacing_row ( const int spacing )

virtual

Set the spacing between each row.

Exceptions

nocl::Exception Invalid spacing.

References NOCL_WHERE.

◆ spacing_column() [2/2]

nocl::Grid & nocl::Grid::spacing_column ( const int spacing )

virtual

Set the spacing between each column.

Exceptions

nocl::Exception Invalid spacing.

References NOCL_WHERE.

◆ spacing()

nocl::Grid & nocl::Grid::spacing	(	const int	column,
		const int	row
	)

virtual

Set the spacing between each row and column.

References spacing_column(), and spacing_row().

Referenced by Grid().

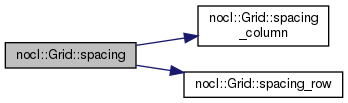

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator GtkContainer *()

nocl::Container::operator GtkContainer * ( void ) const

virtualinherited

Convert an instance of Container to GtkContainer*.

Exceptions

nocl::Exception Object was not created correctly and cannot be converted to GtkContainer*.

References nocl::GUIComponent::gtk_widget, and NOCL_WHERE.

◆ remove_child()

nocl::Container & nocl::Container::remove_child ( GUIComponent & child )

virtualinherited

Remove a child component from this container.

References nocl::Container::children, and nocl::GUIComponent::parent.

Referenced by nocl::Container::add_child(), add_child(), nocl::Container::~Container(), and nocl::GUIComponent::~GUIComponent().

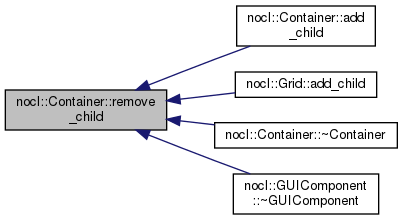

Here is the caller graph for this function:

◆ operator GtkWidget *()

nocl::GUIComponent::operator GtkWidget * ( void ) const

virtualinherited

Convert an instance of GUIComponent to GtkWidget*.

References nocl::GUIComponent::gtk_widget.

◆ move_to()

nocl::GUIComponent & nocl::GUIComponent::move_to ( const Point & p )

virtualinherited

Move to the specified coordinates.

Todo:

◆ natural_size()

nocl::Size nocl::GUIComponent::natural_size ( void )

virtualinherited

Get the natural size of a widget.

References nocl::GUIComponent::minimum_size().

Referenced by nocl::GUIComponent::minimum_size().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ minimum_size() [1/3]

nocl::Size nocl::GUIComponent::minimum_size ( void )

virtualinherited

Get the minimum size of a widget.

References nocl::GUIComponent::natural_size().

Referenced by nocl::GUIComponent::minimum_size(), and nocl::GUIComponent::natural_size().

Here is the call graph for this function:

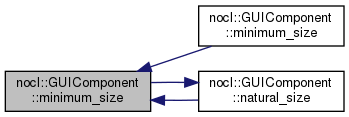

Here is the caller graph for this function:

◆ minimum_size() [2/3]

nocl::GUIComponent & nocl::GUIComponent::minimum_size ( const Size & s )

virtualinherited

Set the minimum size of a widget.

References nocl::Size::height, nocl::GUIComponent::minimum_size(), and nocl::Size::width.

Here is the call graph for this function:

◆ minimum_size() [3/3]

nocl::GUIComponent & nocl::GUIComponent::minimum_size	(	const int	width,
		const int	height
	)

virtualinherited

Set the minimum size of a widget.

◆ show()

nocl::GUIComponent & nocl::GUIComponent::show ( const bool toggle = true )

virtualinherited

Make the immediate component visible.

Parameters

[in] toggle Set to true to show the widget, or to false to hide the widget.

See also: hide(); show_all(); is_visible()

References nocl::GUIComponent::gtk_widget, and nocl::GUIComponent::hide().

Here is the call graph for this function:

◆ show_all()

nocl::GUIComponent & nocl::GUIComponent::show_all ( const bool toggle = true )

virtualinherited

Make the component and all child components visible.

Parameters

[in] toggle Set to true to show the widget and all children, or to false to hide the widget.

See also: show(); hide(); is_visible()

References nocl::GUIComponent::gtk_widget, and nocl::GUIComponent::hide().

Here is the call graph for this function:

◆ hide()

nocl::GUIComponent & nocl::GUIComponent::hide ( void )

virtualinherited

Hide a single component.

See also: show(); show_all(); is_visible()

References nocl::GUIComponent::gtk_widget.

Referenced by nocl::GUIComponent::show(), and nocl::GUIComponent::show_all().

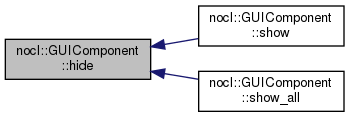

Here is the caller graph for this function:

◆ is_visible()

bool nocl::GUIComponent::is_visible ( void ) const

virtualinherited

Determine if the widget is shown.

See also: show(); show_all(); hide()

References nocl::GUIComponent::gtk_widget.

◆ widget_to_gui_component_map()

nocl::WidgetToGUIComponentMap & nocl::GUIComponent::widget_to_gui_component_map ( void )

staticinherited

There are times when we have a pointer to a Gtk+ widget, and we need to map it back to the corresponding NOCL GUI component.

For example, during event handling, Gtk+ tells us which Gtk+ widget generated the event, but we need the corresponding NOCL object so we can call the event handler with a reference to the correct object.

Note: This is not intended for end-users to access directly!

Referenced by nocl::ButtonHandler::handle_button_events_for(), and nocl::GUIComponent::~GUIComponent().

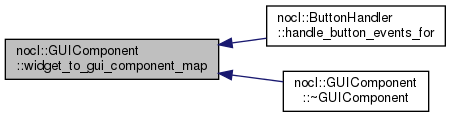

Here is the caller graph for this function:

Member Data Documentation

◆ children

std::set<GUIComponent*> nocl::Container::children

inherited

Keep track of all children that have been added to this container.

Referenced by nocl::Container::add_child(), add_child(), nocl::Container::remove_child(), and nocl::Container::~Container().

◆ parent

Container* nocl::GUIComponent::parent

inherited

Pointer to the parent to which we've been added. Will be nullptr if this object hasn't been added to a parent container.

Referenced by nocl::Container::add_child(), add_child(), nocl::Container::remove_child(), and nocl::GUIComponent::~GUIComponent().

◆ gtk_widget

GtkWidget* nocl::GUIComponent::gtk_widget

inherited

Pointer to the underlying GTK framework.

Referenced by nocl::Box::Box(), nocl::ButtonBox::ButtonBox(), Grid(), nocl::ButtonHandler::handle_button_events_for(), nocl::GUIComponent::hide(), nocl::FrameWindow::initialize(), nocl::Window::is_resizable(), nocl::GUIComponent::is_visible(), nocl::Label::Label(), nocl::FrameWindow::operator GtkApplicationWindow *(), nocl::Box::operator GtkBox *(), nocl::Button::operator GtkButton *(), nocl::ButtonBox::operator GtkButtonBox *(), nocl::Container::operator GtkContainer *(), nocl::TextField::operator GtkEntry *(), nocl::Fixed::operator GtkFixed *(), operator GtkGrid *(), nocl::Label::operator GtkLabel *(), nocl::Layout::operator GtkLayout *(), nocl::SpinButton::operator GtkSpinButton *(), nocl::ToggleSwitch::operator GtkSwitch *(), nocl::TextEditor::operator GtkTextView *(), nocl::GUIComponent::operator GtkWidget *(), nocl::Window::operator GtkWindow *(), nocl::Window::resizable(), nocl::GUIComponent::show(), nocl::GUIComponent::show_all(), nocl::SpinButton::SpinButton(), nocl::TextButton::TextButton(), nocl::TextEditor::TextEditor(), nocl::TextField::TextField(), nocl::ToggleSwitch::ToggleSwitch(), and nocl::GUIComponent::~GUIComponent().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~Grid()

◆ Grid()

Member Function Documentation

◆ operator GtkGrid *()

◆ add_child() [1/2]

◆ add_child() [2/2]

◆ homogeneous_row() [1/2]

◆ homogeneous_column() [1/2]

◆ homogeneous_row() [2/2]

◆ homogeneous_column() [2/2]

◆ homogeneous()

◆ spacing_row() [1/2]

◆ spacing_column() [1/2]

◆ spacing_row() [2/2]

◆ spacing_column() [2/2]

◆ spacing()

◆ operator GtkContainer *()

◆ remove_child()

◆ operator GtkWidget *()

◆ move_to()

◆ natural_size()

◆ minimum_size() [1/3]

◆ minimum_size() [2/3]

◆ minimum_size() [3/3]

◆ show()

◆ show_all()

◆ hide()

◆ is_visible()

◆ widget_to_gui_component_map()

Member Data Documentation

◆ children

◆ parent

◆ gtk_widget
