cv::WImageViewC< T, C > Class Template Reference

#include "wimage.hpp"

Inheritance diagram for cv::WImageViewC< T, C >:

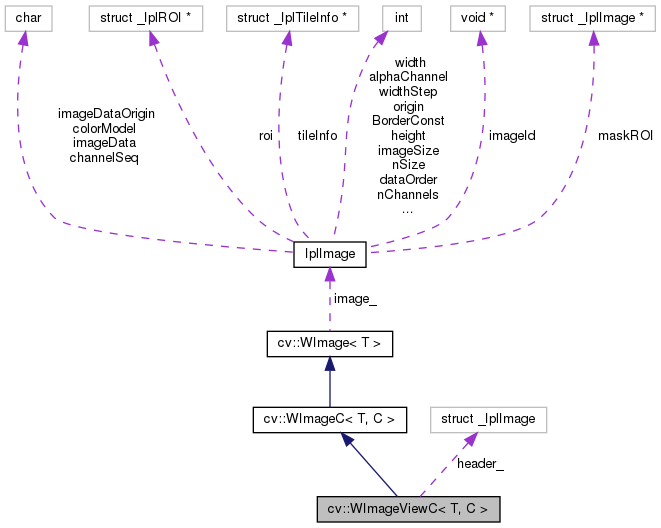

Collaboration diagram for cv::WImageViewC< T, C >:

Public Types
enum	{ kChannels = C }
enum	{ kChannels = C }
typedef WImage< T >::BaseType	BaseType

Public Member Functions
	WImageViewC ()
	WImageViewC (WImageC< T, C > *img, int c, int r, int width, int height)
	WImageViewC (T *data, int width, int height, int width_step=-1)
	WImageViewC (IplImage *img)
	WImageViewC (const WImageC< T, C > &img)
	WImageViewC (const WImageViewC< T, C > &img)
virtual	~WImageViewC ()
int	Channels () const
int	ChannelSize () const
void	CopyFrom (const WImage< T > &src)
void	CopyFrom (const WImageC< T, C > &src)
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
int	Height () const
T *	ImageData ()
const T *	ImageData () const
IplImage *	Ipl ()
const IplImage *	Ipl () const
T *	operator() (int c, int r)
const T *	operator() (int c, int r) const
WImageViewC &	operator= (const WImageC< T, C > &img)
WImageViewC &	operator= (const WImageViewC< T, C > &img)
int	PixelSize () const
const T *	Row (int r) const
T *	Row (int r)
void	SetZero ()
WImageViewC< T, C >	View (int c, int r, int width, int height)
int	Width () const
int	WidthStep () const

Protected Member Functions
void	SetIpl (IplImage *image)

Protected Attributes
IplImage	header_
IplImage *	image_

Member Typedef Documentation

BaseType

template<typename T, int C>

typedef WImage<T>::BaseType cv::WImageViewC< T, C >::BaseType

Member Enumeration Documentation

anonymous enum

template<typename T, int C>

anonymous enum

inherited

Enumerator
kChannels

anonymous enum

template<typename T, int C>

anonymous enum

Enumerator
kChannels

Constructor & Destructor Documentation

~WImageViewC()

template<typename T, int C>

virtual cv::WImageViewC< T, C >::~WImageViewC ( )

inlinevirtual

WImageViewC() [1/3]

template<typename T, int C>

cv::WImageViewC< T, C >::WImageViewC ( IplImage *  img )

inline

WImageViewC() [2/3]

template<typename T, int C>

cv::WImageViewC< T, C >::WImageViewC ( const WImageC< T, C > &  img )

inline

References cv::WImage< T >::Ipl(), and cv::WImageC< T, C >::SetIpl().

Here is the call graph for this function:

WImageViewC() [3/3]

template<typename T, int C>

cv::WImageViewC< T, C >::WImageViewC ( const WImageViewC< T, C > &  img )

inline

References cv::WImage< T >::Ipl(), and cv::WImageC< T, C >::SetIpl().

Here is the call graph for this function:

Member Function Documentation

Channels()

template<typename T, int C>

int cv::WImageC< T, C >::Channels ( ) const

inlineinherited

References cv::WImage< T >::operator=().

Here is the call graph for this function:

ChannelSize()

template<typename T>

int cv::WImage< T >::ChannelSize ( ) const

inlineinherited

Referenced by cv::WImage< T >::PixelSize().

Here is the caller graph for this function:

CopyFrom() [1/2]

template<typename T>

void cv::WImage< T >::CopyFrom ( const WImage< T > &  src )

inlineinherited

References cvCopy(), cv::WImage< T >::image_, and cv::WImage< T >::Ipl().

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the call graph for this function:

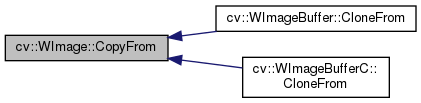

Here is the caller graph for this function:

CopyFrom() [2/2]

template<typename T, int C>

void cv::WImageC< T, C >::CopyFrom ( const WImageC< T, C > &  src )

inlineinherited

References cvCopy(), and cv::WImage< T >::Ipl().

Here is the call graph for this function:

Depth() [1/8]

template<typename T>

int cv::WImage< T >::Depth ( ) const

inherited

Referenced by cv::WImage< T >::PixelSize().

Here is the caller graph for this function:

Depth() [2/8]

template<>

int cv::WImage< uchar >::Depth ( ) const

inlineinherited

References IPL_DEPTH_8U.

Depth() [3/8]

template<>

int cv::WImage< signed char >::Depth ( ) const

inlineinherited

References IPL_DEPTH_8S.

Depth() [4/8]

template<>

int cv::WImage< short >::Depth ( ) const

inlineinherited

References IPL_DEPTH_16S.

Depth() [5/8]

template<>

int cv::WImage< ushort >::Depth ( ) const

inlineinherited

References IPL_DEPTH_16U.

Depth() [6/8]

template<>

int cv::WImage< int >::Depth ( ) const

inlineinherited

References IPL_DEPTH_32S.

Depth() [7/8]

template<>

int cv::WImage< float >::Depth ( ) const

inlineinherited

References IPL_DEPTH_32F.

Depth() [8/8]

template<>

int cv::WImage< double >::Depth ( ) const

inlineinherited

References IPL_DEPTH_64F.

Height()

template<typename T>

int cv::WImage< T >::Height ( ) const

inlineinherited

References IplImage::height, and cv::WImage< T >::image_.

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the caller graph for this function:

ImageData() [1/2]

template<typename T>

T* cv::WImage< T >::ImageData ( )

inlineinherited

References cv::WImage< T >::image_, and IplImage::imageData.

ImageData() [2/2]

template<typename T>

const T* cv::WImage< T >::ImageData ( ) const

inlineinherited

References cv::WImage< T >::image_, and IplImage::imageData.

Ipl() [1/2]

template<typename T>

IplImage* cv::WImage< T >::Ipl ( )

inlineinherited

References cv::WImage< T >::image_.

Referenced by cv::WImage< T >::CopyFrom(), cv::WImageC< T, C >::CopyFrom(), cv::WImageView< T >::operator=(), cv::WImageViewC< T, C >::operator=(), cv::WImageView< T >::WImageView(), and cv::WImageViewC< T, C >::WImageViewC().

Here is the caller graph for this function:

Ipl() [2/2]

template<typename T>

const IplImage* cv::WImage< T >::Ipl ( ) const

inlineinherited

References cv::WImage< T >::image_.

operator()() [1/2]

template<typename T>

T* cv::WImage< T >::operator() ( int  c, int  r  )

inlineinherited

References cv::WImage< T >::Channels(), cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

Here is the call graph for this function:

operator()() [2/2]

template<typename T>

const T* cv::WImage< T >::operator() ( int  c, int  r  ) const

inlineinherited

References cv::WImage< T >::Channels(), cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

Here is the call graph for this function:

operator=() [1/2]

template<typename T, int C>

WImageViewC& cv::WImageViewC< T, C >::operator= ( const WImageC< T, C > &  img )

inline

References cv::WImage< T >::Ipl(), and cv::WImageC< T, C >::SetIpl().

Here is the call graph for this function:

operator=() [2/2]

template<typename T, int C>

WImageViewC& cv::WImageViewC< T, C >::operator= ( const WImageViewC< T, C > &  img )

inline

References cv::WImage< T >::Ipl(), and cv::WImageC< T, C >::SetIpl().

Here is the call graph for this function:

PixelSize()

template<typename T>

int cv::WImage< T >::PixelSize ( ) const

inlineinherited

References cv::WImage< T >::Channels(), cv::WImage< T >::ChannelSize(), and cv::WImage< T >::Depth().

Here is the call graph for this function:

Row() [1/2]

template<typename T>

const T* cv::WImage< T >::Row ( int  r ) const

inlineinherited

References cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

Row() [2/2]

template<typename T>

T* cv::WImage< T >::Row ( int  r )

inlineinherited

References cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

SetIpl()

template<typename T, int C>

void cv::WImageC< T, C >::SetIpl ( IplImage *  image )

inlineprotectedinherited

References IplImage::depth, and cv::WImage< T >::SetIpl().

Referenced by cv::WImageBufferC< T, C >::Allocate(), cv::WImageViewC< T, C >::operator=(), cv::WImageBufferC< T, C >::ReleaseImage(), cv::WImageBufferC< T, C >::SetIpl(), and cv::WImageViewC< T, C >::WImageViewC().

Here is the call graph for this function:

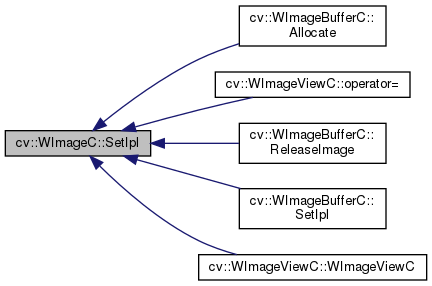

Here is the caller graph for this function:

SetZero()

template<typename T>

void cv::WImage< T >::SetZero ( )

inlineinherited

References cvSetZero(), cv::WImage< T >::image_, cv::WImage< T >::operator=(), cv::WImage< T >::View(), and cv::WImage< T >::WImage().

Here is the call graph for this function:

Width()

template<typename T>

int cv::WImage< T >::Width ( ) const

inlineinherited

References cv::WImage< T >::image_, and IplImage::width.

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the caller graph for this function:

WidthStep()

template<typename T>

int cv::WImage< T >::WidthStep ( ) const

inlineinherited

References cv::WImage< T >::image_, and IplImage::widthStep.

Member Data Documentation

header_

template<typename T, int C>

IplImage cv::WImageViewC< T, C >::header_

protected

Referenced by cv::WImageViewC< T, C >::WImageViewC().

image_

template<typename T>

IplImage* cv::WImage< T >::image_

protectedinherited

Referenced by cv::WImage< T >::Channels(), cv::WImage< T >::CopyFrom(), cv::WImage< T >::Height(), cv::WImage< T >::ImageData(), cv::WImage< T >::Ipl(), cv::WImage< T >::operator()(), cv::WImage< T >::Row(), cv::WImage< T >::SetIpl(), cv::WImage< T >::SetZero(), cv::WImage< T >::Width(), and cv::WImage< T >::WidthStep().

---

The documentation for this class was generated from the following file:

• core/include/opencv2/core/wimage.hpp
