CvSeq Struct Reference

#include "types_c.h"

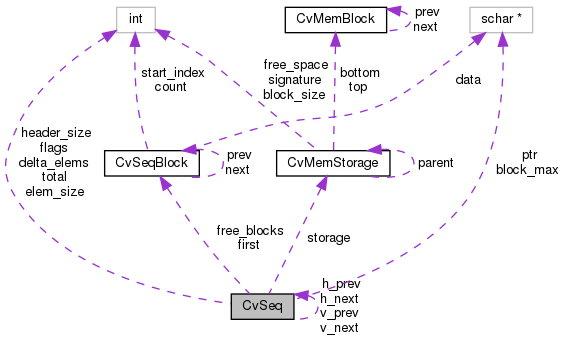

Collaboration diagram for CvSeq:

Public Attributes
schar *	block_max
	Maximal bound of the last block. More...
int	delta_elems
	Grow seq this many at a time. More...
int	elem_size
	Size of sequence element in bytes. More...
CvSeqBlock *	first
	Pointer to the first sequence block. More...
int	flags
	Miscellaneous flags. More...
CvSeqBlock *	free_blocks
	Free blocks list. More...
struct CvSeq *	h_next
	Next sequence. More...
struct CvSeq *	h_prev
	Previous sequence. More...
int	header_size
	Size of sequence header. More...
schar *	ptr
	Current write pointer. More...
CvMemStorage *	storage
	Where the seq is stored. More...
int	total
	Total number of elements. More...
struct CvSeq *	v_next
	< 2nd next sequence. More...
struct CvSeq *	v_prev
	2nd previous sequence. More...

Member Data Documentation

block_max

schar* CvSeq::block_max

Maximal bound of the last block.

delta_elems

int CvSeq::delta_elems

Grow seq this many at a time.

elem_size

int CvSeq::elem_size

Size of sequence element in bytes.

Referenced by cv::Seq< _Tp >::elemSize(), and cv::Seq< _Tp >::Seq().

first

CvSeqBlock* CvSeq::first

Pointer to the first sequence block.

flags

int CvSeq::flags

Miscellaneous flags.

Referenced by cv::Seq< _Tp >::channels(), cv::Seq< _Tp >::depth(), and cv::Seq< _Tp >::type().

free_blocks

CvSeqBlock* CvSeq::free_blocks

Free blocks list.

h_next

struct CvSeq* CvSeq::h_next

Next sequence.

h_prev

struct CvSeq* CvSeq::h_prev

Previous sequence.

header_size

int CvSeq::header_size

Size of sequence header.

ptr

schar* CvSeq::ptr

Current write pointer.

storage

CvMemStorage* CvSeq::storage

Where the seq is stored.

total

int CvSeq::total

Total number of elements.

Referenced by cv::Seq< _Tp >::copyTo(), cv::Seq< _Tp >::empty(), cv::SeqIterator< _Tp >::operator++(), cv::SeqIterator< _Tp >::operator+=(), cv::operator-(), cv::SeqIterator< _Tp >::operator--(), cv::SeqIterator< _Tp >::SeqIterator(), and cv::Seq< _Tp >::size().

v_next

struct CvSeq* CvSeq::v_next

< 2nd next sequence.

v_prev

struct CvSeq* CvSeq::v_prev

2nd previous sequence.

---

The documentation for this struct was generated from the following file:

• core/include/opencv2/core/types_c.h
