EPS::CommHeader1 Struct Reference

Communication header: common fields to all communication commands. More...

#include "comm.hpp"

Public Member Functions
	CommHeader1 (void)
	Constructor. More...
void	set (const EPS::ECommType type, const size_t bytes)
	Initialize the header. More...
size_t	size_of_packet (void) const
	A safe way to get number_of_bytes, automatically converting it to host order and resizing it as a size_t. More...
EPS::ECommType	type (void) const
	A safe way to get comm_type as a EPS::ECommType value. More...

Public Attributes
uint8_t	protocol_version
	protocol version identifier More...
uint16_t	number_of_bytes
	number of bytes in the comm structure including every byte in the header structure (stored in network byte order) More...
uint8_t	comm_type
	structure type More...
uint8_t	reserved_5
	Reserved for future use. More...
uint32_t	reserved_1
	reserved for future use, and to ensure the common header is exactly 16 bytes in length More...
uint32_t	reserved_2
	reserved for future use, and to ensure the common header is exactly 16 bytes in length More...
uint16_t	reserved_3
	reserved for future use, and to ensure the common header is exactly 16 bytes in length More...
uint8_t	reserved_4
	reserved for future use, and to ensure the common header is exactly 16 bytes in length More...

Detailed Description

Communication header: common fields to all communication commands.

It is padded out to 16 bytes so it is exactly 1 block once we AES-encrypt it. This makes it easier when it comes time to read packets off the wire if we know the common header is exactly 1 AES cipher block.

Constructor & Destructor Documentation

CommHeader1()

EPS::CommHeader1::CommHeader1

(

void

)

Constructor.

Member Function Documentation

set()

void EPS::CommHeader1::set	(	const EPS::ECommType	type,
		const size_t	bytes
	)

Initialize the header.

Here is the call graph for this function:

size_of_packet()

size_t EPS::CommHeader1::size_of_packet

(

void

)

const

A safe way to get number_of_bytes, automatically converting it to host order and resizing it as a size_t.

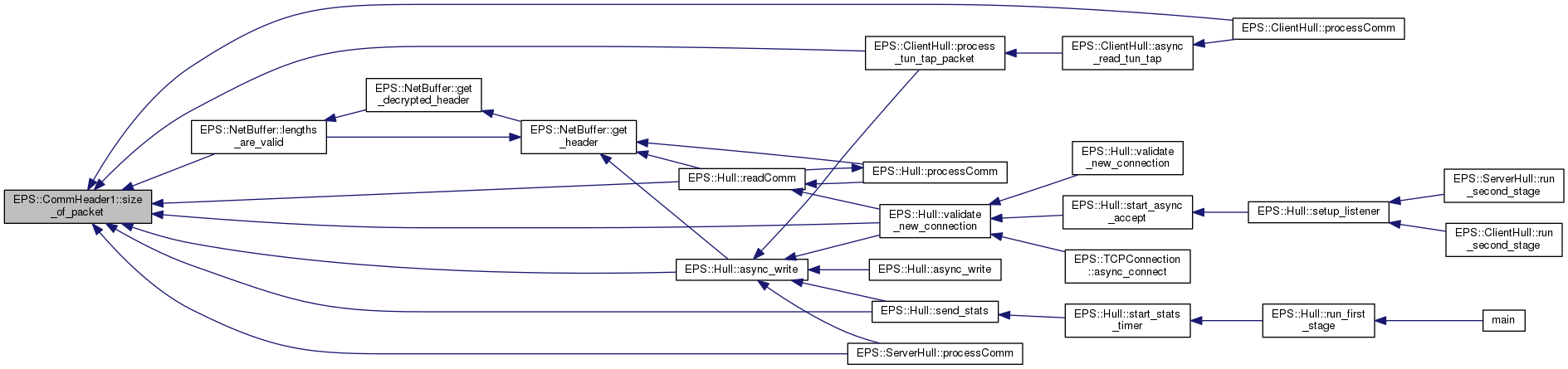

Here is the caller graph for this function:

type()

EPS::ECommType EPS::CommHeader1::type

(

void

)

const

A safe way to get comm_type as a EPS::ECommType value.

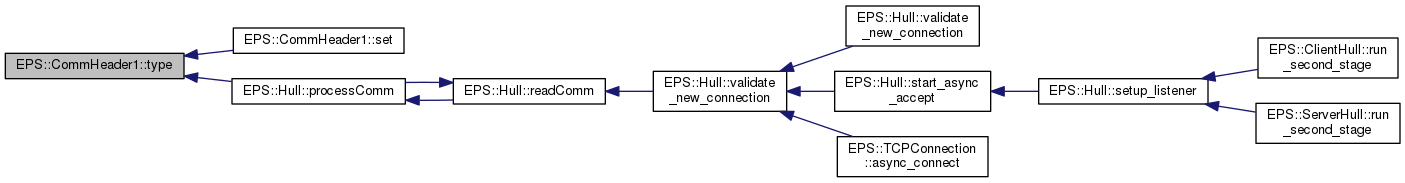

Here is the caller graph for this function:

Member Data Documentation

comm_type

uint8_t EPS::CommHeader1::comm_type

structure type

See also

EPS::ECommType

EPS::comm_type_to_string()

number_of_bytes

uint16_t EPS::CommHeader1::number_of_bytes

number of bytes in the comm structure including every byte in the header structure (stored in network byte order)

protocol_version

uint8_t EPS::CommHeader1::protocol_version

protocol version identifier

reserved_1

uint32_t EPS::CommHeader1::reserved_1

reserved for future use, and to ensure the common header is exactly 16 bytes in length

reserved_2

uint32_t EPS::CommHeader1::reserved_2

reserved for future use, and to ensure the common header is exactly 16 bytes in length

reserved_3

uint16_t EPS::CommHeader1::reserved_3

reserved for future use, and to ensure the common header is exactly 16 bytes in length

reserved_4

uint8_t EPS::CommHeader1::reserved_4

reserved for future use, and to ensure the common header is exactly 16 bytes in length

reserved_5

uint8_t EPS::CommHeader1::reserved_5

Reserved for future use.

Try and leave this last reserved value at zero, so that when we decrypt the header bytes (the first 16 bytes of the message) we don't mistake this 16th byte as a PKCS #5 / PKCS #7 padding value and accidentally truncate the header.

See also

EPS::Cipher::decrypt()

---

The documentation for this struct was generated from the following files:

• comm.hpp
• comm.cpp
