Gorman Moisture Meter  v1.0.0-2719
Configuration

GMM stores all configuration settings in a simple XML-format text file.

The file is global to all users, and if it does not exist will be created the first time GMM runs. This file will need to be edited when the application first runs, but once setup correctly shouldn't need to be edited again.

Platform Configuration File
Linux /var/.GormanMoistureMeter/GormanMoistureMeter.cfg
Windows C:\ProgramData\GormanMoistureMeter\GormanMoistureMeter.cfg

There are two types of settings stored in the .cfg file: global, and prefixed:

  • Global settings appear just once in configuration. For example, GMMWnd.
  • Prefix settings appear multiple times in configuration, once per tab. For example, a_device and b_device. Every tab in GMM has a unique prefix.

Configuration Strings

Configuration Type Default Value Description
*_chart_redraw_ms Prefix "1000" How long GMM waits between updates to the window and re-drawing the chart. See *_chart_redraw_ms for details.
*_comm_str Prefix "..." See *_comm_str for details.
*_device Prefix "..." The serial communication device to open. See *_device for details.
*_export_image Prefix "false" Whether to save the chart image to disk. See *_export_image for details.
*_interval_ms Prefix "250" The length of time (in milliseconds) between attempts to read the serial port.
*_last_kiln Prefix "1" Internal value used to store the last known kiln number. This value is automatically updated by GMM.
*_last_pkg Prefix "1" Internal value used to store the last known package number. This value is automatically updated by GMM.
*_last_run Prefix "1" Internal value used to store the last known run number. This value is automatically updated by GMM.
*_name Prefix "..." The name to display for this tab. See *_name for details.
*_opc_kiln_register Prefix "N75:3" The OPC register to read to obtain the kiln number. The results are then stored in *_last_kiln.
*_opc_pkg_register Prefix "N75:5" The OPC register to read to obtain the package number. The results are then stored in *_last_pkg.
*_opc_run_register Prefix "N75:4" The OPC register to read to obtain the run number. The results are then stored in *_last_run.
*_opc_via_csv_filename Prefix "..." Another method by which RSLinx OPC data can be fed to GMM. No longer supported.
*_opc_via_csv_regex Prefix "..." Another method by which RSLinx OPC data can be fed to GMM. No longer supported.
*_read_len Prefix "11" The number of bytes to read from the serial port.
*_regex_pattern Prefix "\s*([\d.]{4})\s([\d.]{4})\s*" The regular expression used to parse the data read from the serial communication port. See *_regex_pattern for details.
*_run_simulation Prefix "FALSE" Whether to simulate the data, or actually read from the serial port. Except when testing, this should be kept at "false".
allow_user_to_close Global "TRUE" Whether the GMM window can be closed by the user clicking on the titlebar "X". When set to "false", GMM can only be closed via Windows Task Manager.
get_motd Global "TRUE" Whether to download and display a text message from the GMM web site.
get_version_number Global "TRUE" Whether to check to see if there is a new version from the GMM web site.
GMMWnd Global "..." Internal value used to store the window geometry. This is automatically updated by GMM and shouldn't be modified by hand.
number_of_items_to_load Global "..." Internal value used to store the number of items to load on startup. This is automatically updated by GMM and shouldn't be modified by hand.
opc_console_application Global "opcconsole.exe" The application and arguments to run to start the GMM OPC Console.
opc_group Global "INFEED" The OPC group name.
opc_output_filename Global "..." Internal value used to identify a filename to communicate between GMM and OPC Console.
opc_show_console_window Global "TRUE" Whether the OPC Console is shown or hidden.
opc_url Global "opcda://localhost/RSLinx OPC Server" The URL to use to connect to the OPC server.
output_directory Global "C:\\22m2k\\data\\%Y\\boardmc\\" The directory where the output files will be saved. The "%Y" will be replaced with the current 4-digit year.
warn_board_threshold Global "1500" If a package contains this number of boards or more, a warning is shown to the user. This requires that warn_if_package_contains_too_many_boards is set to "TRUE".
warn_if_package_contains_too_many_boards Global "TRUE" Determines if warnings are shown to the user if a package contains too many boards. See Boards for details.
warn_seconds_between_warnings Global "300" The number of seconds that must elapse before a 2nd warning is shown to the user.

Configuration Details

Note that GMM itself modifies the .cfg file, such as when it is updating the GMMWnd value. If you modify the .cfg file by hand while GMM is running, your modifications will be overwritten/discarded when GMM eventually exits!

Note
Ensure that GMM is not running if you want to modify the configuration file.

*_chart_redraw_ms

The *_chart_redraw_ms configuration variable determines the length of time between iterations of the main GMM GUI loop. Initially, this was used to redraw the chart on the screen – thus the name of the configuration variable – though now it contains much more functionality.

The loop drives a number of items, and the loop interval directly determines how often they happen. By default, the interval is usually set to 1000 milliseconds. The actions that occur once per loop are:

  • The graph at the bottom of the window is fully re-drawn.
  • All of the buckets are updated with the most recent numbers read from the serial port since the last interval.
  • The standard deviation is re-calculated for the package and the run.
  • Parse any updates (if any) from OPC Console.
  • Determine if warning popup messages (see Warning Messages) need to be displayed.

*_comm_str

The *_comm_str configuration string determines how the serial port is initialized. The string is passed as-is to the Win32 function call BuildCommDCBA().

Additional information on how to use this configuration string can be found by doing a Google search on functions such as BuildCommDCBA(), BuildCommDCBAndTimeoutsA(), or how to use the mode command to configure a serial communication port.

For example, refer to https://docs.microsoft.com/en-us/windows-server/administration/windows-commands/mode for help with the mode command.

Several common strings to try:

Description comm_str
Flow control none "baud=9600 parity=N data=8 stop=1 to=on xon=off odsr=off octs=off dtr=on rts=on idsr=off"
Flow control hardware "baud=9600 parity=N data=8 stop=1 to=on xon=off odsr=off octs=on dtr=on rts=hs idsr=off"
Flow control xon/xoff "baud=9600 parity=N data=8 stop=1 to=on xon=on odsr=off octs=off dtr=on rts=on idsr=off"

*_device

The *_device configuration string names the hardware device which will be opened and read. Typically, the device name will be similar to com1, com2, etc.

By default when GMM runs for the first time and creates a new .xml file, the following devices are setup:

  • com4
  • com5
  • com6
  • com7
See also
*_name

*_export_image

The chart image is typically re-drawn every 1000 milliseconds for the active tab, as described by *_chart_redraw_ms. In addition, the chart image can also be written to disk at the same time when *_export_image is set to "true".

When enabled, the images are redrawn for all tabs, not only the active tab, and they are exported to %tmp% after they've been generated, which typically will look like C:\Users\username\AppData\Local\Temp\.

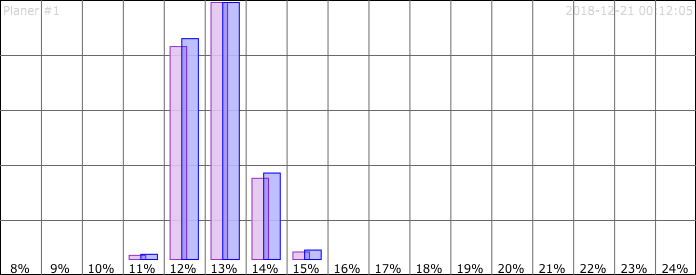

For example:


*_name

The *_name configuration string provides a readable English-language name to each tab. Instead of refering to a device as "com4", it can then be refered to as "Planer #1" which is more meaningful.

The original mapping between *_device and *_name is as follows:

Device Name
com4 "Planer #1"
com5 "Planer #2"
com6 "Moulder"
com7 "Spare"
See also
*_device

*_regex_pattern

The *_regex_pattern configuration string contains a regular expression used to parse the data read from the communication port. Regular expressions are complex textual descriptions used to perform character matching. Do a Google search or refer to https://en.wikipedia.org/wiki/Regular_expression for details.

The default regex used is the following: "\s*([\d.]{4})\s([\d.]{4})\s*". This is broken down as follows:

Regex Meaning
"\s*" Skip over any number of leading whitespace characters.
"([\d.]{4})" Read exactly 4 characters and remember them. The characters must be either numerical digits or a period. For example: 14.3.
This value is interpreted as the moisture value for the current board.
"\s" Skip over a single whitespace character, such as space or tab.
"([\d.]{4})" Read exactly 4 characters and remember them. The characters must be either numerical digits or a period. For example: 14.3.
This value is interpreted as the average.
"\s*" Skip over any number of trailing whitespace characters. For example, the \r\n (carriage return + linefeed) at the end of the string.

Adding A New Device

Adding a new device (a new tab) is very simple. There is only 1 required configuration string: *_device.

When GMM starts, if it finds a new *_device configuration string, it will then add all of the other necessary configuration strings, making it relatively easy to then customize by hand.

To add a new device (tab):

  • Stop GMM.
  • Using a plain text editor such as notepad, edit the .cfg configuration file "C:\ProgramData\GormanMoistureMeter\GormanMoistureMeter.cfg".
  • Choose a prefix which doesn't yet exist. For this example, we'll use the prefix "test".
  • Add a new *_device line to the .cfg file using the new prefix. For this example: <VALUE name="test_device" val="com9"/>
  • Save the .cfg file.
  • Restart GMM.

At this point, a new tab should have been created. If the settings for this new tab need to be modified:

  • Stop GMM.
  • Using a plain text editor such as notepad, edit the .cfg configuration file "C:\ProgramData\GormanMoistureMeter\GormanMoistureMeter.cfg".
  • Look for and edit all the new settings that were created with the "test" prefix, such as test_name, test_comm_str, test_regex_pattern, etc.
  • Save the .cfg file.
  • Restart GMM.
