BinaryProtocol Class Reference

The IncJet devices can communicate using several different methods. More...

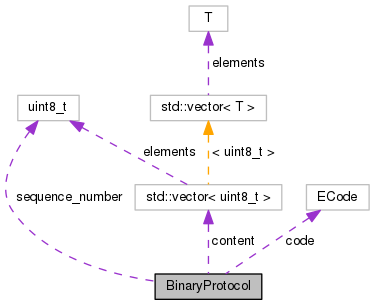

Collaboration diagram for BinaryProtocol:

Public Types
enum	ECode {   kInvalid = 0xff,   kPowerUpMsg = 0x01,   kAcknowledgeMsg = 0x09,   kKeepAlive = 0x30,   kReportIOStates = 0x65,   kIOStates = 0x66,   kDoneWithFiles = 0x70,   kSendIjsFile = 0x72,   kSendIjbFile = 0x7d,   kRequestStatus = 0x8d,   kImagerStatus = 0x8e }
	These are the 1-byte "MsgID" values described in section 6.0 of the document. More...

Public Member Functions
	BinaryProtocol (void)
	Constructor. More...
	~BinaryProtocol (void)
	Destructor. More...
	BinaryProtocol (const VBytes &v, const size_t number_of_bytes)
	Parse the data in the vector. More...
BinaryProtocol &	parse (const VBytes &v, const size_t number_of_bytes)
	Parse the data in the vector. More...
VBytes	message_data (void) const
	Extract just the message data bytes from the content. Will return an empty vector if there are no data bytes. More...
std::string	describe (void) const
	Describe in English text the message contained within content. More...
BinaryProtocol &	create (const ECode new_code)
	Create a new sequence of bytes to send out to the imager device. More...
BinaryProtocol &	append (const VBytes &file_contents)
	Append the vector to the existing content buffer. Automatically updates the "NumBytes" value. More...

Public Attributes
uint8_t	sequence_number
	SeqNum, 5th byte into the data vector. More...
ECode	code
	The message ID extracted from the parsed content, 7th byte into the data vector. More...
VBytes	content
	A full copy of the bytes that were parsed. More...

Detailed Description

The IncJet devices can communicate using several different methods.

The document "IJM017B OnBoardRIP Software Integration Guide" describes a method called "binary protocol".

The message format is described in section 4.2, "Binary Protocol Command Structure":

Offset	Field	Description
0x00	STX	Start of transmission. Should be 0x02.
0x01-0x04	NumBytes	Number of bytes following this parameter, beginning with Checksum field and ending with the ETX.
0x05	Checksum	Unused.
0x06	SeqNum	Message sequence number. Possibly unused?
0x07	MsgID	Message ID.
0x08-...	TBuff	Message data goes here.
... + 1	ETX	End of transmission. Should be 0x03.

Note

Don't get confused with section 4.3 of the document, which describes the "simple ASCII" protocol versus the binary protocol from section 4.2!

The SeqNum field is not described in the document. Start with 1 and keep increasing it.

The MsgID field is the "code" in section 6, starting on page 18. Not all codes are described in the document, some had to be reverse engineered. See BinaryProtocol::ECode.

Member Enumeration Documentation

ECode

enum BinaryProtocol::ECode

strong

These are the 1-byte "MsgID" values described in section 6.0 of the document.

Constructor & Destructor Documentation

BinaryProtocol() [1/2]

BinaryProtocol::BinaryProtocol

(

void

)

Constructor.

~BinaryProtocol()

BinaryProtocol::~BinaryProtocol

(

void

)

Destructor.

BinaryProtocol() [2/2]

BinaryProtocol::BinaryProtocol	(	const VBytes &	v,
		const size_t	number_of_bytes
	)

Parse the data in the vector.

References parse().

Here is the call graph for this function:

Member Function Documentation

parse()

BinaryProtocol & BinaryProtocol::parse	(	const VBytes &	v,
		const size_t	number_of_bytes
	)

Parse the data in the vector.

Exceptions

Lox::Exception

if the data cannot be parsed

References code, content, describe(), and sequence_number.

Referenced by BinaryProtocol().

Here is the call graph for this function:

Here is the caller graph for this function:

message_data()

VBytes BinaryProtocol::message_data

(

void

)

const

Extract just the message data bytes from the content. Will return an empty vector if there are no data bytes.

References code, and content.

Referenced by describe(), and BinaryProtocolConnection::write_and_expect_ack().

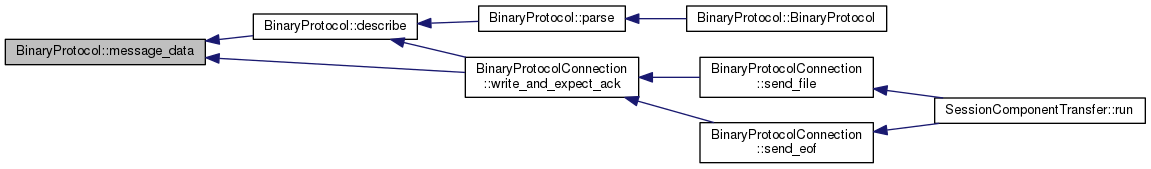

Here is the caller graph for this function:

describe()

std::string BinaryProtocol::describe

(

void

)

const

Describe in English text the message contained within content.

References code, and message_data().

Referenced by parse(), and BinaryProtocolConnection::write_and_expect_ack().

Here is the call graph for this function:

Here is the caller graph for this function:

create()

BinaryProtocol & BinaryProtocol::create

(

const ECode

new_code

)

Create a new sequence of bytes to send out to the imager device.

References code, content, and sequence_number.

Referenced by BinaryProtocolConnection::initiate_communications(), BinaryProtocolConnection::send_eof(), and BinaryProtocolConnection::send_file().

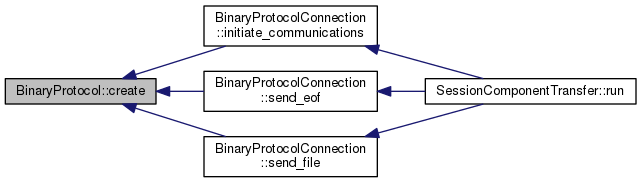

Here is the caller graph for this function:

append()

BinaryProtocol & BinaryProtocol::append

(

const VBytes &

file_contents

)

Append the vector to the existing content buffer. Automatically updates the "NumBytes" value.

Exceptions

Lox::Exception	if the binary protocol message is invalid (too small)
Lox::Exception	if the binary protocol message does not end with ETX (0x03)

References content.

Referenced by BinaryProtocolConnection::send_file().

Here is the caller graph for this function:

Member Data Documentation

sequence_number

uint8_t BinaryProtocol::sequence_number

SeqNum, 5th byte into the data vector.

Referenced by create(), and parse().

code

ECode BinaryProtocol::code

The message ID extracted from the parsed content, 7th byte into the data vector.

Referenced by create(), describe(), BinaryProtocolConnection::initiate_communications(), message_data(), parse(), and BinaryProtocolConnection::write_and_expect_ack().

content

VBytes BinaryProtocol::content

A full copy of the bytes that were parsed.

Referenced by append(), create(), BinaryProtocolConnection::initiate_communications(), message_data(), parse(), and BinaryProtocolConnection::write_and_expect_ack().
