nocl::Application Class Reference

Application-level control. More...

#include <Application.hpp>

Inheritance diagram for nocl::Application:

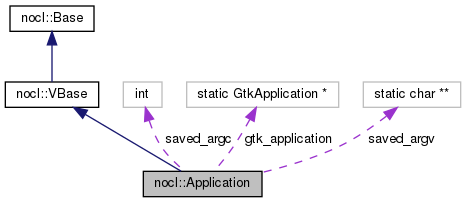

Collaboration diagram for nocl::Application:

Public Member Functions
virtual	~Application (void)
	Destructor. More...
	Application (int argc=0, char **argv=nullptr)
	Constructor. More...
	Application (const Application &rhs)=delete
	Cannot copy Application. More...
Application &	operator= (const Application &rhs)=delete
	Cannot assign Application. More...
virtual	operator GApplication * (void) const
	Convert to GApplication*. More...
virtual	operator GtkApplication * (void) const
	Convert to GtkApplication*. More...
virtual VStr	argv (void) const
	Get a vector of all the command line parameters (argv). More...
virtual Application &	initialize (void)=0
	This callback is made on startup once it is safe to create windows and controls. More...
virtual int	run_message_loop (void)
	Run the message loop. This will only return once the last FrameWindow has been closed. More...

Static Public Member Functions
static GtkApplication *	gtk_app (void)
	Return the underlying GtkApplication*. More...

Static Protected Attributes
static int	saved_argc = 0
	Value of argc normally passed into main(). More...
static char **	saved_argv = nullptr
	Value of argv normally passed into main(). More...
static GtkApplication *	gtk_application = nullptr
	Pointer to single GTK+ application. More...

Detailed Description

Application-level control.

Constructor & Destructor Documentation

~Application()

nocl::Application::~Application ( void  )

virtual

Destructor.

References gtk_application.

Application() [1/2]

nocl::Application::Application	(	int	argc = 0,
		char **	argv = nullptr
	)

Constructor.

Only one of these objects may be constructed. You should have a class that inherits from Application, and then override methods such as initialize().

The argc and argv parameters are provided for convenience, to gain easy access to the command line arguments from anywhere in the application. But neither NOCL nor GTK+ require specific startup parameters, so if you don't need the arguments they can be left empty.

Exceptions

nocl::Exception	Throws if the application object has already been constructed.
nocl::Exception	Throws if the GTK+ application cannot be created.

References argv(), gtk_application, initialize(), NOCL_WHERE, saved_argc, and saved_argv.

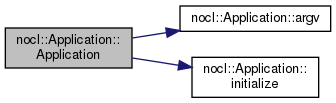

Here is the call graph for this function:

Application() [2/2]

nocl::Application::Application ( const Application &  rhs )

delete

Cannot copy Application.

Member Function Documentation

operator=()

Application& nocl::Application::operator= ( const Application &  rhs )

delete

Cannot assign Application.

operator GApplication *()

nocl::Application::operator GApplication * ( void  ) const

virtual

Convert to GApplication*.

References gtk_application.

operator GtkApplication *()

nocl::Application::operator GtkApplication * ( void  ) const

virtual

Convert to GtkApplication*.

References gtk_application.

argv()

nocl::VStr nocl::Application::argv ( void  ) const

virtual

Get a vector of all the command line parameters (argv).

This will return an empty vector unless argc and argv were provided in the constructor.

References saved_argc, and saved_argv.

Referenced by Application().

Here is the caller graph for this function:

initialize()

nocl::Application & nocl::Application::initialize ( void  )

pure virtual

This callback is made on startup once it is safe to create windows and controls.

One of your classes should inherit from nocl::Application and override nocl::Application::initialize(), possibly to initialize a FrameWindow and other GUI controls that it will need.

Example:

#include <nocl/nocl.hpp>

/* A simple class that inherits from nocl::Application and which has a single
 * nocl::FrameWindow as a member.  This shows both how to start an application
 * and display a top-level frame window to the user.
 */
class MyApp : public nocl::Application
{
    public:

        /* This callback, which we've inherited from nocl::Application, is
         * called once Gtk+ has been fully initialized.  This is the place
         * to create the necessary GUI controls to show to the user.
         */
        virtual MyApp & initialize(void) override
        {
            frame_window.initialize(*this, "Testing");
            frame_window.show();

            return *this;
        }

        nocl::FrameWindow frame_window;
};

int main()
{
    MyApp app;
    return app.run_message_loop();
}

Referenced by Application().

Here is the caller graph for this function:

run_message_loop()

int nocl::Application::run_message_loop ( void  )

virtual

Run the message loop. This will only return once the last FrameWindow has been closed.

References nocl::Exception::details(), saved_argc, and saved_argv.

Here is the call graph for this function:

gtk_app()

GtkApplication * nocl::Application::gtk_app ( void  )

static

Return the underlying GtkApplication*.

Warning

This will return nullptr if an instance of Application has not yet been created.

References gtk_application.

Member Data Documentation

saved_argc

int nocl::Application::saved_argc = 0

staticprotected

Value of argc normally passed into main().

See also

argv()

Referenced by Application(), argv(), and run_message_loop().

saved_argv

char ** nocl::Application::saved_argv = nullptr

staticprotected

Value of argv normally passed into main().

See also

argv()

Referenced by Application(), argv(), and run_message_loop().

gtk_application

GtkApplication * nocl::Application::gtk_application = nullptr

staticprotected

Pointer to single GTK+ application.

See also

gtk_app()

Referenced by Application(), gtk_app(), operator GApplication *(), operator GtkApplication *(), and ~Application().

---

The documentation for this class was generated from the following files:

• Application.hpp
• Application.cpp
