Flexbox layout engine. More...

#include <Flexbox.hpp>

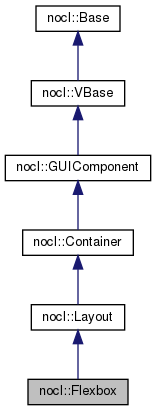

Inheritance diagram for nocl::Flexbox:

[legend]

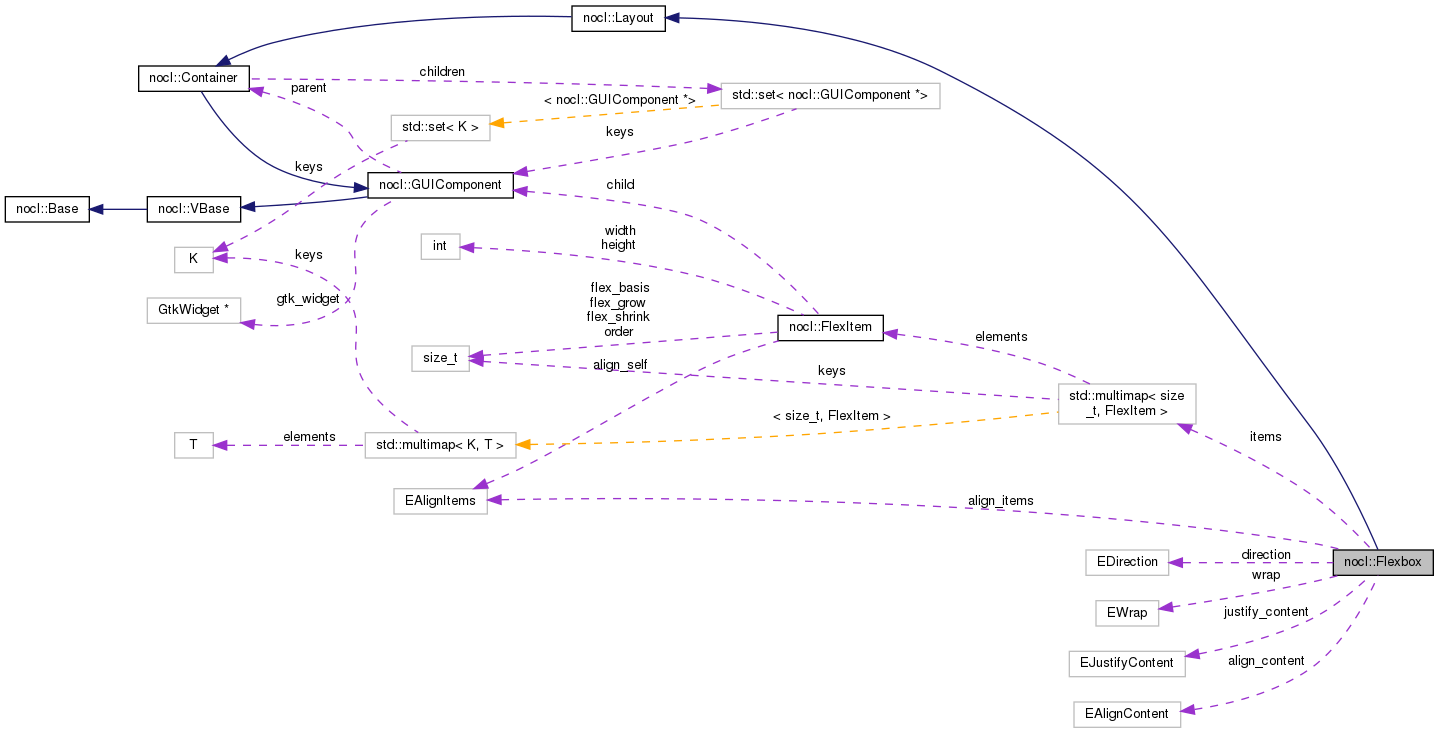

Collaboration diagram for nocl::Flexbox:

[legend]

Public Types
enum	EDirection { EDirection::kRow, EDirection::kRowReverse, EDirection::kColumn, EDirection::kColumnReverse }
	From https://css-tricks.com/snippets/css/a-guide-to-flexbox/. More...

enum	EWrap { EWrap::kNoWrap, EWrap::kWrap, EWrap::kWrapReverse }
	From https://css-tricks.com/snippets/css/a-guide-to-flexbox/. More...

enum	EJustifyContent { EJustifyContent::kStart, EJustifyContent::kEnd, EJustifyContent::kCenter, EJustifyContent::kSpaceBetween, EJustifyContent::kSpaceAround, EJustifyContent::kSpaceEvenly }
	From https://css-tricks.com/snippets/css/a-guide-to-flexbox/. More...

enum	EAlignItems { EAlignItems::kStart, EAlignItems::kEnd, EAlignItems::kCenter, EAlignItems::kStretch, EAlignItems::kBaseline }
	From https://css-tricks.com/snippets/css/a-guide-to-flexbox/. More...

enum	EAlignContent { EAlignContent::kStart, EAlignContent::kEnd, EAlignContent::kCenter, EAlignContent::kSpaceBetween, EAlignContent::kSpaceAround, EAlignContent::kStretch }
	From https://css-tricks.com/snippets/css/a-guide-to-flexbox/. More...

Public Member Functions
virtual	~Flexbox (void)
	Destructor. More...

	Flexbox (void)
	Constructor. More...

virtual Flexbox &	set (const EDirection d)

virtual Flexbox &	set (const EWrap w)

virtual Flexbox &	set (const EJustifyContent j)

virtual Flexbox &	set (const EAlignItems a)

virtual Flexbox &	set (const EAlignContent a)

virtual Flexbox &	add_child (const FlexItem &item)
	Make a copy of `item` and pushes it into the vector items. More...

virtual Flexbox &	perform_layout (const int width, const int height)

virtual	operator GtkLayout * (void) const
	Convert an instance of nocl::Layout to `GtkLayout*`. More...

virtual Layout &	add_child (GUIComponent &child) override
	Inherited from Container. More...

virtual Layout &	add_child (GUIComponent &child, const int x, const int y)

virtual Layout &	move_child (GUIComponent &child, const int x, const int y)

virtual	operator GtkContainer * (void) const
	Convert an instance of Container to `GtkContainer*`. More...

virtual Container &	remove_child (GUIComponent &child)
	Remove a child component from this container. More...

virtual	operator GtkWidget * (void) const
	Convert an instance of GUIComponent to `GtkWidget*`. More...

virtual GUIComponent &	move_to (const Point &p)
	Move to the specified coordinates. More...

virtual Size	natural_size (void)
	Get the natural size of a widget. More...

virtual Size	minimum_size (void)
	Get the minimum size of a widget. More...

virtual GUIComponent &	minimum_size (const Size &s)
	Set the minimum size of a widget. More...

virtual GUIComponent &	minimum_size (const int width, const int height)
	Set the minimum size of a widget. More...

virtual GUIComponent &	show (const bool toggle=true)
	Make the immediate component visible. More...

virtual GUIComponent &	show_all (const bool toggle=true)
	Make the component and all child components visible. More...

virtual GUIComponent &	hide (void)
	Hide a single component. More...

virtual bool	is_visible (void) const
	Determine if the widget is shown. More...

Static Public Member Functions
static WidgetToGUIComponentMap &	widget_to_gui_component_map (void)
	There are times when we have a pointer to a Gtk+ widget, and we need to map it back to the corresponding NOCL GUI component. More...

Public Attributes
EDirection	direction

EWrap	wrap

EJustifyContent	justify_content

EAlignItems	align_items

EAlignContent	align_content

MMFlexItems	items

std::set< GUIComponent * >	children
	Keep track of all children that have been added to this container. More...

Container *	parent
	Pointer to the parent to which we've been added. Will be `nullptr` if this object hasn't been added to a parent container. More...

GtkWidget *	gtk_widget
	Pointer to the underlying GTK framework. More...

Protected Member Functions
virtual Flexbox &	add_children_to_parent (GUIComponent *child)

Detailed Description

Flexbox layout engine.

See also: https://css-tricks.com/snippets/css/a-guide-to-flexbox/

Member Enumeration Documentation

◆ EDirection

enum nocl::Flexbox::EDirection

strong

From https://css-tricks.com/snippets/css/a-guide-to-flexbox/.

"This establishes the main-axis, thus defining the direction flex items are placed in the flex container. Flexbox is (aside from optional wrapping) a single-direction layout concept. Think of flex items as primarily laying out either in horizontal rows or vertical columns."

Enumerator
kRow	Left to right (default value).
kRowReverse	Right to left.
kColumn	Top to bottom.
kColumnReverse	Bottom to top.

◆ EWrap

enum nocl::Flexbox::EWrap

strong

From https://css-tricks.com/snippets/css/a-guide-to-flexbox/.

"By default, flex items will all try to fit onto one line. You can change that and allow the items to wrap as needed with this property."

Enumerator
kNoWrap	All flex items will be on one line (default value).
kWrap	Flex items will wrap onto multiple lines, from top to bottom.
kWrapReverse	Flex items will wrap onto multiple lines, from bottom to top.

◆ EJustifyContent

enum nocl::Flexbox::EJustifyContent

strong

From https://css-tricks.com/snippets/css/a-guide-to-flexbox/.

"This defines the alignment along the main axis. It helps distribute extra free space left over when either all the flex items on a line are inflexible, or are flexible but have reached their maximum size. It also exerts some control over the alignment of items when they overflow the line."

Enumerator
kStart	Items are packed toward the start line (default value).
kEnd	Items are packed toward to end line.
kCenter	Items are centered along the line.
kSpaceBetween	Items are evenly distributed in the line; first item is on the start line, last item on the end line.
kSpaceAround	Items are evenly distributed in the line with equal space around them. Note that visually the spaces aren't equal, since all the items have equal space on both sides. The first item will have one unit of space against the container edge, but two units of space between the next item because that next item has its own spacing that applies.
kSpaceEvenly	Items are distributed so that the spacing between any two items (and the space to the edges) is equal.

◆ EAlignItems

enum nocl::Flexbox::EAlignItems

strong

From https://css-tricks.com/snippets/css/a-guide-to-flexbox/.

"This defines the default behaviour for how flex items are laid out along the cross axis on the current line. Think of it as the justify-content version for the cross-axis (perpendicular to the main-axis)."

Enumerator
kStart	Cross-start margin edge of the items is placed on the cross-start line.
kEnd	Cross-end margin edge of the items is placed on the cross-end line.
kCenter	Items are centered in the cross-axis.
kStretch	Items are aligned such as their baselines align.
kBaseline	Stretch to fill the container (default value).

◆ EAlignContent

enum nocl::Flexbox::EAlignContent

strong

From https://css-tricks.com/snippets/css/a-guide-to-flexbox/.

"This aligns a flex container's lines within when there is extra space in the cross-axis, similar to how justify-content aligns individual items within the main-axis."

Enumerator
kStart	Lines packed to the start of the container.
kEnd	Lines packed to the end of the container.
kCenter	Lines packed to the center of the container.
kSpaceBetween	Lines evenly distributed; the first line is at the start of the container while the last one is at the end.
kSpaceAround	Lines evenly distributed with equal space around each line.
kStretch	Lines stretch to take up the remaining space (default value).

Constructor & Destructor Documentation

◆ ~Flexbox()

nocl::Flexbox::~Flexbox ( void )

virtual

Destructor.

◆ Flexbox()

nocl::Flexbox::Flexbox ( void )

Constructor.

Member Function Documentation

◆ set() [1/5]

nocl::Flexbox & nocl::Flexbox::set ( const EDirection d )

virtual

References direction.

◆ set() [2/5]

nocl::Flexbox & nocl::Flexbox::set ( const EWrap w )

virtual

References wrap.

◆ set() [3/5]

nocl::Flexbox & nocl::Flexbox::set ( const EJustifyContent j )

virtual

References justify_content.

◆ set() [4/5]

nocl::Flexbox & nocl::Flexbox::set ( const EAlignItems a )

virtual

References align_items.

◆ set() [5/5]

nocl::Flexbox & nocl::Flexbox::set ( const EAlignContent a )

virtual

References align_content.

◆ add_child() [1/3]

nocl::Flexbox & nocl::Flexbox::add_child ( const FlexItem & item )

virtual

Make a copy of item and pushes it into the vector items.

Note: Additional changes made to the item after this call will be ignored since Flexbox makes a copy and does not store a reference to the original object.

At the time the layout is performed, the items will be processed in the order described by FlexItem::order.

References add_children_to_parent(), nocl::FlexItem::child, items, and nocl::FlexItem::order.

Here is the call graph for this function:

◆ perform_layout()

nocl::Flexbox & nocl::Flexbox::perform_layout	(	const int	width,
		const int	height
	)

virtual

◆ add_children_to_parent()

nocl::Flexbox & nocl::Flexbox::add_children_to_parent ( GUIComponent * child )

protectedvirtual

References nocl::Layout::add_child(), and items.

Referenced by add_child().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator GtkLayout *()

nocl::Layout::operator GtkLayout * ( void ) const

virtualinherited

Convert an instance of nocl::Layout to GtkLayout*.

Exceptions

nocl::Exception Object was not created correctly and cannot be converted to GtkLayout*.

References nocl::GUIComponent::gtk_widget, and NOCL_WHERE.

◆ add_child() [2/3]

nocl::Layout & nocl::Layout::add_child ( GUIComponent & child )

overridevirtualinherited

Inherited from Container.

Reimplemented from nocl::Container.

Referenced by add_children_to_parent().

Here is the caller graph for this function:

◆ add_child() [3/3]

nocl::Layout & nocl::Layout::add_child	(	GUIComponent &	child,
		const int	x,
		const int	y
	)

virtualinherited

Todo:

◆ move_child()

nocl::Layout & nocl::Layout::move_child	(	GUIComponent &	child,
		const int	x,
		const int	y
	)

virtualinherited

◆ operator GtkContainer *()

nocl::Container::operator GtkContainer * ( void ) const

virtualinherited

Convert an instance of Container to GtkContainer*.

Exceptions

nocl::Exception Object was not created correctly and cannot be converted to GtkContainer*.

References nocl::GUIComponent::gtk_widget, and NOCL_WHERE.

◆ remove_child()

nocl::Container & nocl::Container::remove_child ( GUIComponent & child )

virtualinherited

Remove a child component from this container.

References nocl::Container::children, and nocl::GUIComponent::parent.

Referenced by nocl::Container::add_child(), nocl::Grid::add_child(), nocl::Container::~Container(), and nocl::GUIComponent::~GUIComponent().

Here is the caller graph for this function:

◆ operator GtkWidget *()

nocl::GUIComponent::operator GtkWidget * ( void ) const

virtualinherited

Convert an instance of GUIComponent to GtkWidget*.

References nocl::GUIComponent::gtk_widget.

◆ move_to()

nocl::GUIComponent & nocl::GUIComponent::move_to ( const Point & p )

virtualinherited

Move to the specified coordinates.

Todo:

◆ natural_size()

nocl::Size nocl::GUIComponent::natural_size ( void )

virtualinherited

Get the natural size of a widget.

References nocl::GUIComponent::minimum_size().

Referenced by nocl::GUIComponent::minimum_size().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ minimum_size() [1/3]

nocl::Size nocl::GUIComponent::minimum_size ( void )

virtualinherited

Get the minimum size of a widget.

References nocl::GUIComponent::natural_size().

Referenced by nocl::GUIComponent::minimum_size(), and nocl::GUIComponent::natural_size().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ minimum_size() [2/3]

nocl::GUIComponent & nocl::GUIComponent::minimum_size ( const Size & s )

virtualinherited

Set the minimum size of a widget.

References nocl::Size::height, nocl::GUIComponent::minimum_size(), and nocl::Size::width.

Here is the call graph for this function:

◆ minimum_size() [3/3]

nocl::GUIComponent & nocl::GUIComponent::minimum_size	(	const int	width,
		const int	height
	)

virtualinherited

Set the minimum size of a widget.

◆ show()

nocl::GUIComponent & nocl::GUIComponent::show ( const bool toggle = true )

virtualinherited

Make the immediate component visible.

Parameters

[in] toggle Set to true to show the widget, or to false to hide the widget.

See also: hide(); show_all(); is_visible()

References nocl::GUIComponent::gtk_widget, and nocl::GUIComponent::hide().

Here is the call graph for this function:

◆ show_all()

nocl::GUIComponent & nocl::GUIComponent::show_all ( const bool toggle = true )

virtualinherited

Make the component and all child components visible.

Parameters

[in] toggle Set to true to show the widget and all children, or to false to hide the widget.

See also: show(); hide(); is_visible()

References nocl::GUIComponent::gtk_widget, and nocl::GUIComponent::hide().

Here is the call graph for this function:

◆ hide()

nocl::GUIComponent & nocl::GUIComponent::hide ( void )

virtualinherited

Hide a single component.

See also: show(); show_all(); is_visible()

References nocl::GUIComponent::gtk_widget.

Referenced by nocl::GUIComponent::show(), and nocl::GUIComponent::show_all().

Here is the caller graph for this function:

◆ is_visible()

bool nocl::GUIComponent::is_visible ( void ) const

virtualinherited

Determine if the widget is shown.

See also: show(); show_all(); hide()

References nocl::GUIComponent::gtk_widget.

◆ widget_to_gui_component_map()

nocl::WidgetToGUIComponentMap & nocl::GUIComponent::widget_to_gui_component_map ( void )

staticinherited

There are times when we have a pointer to a Gtk+ widget, and we need to map it back to the corresponding NOCL GUI component.

For example, during event handling, Gtk+ tells us which Gtk+ widget generated the event, but we need the corresponding NOCL object so we can call the event handler with a reference to the correct object.

Note: This is not intended for end-users to access directly!

Referenced by nocl::ButtonHandler::handle_button_events_for(), and nocl::GUIComponent::~GUIComponent().

Here is the caller graph for this function:

Member Data Documentation

◆ direction

EDirection nocl::Flexbox::direction

Referenced by set().

◆ wrap

EWrap nocl::Flexbox::wrap

Referenced by set().

◆ justify_content

EJustifyContent nocl::Flexbox::justify_content

Referenced by set().

◆ align_items

EAlignItems nocl::Flexbox::align_items

Referenced by set().

◆ align_content

EAlignContent nocl::Flexbox::align_content

Referenced by set().

◆ items

MMFlexItems nocl::Flexbox::items

Referenced by add_child(), and add_children_to_parent().

◆ children

std::set<GUIComponent*> nocl::Container::children

inherited

Keep track of all children that have been added to this container.

Referenced by nocl::Container::add_child(), nocl::Grid::add_child(), nocl::Container::remove_child(), and nocl::Container::~Container().

◆ parent

Container* nocl::GUIComponent::parent

inherited

Pointer to the parent to which we've been added. Will be nullptr if this object hasn't been added to a parent container.

Referenced by nocl::Container::add_child(), nocl::Grid::add_child(), nocl::Container::remove_child(), and nocl::GUIComponent::~GUIComponent().

◆ gtk_widget

GtkWidget* nocl::GUIComponent::gtk_widget

inherited

Pointer to the underlying GTK framework.

Referenced by nocl::Box::Box(), nocl::ButtonBox::ButtonBox(), nocl::Grid::Grid(), nocl::ButtonHandler::handle_button_events_for(), nocl::GUIComponent::hide(), nocl::FrameWindow::initialize(), nocl::Window::is_resizable(), nocl::GUIComponent::is_visible(), nocl::Label::Label(), nocl::FrameWindow::operator GtkApplicationWindow *(), nocl::Box::operator GtkBox *(), nocl::Button::operator GtkButton *(), nocl::ButtonBox::operator GtkButtonBox *(), nocl::Container::operator GtkContainer *(), nocl::TextField::operator GtkEntry *(), nocl::Fixed::operator GtkFixed *(), nocl::Grid::operator GtkGrid *(), nocl::Label::operator GtkLabel *(), nocl::Layout::operator GtkLayout *(), nocl::SpinButton::operator GtkSpinButton *(), nocl::ToggleSwitch::operator GtkSwitch *(), nocl::TextEditor::operator GtkTextView *(), nocl::GUIComponent::operator GtkWidget *(), nocl::Window::operator GtkWindow *(), nocl::Window::resizable(), nocl::GUIComponent::show(), nocl::GUIComponent::show_all(), nocl::SpinButton::SpinButton(), nocl::TextButton::TextButton(), nocl::TextEditor::TextEditor(), nocl::TextField::TextField(), nocl::ToggleSwitch::ToggleSwitch(), and nocl::GUIComponent::~GUIComponent().

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Detailed Description

Member Enumeration Documentation

◆ EDirection

◆ EWrap

◆ EJustifyContent

◆ EAlignItems

◆ EAlignContent

Constructor & Destructor Documentation

◆ ~Flexbox()

◆ Flexbox()

Member Function Documentation

◆ set() [1/5]

◆ set() [2/5]

◆ set() [3/5]

◆ set() [4/5]

◆ set() [5/5]

◆ add_child() [1/3]

◆ perform_layout()

◆ add_children_to_parent()

◆ operator GtkLayout *()

◆ add_child() [2/3]

◆ add_child() [3/3]

◆ move_child()

◆ operator GtkContainer *()

◆ remove_child()

◆ operator GtkWidget *()

◆ move_to()

◆ natural_size()

◆ minimum_size() [1/3]

◆ minimum_size() [2/3]

◆ minimum_size() [3/3]

◆ show()

◆ show_all()

◆ hide()

◆ is_visible()

◆ widget_to_gui_component_map()

Member Data Documentation

◆ direction

◆ wrap

◆ justify_content

◆ align_items

◆ align_content

◆ items

◆ children

◆ parent

◆ gtk_widget
