Darknet::Keypoints Class Reference

The Keypoints class works with Darknet's V3 API. More...

#include "darknet_keypoints.hpp"

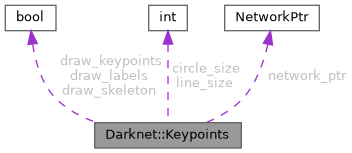

Collaboration diagram for Darknet::Keypoints:

Public Member Functions
	Keypoints ()=delete
	Keypoints (const Darknet::NetworkPtr ptr)
	Constructor needs a neural network pointer.
	~Keypoints ()
	Destructor.
cv::Mat	annotate (const Predictions &predictions, const Skeletons &skeletons, cv::Mat mat)
	Draw the skeletons onto the given image.
cv::Mat	annotate (const Predictions &predictions, cv::Mat mat)
	Similar to the other annotate() method, but automatically calls create_skeletons().
Skeletons	create_skeletons (const Predictions &predictions)
	Looks through the prediction results and attempts to organize each person into Skeleton.
VStr	names ()
	Return the set of names for the classes in Keypoints.

Public Attributes
int	circle_size
	Size of circles used to draw keypoints.
bool	draw_keypoints
	Draw a circle above each detected keypoint.
bool	draw_labels
	Draw the labels beside each keypoint.
bool	draw_skeleton
	Draw the skeletons joining each keypoint.
int	line_size
	Size of lines used to draw skeletons.

Private Attributes
const Darknet::NetworkPtr	network_ptr

Detailed Description

The Keypoints class works with Darknet's V3 API.

The only format currently supported is the MSCOCO-style keypoint classes with an extra "person" class appended for top-down grouping. The classes are defined as follows:

• 0: nose
• 1: left eye
• 2: right eye
• 3: left ear
• 4: right ear
• 5: left shoulder
• 6: right shoulder
• 7: left elbow
• 8: right elbow
• 9: left wrist
• 10: right wrist
• 11: left hip
• 12: right hip
• 13: left knee
• 14: right knee
• 15: left ankle
• 16: right ankle
• 17: person

Since

2024-09-03

Constructor & Destructor Documentation

Keypoints() [1/2]

Darknet::Keypoints::Keypoints ( )

delete

Keypoints() [2/2]

Darknet::Keypoints::Keypoints

(

const Darknet::NetworkPtr

ptr

)

Constructor needs a neural network pointer.

See also

Darknet::load_neural_network()

Since

2024-09-03

~Keypoints()

Darknet::Keypoints::~Keypoints

(

)

Destructor.

Member Function Documentation

annotate() [1/2]

cv::Mat Darknet::Keypoints::annotate	(	const Predictions &	predictions,
		const Skeletons &	skeletons,
		cv::Mat	mat
	)

Draw the skeletons onto the given image.

Since

2024-09-03

Here is the caller graph for this function:

annotate() [2/2]

cv::Mat Darknet::Keypoints::annotate	(	const Predictions &	predictions,
		cv::Mat	mat
	)

Similar to the other annotate() method, but automatically calls create_skeletons().

Since

2024-09-03

Here is the call graph for this function:

create_skeletons()

Darknet::Skeletons Darknet::Keypoints::create_skeletons

(

const Predictions &

predictions

)

Looks through the prediction results and attempts to organize each person into Skeleton.

A skeleton will always contain exactly 18 indexes. If a skeleton does not have an entry for a body part, then the index will be set to -1. Otherwise, any other values is interpreted as an index into predictions.

Since

2024-09-03

Here is the call graph for this function:

Here is the caller graph for this function:

names()

Darknet::VStr Darknet::Keypoints::names

(

)

Return the set of names for the classes in Keypoints.

Since

2024-09-07

Member Data Documentation

circle_size

int Darknet::Keypoints::circle_size

Size of circles used to draw keypoints.

draw_keypoints must also be set to true. Default value is 6.

Since

2024-09-20

draw_keypoints

bool Darknet::Keypoints::draw_keypoints

Draw a circle above each detected keypoint.

Default value is true.

See also

circle_size

Since

2024-09-20

draw_labels

bool Darknet::Keypoints::draw_labels

Draw the labels beside each keypoint.

Default value is false.

Since

2024-09-20

draw_skeleton

bool Darknet::Keypoints::draw_skeleton

Draw the skeletons joining each keypoint.

Default value is true.

See also

line_size

Since

2024-09-20

line_size

int Darknet::Keypoints::line_size

Size of lines used to draw skeletons.

draw_skeleton must also be set to true. Default value is 3.

Since

2024-09-20

network_ptr

const Darknet::NetworkPtr Darknet::Keypoints::network_ptr

private

---

The documentation for this class was generated from the following files:

• darknet_keypoints.hpp
• darknet_keypoints.cpp
