Implements a simple non-blocking SSL stream client. More...

#include "sslclient.h"

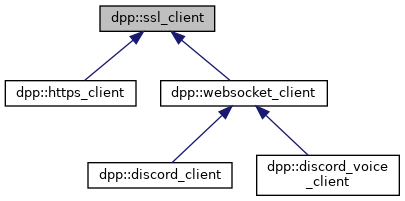

Inheritance diagram for dpp::ssl_client:

[legend]

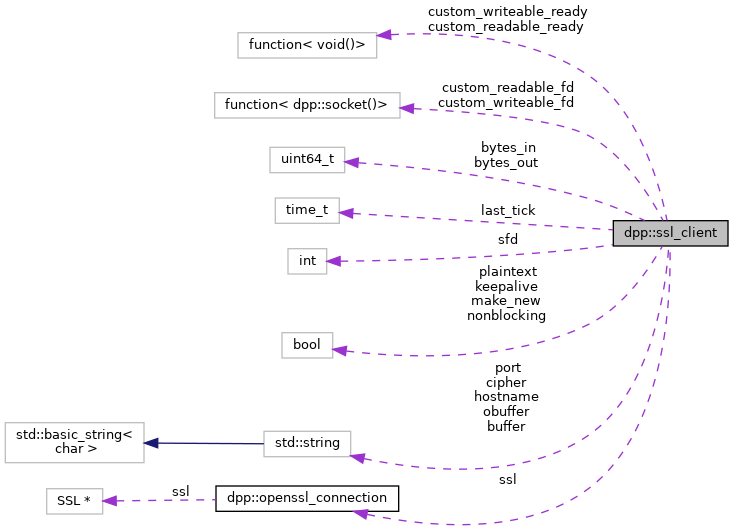

Collaboration diagram for dpp::ssl_client:

[legend]

Public Member Functions
	ssl_client (const std::string &_hostname, const std::string &_port="443", bool plaintext_downgrade=false, bool reuse=false)
	Connect to a specified host and port. More...

virtual	~ssl_client ()
	Destroy the ssl_client object. More...

virtual void	close ()
	Close socket connection. More...

uint64_t	get_bytes_in ()
	Get total bytes received. More...

uint64_t	get_bytes_out ()
	Get the bytes out objectGet total bytes sent. More...

std::string	get_cipher ()
	Get SSL cipher name. More...

virtual bool	handle_buffer (std::string &buffer)
	Handle input from the input buffer. More...

virtual void	log (dpp::loglevel severity, const std::string &msg) const
	Log a message. More...

void	read_loop ()
	Nonblocking I/O loop. More...

virtual void	write (const std::string &data)
	Write to the output buffer. More...

Public Attributes
socket_callback_t	custom_readable_fd
	Attaching an additional file descriptor to this function will send notifications when there is data to read. More...

socket_notification_t	custom_readable_ready
	This event will be called when you can read from the custom fd. More...

socket_callback_t	custom_writeable_fd
	Attaching an additional file descriptor to this function will send notifications when you are able to write to the socket. More...

socket_notification_t	custom_writeable_ready
	This event will be called when you can write to a custom fd. More...

bool	keepalive
	True if we are keeping the connection alive after it has finished. More...

Protected Member Functions
virtual void	connect ()
	Start SSL connection and connect to TCP endpoint. More...

virtual void	one_second_timer ()
	Called every second. More...

Protected Attributes
std::string	buffer
	Input buffer received from socket. More...

uint64_t	bytes_in
	Bytes in. More...

uint64_t	bytes_out
	Bytes out. More...

std::string	cipher
	SSL cipher in use. More...

std::string	hostname
	Hostname connected to. More...

time_t	last_tick
	For timers. More...

bool	make_new
	True if we are establishing a new connection, false if otherwise. More...

bool	nonblocking
	True if in nonblocking mode. More...

std::string	obuffer
	Output buffer for sending to socket. More...

bool	plaintext
	True for a plain text connection. More...

std::string	port
	Port connected to. More...

dpp::socket	sfd
	Raw file descriptor of connection. More...

openssl_connection *	ssl
	Openssl opaque contexts. More...

Detailed Description

Implements a simple non-blocking SSL stream client.

Note: although the design is non-blocking the run() method will execute in an infinite loop until the socket disconnects. This is intended to be run within a std::thread.

Constructor & Destructor Documentation

◆ ssl_client()

dpp::ssl_client::ssl_client	(	const std::string &	_hostname,
		const std::string &	_port = `"443"`,
		bool	plaintext_downgrade = `false`,
		bool	reuse = `false`
	)

Connect to a specified host and port.

Throws std::runtime_error on fatal error.

Parameters

_hostname	The hostname to connect to
_port	the Port number to connect to
plaintext_downgrade	Set to true to connect using plaintext only, without initialising SSL.
reuse	Attempt to reuse previous connections for this hostname and port, if available Note that no Discord endpoints will function when downgraded. This option is provided only for connection to non-Discord addresses such as within dpp::cluster::request().

Exceptions

dpp::exception Failed to initialise connection

References dpp::close_socket(), connect(), dpp::err_connect_failure, hostname, INVALID_SOCKET, keepalive, dpp::keepalives, make_new, plaintext, port, dpp::set_signal_handler(), sfd, dpp::openssl_connection::ssl, and ssl.

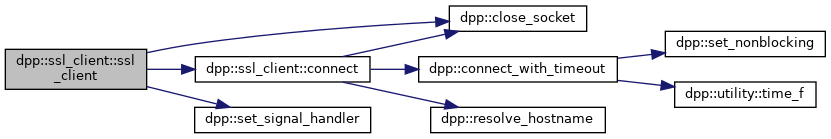

Here is the call graph for this function:

◆ ~ssl_client()

dpp::ssl_client::~ssl_client ( )

virtual

Destroy the ssl_client object.

Member Function Documentation

◆ close()

void dpp::ssl_client::close ( )

virtual

Close socket connection.

Reimplemented in dpp::https_client, and dpp::websocket_client.

References buffer, dpp::close_socket(), dpp::keepalive_cache_t::created, hostname, INVALID_SOCKET, keepalive, dpp::keepalives, obuffer, plaintext, port, dpp::keepalive_cache_t::sfd, sfd, dpp::openssl_connection::ssl, dpp::keepalive_cache_t::ssl, and ssl.

Referenced by dpp::https_client::get_status(), and dpp::websocket_client::send_close_packet().

Here is the call graph for this function:

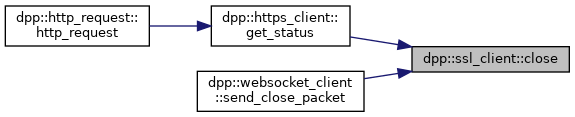

Here is the caller graph for this function:

◆ connect()

void dpp::ssl_client::connect ( )

protectedvirtual

Start SSL connection and connect to TCP endpoint.

Exceptions

dpp::exception Failed to initialise connection

Reimplemented in dpp::https_client, and dpp::websocket_client.

References dpp::dns_cache_entry::addr, dpp::dns_cache_entry::ai_addr, cipher, dpp::close_socket(), dpp::connect_with_timeout(), dpp::err_connect_failure, dpp::err_ssl_connect, dpp::err_ssl_context, dpp::err_ssl_new, dpp::err_ssl_version, dpp::ERROR_STATUS, hostname, make_new, nonblocking, dpp::openssl_context, plaintext, port, dpp::resolve_hostname(), sfd, SOCKET_OP_TIMEOUT, dpp::openssl_connection::ssl, ssl, and dpp::unicode_emoji::tv.

Referenced by ssl_client().

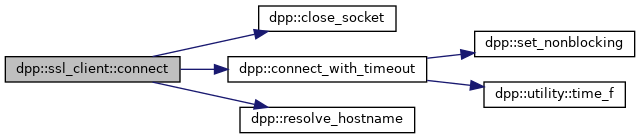

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_bytes_in()

uint64_t dpp::ssl_client::get_bytes_in ( )

Get total bytes received.

Returns: uint64_t bytes received

References bytes_in.

◆ get_bytes_out()

uint64_t dpp::ssl_client::get_bytes_out ( )

Get the bytes out objectGet total bytes sent.

Returns: uint64_t bytes sent

References bytes_out.

◆ get_cipher()

std::string dpp::ssl_client::get_cipher ( )

Get SSL cipher name.

Returns: std::string ssl cipher name

References cipher.

◆ handle_buffer()

bool dpp::ssl_client::handle_buffer ( std::string & buffer )

virtual

Handle input from the input buffer.

This function will be called until all data in the buffer has been processed and the buffer is empty.

Parameters

buffer the buffer content. Will be modified removing any processed front elements

Returns: bool True if the socket should remain connected

Reimplemented in dpp::https_client, and dpp::websocket_client.

Referenced by read_loop().

Here is the caller graph for this function:

◆ log()

void dpp::ssl_client::log	(	dpp::loglevel	severity,
		const std::string &	msg
	)		const

virtual

Log a message.

Parameters

severity	severity of log message
msg	Log message to send

Reimplemented in dpp::discord_voice_client, and dpp::discord_client.

Referenced by read_loop().

Here is the caller graph for this function:

◆ one_second_timer()

void dpp::ssl_client::one_second_timer ( )

protectedvirtual

Called every second.

Reimplemented in dpp::discord_voice_client, dpp::discord_client, dpp::https_client, and dpp::websocket_client.

Referenced by read_loop().

Here is the caller graph for this function:

◆ read_loop()

void dpp::ssl_client::read_loop ( )

Nonblocking I/O loop.

Exceptions

std::exception Any std::exception (or derivative) thrown from read_loop() causes reconnection of the shard

References buffer, bytes_in, bytes_out, custom_readable_fd, custom_readable_ready, custom_writeable_fd, custom_writeable_ready, DPP_BUFSIZE, dpp::err_invalid_socket, dpp::err_nonblocking_failure, dpp::err_socket_error, handle_buffer(), INVALID_SOCKET, last_tick, dpp::ll_warning, log(), nonblocking, obuffer, one_second_timer(), plaintext, dpp::set_nonblocking(), sfd, dpp::openssl_connection::ssl, and ssl.

Here is the call graph for this function:

◆ write()

void dpp::ssl_client::write ( const std::string & data )

virtual

Write to the output buffer.

Parameters

data	Data to be written to the buffer

Note: The data may not be written immediately and may be written at a later time to the socket.

Reimplemented in dpp::websocket_client.

References dpp::err_ssl_write, dpp::err_write, INVALID_SOCKET, nonblocking, obuffer, plaintext, sfd, dpp::openssl_connection::ssl, and ssl.

Member Data Documentation

◆ buffer

std::string dpp::ssl_client::buffer

protected

Input buffer received from socket.

Referenced by close(), dpp::discord_client::handle_frame(), and read_loop().

◆ bytes_in

uint64_t dpp::ssl_client::bytes_in

protected

Bytes in.

Referenced by get_bytes_in(), and read_loop().

◆ bytes_out

uint64_t dpp::ssl_client::bytes_out

protected

Bytes out.

Referenced by get_bytes_out(), and read_loop().

◆ cipher

std::string dpp::ssl_client::cipher

protected

SSL cipher in use.

Referenced by connect(), and get_cipher().

◆ custom_readable_fd

socket_callback_t dpp::ssl_client::custom_readable_fd

Attaching an additional file descriptor to this function will send notifications when there is data to read.

NOTE: Only hook this if you NEED it as it can increase CPU usage of the thread! Returning -1 means that you don't want to be notified.

Referenced by dpp::discord_voice_client::handle_frame(), and read_loop().

◆ custom_readable_ready

socket_notification_t dpp::ssl_client::custom_readable_ready

This event will be called when you can read from the custom fd.

Referenced by dpp::discord_voice_client::handle_frame(), and read_loop().

◆ custom_writeable_fd

socket_callback_t dpp::ssl_client::custom_writeable_fd

Attaching an additional file descriptor to this function will send notifications when you are able to write to the socket.

NOTE: Only hook this if you NEED it as it can increase CPU usage of the thread! You should toggle this to -1 when you do not have anything to write otherwise it'll keep triggering repeatedly (it is level triggered).

Referenced by dpp::discord_voice_client::handle_frame(), and read_loop().

◆ custom_writeable_ready

socket_notification_t dpp::ssl_client::custom_writeable_ready

This event will be called when you can write to a custom fd.

Referenced by dpp::discord_voice_client::handle_frame(), and read_loop().

◆ hostname

std::string dpp::ssl_client::hostname

protected

Hostname connected to.

Referenced by close(), connect(), and ssl_client().

◆ keepalive

bool dpp::ssl_client::keepalive

True if we are keeping the connection alive after it has finished.

Referenced by close(), and ssl_client().

◆ last_tick

time_t dpp::ssl_client::last_tick

protected

For timers.

Referenced by read_loop().

◆ make_new

bool dpp::ssl_client::make_new

protected

True if we are establishing a new connection, false if otherwise.

Referenced by connect(), and ssl_client().

◆ nonblocking

bool dpp::ssl_client::nonblocking

protected

True if in nonblocking mode.

The socket switches to nonblocking mode once ReadLoop is called.

Referenced by connect(), read_loop(), and write().

◆ obuffer

std::string dpp::ssl_client::obuffer

protected

Output buffer for sending to socket.

Referenced by close(), read_loop(), and write().

◆ plaintext

bool dpp::ssl_client::plaintext

protected

True for a plain text connection.

Referenced by close(), connect(), read_loop(), ssl_client(), and write().

◆ port

std::string dpp::ssl_client::port

protected

Port connected to.

Referenced by close(), connect(), and ssl_client().

◆ sfd

dpp::socket dpp::ssl_client::sfd

protected

Raw file descriptor of connection.

Referenced by close(), connect(), dpp::discord_client::one_second_timer(), read_loop(), ssl_client(), and write().

◆ ssl

openssl_connection* dpp::ssl_client::ssl

protected

Openssl opaque contexts.

Referenced by close(), connect(), read_loop(), ssl_client(), and write().

The documentation for this class was generated from the following files:
