HPS::DrawWindowEvent Class Reference

The DrawWindowEvent class is the event generated when the driver draws the window background for each subwindow. More...

#include <hps.h>

Inheritance diagram for HPS::DrawWindowEvent:

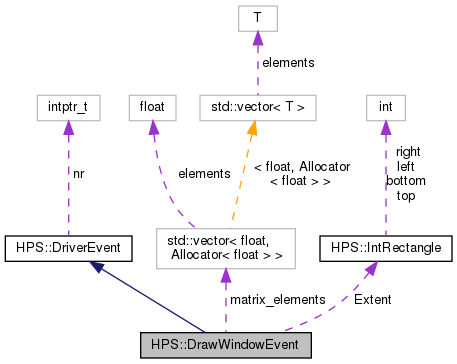

Collaboration diagram for HPS::DrawWindowEvent:

Public Types
enum	BackgroundTextureFormat {   BackgroundTextureFormat::RGBA,   BackgroundTextureFormat::BGRA,   BackgroundTextureFormat::ImageExternal,   BackgroundTextureFormat::LumaChromaPair }
	Enumerates the various texture formats supported by the DrawTexturedBackground function . More...
enum	StereoMatrix {   StereoMatrix::ViewLeft,   StereoMatrix::ViewRight,   StereoMatrix::ProjectionLeft,   StereoMatrix::ProjectionRight }

Public Member Functions
	DrawWindowEvent (OpaqueHandle in_nr=0)
virtual	~DrawWindowEvent ()
	The screen extent for the window being drawn. More...
void	DrawTexturedBackground (OpaqueHandle in_texture, BackgroundTextureFormat in_format, MatrixKit const &in_matrix, IntRectangle const &in_extent) const
	Function for drawing a platform-specific texture in place of the normal window background. More...
intptr_t	GetClassID () const
	Returns a unique identifier that is shared by all objects of the same class. More...
void	SetStereoMatrix (StereoMatrix id, HPS::MatrixKit const &in_matrix) const
OpaqueHandle	GetSurface (int index) const
OpaqueHandle	GetGraphicsContext () const

Public Attributes
IntRectangle	Extent

Protected Attributes
OpaqueHandle	nr

Private Attributes
HPS::FloatArray	matrix_elements

Detailed Description

The DrawWindowEvent class is the event generated when the driver draws the window background for each subwindow.

Member Enumeration Documentation

BackgroundTextureFormat

enum HPS::DrawWindowEvent::BackgroundTextureFormat

strong

Enumerates the various texture formats supported by the DrawTexturedBackground function .

Enumerator
RGBA	Handle to single GL_RGBA format texture.
BGRA	Same as RGBA but with swapped red and blue channels.
ImageExternal	Handle to single OES_EGL_image_external texture.
LumaChromaPair	Pointer to array of two GL texture handles for YpCbCr texture pair (GL_LUMINANCE, GL_LUMINANCE_ALPHA formats).

StereoMatrix

enum HPS::DriverEvent::StereoMatrix

stronginherited

Enumerator
ViewLeft
ViewRight
ProjectionLeft
ProjectionRight

Constructor & Destructor Documentation

DrawWindowEvent()

HPS::DrawWindowEvent::DrawWindowEvent

(

OpaqueHandle

in_nr = 0

)

~DrawWindowEvent()

virtual HPS::DrawWindowEvent::~DrawWindowEvent ( )

virtual

The screen extent for the window being drawn.

Member Function Documentation

DrawTexturedBackground()

void HPS::DrawWindowEvent::DrawTexturedBackground	(	OpaqueHandle	in_texture,
		BackgroundTextureFormat	in_format,
		MatrixKit const &	in_matrix,
		IntRectangle const &	in_extent
	)		const

Function for drawing a platform-specific texture in place of the normal window background.

Parameters

in_texture	The platform-specific texture handle(s)
in_format	The format of the texture(s) provided through the 'in_texture' parameter.
in_matrix	A transformation to apply to the uv coordinates used to draw the texture to the window.
in_extent	The screen extent for the window background to be drawn.

GetClassID()

intptr_t HPS::DriverEvent::GetClassID ( ) const

inherited

Returns a unique identifier that is shared by all objects of the same class.

GetGraphicsContext()

OpaqueHandle HPS::DriverEvent::GetGraphicsContext ( ) const

inherited

GetSurface()

OpaqueHandle HPS::DriverEvent::GetSurface ( int  index ) const

inherited

SetStereoMatrix()

void HPS::DriverEvent::SetStereoMatrix ( StereoMatrix  id, HPS::MatrixKit const &  in_matrix  ) const

inherited

Member Data Documentation

Extent

IntRectangle HPS::DrawWindowEvent::Extent

matrix_elements

HPS::FloatArray HPS::DrawWindowEvent::matrix_elements

mutableprivate

nr

OpaqueHandle HPS::DriverEvent::nr

protectedinherited

---

The documentation for this class was generated from the following file:

• hps.h
