The ShapeCoordinate class is a coordinate used in shape definitions. More...

#include <hps.h>

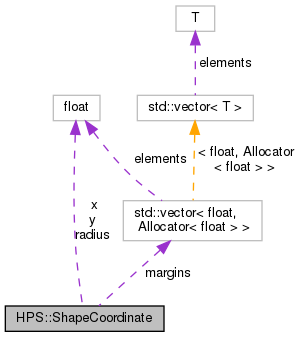

Collaboration diagram for HPS::ShapeCoordinate:

Public Member Functions
	ShapeCoordinate ()
	Default constructor. More...

	ShapeCoordinate (float in_x, float in_y)
	Construct a new ShapeCoordinate from an (x, y) pair. More...

	ShapeCoordinate (float in_x, float in_y, FloatArray const &in_margins)
	Construct a new ShapeCoordinate from an (x, y) pair and up to four margins values. More...

	ShapeCoordinate (float in_x, float in_y, size_t in_count, float const in_margins [])
	Construct a new ShapeCoordinate from an (x, y) pair and up to four margins values. More...

	ShapeCoordinate (float in_x, float in_y, float in_radius)
	Construct a new ShapeCoordinate from an (x, y, radius) tuple. More...

	ShapeCoordinate (float in_x, float in_y, float in_radius, FloatArray const &in_margins)
	Construct a new ShapeCoordinate from an (x, y, radius) tuple and up to four margin values. More...

	ShapeCoordinate (float in_x, float in_y, float in_radius, size_t in_count, float const in_margins [])
	Construct a new ShapeCoordinate from an (x, y, radius) tuple and up to four margin values. More...

bool	Equals (ShapeCoordinate const &in_that) const
	This function is used to check an object for equivalence to this. More...

bool	operator== (ShapeCoordinate const &in_that) const
	This function is used to check an object for equivalence to this. More...

bool	operator!= (ShapeCoordinate const &in_that) const
	This function is used to check an object for equivalence to this. More...

ShapeCoordinate &	SetMargins (float in_margin_one, float in_margin_two=0.0f, float in_margin_three=0.0f, float in_margin_four=0.0f)
	Sets the margins for this ShapeCoordinate. More...

bool	ShowMargins (FloatArray &out_margins) const
	Shows the margins for this ShapeCoordinate. More...

ShapeCoordinate &	UnsetMargins ()
	Removes the margins for this ShapeCoordinate. More...

Public Attributes
float	x

float	y

float	radius

FloatArray	margins

Detailed Description

The ShapeCoordinate class is a coordinate used in shape definitions.

Two ShapeCoordinates can be used together to define a ShapePoint It is a 2d parametric coordinate.

Constructor & Destructor Documentation

◆ ShapeCoordinate() [1/7]

HPS::ShapeCoordinate::ShapeCoordinate ( )

Default constructor.

◆ ShapeCoordinate() [2/7]

HPS::ShapeCoordinate::ShapeCoordinate	(	float	in_x,
		float	in_y
	)

Construct a new ShapeCoordinate from an (x, y) pair.

Parameters

in_x	A normalized distance over the horizontal text bounds.
in_y	A normalized distance over the vertical text bounds.

◆ ShapeCoordinate() [3/7]

HPS::ShapeCoordinate::ShapeCoordinate	(	float	in_x,
		float	in_y,
		FloatArray const &	in_margins
	)

Construct a new ShapeCoordinate from an (x, y) pair and up to four margins values.

Parameters

in_x	A normalized distance over the horizontal text bounds.
in_y	A normalized distance over the vertical text bounds.
in_margins	A series of up to four distances, normalized over the respective text margins.

◆ ShapeCoordinate() [4/7]

HPS::ShapeCoordinate::ShapeCoordinate	(	float	in_x,
		float	in_y,
		size_t	in_count,
		float const	in_margins[]
	)

Construct a new ShapeCoordinate from an (x, y) pair and up to four margins values.

Parameters

in_x	A normalized distance over the horizontal text bounds.
in_y	A normalized distance over the vertical text bounds.
in_size	The size of in_margins.
in_margins	A series of up to four distances, normalized over the respective text margins.

◆ ShapeCoordinate() [5/7]

HPS::ShapeCoordinate::ShapeCoordinate	(	float	in_x,
		float	in_y,
		float	in_radius
	)

Construct a new ShapeCoordinate from an (x, y, radius) tuple.

Parameters

in_x	A normalized distance over the horizontal text bounds.
in_y	A normalized distance over the vertical text bounds.
in_radius	A normalized distance over the radius of the circle circumscribing the text bounds.

◆ ShapeCoordinate() [6/7]

HPS::ShapeCoordinate::ShapeCoordinate	(	float	in_x,
		float	in_y,
		float	in_radius,
		FloatArray const &	in_margins
	)

Construct a new ShapeCoordinate from an (x, y, radius) tuple and up to four margin values.

Parameters

in_x	A normalized distance over the horizontal text bounds.
in_y	A normalized distance over the vertical text bounds.
in_radius	A normalized distance over the radius of the circle circumscribing the text bounds.
in_margins	A series of up to four distances, normalized over the respective text margins.

◆ ShapeCoordinate() [7/7]

HPS::ShapeCoordinate::ShapeCoordinate	(	float	in_x,
		float	in_y,
		float	in_radius,
		size_t	in_count,
		float const	in_margins[]
	)

Construct a new ShapeCoordinate from an (x, y, radius) tuple and up to four margin values.

Parameters

in_x	A normalized distance over the horizontal text bounds.
in_y	A normalized distance over the vertical text bounds.
in_radius	A normalized distance over the radius of the circle circumscribing the text bounds.
in_count	The size of in_margins.
in_margins	A series of up to four distances, normalized over the respective text margins.

Member Function Documentation

◆ Equals()

bool HPS::ShapeCoordinate::Equals ( ShapeCoordinate const & in_that ) const

This function is used to check an object for equivalence to this.

Parameters

in_that The object to compare to this.

Returns: true if the objects are equivalent, false otherwise.

◆ operator!=()

bool HPS::ShapeCoordinate::operator!= ( ShapeCoordinate const & in_that ) const

inline

This function is used to check an object for equivalence to this.

Parameters

in_that The object to compare to this.

Returns: true if the objects are not equivalent, false otherwise.

◆ operator==()

bool HPS::ShapeCoordinate::operator== ( ShapeCoordinate const & in_that ) const

inline

This function is used to check an object for equivalence to this.

Parameters

in_that The object to compare to this.

Returns: true if the objects are equivalent, false otherwise.

◆ SetMargins()

ShapeCoordinate& HPS::ShapeCoordinate::SetMargins	(	float	in_margin_one,
		float	in_margin_two = `0.0f`,
		float	in_margin_three = `0.0f`,
		float	in_margin_four = `0.0f`
	)

Sets the margins for this ShapeCoordinate.

Parameters

in_margin_one	The first margin value.
in_margin_two	The second margin value.
in_margin_three	The third margin value.
in_margin_four	The fourth margin value.

Returns: A reference to this ShapeCoordinate.

◆ ShowMargins()

bool HPS::ShapeCoordinate::ShowMargins ( FloatArray & out_margins ) const

Shows the margins for this ShapeCoordinate.

Parameters

out_margins The margins for this ShapeCoordinate.

Returns: true if margins were set, false otherwise.

◆ UnsetMargins()

ShapeCoordinate& HPS::ShapeCoordinate::UnsetMargins ( )

Removes the margins for this ShapeCoordinate.

Returns: A reference to this ShapeCoordinate.

Member Data Documentation

◆ margins

FloatArray HPS::ShapeCoordinate::margins

◆ radius

float HPS::ShapeCoordinate::radius

◆ x

float HPS::ShapeCoordinate::x

◆ y

float HPS::ShapeCoordinate::y

The documentation for this class was generated from the following file:

hps.h
