#include "hps.h"
#include <memory>
#include <stddef.h>

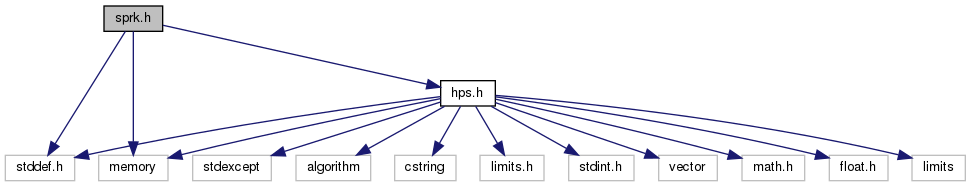

Include dependency graph for sprk.h:

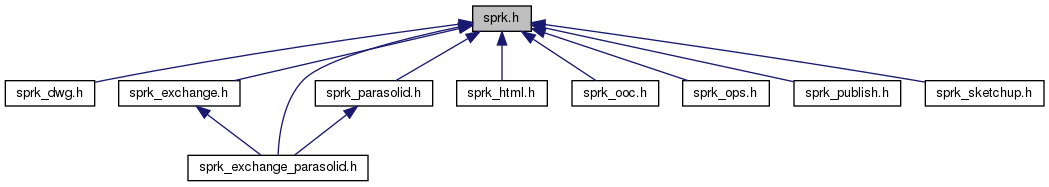

This graph shows which files directly or indirectly include this file:

Classes
class	HPS::Sprocket

class	HPS::Canvas
	The Canvas class is one of the four core display classes used in a Visualize application. More...

class	HPS::Rendering

class	HPS::SprocketControl

class	HPS::SprocketKit

class	HPS::View
	The View class is one of the four core display classes used in a Visualize application. More...

class	HPS::Model
	The Model class is one of the four core display classes used in a Visualize application. More...

class	HPS::Layout
	The Layout class is one of the four core display classes used in a Visualize application. More...

class	HPS::CanvasDeletedEvent

class	HPS::LayoutDetachedEvent

class	HPS::LayoutDeletedEvent

class	HPS::ViewDetachedEvent

class	HPS::ViewDeletedEvent

class	HPS::ModelDetachedEvent

class	HPS::ModelDeletedEvent

class	HPS::CameraChangedEvent

class	HPS::SprocketPath
	The SprocketPath class is a utility class which can be used to automatically obtain a KeyPath from the Model to the Canvas. More...

class	HPS::Operator
	The Operator class is the base class for classes which handle under input and operate on the scene. More...

class	HPS::OperatorUtility

class	HPS::OperatorControl
	The OperatorControl class is a smart pointer that is tied to a database object. More...

class	HPS::NavigationCubeControl
	The NavigationCubeControl allows you to turn on or off the navigation cube, move it to a specific corner of the screen, change the material palette used to style it, or otherwise manipulate it. More...

class	HPS::AxisTriadControl
	The AxisTriadControl allows you to turn on or off the axis triad, move it to a specific corner of the screen, change the material palette used to style it, or otherwise manipulate it. More...

class	HPS::Component
	The Component class is a smart pointer. More...

class	HPS::ComponentPath
	The ComponentPath contains an array of components, organized from leaf to root. More...

class	HPS::ComponentIsolateEvent
	The ComponentIsolateEvent class is the event that will be triggered for each isolate call. More...

class	HPS::ComponentHighlightEvent
	The ComponentHighlightEvent class is the event that will be triggered for each highlight or unhighlight call. More...

class	HPS::Filter
	The Filter class is a smart pointer. More...

class	HPS::FilterActivationEvent

class	HPS::Capture
	The Capture class is a smart pointer. More...

class	HPS::CaptureActivationEvent

class	HPS::CADModel
	The CADModel class is a smart pointer. More...

class	HPS::Metadata
	The Metadata class is a smart pointer. More...

class	HPS::IntegerMetadata
	The IntegerMetadata class is a smart pointer. More...

class	HPS::UnsignedIntegerMetadata
	The UnsignedIntegerMetadata class is a smart pointer. More...

class	HPS::DoubleMetadata
	The DoubleMetadata class is a smart pointer. More...

class	HPS::StringMetadata
	The StringMetadata class is a smart pointer. More...

class	HPS::TimeMetadata
	The TimeMetadata class is a smart pointer. More...

class	HPS::BooleanMetadata
	The BooleanMetadata class is a smart pointer. More...

class	HPS::Factory
	The Factory class is used to create and query Sprocket objects. More...

class	HPS::AxisTriadOperator
	The AxisTriadOperator class defines an operator which allows the user to interact with the axis triad. More...

class	HPS::SmoothTransitionCompleteEvent
	The SmoothTransitionCompleteEvent class is the event that will be triggered when a Smooth Transition ends. More...

class	HPS::NavigationCubeOperator

class	HPS::NavigationCubeOperator::SmoothTransitionCompleteEventHandler

class	HPS::SceneTree
	The SceneTree class is a smart pointer which corresponds to a tree object in a GUI toolkit, e.g., a TreeView in WPF or a CTreeCtrl in MFC. More...

class	HPS::SceneTreeItem
	The SceneTreeItem class is a smart pointer which corresponds to an item or node in a tree object in a GUI toolkit, e.g., a TreeViewItem in WPF or an HTREEITEM in MFC. More...

class	HPS::ComponentTree
	The ComponentTree class is a smart pointer which corresponds to a tree object in a GUI toolkit, e.g., a TreeView in WPF or a CTreeCtrl in MFC. More...

class	HPS::ComponentTreeItem
	The ComponentTreeItem class is a smart pointer which corresponds to an item or node in a tree object in a GUI toolkit, e.g., a TreeViewItem in WPF or an HTREEITEM in MFC. More...

Namespaces
	SPRKI

	HPS

Macros
#define	SPRK_API

Typedefs
typedef std::shared_ptr< Operator >	HPS::OperatorPtr

typedef std::vector< OperatorPtr, Allocator< OperatorPtr > >	HPS::OperatorPtrArray

typedef std::vector< Canvas, Allocator< Canvas > >	HPS::CanvasArray

typedef std::vector< Layout, Allocator< Layout > >	HPS::LayoutArray

typedef std::vector< View, Allocator< View > >	HPS::ViewArray

typedef std::vector< Model, Allocator< Model > >	HPS::ModelArray

typedef std::vector< Component, Allocator< Component > >	HPS::ComponentArray

typedef std::vector< Metadata, Allocator< Metadata > >	HPS::MetadataArray

typedef std::vector< Filter, Allocator< Filter > >	HPS::FilterArray

typedef std::vector< Capture, Allocator< Capture > >	HPS::CaptureArray

typedef std::vector< CADModel, Allocator< CADModel > >	HPS::CADModelArray

typedef std::vector< ReferenceKeyArray, Allocator< ReferenceKeyArray > >	HPS::ReferenceKeyArrayArray

typedef std::vector< ComponentPath, Allocator< ComponentPath > >	HPS::ComponentPathArray

typedef std::vector< HighlightOptionsKit, Allocator< HighlightOptionsKit > >	HPS::HighlightOptionsKitArray

typedef std::shared_ptr< SceneTreeItem >	HPS::SceneTreeItemPtr

typedef std::shared_ptr< SceneTree >	HPS::SceneTreePtr

typedef std::shared_ptr< ComponentTreeItem >	HPS::ComponentTreeItemPtr

typedef std::shared_ptr< ComponentTree >	HPS::ComponentTreePtr

Functions
ComponentPath	HPS::operator+ (Component const &in_lhs, Component const &in_rhs)
	Creates a new ComponentPath object representing the concatenation of two Components. More...

ComponentPath	HPS::operator+ (Component const &in_lhs, ComponentArray const &in_rhs)
	Creates a new ComponentPath object representing the concatenation of the Component and Component array. More...

ComponentPath	HPS::operator+ (Component const &in_lhs, ComponentPath const &in_rhs)
	Creates a new ComponentPath object representing the concatenation of a Component and Component path. More...

ComponentPath	HPS::operator+ (ComponentArray const &in_lhs, Component const &in_rhs)
	Creates a new ComponentPath object representing the concatenation of a Component array and a Component. More...

ComponentPath	HPS::operator+ (ComponentArray const &in_lhs, ComponentArray const &in_rhs)
	Creates a new ComponentPath object representing the concatenation of two Component arrays. More...

ComponentPath	HPS::operator+ (ComponentArray const &in_lhs, ComponentPath const &in_rhs)
	Creates a new ComponentPath object representing the concatenation of a Component array and a Component path. More...

ComponentPath	HPS::operator+ (ComponentPath const &in_lhs, Component const &in_rhs)
	Creates a new ComponentPath object representing the concatenation of a Component path and a Component. More...

ComponentPath	HPS::operator+ (ComponentPath const &in_lhs, ComponentArray const &in_rhs)
	Creates a new ComponentPath object representing the concatenation of a Component path and Component array. More...

ComponentPath	HPS::operator+ (ComponentPath const &in_lhs, ComponentPath const &in_rhs)
	Creates a new ComponentPath object representing the concatenation of two Component paths. More...

Macro Definition Documentation

◆ SPRK_API

#define SPRK_API
