Inheritance diagram for VideoComponent::Pimpl::MediaSession::Player:

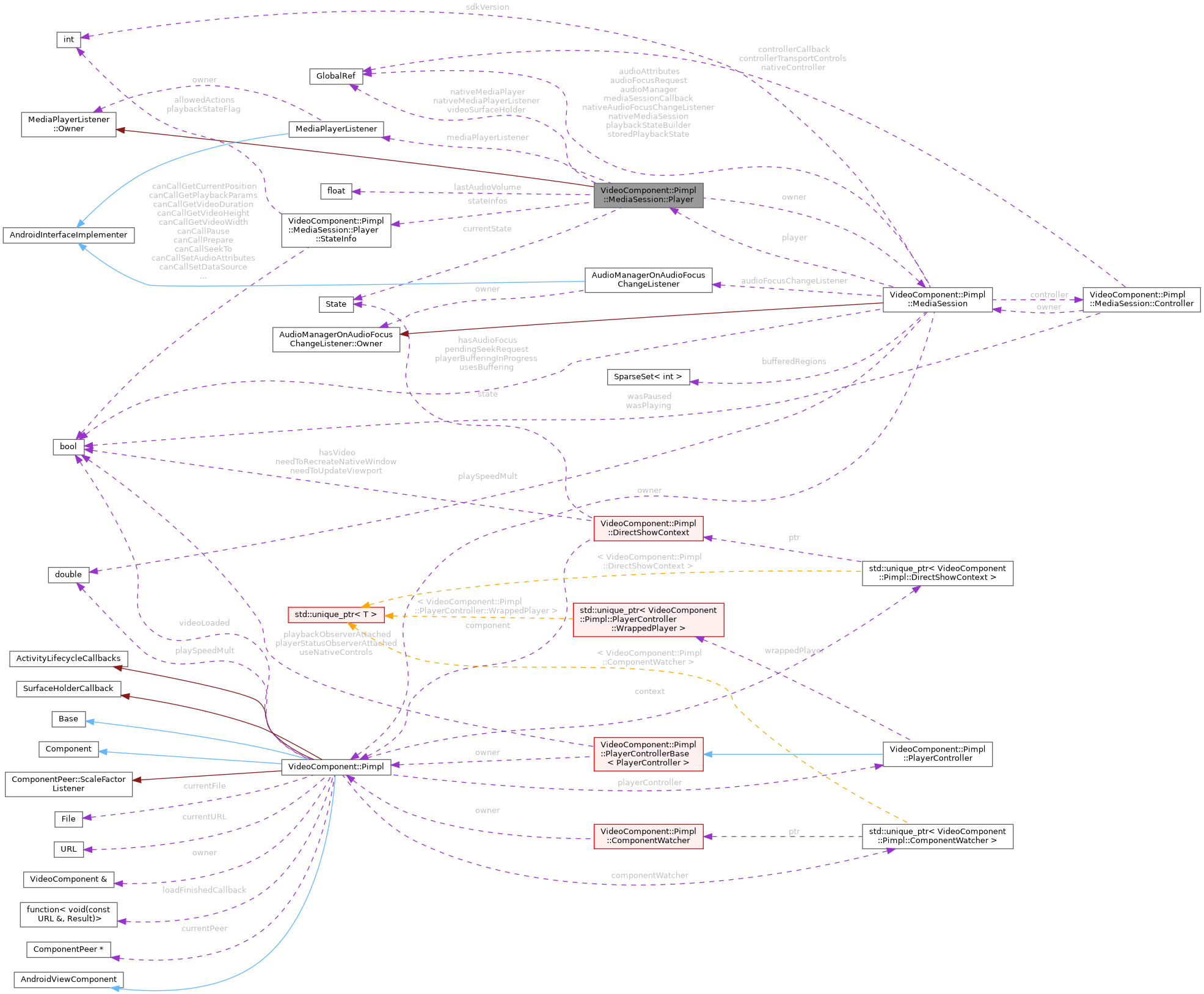

Collaboration diagram for VideoComponent::Pimpl::MediaSession::Player:

[legend]

Classes
struct	StateInfo

Public Member Functions
	Player (MediaSession &ownerToUse)

void	closeVideo ()

int	getAllowedActions () const noexcept

float	getAudioVolume () const

int	getPlaybackStateFlag () const noexcept

jint	getPlayPosition () const

double	getPlaySpeed () const

jlong	getVideoDuration () const

Rectangle< int >	getVideoNativeSize () const

bool	isPlaying () const

bool	isVideoOpen () const noexcept

void	load (const LocalRef< jstring > &mediaId, const LocalRef< jobject > &extras)

void	pause ()

void	play ()

void	setAudioVolume (float newVolume)

void	setDisplay (const LocalRef< jobject > &surfaceHolder)

void	setPlayPosition (jint newPositionMs)

void	setPlaySpeed (double newSpeed)

Private Types
enum	{ MEDIA_INFO_UNKNOWN = 1, MEDIA_INFO_VIDEO_RENDERING_START = 3, MEDIA_INFO_VIDEO_TRACK_LAGGING = 700, MEDIA_INFO_BUFFERING_START = 701, MEDIA_INFO_BUFFERING_END = 702, MEDIA_INFO_NETWORK_BANDWIDTH = 703, MEDIA_INFO_BAD_INTERLEAVING = 800, MEDIA_INFO_NOT_SEEKABLE = 801, MEDIA_INFO_METADATA_UPDATE = 802, MEDIA_INFO_AUDIO_NOT_PLAYING = 804, MEDIA_INFO_VIDEO_NOT_PLAYING = 805, MEDIA_INFO_UNSUPPORTED_SUBTITE = 901, MEDIA_INFO_SUBTITLE_TIMED_OUT = 902 }

enum	State { State::idle, State::initialised, State::preparing, State::prepared, State::started, State::paused, State::stopped, State::complete, State::error, State::end }

Private Member Functions
StateInfo	getCurrentStateInfo () const noexcept

void	onBufferingUpdate (LocalRef< jobject > &mediaPlayer, int progress) override

void	onCompletion (LocalRef< jobject > &mediaPlayer) override

bool	onError (LocalRef< jobject > &mediaPlayer, int what, int extra) override

bool	onInfo (LocalRef< jobject > &mediaPlayer, int what, int extra) override

void	onPrepared (LocalRef< jobject > &mediaPlayer) override

void	onSeekComplete (LocalRef< jobject > &mediaPlayer) override

Static Private Member Functions
static String	errorCodeToString (int code)

static StringArray	getNativeMediaPlayerListenerInterfaces ()

static String	infoCodeToString (int code)

Private Attributes
State	currentState = State::idle

float	lastAudioVolume = std::numeric_limits<float>::min()

MediaPlayerListener	mediaPlayerListener

GlobalRef	nativeMediaPlayer

GlobalRef	nativeMediaPlayerListener

MediaSession &	owner

GlobalRef	videoSurfaceHolder

Static Private Attributes
static constexpr StateInfo	stateInfos []

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

Enumerator
MEDIA_INFO_UNKNOWN
MEDIA_INFO_VIDEO_RENDERING_START
MEDIA_INFO_VIDEO_TRACK_LAGGING
MEDIA_INFO_BUFFERING_START
MEDIA_INFO_BUFFERING_END
MEDIA_INFO_NETWORK_BANDWIDTH
MEDIA_INFO_BAD_INTERLEAVING
MEDIA_INFO_NOT_SEEKABLE
MEDIA_INFO_METADATA_UPDATE
MEDIA_INFO_AUDIO_NOT_PLAYING
MEDIA_INFO_VIDEO_NOT_PLAYING
MEDIA_INFO_UNSUPPORTED_SUBTITE
MEDIA_INFO_SUBTITLE_TIMED_OUT

◆ State

enum VideoComponent::Pimpl::MediaSession::Player::State

strongprivate

Enumerator
idle
initialised
preparing
prepared
started
paused
stopped
complete
error
end

Constructor & Destructor Documentation

◆ Player()

VideoComponent::Pimpl::MediaSession::Player::Player ( MediaSession & ownerToUse )

inline

Member Function Documentation

◆ closeVideo()

void VideoComponent::Pimpl::MediaSession::Player::closeVideo ( )

inline

References currentState, end, getCurrentStateInfo(), juce::getEnv(), and nativeMediaPlayer.

Referenced by load().

◆ errorCodeToString()

static String VideoComponent::Pimpl::MediaSession::Player::errorCodeToString ( int code )

inlinestaticprivate

Referenced by onError().

◆ getAllowedActions()

int VideoComponent::Pimpl::MediaSession::Player::getAllowedActions ( ) const

inlinenoexcept

References VideoComponent::Pimpl::MediaSession::Player::StateInfo::allowedActions, and getCurrentStateInfo().

Referenced by VideoComponent::Pimpl::MediaSession::getCurrentPlaybackState().

◆ getAudioVolume()

float VideoComponent::Pimpl::MediaSession::Player::getAudioVolume ( ) const

inline

References lastAudioVolume.

Referenced by VideoComponent::Pimpl::MediaSession::getVolume().

◆ getCurrentStateInfo()

StateInfo VideoComponent::Pimpl::MediaSession::Player::getCurrentStateInfo ( ) const

inlineprivatenoexcept

References currentState, and stateInfos.

Referenced by closeVideo(), getAllowedActions(), getPlaybackStateFlag(), getPlayPosition(), getPlaySpeed(), getVideoDuration(), getVideoNativeSize(), isPlaying(), pause(), play(), setAudioVolume(), setPlayPosition(), and setPlaySpeed().

◆ getNativeMediaPlayerListenerInterfaces()

static StringArray VideoComponent::Pimpl::MediaSession::Player::getNativeMediaPlayerListenerInterfaces ( )

inlinestaticprivate

References IFPREFIX.

◆ getPlaybackStateFlag()

int VideoComponent::Pimpl::MediaSession::Player::getPlaybackStateFlag ( ) const

inlinenoexcept

References getCurrentStateInfo(), and VideoComponent::Pimpl::MediaSession::Player::StateInfo::playbackStateFlag.

Referenced by VideoComponent::Pimpl::MediaSession::getCurrentPlaybackState().

◆ getPlayPosition()

jint VideoComponent::Pimpl::MediaSession::Player::getPlayPosition ( ) const

inline

References getCurrentStateInfo(), juce::getEnv(), and nativeMediaPlayer.

Referenced by VideoComponent::Pimpl::MediaSession::getCurrentPlaybackState(), VideoComponent::Pimpl::MediaSession::isSeekInProgress(), and VideoComponent::Pimpl::MediaSession::playerBufferingUpdated().

◆ getPlaySpeed()

double VideoComponent::Pimpl::MediaSession::Player::getPlaySpeed ( ) const

inline

References getCurrentStateInfo(), juce::getEnv(), and nativeMediaPlayer.

Referenced by VideoComponent::Pimpl::MediaSession::getCurrentPlaybackState().

◆ getVideoDuration()

jlong VideoComponent::Pimpl::MediaSession::Player::getVideoDuration ( ) const

inline

References getCurrentStateInfo(), juce::getEnv(), and nativeMediaPlayer.

Referenced by VideoComponent::Pimpl::MediaSession::getDuration(), VideoComponent::Pimpl::MediaSession::isSeekInProgress(), VideoComponent::Pimpl::MediaSession::playerBufferingUpdated(), and VideoComponent::Pimpl::MediaSession::updateMetadata().

◆ getVideoNativeSize()

Rectangle<int> VideoComponent::Pimpl::MediaSession::Player::getVideoNativeSize ( ) const

inline

References getCurrentStateInfo(), juce::getEnv(), juce::gl::height, int(), jassertfalse, nativeMediaPlayer, and juce::gl::width.

Referenced by VideoComponent::Pimpl::MediaSession::getNativeSize().

◆ infoCodeToString()

static String VideoComponent::Pimpl::MediaSession::Player::infoCodeToString ( int code )

inlinestaticprivate

References MEDIA_INFO_AUDIO_NOT_PLAYING, MEDIA_INFO_BAD_INTERLEAVING, MEDIA_INFO_BUFFERING_END, MEDIA_INFO_BUFFERING_START, MEDIA_INFO_METADATA_UPDATE, MEDIA_INFO_NETWORK_BANDWIDTH, MEDIA_INFO_NOT_SEEKABLE, MEDIA_INFO_SUBTITLE_TIMED_OUT, MEDIA_INFO_UNKNOWN, MEDIA_INFO_UNSUPPORTED_SUBTITE, MEDIA_INFO_VIDEO_NOT_PLAYING, MEDIA_INFO_VIDEO_RENDERING_START, and MEDIA_INFO_VIDEO_TRACK_LAGGING.

Referenced by onInfo().

◆ isPlaying()

bool VideoComponent::Pimpl::MediaSession::Player::isPlaying ( ) const

inline

References getCurrentStateInfo(), and VideoComponent::Pimpl::MediaSession::Player::StateInfo::isPlaying.

Referenced by VideoComponent::Pimpl::MediaSession::isPlaying(), and VideoComponent::Pimpl::MediaSession::setSpeed().

◆ isVideoOpen()

bool VideoComponent::Pimpl::MediaSession::Player::isVideoOpen ( ) const

inlinenoexcept

References complete, currentState, paused, prepared, and started.

Referenced by VideoComponent::Pimpl::MediaSession::isVideoOpen().

◆ load()

void VideoComponent::Pimpl::MediaSession::Player::load	(	const LocalRef< jstring > &	mediaId,
		const LocalRef< jobject > &	extras
	)

inline

References closeVideo(), currentState, VideoComponent::Pimpl::MediaSession::errorOccurred(), juce::dsp::get(), juce::getAppContext(), juce::getEnv(), idle, juce::ignoreUnused(), initialised, juce::anonymous_namespace{juce_android_JNIHelpers.h}::jniCheckHasExceptionOccurredAndClear(), juce::anonymous_namespace{juce_android_JNIHelpers.h}::juceString(), nativeMediaPlayer, nativeMediaPlayerListener, owner, preparing, and videoSurfaceHolder.

◆ onBufferingUpdate()

void VideoComponent::Pimpl::MediaSession::Player::onBufferingUpdate	(	LocalRef< jobject > &	mediaPlayer,
		int	progress
	)

inlineoverrideprivatevirtual

Implements MediaPlayerListener::Owner.

References juce::ignoreUnused(), owner, and VideoComponent::Pimpl::MediaSession::playerBufferingUpdated().

◆ onCompletion()

void VideoComponent::Pimpl::MediaSession::Player::onCompletion ( LocalRef< jobject > & mediaPlayer )

inlineoverrideprivatevirtual

Implements MediaPlayerListener::Owner.

References complete, currentState, juce::ignoreUnused(), JUCE_VIDEO_LOG, owner, and VideoComponent::Pimpl::MediaSession::playerPlaybackCompleted().

◆ onError()

bool VideoComponent::Pimpl::MediaSession::Player::onError	(	LocalRef< jobject > &	mediaPlayer,
		int	what,
		int	extra
	)

inlineoverrideprivatevirtual

Implements MediaPlayerListener::Owner.

References currentState, error, errorCodeToString(), VideoComponent::Pimpl::MediaSession::errorOccurred(), juce::ignoreUnused(), JUCE_VIDEO_LOG, and owner.

◆ onInfo()

bool VideoComponent::Pimpl::MediaSession::Player::onInfo	(	LocalRef< jobject > &	mediaPlayer,
		int	what,
		int	extra
	)

inlineoverrideprivatevirtual

Implements MediaPlayerListener::Owner.

References juce::ignoreUnused(), infoCodeToString(), JUCE_VIDEO_LOG, MEDIA_INFO_BUFFERING_END, MEDIA_INFO_BUFFERING_START, owner, VideoComponent::Pimpl::MediaSession::playerBufferingEnded(), and VideoComponent::Pimpl::MediaSession::playerBufferingStarted().

◆ onPrepared()

void VideoComponent::Pimpl::MediaSession::Player::onPrepared ( LocalRef< jobject > & mediaPlayer )

inlineoverrideprivatevirtual

Implements MediaPlayerListener::Owner.

References currentState, juce::ignoreUnused(), JUCE_VIDEO_LOG, owner, VideoComponent::Pimpl::MediaSession::playerPrepared(), and prepared.

◆ onSeekComplete()

void VideoComponent::Pimpl::MediaSession::Player::onSeekComplete ( LocalRef< jobject > & mediaPlayer )

inlineoverrideprivatevirtual

Implements MediaPlayerListener::Owner.

References juce::ignoreUnused(), JUCE_VIDEO_LOG, owner, and VideoComponent::Pimpl::MediaSession::playerSeekCompleted().

◆ pause()

void VideoComponent::Pimpl::MediaSession::Player::pause ( )

inline

References currentState, getCurrentStateInfo(), juce::getEnv(), jassertfalse, nativeMediaPlayer, and paused.

Referenced by VideoComponent::Pimpl::MediaSession::playerPlaybackCompleted().

◆ play()

void VideoComponent::Pimpl::MediaSession::Player::play ( )

inline

References currentState, getCurrentStateInfo(), juce::getEnv(), jassertfalse, lastAudioVolume, nativeMediaPlayer, and started.

◆ setAudioVolume()

void VideoComponent::Pimpl::MediaSession::Player::setAudioVolume ( float newVolume )

inline

References juce::gl::f, getCurrentStateInfo(), juce::getEnv(), jassertfalse, juce::jlimit(), lastAudioVolume, and nativeMediaPlayer.

Referenced by VideoComponent::Pimpl::MediaSession::setVolume().

◆ setDisplay()

void VideoComponent::Pimpl::MediaSession::Player::setDisplay ( const LocalRef< jobject > & surfaceHolder )

inline

References juce::getEnv(), nativeMediaPlayer, and videoSurfaceHolder.

Referenced by VideoComponent::Pimpl::MediaSession::setDisplay().

◆ setPlayPosition()

void VideoComponent::Pimpl::MediaSession::Player::setPlayPosition ( jint newPositionMs )

inline

References getCurrentStateInfo(), juce::getEnv(), jassertfalse, and nativeMediaPlayer.

Referenced by VideoComponent::Pimpl::MediaSession::playerPlaybackCompleted().

◆ setPlaySpeed()

void VideoComponent::Pimpl::MediaSession::Player::setPlaySpeed ( double newSpeed )

inline

References getCurrentStateInfo(), juce::getEnv(), jassertfalse, juce::anonymous_namespace{juce_android_JNIHelpers.h}::jniCheckHasExceptionOccurredAndClear(), and nativeMediaPlayer.

Referenced by VideoComponent::Pimpl::MediaSession::setSpeed().

Member Data Documentation

◆ currentState

State VideoComponent::Pimpl::MediaSession::Player::currentState = State::idle

private

Referenced by closeVideo(), getCurrentStateInfo(), isVideoOpen(), load(), onCompletion(), onError(), onPrepared(), pause(), and play().

◆ lastAudioVolume

float VideoComponent::Pimpl::MediaSession::Player::lastAudioVolume = std::numeric_limits<float>::min()

private

Referenced by getAudioVolume(), play(), and setAudioVolume().

◆ mediaPlayerListener

MediaPlayerListener VideoComponent::Pimpl::MediaSession::Player::mediaPlayerListener

private

◆ nativeMediaPlayer

GlobalRef VideoComponent::Pimpl::MediaSession::Player::nativeMediaPlayer

private

Referenced by closeVideo(), getPlayPosition(), getPlaySpeed(), getVideoDuration(), getVideoNativeSize(), load(), pause(), play(), setAudioVolume(), setDisplay(), setPlayPosition(), and setPlaySpeed().

◆ nativeMediaPlayerListener

GlobalRef VideoComponent::Pimpl::MediaSession::Player::nativeMediaPlayerListener

private

Referenced by load().

◆ owner

MediaSession& VideoComponent::Pimpl::MediaSession::Player::owner

private

Referenced by load(), onBufferingUpdate(), onCompletion(), onError(), onInfo(), onPrepared(), and onSeekComplete().

◆ stateInfos

constexpr VideoComponent::Pimpl::MediaSession::Player::StateInfo VideoComponent::Pimpl::MediaSession::Player::stateInfos

staticconstexprprivate

Referenced by getCurrentStateInfo().

◆ videoSurfaceHolder

GlobalRef VideoComponent::Pimpl::MediaSession::Player::videoSurfaceHolder

private

Referenced by load(), and setDisplay().

The documentation for this class was generated from the following file:

juce_android_Video.h
