juce::AbstractFifo::ScopedReadWrite< mode > Class Template Reference

Class for a scoped reader/writer. More...

#include <juce_AbstractFifo.h>

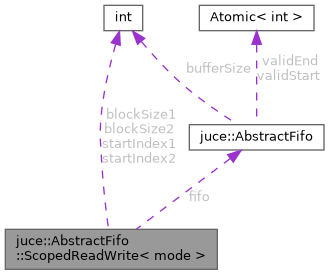

Collaboration diagram for juce::AbstractFifo::ScopedReadWrite< mode >:

Public Member Functions
	ScopedReadWrite ()=default
	Construct an unassigned reader/writer. More...
	ScopedReadWrite (AbstractFifo &f, int num) noexcept
	Construct a reader/writer and immediately call prepareRead/prepareWrite on the abstractFifo which was passed in. More...
	ScopedReadWrite (const ScopedReadWrite &)=delete
	ScopedReadWrite (ScopedReadWrite &&) noexcept
	~ScopedReadWrite () noexcept
	Calls finishedRead or finishedWrite if this is a non-null scoped reader/writer. More...
template<typename FunctionToApply >
void	forEach (FunctionToApply &&func) const
	Calls the passed function with each index that was deemed valid for the current read/write operation. More...
ScopedReadWrite &	operator= (const ScopedReadWrite &)=delete
ScopedReadWrite &	operator= (ScopedReadWrite &&) noexcept

Public Attributes
int	blockSize1
int	blockSize2
int	startIndex1
int	startIndex2

Private Member Functions
void	finish (AbstractFifo &f, int num) noexcept
void	finish (AbstractFifo &f, int num) noexcept
void	prepare (AbstractFifo &, int) noexcept
void	prepare (AbstractFifo &f, int num) noexcept
void	prepare (AbstractFifo &f, int num) noexcept
void	swap (ScopedReadWrite &) noexcept

Static Private Member Functions
static void	finish (AbstractFifo &, int) noexcept

Private Attributes
AbstractFifo *	fifo = nullptr

Detailed Description

template<ReadOrWrite mode>
class juce::AbstractFifo::ScopedReadWrite< mode >

Class for a scoped reader/writer.

Constructor & Destructor Documentation

ScopedReadWrite() [1/4]

template<ReadOrWrite mode>

juce::AbstractFifo::ScopedReadWrite< mode >::ScopedReadWrite ( )

default

Construct an unassigned reader/writer.

Doesn't do anything upon destruction.

ScopedReadWrite() [2/4]

template<ReadOrWrite mode>

juce::AbstractFifo::ScopedReadWrite< mode >::ScopedReadWrite ( AbstractFifo &  f, int  num  )

inlinenoexcept

Construct a reader/writer and immediately call prepareRead/prepareWrite on the abstractFifo which was passed in.

This object will hold a pointer back to the fifo, so make sure that the fifo outlives this object.

References juce::gl::num.

ScopedReadWrite() [3/4]

template<ReadOrWrite mode>

juce::AbstractFifo::ScopedReadWrite< mode >::ScopedReadWrite ( const ScopedReadWrite< mode > &  )

delete

ScopedReadWrite() [4/4]

template<ReadOrWrite mode>

juce::AbstractFifo::ScopedReadWrite< mode >::ScopedReadWrite ( ScopedReadWrite< mode > &&  )

noexcept

~ScopedReadWrite()

template<ReadOrWrite mode>

juce::AbstractFifo::ScopedReadWrite< mode >::~ScopedReadWrite ( )

inlinenoexcept

Calls finishedRead or finishedWrite if this is a non-null scoped reader/writer.

Member Function Documentation

finish() [1/3]

template<ReadOrWrite mode>

static void juce::AbstractFifo::ScopedReadWrite< mode >::finish ( AbstractFifo &  , int    )

staticprivatenoexcept

finish() [2/3]

void juce::AbstractFifo::ScopedReadWrite< AbstractFifo::ReadOrWrite::read >::finish ( AbstractFifo &  f, int  num  )

inlineprivatenoexcept

References juce::gl::f, and juce::gl::num.

finish() [3/3]

void juce::AbstractFifo::ScopedReadWrite< AbstractFifo::ReadOrWrite::write >::finish ( AbstractFifo &  f, int  num  )

inlineprivatenoexcept

References juce::gl::f, and juce::gl::num.

forEach()

template<ReadOrWrite mode>

template<typename FunctionToApply >

void juce::AbstractFifo::ScopedReadWrite< mode >::forEach ( FunctionToApply &&  func ) const

inline

Calls the passed function with each index that was deemed valid for the current read/write operation.

References juce::gl::func.

operator=() [1/2]

template<ReadOrWrite mode>

ScopedReadWrite& juce::AbstractFifo::ScopedReadWrite< mode >::operator= ( const ScopedReadWrite< mode > &  )

delete

operator=() [2/2]

template<ReadOrWrite mode>

ScopedReadWrite& juce::AbstractFifo::ScopedReadWrite< mode >::operator= ( ScopedReadWrite< mode > &&  )

noexcept

prepare() [1/3]

template<ReadOrWrite mode>

void juce::AbstractFifo::ScopedReadWrite< mode >::prepare ( AbstractFifo &  , int    )

privatenoexcept

prepare() [2/3]

void juce::AbstractFifo::ScopedReadWrite< AbstractFifo::ReadOrWrite::read >::prepare ( AbstractFifo &  f, int  num  )

inlineprivatenoexcept

References juce::gl::f, and juce::gl::num.

prepare() [3/3]

void juce::AbstractFifo::ScopedReadWrite< AbstractFifo::ReadOrWrite::write >::prepare ( AbstractFifo &  f, int  num  )

inlineprivatenoexcept

References juce::gl::f, and juce::gl::num.

swap()

template<ReadOrWrite mode>

void juce::AbstractFifo::ScopedReadWrite< mode >::swap ( ScopedReadWrite< mode > &  )

privatenoexcept

Member Data Documentation

blockSize1

template<ReadOrWrite mode>

int juce::AbstractFifo::ScopedReadWrite< mode >::blockSize1

blockSize2

template<ReadOrWrite mode>

int juce::AbstractFifo::ScopedReadWrite< mode >::blockSize2

fifo

template<ReadOrWrite mode>

AbstractFifo* juce::AbstractFifo::ScopedReadWrite< mode >::fifo = nullptr

private

startIndex1

template<ReadOrWrite mode>

int juce::AbstractFifo::ScopedReadWrite< mode >::startIndex1

startIndex2

template<ReadOrWrite mode>

int juce::AbstractFifo::ScopedReadWrite< mode >::startIndex2

---

The documentation for this class was generated from the following file:

• juce_AbstractFifo.h
