juce::AnimatorSetBuilder Class Reference

A builder class that can be used to construct an Animator wrapping an AnimatorSet implementation. More...

#include <juce_AnimatorSetBuilder.h>

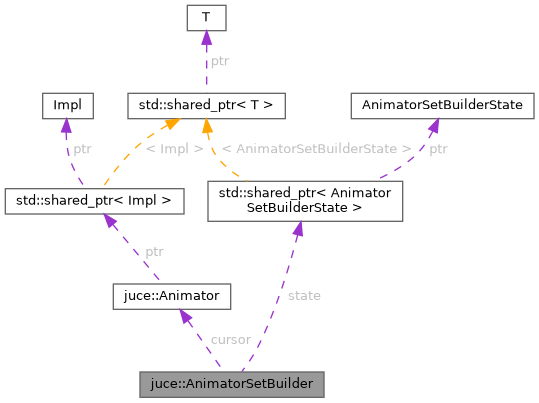

Collaboration diagram for juce::AnimatorSetBuilder:

Public Member Functions
	AnimatorSetBuilder (Animator startingAnimator)
	Creates a new builder instance specifying the startingAnimator as the first Animator that is started.
	AnimatorSetBuilder (double delayMs)
	Creates a builder with an empty starting animation that completes after delayMs.
	AnimatorSetBuilder (std::function< void()> cb)
	Creates a builder with a starting animation that completes at the first update and executes the provided callback function.
Animator	build ()
	Builds an Animator that executes the previously described and parameterised execution graph.
AnimatorSetBuilder	followedBy (Animator animator)
	Adds an Animator to the execution graph that will start executing after the Animator provided last to this builder object completes.
AnimatorSetBuilder	followedBy (double delayMs)
	Adds an empty Animator to the execution graph that will start executing after the Animator provided last to this builder object.
AnimatorSetBuilder	followedBy (std::function< void()> cb)
	Adds an empty Animator to the execution graph that will start executing after the Animator provided last to this builder object, completes upon its first update, and executes the provided callback.
AnimatorSetBuilder	togetherWith (Animator animator)
	Adds an Animator to the execution graph that will start executing at the same time as the Animator provided last to this builder object.
AnimatorSetBuilder	togetherWith (double delayMs)
	Adds an empty Animator to the execution graph that will start executing at the same time as the Animator provided last to this builder object, and completes in delayMs.
AnimatorSetBuilder	togetherWith (std::function< void()> cb)
	Adds an empty Animator to the execution graph that will start executing at the same time as the Animator provided last to this builder object, completes upon its first update, and executes the provided callback.
AnimatorSetBuilder	withTimeTransform (std::function< double(double)> transform)
	Specifies a time transformation function that the built Animator should utilise, allowing accelerating and decelerating the entire set of Animators.

Private Member Functions
	AnimatorSetBuilder (Animator cursorIn, std::shared_ptr< AnimatorSetBuilderState > dataIn)
	AnimatorSetBuilder (std::shared_ptr< AnimatorSetBuilderState > dataIn)
void	add (std::optional< Animator > parent, Animator child)

Private Attributes
Animator	cursor
std::shared_ptr< AnimatorSetBuilderState >	state

Detailed Description

A builder class that can be used to construct an Animator wrapping an AnimatorSet implementation.

It allows you to compose larger, complex animations by executing multiple constituent Animator instances in a coordinated manner. It essentially builds an Animator with an execution graph referencing other Animators.

Unlike ValueAnimatorBuilder, objects of AnimatorSetBuilder returned by its member functions reference the same underlying, modifiable builder instance. For this reason build() can be called only once on an underlying builder instance. This is to allow you to attach Animators to different points of the execution graph.

E.g. to have two functions followed by different amounts of delay, each followed by another function you would write the following.

// Both objects reference the same execution graph, but also refer to different Animators in it
auto builderReferencingFirst = AnimatorSetBuilder { firstFunction };
auto builderReferencingSecond = builderReferencingFirst.togetherWith (secondFunction);

builderReferencingFirst.followedBy (200).followedBy (thirdFunction);
builderReferencingSecond.followedBy (500).followedBy (fourthFunction);

// You could use any one of the builder objects that refer to the same execution graph
auto animator = builderReferencingFirst.build();

@tags{Animations}

Constructor & Destructor Documentation

AnimatorSetBuilder() [1/5]

juce::AnimatorSetBuilder::AnimatorSetBuilder ( Animator  startingAnimator )

explicit

Creates a new builder instance specifying the startingAnimator as the first Animator that is started.

AnimatorSetBuilder() [2/5]

juce::AnimatorSetBuilder::AnimatorSetBuilder ( double  delayMs )

explicit

Creates a builder with an empty starting animation that completes after delayMs.

AnimatorSetBuilder() [3/5]

juce::AnimatorSetBuilder::AnimatorSetBuilder ( std::function< void()>  cb )

explicit

Creates a builder with a starting animation that completes at the first update and executes the provided callback function.

AnimatorSetBuilder() [4/5]

juce::AnimatorSetBuilder::AnimatorSetBuilder ( std::shared_ptr< AnimatorSetBuilderState >  dataIn )

explicitprivate

AnimatorSetBuilder() [5/5]

juce::AnimatorSetBuilder::AnimatorSetBuilder ( Animator  cursorIn, std::shared_ptr< AnimatorSetBuilderState >  dataIn  )

private

Member Function Documentation

add()

void juce::AnimatorSetBuilder::add ( std::optional< Animator >  parent, Animator  child  )

private

build()

Animator juce::AnimatorSetBuilder::build

(

)

Builds an Animator that executes the previously described and parameterised execution graph.

This function should only be called once for every AnimatorSetBuilder created by its public constructor.

followedBy() [1/3]

AnimatorSetBuilder juce::AnimatorSetBuilder::followedBy

(

Animator

animator

)

Adds an Animator to the execution graph that will start executing after the Animator provided last to this builder object completes.

followedBy() [2/3]

AnimatorSetBuilder juce::AnimatorSetBuilder::followedBy

(

double

delayMs

)

Adds an empty Animator to the execution graph that will start executing after the Animator provided last to this builder object.

followedBy() [3/3]

AnimatorSetBuilder juce::AnimatorSetBuilder::followedBy

(

std::function< void()>

cb

)

Adds an empty Animator to the execution graph that will start executing after the Animator provided last to this builder object, completes upon its first update, and executes the provided callback.

togetherWith() [1/3]

AnimatorSetBuilder juce::AnimatorSetBuilder::togetherWith

(

Animator

animator

)

Adds an Animator to the execution graph that will start executing at the same time as the Animator provided last to this builder object.

togetherWith() [2/3]

AnimatorSetBuilder juce::AnimatorSetBuilder::togetherWith

(

double

delayMs

)

Adds an empty Animator to the execution graph that will start executing at the same time as the Animator provided last to this builder object, and completes in delayMs.

togetherWith() [3/3]

AnimatorSetBuilder juce::AnimatorSetBuilder::togetherWith

(

std::function< void()>

cb

)

Adds an empty Animator to the execution graph that will start executing at the same time as the Animator provided last to this builder object, completes upon its first update, and executes the provided callback.

withTimeTransform()

AnimatorSetBuilder juce::AnimatorSetBuilder::withTimeTransform

(

std::function< double(double)>

transform

)

Specifies a time transformation function that the built Animator should utilise, allowing accelerating and decelerating the entire set of Animators.

The provided function should be monotonically increasing.

Member Data Documentation

cursor

Animator juce::AnimatorSetBuilder::cursor

private

state

std::shared_ptr<AnimatorSetBuilderState> juce::AnimatorSetBuilder::state

private

---

The documentation for this class was generated from the following file:

• juce_AnimatorSetBuilder.h
