juce::AudioData::ConverterInstance< SourceSampleType, DestSampleType > Class Template Reference

A class that converts between two templated AudioData::Pointer types, and which implements the AudioData::Converter interface. More...

#include <juce_AudioDataConverters.h>

Inheritance diagram for juce::AudioData::ConverterInstance< SourceSampleType, DestSampleType >:

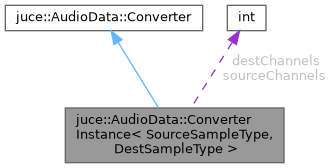

Collaboration diagram for juce::AudioData::ConverterInstance< SourceSampleType, DestSampleType >:

Public Member Functions
	ConverterInstance (int numSourceChannels=1, int numDestChannels=1)
void	convertSamples (void *dest, const void *source, int numSamples) const override
	Converts a sequence of samples from the converter's source format into the dest format. More...
void	convertSamples (void *dest, int destSubChannel, const void *source, int sourceSubChannel, int numSamples) const override
	Converts a sequence of samples from the converter's source format into the dest format. More...

Private Attributes
const int	destChannels
const int	sourceChannels

Detailed Description

template<class SourceSampleType, class DestSampleType>
class juce::AudioData::ConverterInstance< SourceSampleType, DestSampleType >

A class that converts between two templated AudioData::Pointer types, and which implements the AudioData::Converter interface.

This can be used as a concrete instance of the AudioData::Converter abstract class.

See also

AudioData::Converter

Constructor & Destructor Documentation

ConverterInstance()

template<class SourceSampleType , class DestSampleType >

juce::AudioData::ConverterInstance< SourceSampleType, DestSampleType >::ConverterInstance ( int  numSourceChannels = 1, int  numDestChannels = 1  )

inline

Member Function Documentation

convertSamples() [1/2]

template<class SourceSampleType , class DestSampleType >

void juce::AudioData::ConverterInstance< SourceSampleType, DestSampleType >::convertSamples ( void *  destSamples, const void *  sourceSamples, int  numSamples  ) const

inlineoverridevirtual

Converts a sequence of samples from the converter's source format into the dest format.

Implements juce::AudioData::Converter.

References juce::gl::s, and juce::gl::source.

convertSamples() [2/2]

template<class SourceSampleType , class DestSampleType >

void juce::AudioData::ConverterInstance< SourceSampleType, DestSampleType >::convertSamples ( void *  destSamples, int  destSubChannel, const void *  sourceSamples, int  sourceSubChannel, int  numSamples  ) const

inlineoverridevirtual

Converts a sequence of samples from the converter's source format into the dest format.

This method takes sub-channel indexes, which can be used with interleaved formats in order to choose a particular sub-channel of the data to be used.

Implements juce::AudioData::Converter.

References juce::addBytesToPointer(), jassert, juce::gl::s, and juce::gl::source.

Member Data Documentation

destChannels

template<class SourceSampleType , class DestSampleType >

const int juce::AudioData::ConverterInstance< SourceSampleType, DestSampleType >::destChannels

private

sourceChannels

template<class SourceSampleType , class DestSampleType >

const int juce::AudioData::ConverterInstance< SourceSampleType, DestSampleType >::sourceChannels

private

---

The documentation for this class was generated from the following file:

• juce_AudioDataConverters.h
