Options that affect the output data format produced by an AudioFormatWriter. More...

#include <juce_AudioFormatWriterOptions.h>

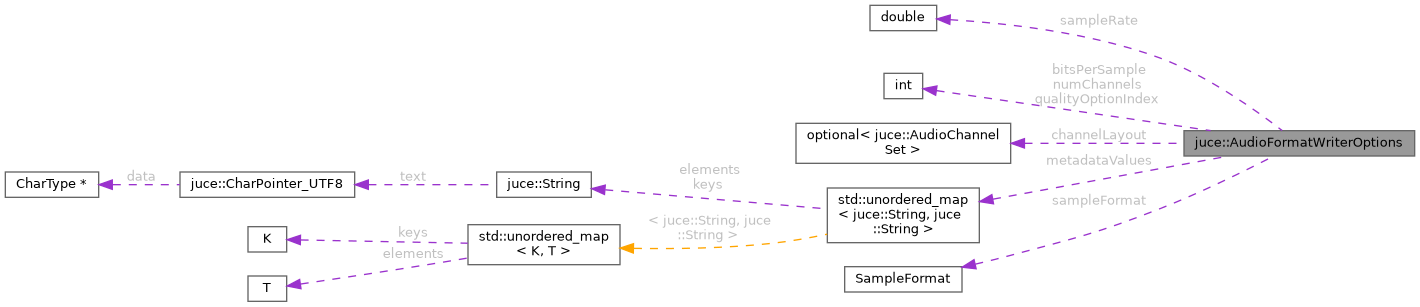

Collaboration diagram for juce::AudioFormatWriterOptions:

[legend]

Public Types
enum class	SampleFormat { automatic , integral , floatingPoint }
	Used to provide a hint to the AudioFormatWriter for the output sample format. More...

Public Member Functions
auto	getBitsPerSample () const

auto	getChannelLayout () const

auto	getMetadataValues () const

auto	getNumChannels () const

auto	getQualityOptionIndex () const

auto	getSampleFormat () const

auto	getSampleRate () const

AudioFormatWriterOptions	withBitsPerSample (int x) const
	Returns a copy of these options with the specified bit size per sample.

AudioFormatWriterOptions	withChannelLayout (const AudioChannelSet &x) const
	Returns a copy of these options with the specified channel set.

AudioFormatWriterOptions	withMetadata (const String &key, const String &value) const
	Returns a copy of these options with the specified metadata added.

AudioFormatWriterOptions	withMetadataValues (const std::unordered_map< String, String > &x) const
	Returns a copy of these options with the specified metadata container.

AudioFormatWriterOptions	withNumChannels (int x) const
	Returns a copy of these options with the specified number of channels.

AudioFormatWriterOptions	withQualityOptionIndex (int x) const
	Returns a copy of these options with the specified quality option index.

AudioFormatWriterOptions	withSampleFormat (SampleFormat x) const
	Returns a copy of these options with the specified sample format.

AudioFormatWriterOptions	withSampleRate (double x) const
	Returns a copy of these options with the specified sample rate.

Private Attributes
int	bitsPerSample = 16

std::optional< AudioChannelSet >	channelLayout = std::nullopt

std::unordered_map< String, String >	metadataValues

int	numChannels = 1

int	qualityOptionIndex = 0

SampleFormat	sampleFormat = SampleFormat::automatic

double	sampleRate = 48000.0

Detailed Description

Options that affect the output data format produced by an AudioFormatWriter.

Format specific writers may ignore some of these options.

See also: AudioFormat::createWriterFor(), AudioFormatWriter

@tags{Audio}

Member Enumeration Documentation

◆ SampleFormat

enum class juce::AudioFormatWriterOptions::SampleFormat

strong

Used to provide a hint to the AudioFormatWriter for the output sample format.

Use automatic for the old behaviour. The values integral and floatingPoint can be used with the WavAudioFormat when using a bit depth of 32. Other formats are not affected by this setting.

Enumerator
automatic	Lets the writer decide the format based on the other parameter values.
integral	Integral format, e.g. PCM in case of the WavAudioFormat.
floatingPoint	IEEE floating point format.

Member Function Documentation

◆ getBitsPerSample()

auto juce::AudioFormatWriterOptions::getBitsPerSample ( ) const

inline

See also: withBitsPerSample()

◆ getChannelLayout()

auto juce::AudioFormatWriterOptions::getChannelLayout ( ) const

inline

See also: withChannelLayout()

◆ getMetadataValues()

auto juce::AudioFormatWriterOptions::getMetadataValues ( ) const

inline

See also: withMetadataValues()

◆ getNumChannels()

auto juce::AudioFormatWriterOptions::getNumChannels ( ) const

inline

See also: withNumChannels()

◆ getQualityOptionIndex()

auto juce::AudioFormatWriterOptions::getQualityOptionIndex ( ) const

inline

See also: withQualityOptionIndex()

◆ getSampleFormat()

auto juce::AudioFormatWriterOptions::getSampleFormat ( ) const

inline

See also: withSampleFormat()

◆ getSampleRate()

auto juce::AudioFormatWriterOptions::getSampleRate ( ) const

inline

See also: withSampleRate()

◆ withBitsPerSample()

AudioFormatWriterOptions juce::AudioFormatWriterOptions::withBitsPerSample ( int x ) const

inline

Returns a copy of these options with the specified bit size per sample.

This must be one of the values returned by AudioFormat::getPossibleBitDepths().

References juce::withMember().

◆ withChannelLayout()

AudioFormatWriterOptions juce::AudioFormatWriterOptions::withChannelLayout ( const AudioChannelSet & x ) const

inline

Returns a copy of these options with the specified channel set.

Setting this option will supersede the value passed into withNumChannels().

You should prefer to use withChannelLayout(), if specifying an AudioChannelSet is applicable, and withNumChannels() otherwise.

References juce::withMember().

◆ withMetadata()

AudioFormatWriterOptions juce::AudioFormatWriterOptions::withMetadata	(	const String &	key,
		const String &	value
	)		const

inline

Returns a copy of these options with the specified metadata added.

Subsequent calls of this function adds new metadata values, while also preserving the previously added ones.

Here you can specify metadata values that the writer should try to write to the stream. Exactly what these are depends on the format, and the subclass doesn't actually have to do anything with them if it doesn't want to. Have a look at the specific format implementation classes to see possible values that can be used.

◆ withMetadataValues()

AudioFormatWriterOptions juce::AudioFormatWriterOptions::withMetadataValues ( const std::unordered_map< String, String > & x ) const

inline

Returns a copy of these options with the specified metadata container.

As an alternative to this function, you can specify the key-value pairs one-by-one using the withMetadata function.

Subsequent calls of this function overwrites all previously added metadata.

This parameter is a set of metadata values that the writer should try to write to the stream. Exactly what these are depends on the format, and the subclass doesn't actually have to do anything with them if it doesn't want to. Have a look at the specific format implementation classes to see possible values that can be used.

References juce::withMember().

◆ withNumChannels()

AudioFormatWriterOptions juce::AudioFormatWriterOptions::withNumChannels ( int x ) const

inline

Returns a copy of these options with the specified number of channels.

This is meant as a fallback for specifying the channel layout. Setting this option will have no effect if the channel layout is specified.

See also: withChannelLayout()

References juce::withMember().

◆ withQualityOptionIndex()

AudioFormatWriterOptions juce::AudioFormatWriterOptions::withQualityOptionIndex ( int x ) const

inline

Returns a copy of these options with the specified quality option index.

The index of one of the items returned by the AudioFormat::getQualityOptions() method.

References juce::withMember().

◆ withSampleFormat()

AudioFormatWriterOptions juce::AudioFormatWriterOptions::withSampleFormat ( SampleFormat x ) const

inline

Returns a copy of these options with the specified sample format.

See also: SampleFormat

References juce::withMember().

◆ withSampleRate()

AudioFormatWriterOptions juce::AudioFormatWriterOptions::withSampleRate ( double x ) const

inline

Returns a copy of these options with the specified sample rate.

This specifies the sample rate for the file, which must be one of the ones returned by AudioFormat::getPossibleSampleRates().

References juce::withMember().

Member Data Documentation

◆ bitsPerSample

int juce::AudioFormatWriterOptions::bitsPerSample = 16

private

◆ channelLayout

std::optional<AudioChannelSet> juce::AudioFormatWriterOptions::channelLayout = std::nullopt

private

◆ metadataValues

std::unordered_map<String, String> juce::AudioFormatWriterOptions::metadataValues

private

◆ numChannels

int juce::AudioFormatWriterOptions::numChannels = 1

private

◆ qualityOptionIndex

int juce::AudioFormatWriterOptions::qualityOptionIndex = 0

private

◆ sampleFormat

SampleFormat juce::AudioFormatWriterOptions::sampleFormat = SampleFormat::automatic

private

◆ sampleRate

double juce::AudioFormatWriterOptions::sampleRate = 48000.0

private

The documentation for this class was generated from the following file:

juce_AudioFormatWriterOptions.h
