juce::AudioIODeviceCallback Class Referenceabstract

One of these is passed to an AudioIODevice object to stream the audio data in and out. More...

#include <juce_AudioIODevice.h>

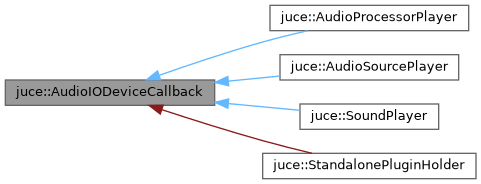

Inheritance diagram for juce::AudioIODeviceCallback:

Public Member Functions

virtual ~AudioIODeviceCallback ()=default
 Destructor. More...

virtual void audioDeviceAboutToStart (AudioIODevice *device)=0
 Called to indicate that the device is about to start calling back. More...

virtual void audioDeviceError (const String &errorMessage)
 This can be overridden to be told if the device generates an error while operating. More...

virtual void audioDeviceIOCallback (const float **inputChannelData, int numInputChannels, float **outputChannelData, int numOutputChannels, int numSamples)=0
 Processes a block of incoming and outgoing audio data. More...

virtual void audioDeviceStopped ()=0
 Called to indicate that the device has stopped. More...


Detailed Description

One of these is passed to an AudioIODevice object to stream the audio data in and out.

The AudioIODevice will repeatedly call this class's audioDeviceIOCallback() method on its own high-priority audio thread, when it needs to send or receive the next block of data.

See also
AudioIODevice, AudioDeviceManager

@tags{Audio}

Constructor & Destructor Documentation

◆ ~AudioIODeviceCallback()

virtual juce::AudioIODeviceCallback::~AudioIODeviceCallback ( )
virtualdefault

Destructor.

Member Function Documentation

◆ audioDeviceAboutToStart()

virtual void juce::AudioIODeviceCallback::audioDeviceAboutToStart ( AudioIODevice device)
pure virtual

Called to indicate that the device is about to start calling back.

This will be called just before the audio callbacks begin, either when this callback has just been added to an audio device, or after the device has been restarted because of a sample-rate or block-size change.

You can use this opportunity to find out the sample rate and block size that the device is going to use by calling the AudioIODevice::getCurrentSampleRate() and AudioIODevice::getCurrentBufferSizeSamples() on the supplied pointer.

Parameters
devicethe audio IO device that will be used to drive the callback. Note that if you're going to store this this pointer, it is only valid until the next time that audioDeviceStopped is called.

Implemented in juce::StandalonePluginHolder, juce::StandalonePluginHolder::CallbackMaxSizeEnforcer, juce::AudioSourcePlayer, juce::SoundPlayer, and juce::AudioProcessorPlayer.

Referenced by juce::StandalonePluginHolder::CallbackMaxSizeEnforcer::audioDeviceAboutToStart().

◆ audioDeviceError()

virtual void juce::AudioIODeviceCallback::audioDeviceError ( const String errorMessage)
virtual

This can be overridden to be told if the device generates an error while operating.

Be aware that this could be called by any thread! And not all devices perform this callback.

Reimplemented in juce::SoundPlayer.

◆ audioDeviceIOCallback()

virtual void juce::AudioIODeviceCallback::audioDeviceIOCallback ( const float **  inputChannelData,
int  numInputChannels,
float **  outputChannelData,
int  numOutputChannels,
int  numSamples
)
pure virtual

Processes a block of incoming and outgoing audio data.

The subclass's implementation should use the incoming audio for whatever purposes it needs to, and must fill all the output channels with the next block of output data before returning.

The channel data is arranged with the same array indices as the channel name array returned by AudioIODevice::getOutputChannelNames(), but those channels that aren't specified in AudioIODevice::open() will have a null pointer for their associated channel, so remember to check for this.

Parameters
inputChannelDataa set of arrays containing the audio data for each incoming channel - this data is valid until the function returns. There will be one channel of data for each input channel that was enabled when the audio device was opened (see AudioIODevice::open())
numInputChannelsthe number of pointers to channel data in the inputChannelData array.
outputChannelDataa set of arrays which need to be filled with the data that should be sent to each outgoing channel of the device. There will be one channel of data for each output channel that was enabled when the audio device was opened (see AudioIODevice::open()) The initial contents of the array is undefined, so the callback function must fill all the channels with zeros if its output is silence. Failing to do this could cause quite an unpleasant noise!
numOutputChannelsthe number of pointers to channel data in the outputChannelData array.
numSamplesthe number of samples in each channel of the input and output arrays. The number of samples will depend on the audio device's buffer size and will usually remain constant, although this isn't guaranteed. For example, on Android, on devices which support it, Android will chop up your audio processing into several smaller callbacks to ensure higher audio performance. So make sure your code can cope with reasonable changes in the buffer size from one callback to the next.

Implemented in juce::AudioSourcePlayer, juce::StandalonePluginHolder, juce::StandalonePluginHolder::CallbackMaxSizeEnforcer, juce::SoundPlayer, and juce::AudioProcessorPlayer.

Referenced by juce::StandalonePluginHolder::CallbackMaxSizeEnforcer::audioDeviceIOCallback().

◆ audioDeviceStopped()

virtual void juce::AudioIODeviceCallback::audioDeviceStopped ( )
pure virtual

The documentation for this class was generated from the following file:
