Describes the time at the start of the current audio callback. More...

#include <juce_AudioPlayHead.h>

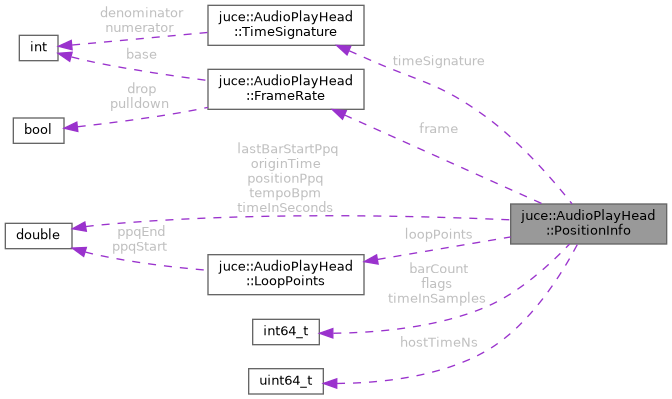

Collaboration diagram for juce::AudioPlayHead::PositionInfo:

[legend]

Public Member Functions
Optional< int64_t >	getBarCount () const
	The number of bars since the beginning of the timeline.

Optional< double >	getBpm () const
	Returns the bpm, if available.

Optional< double >	getEditOriginTime () const
	For timecode, the position of the start of the timeline, in seconds from 00:00:00:00.

Optional< FrameRate >	getFrameRate () const
	The video frame rate, if available.

Optional< uint64_t >	getHostTimeNs () const
	Get the host's callback time in nanoseconds, if available.

bool	getIsLooping () const
	True if the transport is currently looping.

bool	getIsPlaying () const
	True if the transport is currently playing.

bool	getIsRecording () const
	True if the transport is currently recording.

Optional< LoopPoints >	getLoopPoints () const
	Returns host loop points, if available.

Optional< double >	getPpqPosition () const
	The current play position, in units of quarter-notes.

Optional< double >	getPpqPositionOfLastBarStart () const
	The position of the start of the last bar, in units of quarter-notes.

Optional< int64_t >	getTimeInSamples () const
	Returns the number of samples that have elapsed.

Optional< double >	getTimeInSeconds () const
	Returns the number of seconds that have elapsed.

Optional< TimeSignature >	getTimeSignature () const
	Returns the time signature, if available.

bool	operator!= (const PositionInfo &other) const noexcept

bool	operator== (const PositionInfo &other) const noexcept

void	setBarCount (Optional< int64_t > barCountIn)

void	setBpm (Optional< double > bpmIn)

void	setEditOriginTime (Optional< double > editOriginTimeIn)

void	setFrameRate (Optional< FrameRate > frameRateIn)

void	setHostTimeNs (Optional< uint64_t > hostTimeNsIn)

void	setIsLooping (bool isLoopingIn)

void	setIsPlaying (bool isPlayingIn)

void	setIsRecording (bool isRecordingIn)

void	setLoopPoints (Optional< LoopPoints > loopPointsIn)

void	setPpqPosition (Optional< double > ppqPositionIn)

void	setPpqPositionOfLastBarStart (Optional< double > positionIn)

void	setTimeInSamples (Optional< int64_t > timeInSamplesIn)

void	setTimeInSeconds (Optional< double > timeInSecondsIn)

void	setTimeSignature (Optional< TimeSignature > timeSignatureIn)

Private Types
enum	{ flagTimeSignature = 1 << 0 , flagLoopPoints = 1 << 1 , flagFrameRate = 1 << 2 , flagTimeSeconds = 1 << 3 , flagLastBarStartPpq = 1 << 4 , flagPpqPosition = 1 << 5 , flagOriginTime = 1 << 6 , flagTempo = 1 << 7 , flagTimeSamples = 1 << 8 , flagBarCount = 1 << 9 , flagHostTimeNs = 1 << 10 , flagIsPlaying = 1 << 11 , flagIsRecording = 1 << 12 , flagIsLooping = 1 << 13 }

Private Member Functions
bool	getFlag (int64_t flagToCheck) const

template<typename Value >
Optional< Value >	getOptional (int64_t flagToCheck, Value value) const

void	setFlag (int64_t flagToCheck, bool value)

template<typename Value >
void	setOptional (int64_t flagToCheck, Value &value, Optional< Value > opt)

Private Attributes
int64_t	barCount = 0

int64_t	flags = 0

FrameRate	frame = FrameRateType::fps23976

uint64_t	hostTimeNs = 0

double	lastBarStartPpq = 0.0

LoopPoints	loopPoints

double	originTime = 0.0

double	positionPpq = 0.0

double	tempoBpm = 0.0

int64_t	timeInSamples = 0

double	timeInSeconds = 0.0

TimeSignature	timeSignature

Detailed Description

Describes the time at the start of the current audio callback.

Not all hosts and plugin formats can provide all of the possible time information, so most of the getter functions in this class return an Optional that will only be engaged if the host provides the corresponding information. As a plugin developer, you should code defensively so that the plugin behaves sensibly even when the host fails to provide timing information.

A default-constructed instance of this class will return nullopt from all functions that return an Optional.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

Enumerator
flagTimeSignature
flagLoopPoints
flagFrameRate
flagTimeSeconds
flagLastBarStartPpq
flagPpqPosition
flagOriginTime
flagTempo
flagTimeSamples
flagBarCount
flagHostTimeNs
flagIsPlaying
flagIsRecording
flagIsLooping

Member Function Documentation

◆ getBarCount()

Optional< int64_t > juce::AudioPlayHead::PositionInfo::getBarCount ( ) const

inline

The number of bars since the beginning of the timeline.

This value isn't available in all hosts or in all plugin formats.

◆ getBpm()

Optional< double > juce::AudioPlayHead::PositionInfo::getBpm ( ) const

inline

Returns the bpm, if available.

◆ getEditOriginTime()

Optional< double > juce::AudioPlayHead::PositionInfo::getEditOriginTime ( ) const

inline

For timecode, the position of the start of the timeline, in seconds from 00:00:00:00.

◆ getFlag()

bool juce::AudioPlayHead::PositionInfo::getFlag ( int64_t flagToCheck ) const

inlineprivate

◆ getFrameRate()

Optional< FrameRate > juce::AudioPlayHead::PositionInfo::getFrameRate ( ) const

inline

The video frame rate, if available.

◆ getHostTimeNs()

Optional< uint64_t > juce::AudioPlayHead::PositionInfo::getHostTimeNs ( ) const

inline

Get the host's callback time in nanoseconds, if available.

◆ getIsLooping()

bool juce::AudioPlayHead::PositionInfo::getIsLooping ( ) const

inline

True if the transport is currently looping.

◆ getIsPlaying()

bool juce::AudioPlayHead::PositionInfo::getIsPlaying ( ) const

inline

True if the transport is currently playing.

◆ getIsRecording()

bool juce::AudioPlayHead::PositionInfo::getIsRecording ( ) const

inline

True if the transport is currently recording.

(When isRecording is true, then isPlaying will also be true).

◆ getLoopPoints()

Optional< LoopPoints > juce::AudioPlayHead::PositionInfo::getLoopPoints ( ) const

inline

Returns host loop points, if available.

◆ getOptional()

template<typename Value >

Optional< Value > juce::AudioPlayHead::PositionInfo::getOptional	(	int64_t	flagToCheck,
		Value	value
	)		const

inlineprivate

References juce::makeOptional(), and juce::nullopt.

◆ getPpqPosition()

Optional< double > juce::AudioPlayHead::PositionInfo::getPpqPosition ( ) const

inline

The current play position, in units of quarter-notes.

◆ getPpqPositionOfLastBarStart()

Optional< double > juce::AudioPlayHead::PositionInfo::getPpqPositionOfLastBarStart ( ) const

inline

The position of the start of the last bar, in units of quarter-notes.

This is the time from the start of the timeline to the start of the current bar, in ppq units.

Note - this value may be unavailable on some hosts, e.g. Pro-Tools.

◆ getTimeInSamples()

Optional< int64_t > juce::AudioPlayHead::PositionInfo::getTimeInSamples ( ) const

inline

Returns the number of samples that have elapsed.

◆ getTimeInSeconds()

Optional< double > juce::AudioPlayHead::PositionInfo::getTimeInSeconds ( ) const

inline

Returns the number of seconds that have elapsed.

◆ getTimeSignature()

Optional< TimeSignature > juce::AudioPlayHead::PositionInfo::getTimeSignature ( ) const

inline

Returns the time signature, if available.

◆ operator!=()

bool juce::AudioPlayHead::PositionInfo::operator!= ( const PositionInfo & other ) const

inlinenoexcept

◆ operator==()

bool juce::AudioPlayHead::PositionInfo::operator== ( const PositionInfo & other ) const

inlinenoexcept

◆ setBarCount()

void juce::AudioPlayHead::PositionInfo::setBarCount ( Optional< int64_t > barCountIn )

inline

See also: getBarCount()

◆ setBpm()

void juce::AudioPlayHead::PositionInfo::setBpm ( Optional< double > bpmIn )

inline

See also: getBpm()

◆ setEditOriginTime()

void juce::AudioPlayHead::PositionInfo::setEditOriginTime ( Optional< double > editOriginTimeIn )

inline

See also: getEditOriginTime()

◆ setFlag()

void juce::AudioPlayHead::PositionInfo::setFlag	(	int64_t	flagToCheck,
		bool	value
	)

inlineprivate

◆ setFrameRate()

void juce::AudioPlayHead::PositionInfo::setFrameRate ( Optional< FrameRate > frameRateIn )

inline

See also: getFrameRate()

◆ setHostTimeNs()

void juce::AudioPlayHead::PositionInfo::setHostTimeNs ( Optional< uint64_t > hostTimeNsIn )

inline

See also: getHostTimeNs()

◆ setIsLooping()

void juce::AudioPlayHead::PositionInfo::setIsLooping ( bool isLoopingIn )

inline

See also: getIsLooping()

◆ setIsPlaying()

void juce::AudioPlayHead::PositionInfo::setIsPlaying ( bool isPlayingIn )

inline

See also: getIsPlaying()

◆ setIsRecording()

void juce::AudioPlayHead::PositionInfo::setIsRecording ( bool isRecordingIn )

inline

See also: getIsRecording()

◆ setLoopPoints()

void juce::AudioPlayHead::PositionInfo::setLoopPoints ( Optional< LoopPoints > loopPointsIn )

inline

See also: getLoopPoints()

◆ setOptional()

template<typename Value >

void juce::AudioPlayHead::PositionInfo::setOptional	(	int64_t	flagToCheck,
		Value &	value,
		Optional< Value >	opt
	)

inlineprivate

References juce::Optional< Value >::hasValue().

◆ setPpqPosition()

void juce::AudioPlayHead::PositionInfo::setPpqPosition ( Optional< double > ppqPositionIn )

inline

See also: getPpqPosition()

◆ setPpqPositionOfLastBarStart()

void juce::AudioPlayHead::PositionInfo::setPpqPositionOfLastBarStart ( Optional< double > positionIn )

inline

See also: getPpqPositionOfLastBarStart()

◆ setTimeInSamples()

void juce::AudioPlayHead::PositionInfo::setTimeInSamples ( Optional< int64_t > timeInSamplesIn )

inline

See also: getTimeInSamples()

◆ setTimeInSeconds()

void juce::AudioPlayHead::PositionInfo::setTimeInSeconds ( Optional< double > timeInSecondsIn )

inline

See also: getTimeInSamples()

◆ setTimeSignature()

void juce::AudioPlayHead::PositionInfo::setTimeSignature ( Optional< TimeSignature > timeSignatureIn )

inline

See also: getTimeSignature()

Member Data Documentation

◆ barCount

int64_t juce::AudioPlayHead::PositionInfo::barCount = 0

private

◆ flags

int64_t juce::AudioPlayHead::PositionInfo::flags = 0

private

◆ frame

FrameRate juce::AudioPlayHead::PositionInfo::frame = FrameRateType::fps23976

private

◆ hostTimeNs

uint64_t juce::AudioPlayHead::PositionInfo::hostTimeNs = 0

private

◆ lastBarStartPpq

double juce::AudioPlayHead::PositionInfo::lastBarStartPpq = 0.0

private

◆ loopPoints

LoopPoints juce::AudioPlayHead::PositionInfo::loopPoints

private

◆ originTime

double juce::AudioPlayHead::PositionInfo::originTime = 0.0

private

◆ positionPpq

double juce::AudioPlayHead::PositionInfo::positionPpq = 0.0

private

◆ tempoBpm

double juce::AudioPlayHead::PositionInfo::tempoBpm = 0.0

private

◆ timeInSamples

int64_t juce::AudioPlayHead::PositionInfo::timeInSamples = 0

private

◆ timeInSeconds

double juce::AudioPlayHead::PositionInfo::timeInSeconds = 0.0

private

◆ timeSignature

TimeSignature juce::AudioPlayHead::PositionInfo::timeSignature

private

The documentation for this class was generated from the following file:

juce_AudioPlayHead.h
