juce::AudioProcessLoadMeasurer Class Reference

Maintains an ongoing measurement of the proportion of time which is being spent inside an audio callback. More...

#include <juce_AudioProcessLoadMeasurer.h>

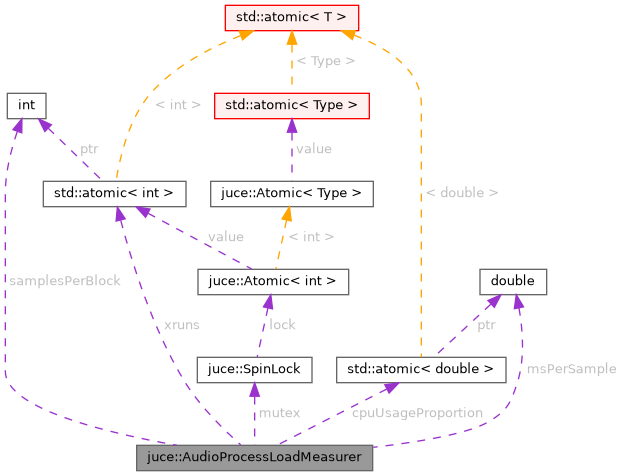

Collaboration diagram for juce::AudioProcessLoadMeasurer:

Classes
struct	ScopedTimer
	This class measures the time between its construction and destruction and adds it to an AudioProcessLoadMeasurer. More...

Public Member Functions
	AudioProcessLoadMeasurer ()
	~AudioProcessLoadMeasurer ()
	Destructor. More...
double	getLoadAsPercentage () const
	Returns the current load as a percentage 0 to 100.0. More...
double	getLoadAsProportion () const
	Returns the current load as a proportion 0 to 1.0. More...
int	getXRunCount () const
	Returns the number of over- (or under-) runs recorded since the state was reset. More...
void	registerBlockRenderTime (double millisecondsTaken)
	Can be called manually to add the time of a callback to the stats. More...
void	registerRenderTime (double millisecondsTaken, int numSamples)
	Can be called manually to add the time of a callback to the stats. More...
void	reset ()
	Resets the state. More...
void	reset (double sampleRate, int blockSize)
	Resets the counter, in preparation for use with the given sample rate and block size. More...

Private Member Functions
void	registerRenderTimeLocked (double, int)

Private Attributes
std::atomic< double >	cpuUsageProportion { 0 }
double	msPerSample = 0
SpinLock	mutex
int	samplesPerBlock = 0
std::atomic< int >	xruns { 0 }

Detailed Description

Maintains an ongoing measurement of the proportion of time which is being spent inside an audio callback.

@tags{Audio}

Constructor & Destructor Documentation

AudioProcessLoadMeasurer()

juce::AudioProcessLoadMeasurer::AudioProcessLoadMeasurer

(

)

~AudioProcessLoadMeasurer()

juce::AudioProcessLoadMeasurer::~AudioProcessLoadMeasurer

(

)

Destructor.

Member Function Documentation

getLoadAsPercentage()

double juce::AudioProcessLoadMeasurer::getLoadAsPercentage

(

)

const

Returns the current load as a percentage 0 to 100.0.

getLoadAsProportion()

double juce::AudioProcessLoadMeasurer::getLoadAsProportion

(

)

const

Returns the current load as a proportion 0 to 1.0.

getXRunCount()

int juce::AudioProcessLoadMeasurer::getXRunCount

(

)

const

Returns the number of over- (or under-) runs recorded since the state was reset.

registerBlockRenderTime()

void juce::AudioProcessLoadMeasurer::registerBlockRenderTime

(

double

millisecondsTaken

)

Can be called manually to add the time of a callback to the stats.

Normally you probably would never call this - it's simpler and more robust to use a ScopedTimer to measure the time using an RAII pattern.

registerRenderTime()

void juce::AudioProcessLoadMeasurer::registerRenderTime	(	double	millisecondsTaken,
		int	numSamples
	)

Can be called manually to add the time of a callback to the stats.

Normally you probably would never call this - it's simpler and more robust to use a ScopedTimer to measure the time using an RAII pattern.

registerRenderTimeLocked()

void juce::AudioProcessLoadMeasurer::registerRenderTimeLocked ( double  , int    )

private

reset() [1/2]

void juce::AudioProcessLoadMeasurer::reset

(

)

Resets the state.

reset() [2/2]

void juce::AudioProcessLoadMeasurer::reset	(	double	sampleRate,
		int	blockSize
	)

Resets the counter, in preparation for use with the given sample rate and block size.

Member Data Documentation

cpuUsageProportion

std::atomic<double> juce::AudioProcessLoadMeasurer::cpuUsageProportion { 0 }

private

msPerSample

double juce::AudioProcessLoadMeasurer::msPerSample = 0

private

mutex

SpinLock juce::AudioProcessLoadMeasurer::mutex

private

samplesPerBlock

int juce::AudioProcessLoadMeasurer::samplesPerBlock = 0

private

xruns

std::atomic<int> juce::AudioProcessLoadMeasurer::xruns { 0 }

private

---

The documentation for this class was generated from the following file:

• juce_AudioProcessLoadMeasurer.h
