Represents a colour or fill pattern to use for rendering paths. More...

#include <juce_FillType.h>

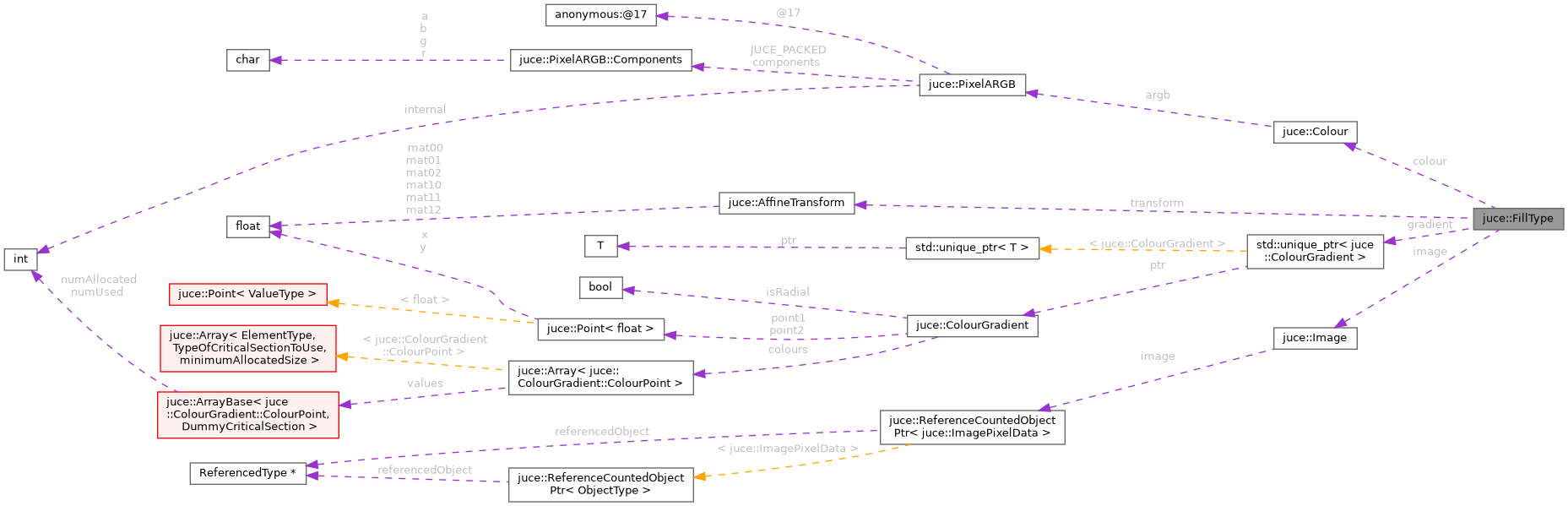

Collaboration diagram for juce::FillType:

[legend]

Public Member Functions
	FillType () noexcept
	Creates a default fill type, of solid black. More...

	FillType (Colour colour) noexcept
	Creates a fill type of a solid colour. More...

	FillType (ColourGradient &&gradient)
	Creates a gradient fill type. More...

	FillType (const ColourGradient &gradient)
	Creates a gradient fill type. More...

	FillType (const FillType &)
	Creates a copy of another FillType. More...

	FillType (const Image &image, const AffineTransform &transform) noexcept
	Creates a tiled image fill type. More...

	FillType (FillType &&) noexcept
	Move constructor. More...

	~FillType () noexcept
	Destructor. More...

float	getOpacity () const noexcept
	Returns the current opacity to be applied to the colour, gradient, or image. More...

bool	isColour () const noexcept
	Returns true if this is a solid colour fill, and not a gradient or image. More...

bool	isGradient () const noexcept
	Returns true if this is a gradient fill. More...

bool	isInvisible () const noexcept
	Returns true if this fill type is completely transparent. More...

bool	isTiledImage () const noexcept
	Returns true if this is a tiled image pattern fill. More...

bool	operator!= (const FillType &) const

FillType &	operator= (const FillType &)
	Makes a copy of another FillType. More...

FillType &	operator= (FillType &&) noexcept
	Move assignment operator. More...

bool	operator== (const FillType &) const

void	setColour (Colour newColour) noexcept
	Turns this object into a solid colour fill. More...

void	setGradient (const ColourGradient &newGradient)
	Turns this object into a gradient fill. More...

void	setOpacity (float newOpacity) noexcept
	Changes the opacity that should be used. More...

void	setTiledImage (const Image &image, const AffineTransform &transform) noexcept
	Turns this object into a tiled image fill type. More...

FillType	transformed (const AffineTransform &transform) const
	Returns a copy of this fill, adding the specified transform applied to the existing transform. More...

Public Attributes
Colour	colour
	The solid colour being used. More...

std::unique_ptr< ColourGradient >	gradient
	Returns the gradient that should be used for filling. More...

Image	image
	The image that should be used for tiling. More...

AffineTransform	transform
	The transform that should be applied to the image or gradient that's being drawn. More...

Detailed Description

Represents a colour or fill pattern to use for rendering paths.

This is used by the Graphics and DrawablePath classes as a way to encapsulate a brush type. It can either be a solid colour, a gradient, or a tiled image.

See also: Graphics::setFillType, DrawablePath::setFill

@tags{Graphics}

Constructor & Destructor Documentation

◆ FillType() [1/7]

juce::FillType::FillType ( )

noexcept

Creates a default fill type, of solid black.

◆ FillType() [2/7]

juce::FillType::FillType ( Colour colour )

noexcept

Creates a fill type of a solid colour.

See also: setColour

◆ FillType() [3/7]

juce::FillType::FillType ( const ColourGradient & gradient )

Creates a gradient fill type.

See also: setGradient

◆ FillType() [4/7]

juce::FillType::FillType ( ColourGradient && gradient )

Creates a gradient fill type.

See also: setGradient

◆ FillType() [5/7]

juce::FillType::FillType	(	const Image &	image,
		const AffineTransform &	transform
	)

noexcept

Creates a tiled image fill type.

The transform allows you to set the scaling, offset and rotation of the pattern.

See also: setTiledImage

◆ FillType() [6/7]

juce::FillType::FillType ( const FillType & )

Creates a copy of another FillType.

◆ FillType() [7/7]

juce::FillType::FillType ( FillType && )

noexcept

Move constructor.

◆ ~FillType()

juce::FillType::~FillType ( )

noexcept

Destructor.

Member Function Documentation

◆ getOpacity()

float juce::FillType::getOpacity ( ) const

inlinenoexcept

Returns the current opacity to be applied to the colour, gradient, or image.

See also: setOpacity

References juce::Colour::getFloatAlpha().

◆ isColour()

bool juce::FillType::isColour ( ) const

inlinenoexcept

Returns true if this is a solid colour fill, and not a gradient or image.

◆ isGradient()

bool juce::FillType::isGradient ( ) const

inlinenoexcept

Returns true if this is a gradient fill.

◆ isInvisible()

bool juce::FillType::isInvisible ( ) const

noexcept

Returns true if this fill type is completely transparent.

◆ isTiledImage()

bool juce::FillType::isTiledImage ( ) const

inlinenoexcept

Returns true if this is a tiled image pattern fill.

◆ operator!=()

bool juce::FillType::operator!= ( const FillType & ) const

◆ operator=() [1/2]

FillType& juce::FillType::operator= ( const FillType & )

Makes a copy of another FillType.

◆ operator=() [2/2]

FillType& juce::FillType::operator= ( FillType && )

noexcept

Move assignment operator.

◆ operator==()

bool juce::FillType::operator== ( const FillType & ) const

◆ setColour()

void juce::FillType::setColour ( Colour newColour )

noexcept

Turns this object into a solid colour fill.

If the object was an image or gradient, those fields will no longer be valid.

◆ setGradient()

void juce::FillType::setGradient ( const ColourGradient & newGradient )

Turns this object into a gradient fill.

◆ setOpacity()

void juce::FillType::setOpacity ( float newOpacity )

noexcept

Changes the opacity that should be used.

If the fill is a solid colour, this just changes the opacity of that colour. For gradients and image tiles, it changes the opacity that will be used for them.

◆ setTiledImage()

void juce::FillType::setTiledImage	(	const Image &	image,
		const AffineTransform &	transform
	)

noexcept

Turns this object into a tiled image fill type.

The transform allows you to set the scaling, offset and rotation of the pattern.

◆ transformed()

FillType juce::FillType::transformed ( const AffineTransform & transform ) const

Returns a copy of this fill, adding the specified transform applied to the existing transform.

Member Data Documentation

◆ colour

Colour juce::FillType::colour

The solid colour being used.

If the fill type is not a solid colour, the alpha channel of this colour indicates the opacity that should be used for the fill, and the RGB channels are ignored.

◆ gradient

std::unique_ptr<ColourGradient> juce::FillType::gradient

Returns the gradient that should be used for filling.

This will be nullptr if the object is some other type of fill. If a gradient is active, the overall opacity with which it should be applied is indicated by the alpha channel of the colour variable.

◆ image

Image juce::FillType::image

The image that should be used for tiling.

If an image fill is active, the overall opacity with which it should be applied is indicated by the alpha channel of the colour variable.

◆ transform

AffineTransform juce::FillType::transform

The transform that should be applied to the image or gradient that's being drawn.

The documentation for this class was generated from the following file:

juce_FillType.h
