Adds a focus outline to a component. More...

#include <juce_FocusOutline.h>

Inheritance diagram for juce::FocusOutline:

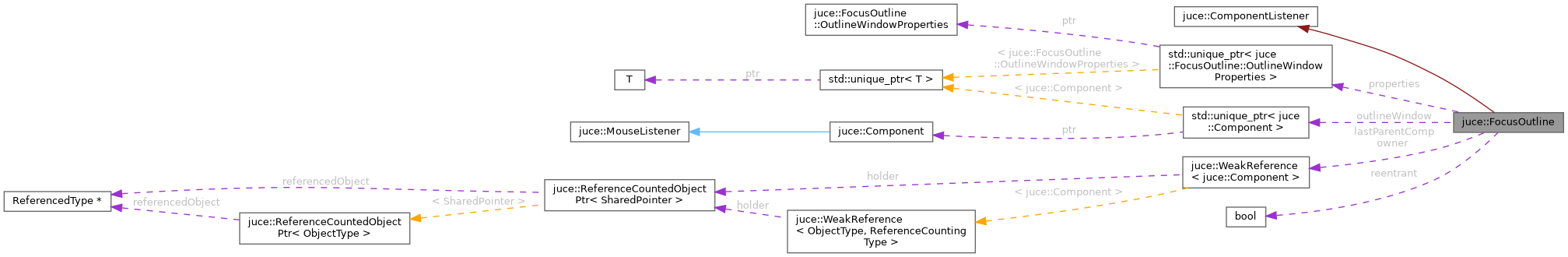

Collaboration diagram for juce::FocusOutline:

[legend]

Classes
struct	OutlineWindowProperties
	Defines the focus outline window properties. More...

Public Member Functions
	FocusOutline (std::unique_ptr< OutlineWindowProperties > props)
	Creates a FocusOutline. More...

	~FocusOutline () override
	Destructor. More...

void	setOwner (Component *componentToFollow)
	Attaches the outline to a component. More...

Private Member Functions
virtual void	componentBeingDeleted (Component &component)
	Called when the component is in the process of being deleted. More...

void	componentBroughtToFront (Component &) override
	Called when the component is brought to the top of the z-order. More...

virtual void	componentChildrenChanged (Component &component)
	Called when the component has children added or removed, or their z-order changes. More...

virtual void	componentEnablementChanged (Component &component)

void	componentMovedOrResized (Component &, bool, bool) override
	Called when the component's position or size changes. More...

virtual void	componentNameChanged (Component &component)
	Called when the component's name is changed. More...

void	componentParentHierarchyChanged (Component &) override
	Called to indicate that the component's parents have changed. More...

void	componentVisibilityChanged (Component &) override
	Called when the component is made visible or invisible. More...

void	updateOutlineWindow ()

void	updateParent ()

Private Attributes
WeakReference< Component >	lastParentComp

std::unique_ptr< Component >	outlineWindow

WeakReference< Component >	owner

std::unique_ptr< OutlineWindowProperties >	properties

bool	reentrant = false

Detailed Description

Adds a focus outline to a component.

This object creates and manages a component that sits on top of a target component. It will track the position of the target component and will be brought to the front with the tracked component.

Use the Component::setHasFocusOutline() method to indicate that a component should have a focus outline drawn around it, and when it receives keyboard focus one of these objects will be created using the LookAndFeel::createFocusOutlineForComponent() method. You can override this method in your own LookAndFeel classes to draw a custom outline if required.

@tags{GUI}

Constructor & Destructor Documentation

◆ FocusOutline()

juce::FocusOutline::FocusOutline ( std::unique_ptr< OutlineWindowProperties > props )

Creates a FocusOutline.

Call setOwner to attach it to a component.

◆ ~FocusOutline()

juce::FocusOutline::~FocusOutline ( )

override

Destructor.

Member Function Documentation

◆ componentBeingDeleted()

virtual void juce::ComponentListener::componentBeingDeleted ( Component & component )

virtualinherited

Called when the component is in the process of being deleted.

This callback is made from inside the destructor, so be very, very cautious about what you do in here.

In particular, bear in mind that it's the Component base class's destructor that calls this - so if the object that's being deleted is a subclass of Component, then the subclass layers of the object will already have been destructed when it gets to this point!

Parameters

component the component that was deleted

Reimplemented in juce::ComponentMovementWatcher, and juce::RelativeCoordinatePositionerBase.

◆ componentBroughtToFront()

void juce::FocusOutline::componentBroughtToFront ( Component & component )

overrideprivatevirtual

Called when the component is brought to the top of the z-order.

Parameters

component the component that was moved

See also: Component::toFront, Component::broughtToFront

Reimplemented from juce::ComponentListener.

◆ componentChildrenChanged()

virtual void juce::ComponentListener::componentChildrenChanged ( Component & component )

virtualinherited

Called when the component has children added or removed, or their z-order changes.

Parameters

component the component whose children have changed

See also: Component::childrenChanged, Component::addChildComponent, Component::removeChildComponent

Reimplemented in juce::DropShadower, and juce::RelativeCoordinatePositionerBase.

◆ componentEnablementChanged()

virtual void juce::ComponentListener::componentEnablementChanged ( Component & component )

virtualinherited

◆ componentMovedOrResized()

void juce::FocusOutline::componentMovedOrResized	(	Component &	component,
		bool	wasMoved,
		bool	wasResized
	)

overrideprivatevirtual

Called when the component's position or size changes.

Parameters

component	the component that was moved or resized
wasMoved	true if the component's top-left corner has just moved
wasResized	true if the component's width or height has just changed

See also: Component::setBounds, Component::resized, Component::moved

Reimplemented from juce::ComponentListener.

◆ componentNameChanged()

virtual void juce::ComponentListener::componentNameChanged ( Component & component )

virtualinherited

Called when the component's name is changed.

Parameters

component the component that had its name changed

See also: Component::setName, Component::getName

Reimplemented in juce::MultiDocumentPanel.

◆ componentParentHierarchyChanged()

void juce::FocusOutline::componentParentHierarchyChanged ( Component & component )

overrideprivatevirtual

Called to indicate that the component's parents have changed.

When a component is added or removed from its parent, all of its children will produce this notification (recursively - so all children of its children will also be called as well).

Parameters

component the component that this listener is registered with

See also: Component::parentHierarchyChanged

Reimplemented from juce::ComponentListener.

◆ componentVisibilityChanged()

void juce::FocusOutline::componentVisibilityChanged ( Component & component )

overrideprivatevirtual

Called when the component is made visible or invisible.

Parameters

component the component that changed

See also: Component::setVisible

Reimplemented from juce::ComponentListener.

◆ setOwner()

void juce::FocusOutline::setOwner ( Component * componentToFollow )

Attaches the outline to a component.

◆ updateOutlineWindow()

void juce::FocusOutline::updateOutlineWindow ( )

private

◆ updateParent()

void juce::FocusOutline::updateParent ( )

private

Member Data Documentation

◆ lastParentComp

WeakReference<Component> juce::FocusOutline::lastParentComp

private

◆ outlineWindow

std::unique_ptr<Component> juce::FocusOutline::outlineWindow

private

◆ owner

WeakReference<Component> juce::FocusOutline::owner

private

◆ properties

std::unique_ptr<OutlineWindowProperties> juce::FocusOutline::properties

private

◆ reentrant

bool juce::FocusOutline::reentrant = false

private

The documentation for this class was generated from the following file:

juce_FocusOutline.h
