juce::MPEChannelAssigner Class Reference

This class handles the assignment of new MIDI notes to member channels of an active MPE zone. More...

#include <juce_MPEUtils.h>

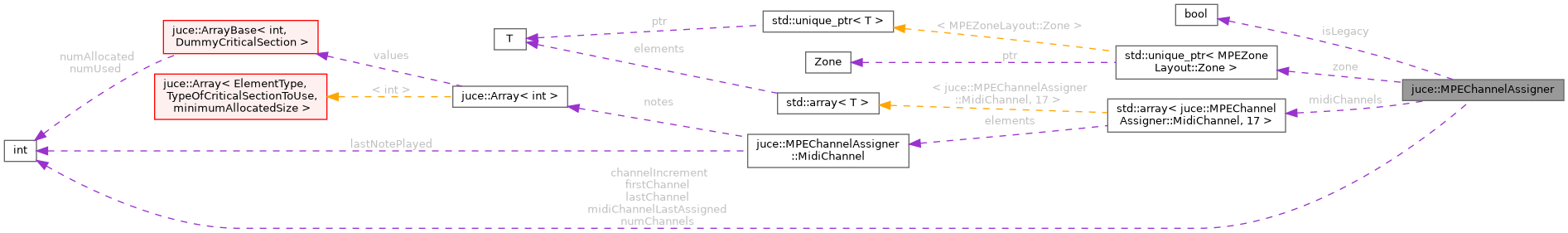

Collaboration diagram for juce::MPEChannelAssigner:

Classes
struct	MidiChannel

Public Member Functions
	MPEChannelAssigner (MPEZoneLayout::Zone zoneToUse)
	Constructor. More...
	MPEChannelAssigner (Range< int > channelRange=Range< int >(1, 17))
	Legacy mode constructor. More...
void	allNotesOff ()
	Call this to clear all currently playing notes. More...
int	findMidiChannelForExistingNote (int initialNoteOnNumber) noexcept
	If a note has been added using findMidiChannelForNewNote() this will return the channel to which it was assigned, otherwise it will return -1. More...
int	findMidiChannelForNewNote (int noteNumber) noexcept
	This method will use a set of rules recommended in the MPE specification to determine which member channel the specified MIDI note should be assigned to and will return this channel number. More...
void	noteOff (int noteNumber, int midiChannel=-1)
	You must call this method for all note-offs that you receive so that this class can keep track of the currently playing notes internally. More...

Private Member Functions
int	findMidiChannelPlayingClosestNonequalNote (int noteNumber) noexcept

Private Attributes
int	channelIncrement
int	firstChannel
bool	isLegacy = false
int	lastChannel
int	midiChannelLastAssigned
std::array< MidiChannel, 17 >	midiChannels
int	numChannels
std::unique_ptr< MPEZoneLayout::Zone >	zone

Detailed Description

This class handles the assignment of new MIDI notes to member channels of an active MPE zone.

To use it, create an instance passing in the MPE zone that it should operate on and then call use the findMidiChannelForNewNote() method for all note-on messages and the noteOff() method for all note-off messages.

@tags{Audio}

Constructor & Destructor Documentation

MPEChannelAssigner() [1/2]

juce::MPEChannelAssigner::MPEChannelAssigner

(

MPEZoneLayout::Zone

zoneToUse

)

Constructor.

This will assign channels within the range of the specified MPE zone.

MPEChannelAssigner() [2/2]

juce::MPEChannelAssigner::MPEChannelAssigner

(

Range< int >

channelRange = Range< int >(1, 17)

)

Legacy mode constructor.

This will assign channels within the specified range.

Member Function Documentation

allNotesOff()

void juce::MPEChannelAssigner::allNotesOff

(

)

Call this to clear all currently playing notes.

findMidiChannelForExistingNote()

int juce::MPEChannelAssigner::findMidiChannelForExistingNote ( int  initialNoteOnNumber )

noexcept

If a note has been added using findMidiChannelForNewNote() this will return the channel to which it was assigned, otherwise it will return -1.

findMidiChannelForNewNote()

int juce::MPEChannelAssigner::findMidiChannelForNewNote ( int  noteNumber )

noexcept

This method will use a set of rules recommended in the MPE specification to determine which member channel the specified MIDI note should be assigned to and will return this channel number.

The rules have the following precedence:

• find a free channel on which the last note played was the same as the one specified
• find the next free channel in round-robin assignment
• find the channel number that is currently playing the closest note (but not the same)

Parameters

noteNumber

the MIDI note number to be assigned to a channel

Returns

the zone's member channel that this note should be assigned to

findMidiChannelPlayingClosestNonequalNote()

int juce::MPEChannelAssigner::findMidiChannelPlayingClosestNonequalNote ( int  noteNumber )

privatenoexcept

noteOff()

void juce::MPEChannelAssigner::noteOff	(	int	noteNumber,
		int	midiChannel = -1
	)

You must call this method for all note-offs that you receive so that this class can keep track of the currently playing notes internally.

You can specify the channel number the note off happened on. If you don't, it will look through all channels to find the registered midi note matching the given note number.

Member Data Documentation

channelIncrement

int juce::MPEChannelAssigner::channelIncrement

private

firstChannel

int juce::MPEChannelAssigner::firstChannel

private

isLegacy

bool juce::MPEChannelAssigner::isLegacy = false

private

lastChannel

int juce::MPEChannelAssigner::lastChannel

private

midiChannelLastAssigned

int juce::MPEChannelAssigner::midiChannelLastAssigned

private

midiChannels

std::array<MidiChannel, 17> juce::MPEChannelAssigner::midiChannels

private

numChannels

int juce::MPEChannelAssigner::numChannels

private

zone

std::unique_ptr<MPEZoneLayout::Zone> juce::MPEChannelAssigner::zone

private

---

The documentation for this class was generated from the following file:

• juce_MPEUtils.h
