This class represents the current MPE zone layout of a device capable of handling MPE. More...

#include <juce_MPEZoneLayout.h>

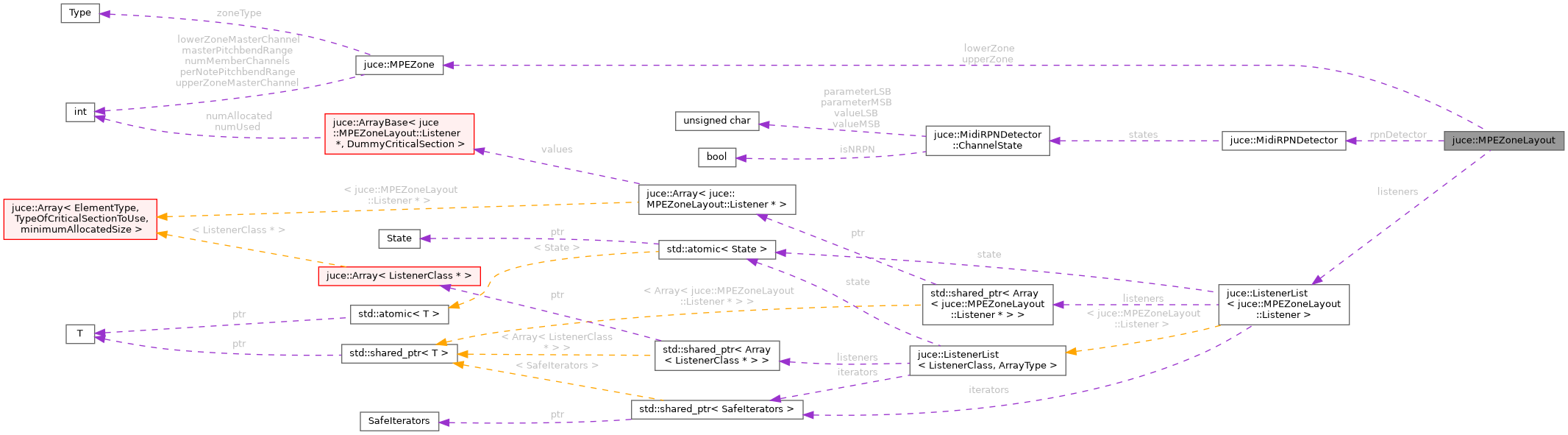

Collaboration diagram for juce::MPEZoneLayout:

[legend]

Classes
class	Listener
	Listener class. More...

Public Member Functions
	MPEZoneLayout ()=default
	Creates a layout with inactive upper and lower zones. More...

	MPEZoneLayout (const MPEZoneLayout &other)

	MPEZoneLayout (MPEZone lower, MPEZone upper)
	Creates a layout with the given upper and lower zones. More...

	MPEZoneLayout (MPEZone singleZone)
	Creates a layout with a single upper or lower zone, leaving the other zone uninitialised. More...

void	addListener (Listener *const listenerToAdd) noexcept
	Adds a listener. More...

void	clearAllZones ()
	Clears the lower and upper zones of this layout, making them both inactive and disabling MPE mode. More...

MPEZone	getLowerZone () const noexcept
	Returns a struct representing the lower MPE zone. More...

MPEZone	getUpperZone () const noexcept
	Returns a struct representing the upper MPE zone. More...

bool	isActive () const
	Returns true if either of the zones are active. More...

bool	operator!= (const MPEZoneLayout &other) const

MPEZoneLayout &	operator= (const MPEZoneLayout &other)

bool	operator== (const MPEZoneLayout &other) const

void	processNextMidiBuffer (const MidiBuffer &buffer)
	Pass incoming MIDI buffers to an object of this class if you want the zone layout to properly react to MPE RPN messages like an MPE device. More...

void	processNextMidiEvent (const MidiMessage &message)
	Pass incoming MIDI messages to an object of this class if you want the zone layout to properly react to MPE RPN messages like an MPE device. More...

void	removeListener (Listener *const listenerToRemove) noexcept
	Removes a listener. More...

void	setLowerZone (int numMemberChannels=0, int perNotePitchbendRange=48, int masterPitchbendRange=2) noexcept
	Sets the lower zone of this layout. More...

void	setUpperZone (int numMemberChannels=0, int perNotePitchbendRange=48, int masterPitchbendRange=2) noexcept
	Sets the upper zone of this layout. More...

Private Member Functions
void	checkAndLimitZoneParameters (int, int, int &) noexcept

void	processPitchbendRangeRpnMessage (MidiRPNMessage)

void	processRpnMessage (MidiRPNMessage)

void	processZoneLayoutRpnMessage (MidiRPNMessage)

void	sendLayoutChangeMessage ()

void	setZone (bool, int, int, int) noexcept

void	updateMasterPitchbend (MPEZone &, int)

void	updatePerNotePitchbendRange (MPEZone &, int)

Private Attributes
ListenerList< Listener >	listeners

MPEZone	lowerZone { MPEZone::Type::lower, 0 }

MidiRPNDetector	rpnDetector

MPEZone	upperZone { MPEZone::Type::upper, 0 }

Detailed Description

This class represents the current MPE zone layout of a device capable of handling MPE.

An MPE device can have up to two zones: a lower zone with master channel 1 and allocated MIDI channels increasing from channel 2, and an upper zone with master channel 16 and allocated MIDI channels decreasing from channel 15. MPE mode is enabled on a device when one of these zones is active and disabled when both are inactive.

Use the MPEMessages helper class to convert the zone layout represented by this object to MIDI message sequences that you can send to an Expressive MIDI device to set its zone layout, add zones etc.

See also: MPEInstrument

@tags{Audio}

Constructor & Destructor Documentation

◆ MPEZoneLayout() [1/4]

juce::MPEZoneLayout::MPEZoneLayout ( )

default

Creates a layout with inactive upper and lower zones.

◆ MPEZoneLayout() [2/4]

juce::MPEZoneLayout::MPEZoneLayout	(	MPEZone	lower,
		MPEZone	upper
	)

Creates a layout with the given upper and lower zones.

◆ MPEZoneLayout() [3/4]

juce::MPEZoneLayout::MPEZoneLayout ( MPEZone singleZone )

Creates a layout with a single upper or lower zone, leaving the other zone uninitialised.

◆ MPEZoneLayout() [4/4]

juce::MPEZoneLayout::MPEZoneLayout ( const MPEZoneLayout & other )

Member Function Documentation

◆ addListener()

void juce::MPEZoneLayout::addListener ( Listener *const listenerToAdd )

noexcept

Adds a listener.

◆ checkAndLimitZoneParameters()

void juce::MPEZoneLayout::checkAndLimitZoneParameters	(	int	,
		int	,
		int &
	)

privatenoexcept

◆ clearAllZones()

void juce::MPEZoneLayout::clearAllZones ( )

Clears the lower and upper zones of this layout, making them both inactive and disabling MPE mode.

◆ getLowerZone()

MPEZone juce::MPEZoneLayout::getLowerZone ( ) const

inlinenoexcept

Returns a struct representing the lower MPE zone.

◆ getUpperZone()

MPEZone juce::MPEZoneLayout::getUpperZone ( ) const

inlinenoexcept

Returns a struct representing the upper MPE zone.

◆ isActive()

bool juce::MPEZoneLayout::isActive ( ) const

inline

Returns true if either of the zones are active.

References juce::MPEZone::isActive().

◆ operator!=()

bool juce::MPEZoneLayout::operator!= ( const MPEZoneLayout & other ) const

inline

References juce::operator==().

◆ operator=()

MPEZoneLayout& juce::MPEZoneLayout::operator= ( const MPEZoneLayout & other )

◆ operator==()

bool juce::MPEZoneLayout::operator== ( const MPEZoneLayout & other ) const

inline

References lowerZone, and upperZone.

◆ processNextMidiBuffer()

void juce::MPEZoneLayout::processNextMidiBuffer ( const MidiBuffer & buffer )

Pass incoming MIDI buffers to an object of this class if you want the zone layout to properly react to MPE RPN messages like an MPE device.

MPEMessages::rpnNumber will add or remove zones; RPN 0 will set the per-note or master pitchbend ranges.

Any other MIDI messages will be ignored by this class.

See also: MPEMessages

◆ processNextMidiEvent()

void juce::MPEZoneLayout::processNextMidiEvent ( const MidiMessage & message )

Pass incoming MIDI messages to an object of this class if you want the zone layout to properly react to MPE RPN messages like an MPE device.

MPEMessages::rpnNumber will add or remove zones; RPN 0 will set the per-note or master pitchbend ranges.

Any other MIDI messages will be ignored by this class.

See also: MPEMessages

◆ processPitchbendRangeRpnMessage()

void juce::MPEZoneLayout::processPitchbendRangeRpnMessage ( MidiRPNMessage )

private

◆ processRpnMessage()

void juce::MPEZoneLayout::processRpnMessage ( MidiRPNMessage )

private

◆ processZoneLayoutRpnMessage()

void juce::MPEZoneLayout::processZoneLayoutRpnMessage ( MidiRPNMessage )

private

◆ removeListener()

void juce::MPEZoneLayout::removeListener ( Listener *const listenerToRemove )

noexcept

Removes a listener.

◆ sendLayoutChangeMessage()

void juce::MPEZoneLayout::sendLayoutChangeMessage ( )

private

◆ setLowerZone()

void juce::MPEZoneLayout::setLowerZone	(	int	numMemberChannels = `0`,
		int	perNotePitchbendRange = `48`,
		int	masterPitchbendRange = `2`
	)

noexcept

Sets the lower zone of this layout.

◆ setUpperZone()

void juce::MPEZoneLayout::setUpperZone	(	int	numMemberChannels = `0`,
		int	perNotePitchbendRange = `48`,
		int	masterPitchbendRange = `2`
	)

noexcept

Sets the upper zone of this layout.

◆ setZone()

void juce::MPEZoneLayout::setZone	(	bool	,
		int	,
		int	,
		int
	)

privatenoexcept

◆ updateMasterPitchbend()

void juce::MPEZoneLayout::updateMasterPitchbend	(	MPEZone &	,
		int
	)

private

◆ updatePerNotePitchbendRange()

void juce::MPEZoneLayout::updatePerNotePitchbendRange	(	MPEZone &	,
		int
	)

private

Member Data Documentation

◆ listeners

ListenerList<Listener> juce::MPEZoneLayout::listeners

private

◆ lowerZone

MPEZone juce::MPEZoneLayout::lowerZone { MPEZone::Type::lower, 0 }

private

Referenced by operator==().

◆ rpnDetector

MidiRPNDetector juce::MPEZoneLayout::rpnDetector

private

◆ upperZone

MPEZone juce::MPEZoneLayout::upperZone { MPEZone::Type::upper, 0 }

private

Referenced by operator==().

The documentation for this class was generated from the following file:

juce_MPEZoneLayout.h
