Reads/writes standard midi format files. More...

#include <juce_MidiFile.h>

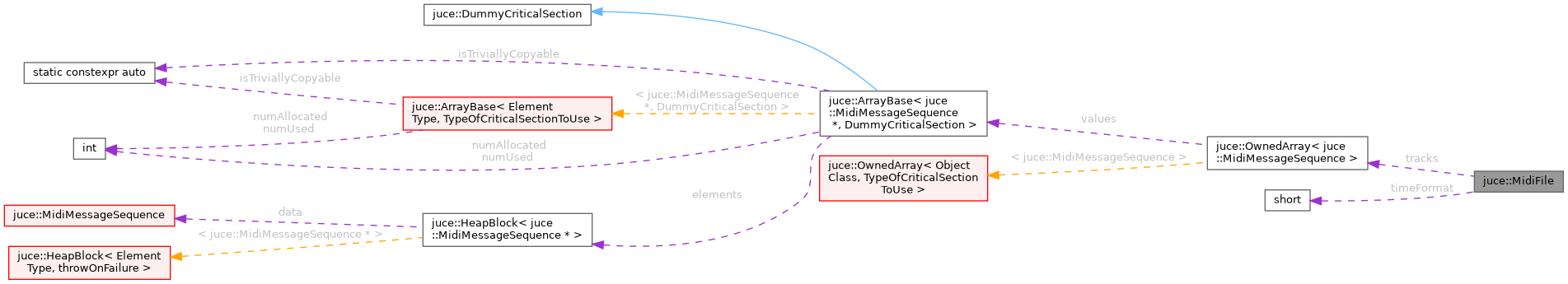

Collaboration diagram for juce::MidiFile:

[legend]

Public Member Functions
	MidiFile ()
	Creates an empty MidiFile object. More...

	MidiFile (const MidiFile &)
	Creates a copy of another MidiFile. More...

	MidiFile (MidiFile &&)
	Creates a copy of another MidiFile. More...

void	addTrack (const MidiMessageSequence &trackSequence)
	Adds a midi track to the file. More...

void	clear ()
	Removes all midi tracks from the file. More...

void	convertTimestampTicksToSeconds ()
	Converts the timestamp of all the midi events from midi ticks to seconds. More...

void	findAllKeySigEvents (MidiMessageSequence &keySigEvents) const
	Makes a list of all the key-signature meta-events from all tracks in the midi file. More...

void	findAllTempoEvents (MidiMessageSequence &tempoChangeEvents) const
	Makes a list of all the tempo-change meta-events from all tracks in the midi file. More...

void	findAllTimeSigEvents (MidiMessageSequence &timeSigEvents) const
	Makes a list of all the time-signature meta-events from all tracks in the midi file. More...

double	getLastTimestamp () const
	Returns the latest timestamp in any of the tracks. More...

int	getNumTracks () const noexcept
	Returns the number of tracks in the file. More...

short	getTimeFormat () const noexcept
	Returns the raw time format code that will be written to a stream. More...

const MidiMessageSequence *	getTrack (int index) const noexcept
	Returns a pointer to one of the tracks in the file. More...

MidiFile &	operator= (const MidiFile &)
	Copies from another MidiFile object. More...

MidiFile &	operator= (MidiFile &&)
	Copies from another MidiFile object. More...

bool	readFrom (InputStream &sourceStream, bool createMatchingNoteOffs=true, int *midiFileType=nullptr)
	Reads a midi file format stream. More...

void	setSmpteTimeFormat (int framesPerSecond, int subframeResolution) noexcept
	Sets the time format to use when this file is written to a stream. More...

void	setTicksPerQuarterNote (int ticksPerQuarterNote) noexcept
	Sets the time format to use when this file is written to a stream. More...

bool	writeTo (OutputStream &destStream, int midiFileType=1) const
	Writes the midi tracks as a standard midi file. More...

Private Member Functions
void	readNextTrack (const uint8 *, int, bool)

bool	writeTrack (OutputStream &, const MidiMessageSequence &) const

Private Attributes
short	timeFormat

OwnedArray< MidiMessageSequence >	tracks

Detailed Description

Reads/writes standard midi format files.

To read a midi file, create a MidiFile object and call its readFrom() method. You can then get the individual midi tracks from it using the getTrack() method.

To write a file, create a MidiFile object, add some MidiMessageSequence objects to it using the addTrack() method, and then call its writeTo() method to stream it out.

See also: MidiMessageSequence

@tags{Audio}

Constructor & Destructor Documentation

◆ MidiFile() [1/3]

juce::MidiFile::MidiFile ( )

Creates an empty MidiFile object.

◆ MidiFile() [2/3]

juce::MidiFile::MidiFile ( const MidiFile & )

Creates a copy of another MidiFile.

◆ MidiFile() [3/3]

juce::MidiFile::MidiFile ( MidiFile && )

Creates a copy of another MidiFile.

Member Function Documentation

◆ addTrack()

void juce::MidiFile::addTrack ( const MidiMessageSequence & trackSequence )

Adds a midi track to the file.

This will make its own internal copy of the sequence that is passed-in.

See also: getNumTracks, getTrack

◆ clear()

void juce::MidiFile::clear ( )

Removes all midi tracks from the file.

See also: getNumTracks

◆ convertTimestampTicksToSeconds()

void juce::MidiFile::convertTimestampTicksToSeconds ( )

Converts the timestamp of all the midi events from midi ticks to seconds.

This will use the midi time format and tempo/time signature info in the tracks to convert all the timestamps to absolute values in seconds.

◆ findAllKeySigEvents()

void juce::MidiFile::findAllKeySigEvents ( MidiMessageSequence & keySigEvents ) const

Makes a list of all the key-signature meta-events from all tracks in the midi file.

Parameters

keySigEvents a list to which all the events will be added

◆ findAllTempoEvents()

void juce::MidiFile::findAllTempoEvents ( MidiMessageSequence & tempoChangeEvents ) const

Makes a list of all the tempo-change meta-events from all tracks in the midi file.

Useful for finding the positions of all the tempo changes in a file.

Parameters

tempoChangeEvents a list to which all the events will be added

◆ findAllTimeSigEvents()

void juce::MidiFile::findAllTimeSigEvents ( MidiMessageSequence & timeSigEvents ) const

Makes a list of all the time-signature meta-events from all tracks in the midi file.

Useful for finding the positions of all the tempo changes in a file.

Parameters

timeSigEvents a list to which all the events will be added

◆ getLastTimestamp()

double juce::MidiFile::getLastTimestamp ( ) const

Returns the latest timestamp in any of the tracks.

(Useful for finding the length of the file).

◆ getNumTracks()

int juce::MidiFile::getNumTracks ( ) const

noexcept

Returns the number of tracks in the file.

See also: getTrack, addTrack

◆ getTimeFormat()

short juce::MidiFile::getTimeFormat ( ) const

noexcept

Returns the raw time format code that will be written to a stream.

After reading a midi file, this method will return the time-format that was read from the file's header. It can be changed using the setTicksPerQuarterNote() or setSmpteTimeFormat() methods.

If the value returned is positive, it indicates the number of midi ticks per quarter-note - see setTicksPerQuarterNote().

It it's negative, the upper byte indicates the frames-per-second (but negative), and the lower byte is the number of ticks per frame - see setSmpteTimeFormat().

◆ getTrack()

const MidiMessageSequence* juce::MidiFile::getTrack ( int index ) const

noexcept

Returns a pointer to one of the tracks in the file.

Returns: a pointer to the track, or nullptr if the index is out-of-range

See also: getNumTracks, addTrack

◆ operator=() [1/2]

MidiFile& juce::MidiFile::operator= ( const MidiFile & )

Copies from another MidiFile object.

◆ operator=() [2/2]

MidiFile& juce::MidiFile::operator= ( MidiFile && )

Copies from another MidiFile object.

◆ readFrom()

bool juce::MidiFile::readFrom	(	InputStream &	sourceStream,
		bool	createMatchingNoteOffs = `true`,
		int *	midiFileType = `nullptr`
	)

Reads a midi file format stream.

After calling this, you can get the tracks that were read from the file by using the getNumTracks() and getTrack() methods.

The timestamps of the midi events in the tracks will represent their positions in terms of midi ticks. To convert them to seconds, use the convertTimestampTicksToSeconds() method.

Parameters

sourceStream	the source stream
createMatchingNoteOffs	if true, any missing note-offs for previous note-ons will be automatically added at the end of the file by calling MidiMessageSequence::updateMatchedPairs on each track.
midiFileType	if not nullptr, the integer at this address will be set to 0, 1, or 2 depending on the type of the midi file

Returns: true if the stream was read successfully

◆ readNextTrack()

void juce::MidiFile::readNextTrack	(	const uint8 *	,
		int	,
		bool
	)

private

◆ setSmpteTimeFormat()

void juce::MidiFile::setSmpteTimeFormat	(	int	framesPerSecond,
		int	subframeResolution
	)

noexcept

Sets the time format to use when this file is written to a stream.

If this is called, the file will be written using absolute times, rather than bars/beats as would be the case if setTicksPerBeat() had been called instead.

Parameters

framesPerSecond	must be 24, 25, 29 or 30
subframeResolution	the sub-second resolution, e.g. 4 (midi time code), 8, 10, 80 (SMPTE bit resolution), or 100. For millisecond timing, setSmpteTimeFormat (25, 40)

See also: setTicksPerBeat

◆ setTicksPerQuarterNote()

void juce::MidiFile::setTicksPerQuarterNote ( int ticksPerQuarterNote )

noexcept

Sets the time format to use when this file is written to a stream.

If this is called, the file will be written as bars/beats using the specified resolution, rather than SMPTE absolute times, as would be used if setSmpteTimeFormat() had been called instead.

Parameters

ticksPerQuarterNote e.g. 96, 960

See also: setSmpteTimeFormat

◆ writeTo()

bool juce::MidiFile::writeTo	(	OutputStream &	destStream,
		int	midiFileType = `1`
	)		const

Writes the midi tracks as a standard midi file.

The midiFileType value is written as the file's format type, which can be 0, 1 or 2 - see the midi file spec for more info about that.

Parameters

destStream	the destination stream
midiFileType	the type of midi file

Returns: true if the operation succeeded.

◆ writeTrack()

bool juce::MidiFile::writeTrack	(	OutputStream &	,
		const MidiMessageSequence &
	)		const

private

Member Data Documentation

◆ timeFormat

short juce::MidiFile::timeFormat

private

◆ tracks

OwnedArray<MidiMessageSequence> juce::MidiFile::tracks

private

The documentation for this class was generated from the following file:

juce_MidiFile.h
