juce::MidiKeyboardState Class Reference

Represents a piano keyboard, keeping track of which keys are currently pressed. More...

#include <juce_MidiKeyboardState.h>

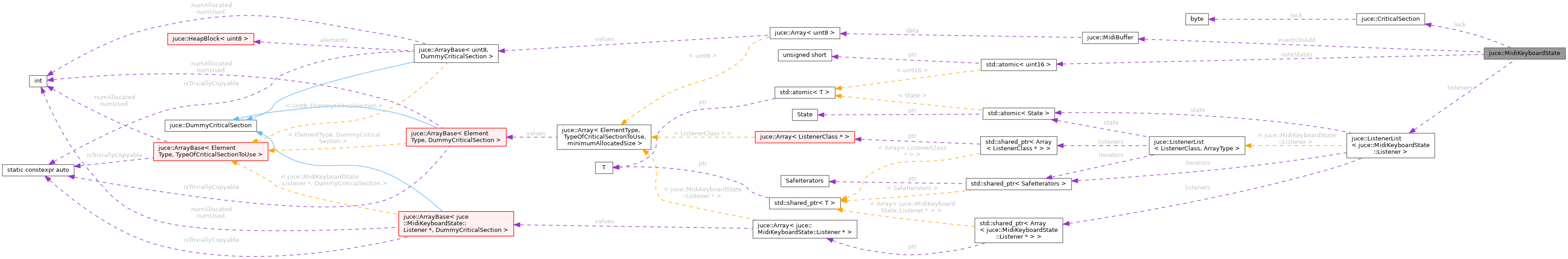

Collaboration diagram for juce::MidiKeyboardState:

Classes

class  Listener
 Receives events from a MidiKeyboardState object. More...


Public Member Functions

 MidiKeyboardState ()

void addListener (Listener *listener)
 Registers a listener for callbacks when keys go up or down. More...

void allNotesOff (int midiChannel)
 This will turn off any currently-down notes for the given midi channel. More...

bool isNoteOn (int midiChannel, int midiNoteNumber) const noexcept
 Returns true if the given midi key is currently held down for the given midi channel. More...

bool isNoteOnForChannels (int midiChannelMask, int midiNoteNumber) const noexcept
 Returns true if the given midi key is currently held down on any of a set of midi channels. More...

void noteOff (int midiChannel, int midiNoteNumber, float velocity)
 Turns a specified note off. More...

void noteOn (int midiChannel, int midiNoteNumber, float velocity)
 Turns a specified note on. More...

void processNextMidiBuffer (MidiBuffer &buffer, int startSample, int numSamples, bool injectIndirectEvents)
 Scans a midi stream for up/down events and adds its own events to it. More...

void processNextMidiEvent (const MidiMessage &message)
 Looks at a key-up/down event and uses it to update the state of this object. More...

void removeListener (Listener *listener)
 Deregisters a listener. More...

void reset ()
 Resets the state of the object. More...


Private Member Functions

void noteOffInternal (int midiChannel, int midiNoteNumber, float velocity)

void noteOnInternal (int midiChannel, int midiNoteNumber, float velocity)


Private Attributes

MidiBuffer eventsToAdd

ListenerList< Listenerlisteners

CriticalSection lock

std::atomic< uint16noteStates [128]


Detailed Description

Represents a piano keyboard, keeping track of which keys are currently pressed.

This object can parse a stream of midi events, using them to update its idea of which keys are pressed for each individual midi channel.

When keys go up or down, it can broadcast these events to listener objects.

It also allows key up/down events to be triggered with its noteOn() and noteOff() methods, and midi messages for these events will be merged into the midi stream that gets processed by processNextMidiBuffer().

@tags{Audio}

Constructor & Destructor Documentation

◆ MidiKeyboardState()

juce::MidiKeyboardState::MidiKeyboardState ( )

Member Function Documentation

◆ addListener()

void juce::MidiKeyboardState::addListener ( Listener listener)

Registers a listener for callbacks when keys go up or down.

See also
removeListener

◆ allNotesOff()

void juce::MidiKeyboardState::allNotesOff ( int  midiChannel)

This will turn off any currently-down notes for the given midi channel.

If you pass 0 for the midi channel, it will in fact turn off all notes on all channels.

Calling this method will make calls to noteOff(), so can trigger synchronous callbacks and events being added to the midi stream.

◆ isNoteOn()

bool juce::MidiKeyboardState::isNoteOn ( int  midiChannel,
int  midiNoteNumber
) const
noexcept

Returns true if the given midi key is currently held down for the given midi channel.

The channel number must be between 1 and 16. If you want to see if any notes are on for a range of channels, use the isNoteOnForChannels() method.

◆ isNoteOnForChannels()

bool juce::MidiKeyboardState::isNoteOnForChannels ( int  midiChannelMask,
int  midiNoteNumber
) const
noexcept

Returns true if the given midi key is currently held down on any of a set of midi channels.

The channel mask has a bit set for each midi channel you want to test for - bit 0 = midi channel 1, bit 1 = midi channel 2, etc.

If a note is on for at least one of the specified channels, this returns true.

◆ noteOff()

void juce::MidiKeyboardState::noteOff ( int  midiChannel,
int  midiNoteNumber,
float  velocity
)

Turns a specified note off.

This will cause a suitable midi note-off event to be injected into the midi buffer during the next call to processNextMidiBuffer().

It will also trigger a synchronous callback to the listeners to tell them that the key has gone up.

But if the note isn't actually down for the given channel, this method will in fact do nothing.

◆ noteOffInternal()

void juce::MidiKeyboardState::noteOffInternal ( int  midiChannel,
int  midiNoteNumber,
float  velocity
)
private

◆ noteOn()

void juce::MidiKeyboardState::noteOn ( int  midiChannel,
int  midiNoteNumber,
float  velocity
)

Turns a specified note on.

This will cause a suitable midi note-on event to be injected into the midi buffer during the next call to processNextMidiBuffer().

It will also trigger a synchronous callback to the listeners to tell them that the key has gone down.

◆ noteOnInternal()

void juce::MidiKeyboardState::noteOnInternal ( int  midiChannel,
int  midiNoteNumber,
float  velocity
)
private

◆ processNextMidiBuffer()

void juce::MidiKeyboardState::processNextMidiBuffer ( MidiBuffer buffer,
int  startSample,
int  numSamples,
bool  injectIndirectEvents
)

Scans a midi stream for up/down events and adds its own events to it.

This will look for any up/down events and use them to update the internal state, synchronously making suitable callbacks to the listeners.

If injectIndirectEvents is true, then midi events to produce the recent noteOn() and noteOff() calls will be added into the buffer.

Only the section of the buffer whose timestamps are between startSample and (startSample + numSamples) will be affected, and any events added will be placed between these times.

If you're going to use this method, you'll need to keep calling it regularly for it to work satisfactorily.

To process a single midi event at a time, use the processNextMidiEvent() method instead.

◆ processNextMidiEvent()

void juce::MidiKeyboardState::processNextMidiEvent ( const MidiMessage message)

Looks at a key-up/down event and uses it to update the state of this object.

To process a buffer full of midi messages, use the processNextMidiBuffer() method instead.

◆ removeListener()

void juce::MidiKeyboardState::removeListener ( Listener listener)

Deregisters a listener.

See also
addListener

◆ reset()

void juce::MidiKeyboardState::reset ( )

Resets the state of the object.

All internal data for all the channels is reset, but no events are sent as a result.

If you want to release any keys that are currently down, and to send out note-up midi messages for this, use the allNotesOff() method instead.

Member Data Documentation

◆ eventsToAdd

MidiBuffer juce::MidiKeyboardState::eventsToAdd
private

◆ listeners

ListenerList<Listener> juce::MidiKeyboardState::listeners
private

◆ lock

CriticalSection juce::MidiKeyboardState::lock
private

◆ noteStates

std::atomic<uint16> juce::MidiKeyboardState::noteStates[128]
private

The documentation for this class was generated from the following file:
