juce::MixerAudioSource Class Reference

An AudioSource that mixes together the output of a set of other AudioSources. More...

#include <juce_MixerAudioSource.h>

Inheritance diagram for juce::MixerAudioSource:

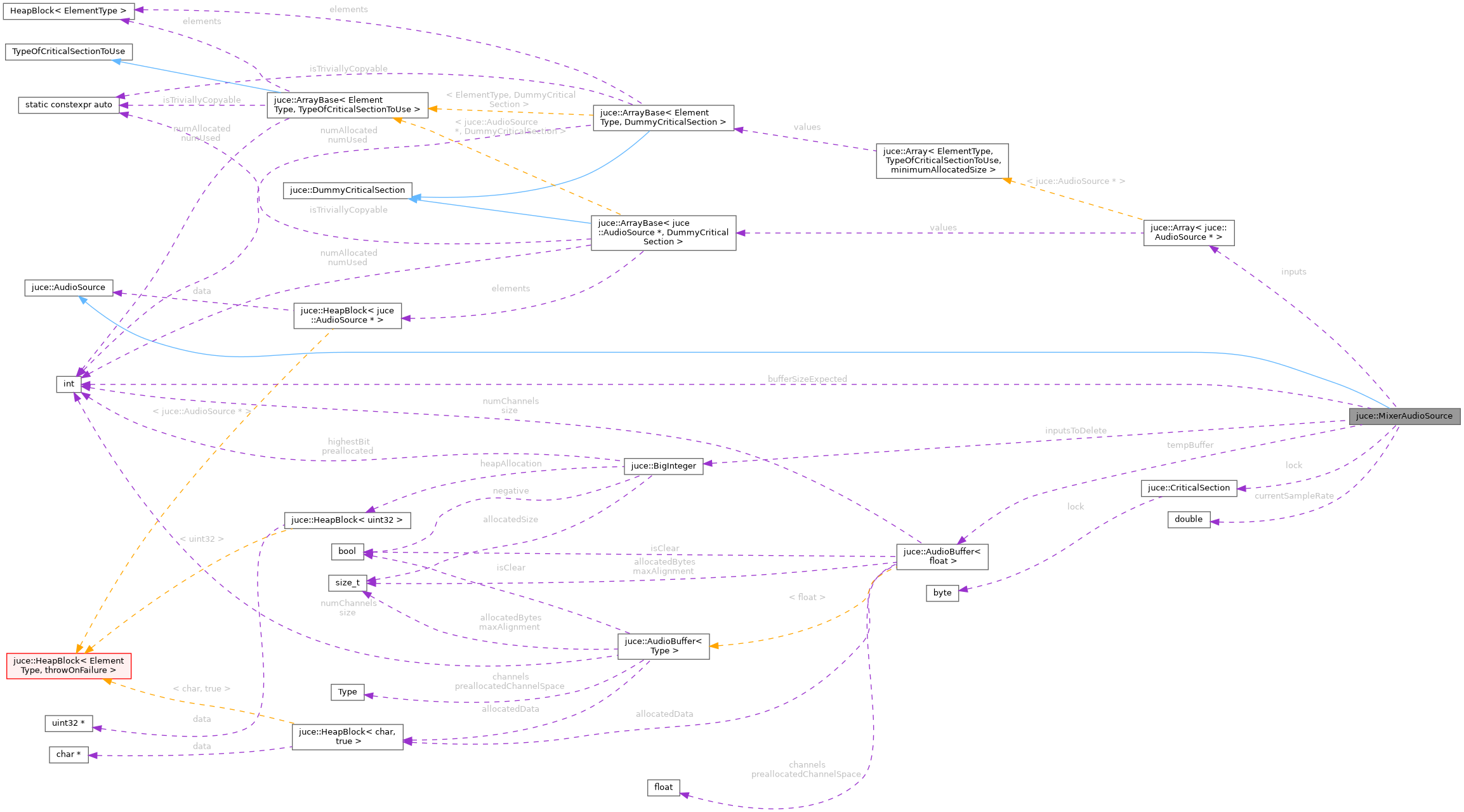

Collaboration diagram for juce::MixerAudioSource:

Public Member Functions
	MixerAudioSource ()
	Creates a MixerAudioSource. More...
	~MixerAudioSource () override
	Destructor. More...
void	addInputSource (AudioSource *newInput, bool deleteWhenRemoved)
	Adds an input source to the mixer. More...
void	getNextAudioBlock (const AudioSourceChannelInfo &) override
	Implementation of the AudioSource method. More...
void	prepareToPlay (int samplesPerBlockExpected, double sampleRate) override
	Implementation of the AudioSource method. More...
void	releaseResources () override
	Implementation of the AudioSource method. More...
void	removeAllInputs ()
	Removes all the input sources. More...
void	removeInputSource (AudioSource *input)
	Removes an input source. More...

Private Attributes
int	bufferSizeExpected
double	currentSampleRate
Array< AudioSource * >	inputs
BigInteger	inputsToDelete
CriticalSection	lock
AudioBuffer< float >	tempBuffer

Detailed Description

An AudioSource that mixes together the output of a set of other AudioSources.

Input sources can be added and removed while the mixer is running as long as their prepareToPlay() and releaseResources() methods are called before and after adding them to the mixer.

@tags{Audio}

Constructor & Destructor Documentation

MixerAudioSource()

juce::MixerAudioSource::MixerAudioSource

(

)

Creates a MixerAudioSource.

~MixerAudioSource()

juce::MixerAudioSource::~MixerAudioSource ( )

override

Destructor.

Member Function Documentation

addInputSource()

void juce::MixerAudioSource::addInputSource	(	AudioSource *	newInput,
		bool	deleteWhenRemoved
	)

Adds an input source to the mixer.

If the mixer is running you'll need to make sure that the input source is ready to play by calling its prepareToPlay() method before adding it. If the mixer is stopped, then its input sources will be automatically prepared when the mixer's prepareToPlay() method is called.

Parameters

newInput	the source to add to the mixer
deleteWhenRemoved	if true, then this source will be deleted when no longer needed by the mixer.

getNextAudioBlock()

void juce::MixerAudioSource::getNextAudioBlock ( const AudioSourceChannelInfo &  )

overridevirtual

Implementation of the AudioSource method.

Implements juce::AudioSource.

prepareToPlay()

void juce::MixerAudioSource::prepareToPlay ( int  samplesPerBlockExpected, double  sampleRate  )

overridevirtual

Implementation of the AudioSource method.

This will call prepareToPlay() on all its input sources.

Implements juce::AudioSource.

releaseResources()

void juce::MixerAudioSource::releaseResources ( )

overridevirtual

Implementation of the AudioSource method.

This will call releaseResources() on all its input sources.

Implements juce::AudioSource.

removeAllInputs()

void juce::MixerAudioSource::removeAllInputs

(

)

Removes all the input sources.

Any sources which were added by calling addInputSource() with the deleteWhenRemoved flag set will be deleted by this method.

removeInputSource()

void juce::MixerAudioSource::removeInputSource

(

AudioSource *

input

)

Removes an input source.

If the source was added by calling addInputSource() with the deleteWhenRemoved flag set, it will be deleted by this method.

Member Data Documentation

bufferSizeExpected

int juce::MixerAudioSource::bufferSizeExpected

private

currentSampleRate

double juce::MixerAudioSource::currentSampleRate

private

inputs

Array<AudioSource*> juce::MixerAudioSource::inputs

private

inputsToDelete

BigInteger juce::MixerAudioSource::inputsToDelete

private

lock

CriticalSection juce::MixerAudioSource::lock

private

tempBuffer

AudioBuffer<float> juce::MixerAudioSource::tempBuffer

private

---

The documentation for this class was generated from the following file:

• juce_MixerAudioSource.h
