juce::MouseCursor Class Reference

Represents a mouse cursor image. More...

#include <juce_MouseCursor.h>

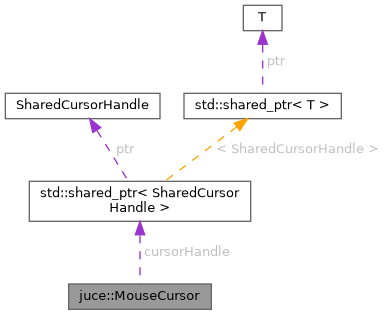

Collaboration diagram for juce::MouseCursor:

Public Types
enum	StandardCursorType {   ParentCursor = 0,   NoCursor,   NormalCursor,   WaitCursor,   IBeamCursor,   CrosshairCursor,   CopyingCursor,   PointingHandCursor,   DraggingHandCursor,   LeftRightResizeCursor,   UpDownResizeCursor,   UpDownLeftRightResizeCursor,   TopEdgeResizeCursor,   BottomEdgeResizeCursor,   LeftEdgeResizeCursor,   RightEdgeResizeCursor,   TopLeftCornerResizeCursor,   TopRightCornerResizeCursor,   BottomLeftCornerResizeCursor,   BottomRightCornerResizeCursor,   NumStandardCursorTypes }
	The set of available standard mouse cursors. More...

Public Member Functions
	MouseCursor () noexcept
	Creates the standard arrow cursor. More...
	MouseCursor (const Image &image, int hotSpotX, int hotSpotY)
	Creates a custom cursor from an image. More...
	MouseCursor (const Image &image, int hotSpotX, int hotSpotY, float scaleFactor)
	Creates a custom cursor from an image. More...
	MouseCursor (const MouseCursor &)
	Creates a copy of another cursor object. More...
	MouseCursor (const ScaledImage &image, Point< int > hotSpot)
	Creates a custom cursor from an image. More...
	MouseCursor (MouseCursor &&) noexcept
	Move constructor. More...
	MouseCursor (StandardCursorType)
	Creates one of the standard mouse cursor. More...
	~MouseCursor ()
	Destructor. More...
bool	operator!= (const MouseCursor &) const noexcept
	Checks whether two mouse cursors are the same. More...
bool	operator!= (StandardCursorType type) const noexcept
	Checks whether this cursor is of the standard type mentioned. More...
MouseCursor &	operator= (const MouseCursor &)
	Copies this cursor from another object. More...
MouseCursor &	operator= (MouseCursor &&) noexcept
	Move assignment operator. More...
bool	operator== (const MouseCursor &) const noexcept
	Checks whether two mouse cursors are the same. More...
bool	operator== (StandardCursorType type) const noexcept
	Checks whether this cursor is of the standard type mentioned. More...

Static Public Member Functions
static void	hideWaitCursor ()
	If showWaitCursor has been called, this will return the mouse to its normal state. More...
static void	showWaitCursor ()
	Makes the system show its default 'busy' cursor. More...

Private Member Functions
PlatformSpecificHandle *	getHandle () const noexcept
void	showInWindow (ComponentPeer *) const

Private Attributes
std::shared_ptr< SharedCursorHandle >	cursorHandle

Friends
class	MouseInputSourceInternal

Detailed Description

Represents a mouse cursor image.

This object can either be used to represent one of the standard mouse cursor shapes, or a custom one generated from an image.

@tags{GUI}

Member Enumeration Documentation

StandardCursorType

enum juce::MouseCursor::StandardCursorType

The set of available standard mouse cursors.

Enumerator
ParentCursor	Indicates that the component's parent's cursor should be used.
NoCursor	An invisible cursor.
NormalCursor	The standard arrow cursor.
WaitCursor	The normal hourglass or spinning-beachball 'busy' cursor.
IBeamCursor	A vertical I-beam for positioning within text.
CrosshairCursor	A pair of crosshairs.
CopyingCursor	The normal arrow cursor, but with a "+" on it to indicate that you're dragging a copy of something.
PointingHandCursor	A hand with a pointing finger, for clicking on web-links.
DraggingHandCursor	An open flat hand for dragging heavy objects around.
LeftRightResizeCursor	An arrow pointing left and right.
UpDownResizeCursor	an arrow pointing up and down.
UpDownLeftRightResizeCursor	An arrow pointing up, down, left and right.
TopEdgeResizeCursor	A platform-specific cursor for resizing the top-edge of a window.
BottomEdgeResizeCursor	A platform-specific cursor for resizing the bottom-edge of a window.
LeftEdgeResizeCursor	A platform-specific cursor for resizing the left-edge of a window.
RightEdgeResizeCursor	A platform-specific cursor for resizing the right-edge of a window.
TopLeftCornerResizeCursor	A platform-specific cursor for resizing the top-left-corner of a window.
TopRightCornerResizeCursor	A platform-specific cursor for resizing the top-right-corner of a window.
BottomLeftCornerResizeCursor	A platform-specific cursor for resizing the bottom-left-corner of a window.
BottomRightCornerResizeCursor	A platform-specific cursor for resizing the bottom-right-corner of a window.
NumStandardCursorTypes

Constructor & Destructor Documentation

MouseCursor() [1/7]

juce::MouseCursor::MouseCursor ( )

noexcept

Creates the standard arrow cursor.

MouseCursor() [2/7]

juce::MouseCursor::MouseCursor

(

StandardCursorType

)

Creates one of the standard mouse cursor.

MouseCursor() [3/7]

juce::MouseCursor::MouseCursor	(	const Image &	image,
		int	hotSpotX,
		int	hotSpotY
	)

Creates a custom cursor from an image.

Parameters

image	the image to use for the cursor - if this is bigger than the system can manage, it might get scaled down first, and might also have to be turned to black-and-white if it can't do colour cursors.
hotSpotX	the x position of the cursor's hotspot within the image
hotSpotY	the y position of the cursor's hotspot within the image

MouseCursor() [4/7]

juce::MouseCursor::MouseCursor	(	const Image &	image,
		int	hotSpotX,
		int	hotSpotY,
		float	scaleFactor
	)

Creates a custom cursor from an image.

Parameters

image	the image to use for the cursor - if this is bigger than the system can manage, it might get scaled down first, and might also have to be turned to black-and-white if it can't do colour cursors.
hotSpotX	the x position of the cursor's hotspot within the image
hotSpotY	the y position of the cursor's hotspot within the image
scaleFactor	the factor by which this image is larger than the target screen size of the cursor.

MouseCursor() [5/7]

juce::MouseCursor::MouseCursor	(	const ScaledImage &	image,
		Point< int >	hotSpot
	)

Creates a custom cursor from an image.

Parameters

image	the image to use for the cursor - if this is bigger than the system can manage, it might get scaled down first, and might also have to be turned to black-and-white if it can't do colour cursors.
hotSpot	the position of the cursor's hotspot within the image

MouseCursor() [6/7]

juce::MouseCursor::MouseCursor

(

const MouseCursor &

)

Creates a copy of another cursor object.

~MouseCursor()

juce::MouseCursor::~MouseCursor

(

)

Destructor.

MouseCursor() [7/7]

juce::MouseCursor::MouseCursor ( MouseCursor &&  )

noexcept

Move constructor.

Member Function Documentation

getHandle()

PlatformSpecificHandle* juce::MouseCursor::getHandle ( ) const

privatenoexcept

hideWaitCursor()

static void juce::MouseCursor::hideWaitCursor ( )

static

If showWaitCursor has been called, this will return the mouse to its normal state.

This will look at what component is under the mouse, and update the cursor to be the correct one for that component.

See also

showWaitCursor

operator!=() [1/2]

bool juce::MouseCursor::operator!= ( const MouseCursor &  ) const

noexcept

Checks whether two mouse cursors are the same.

For custom cursors, two cursors created from the same image won't be recognised as the same, only MouseCursor objects that have been copied from the same object.

operator!=() [2/2]

bool juce::MouseCursor::operator!= ( StandardCursorType  type ) const

noexcept

Checks whether this cursor is of the standard type mentioned.

operator=() [1/2]

MouseCursor& juce::MouseCursor::operator=

(

const MouseCursor &

)

Copies this cursor from another object.

operator=() [2/2]

MouseCursor& juce::MouseCursor::operator= ( MouseCursor &&  )

noexcept

Move assignment operator.

operator==() [1/2]

bool juce::MouseCursor::operator== ( const MouseCursor &  ) const

noexcept

Checks whether two mouse cursors are the same.

For custom cursors, two cursors created from the same image won't be recognised as the same, only MouseCursor objects that have been copied from the same object.

operator==() [2/2]

bool juce::MouseCursor::operator== ( StandardCursorType  type ) const

noexcept

Checks whether this cursor is of the standard type mentioned.

showInWindow()

void juce::MouseCursor::showInWindow ( ComponentPeer *  ) const

private

showWaitCursor()

static void juce::MouseCursor::showWaitCursor ( )

static

Makes the system show its default 'busy' cursor.

This will turn the system cursor to an hourglass or spinning beachball until the next time the mouse is moved, or hideWaitCursor() is called.

This is handy if the message loop is about to block for a couple of seconds while busy and you want to give the user feedback about this.

Friends And Related Function Documentation

MouseInputSourceInternal

friend class MouseInputSourceInternal

friend

Member Data Documentation

cursorHandle

std::shared_ptr<SharedCursorHandle> juce::MouseCursor::cursorHandle

private

---

The documentation for this class was generated from the following file:

• juce_MouseCursor.h
