juce::MultiTimer Class Referenceabstract

A type of timer class that can run multiple timers with different frequencies, all of which share a single callback. More...

#include <juce_MultiTimer.h>

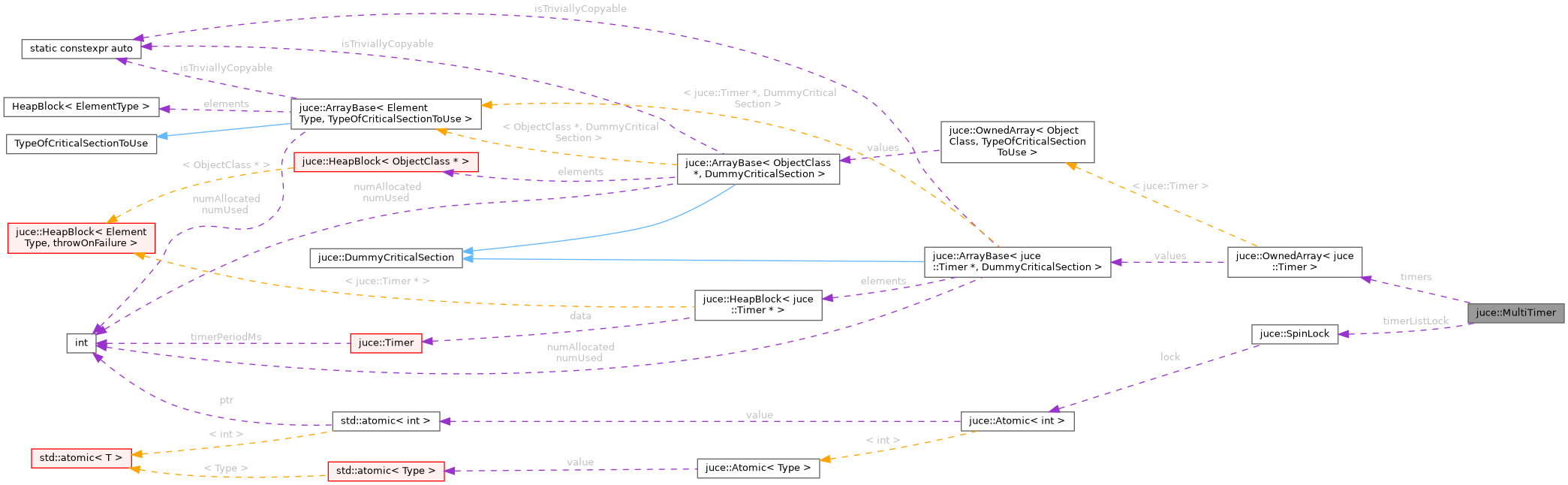

Collaboration diagram for juce::MultiTimer:

Public Member Functions

virtual ~MultiTimer ()
 Destructor. More...

int getTimerInterval (int timerID) const noexcept
 Returns the interval for a specified timer ID. More...

bool isTimerRunning (int timerID) const noexcept
 Checks whether a timer has been started for a specified ID. More...

void startTimer (int timerID, int intervalInMilliseconds) noexcept
 Starts a timer and sets the length of interval required. More...

void stopTimer (int timerID) noexcept
 Stops a timer. More...

virtual void timerCallback (int timerID)=0
 The user-defined callback routine that actually gets called by each of the timers that are running. More...


Protected Member Functions

 MultiTimer () noexcept
 Creates a MultiTimer. More...

 MultiTimer (const MultiTimer &) noexcept
 Creates a copy of another timer. More...


Private Member Functions

TimergetCallback (int) const noexcept

MultiTimeroperator= (const MultiTimer &)


Private Attributes

SpinLock timerListLock

OwnedArray< Timertimers


Detailed Description

A type of timer class that can run multiple timers with different frequencies, all of which share a single callback.

This class is very similar to the Timer class, but allows you run multiple separate timers, where each one has a unique ID number. The methods in this class are exactly equivalent to those in Timer, but with the addition of this ID number.

To use it, you need to create a subclass of MultiTimer, implementing the timerCallback() method. Then you can start timers with startTimer(), and each time the callback is triggered, it passes in the ID of the timer that caused it.

See also
Timer

@tags{Events}

Constructor & Destructor Documentation

◆ MultiTimer() [1/2]

juce::MultiTimer::MultiTimer ( )
protectednoexcept

Creates a MultiTimer.

When created, no timers are running, so use startTimer() to start things off.

◆ MultiTimer() [2/2]

juce::MultiTimer::MultiTimer ( const MultiTimer )
protectednoexcept

Creates a copy of another timer.

Note that this timer will not contain any running timers, even if the one you're copying from was running.

◆ ~MultiTimer()

virtual juce::MultiTimer::~MultiTimer ( )
virtual

Destructor.

Member Function Documentation

◆ getCallback()

Timer* juce::MultiTimer::getCallback ( int  ) const
privatenoexcept

◆ getTimerInterval()

int juce::MultiTimer::getTimerInterval ( int  timerID) const
noexcept

Returns the interval for a specified timer ID.

Returns
the timer's interval in milliseconds if it's running, or 0 if no timer was running for the ID number specified.

◆ isTimerRunning()

bool juce::MultiTimer::isTimerRunning ( int  timerID) const
noexcept

Checks whether a timer has been started for a specified ID.

Returns
true if a timer with the given ID is running.

◆ operator=()

MultiTimer& juce::MultiTimer::operator= ( const MultiTimer )
private

◆ startTimer()

void juce::MultiTimer::startTimer ( int  timerID,
int  intervalInMilliseconds
)
noexcept

Starts a timer and sets the length of interval required.

If the timer is already started, this will reset it, so the time between calling this method and the next timer callback will not be less than the interval length passed in.

Parameters
timerIDa unique Id number that identifies the timer to start. This is the id that will be passed back to the timerCallback() method when this timer is triggered
intervalInMillisecondsthe interval to use (any values less than 1 will be rounded up to 1)

◆ stopTimer()

void juce::MultiTimer::stopTimer ( int  timerID)
noexcept

Stops a timer.

If a timer has been started with the given ID number, it will be cancelled. No more callbacks will be made for the specified timer after this method returns.

If this is called from a different thread, any callbacks that may be currently executing may be allowed to finish before the method returns.

◆ timerCallback()

virtual void juce::MultiTimer::timerCallback ( int  timerID)
pure virtual

The user-defined callback routine that actually gets called by each of the timers that are running.

It's perfectly ok to call startTimer() or stopTimer() from within this callback to change the subsequent intervals.

Member Data Documentation

◆ timerListLock

SpinLock juce::MultiTimer::timerListLock
private

◆ timers

OwnedArray<Timer> juce::MultiTimer::timers
private

The documentation for this class was generated from the following file:
