juce::NamedPipe Class Reference

A cross-process pipe that can have data written to and read from it. More...

#include <juce_NamedPipe.h>

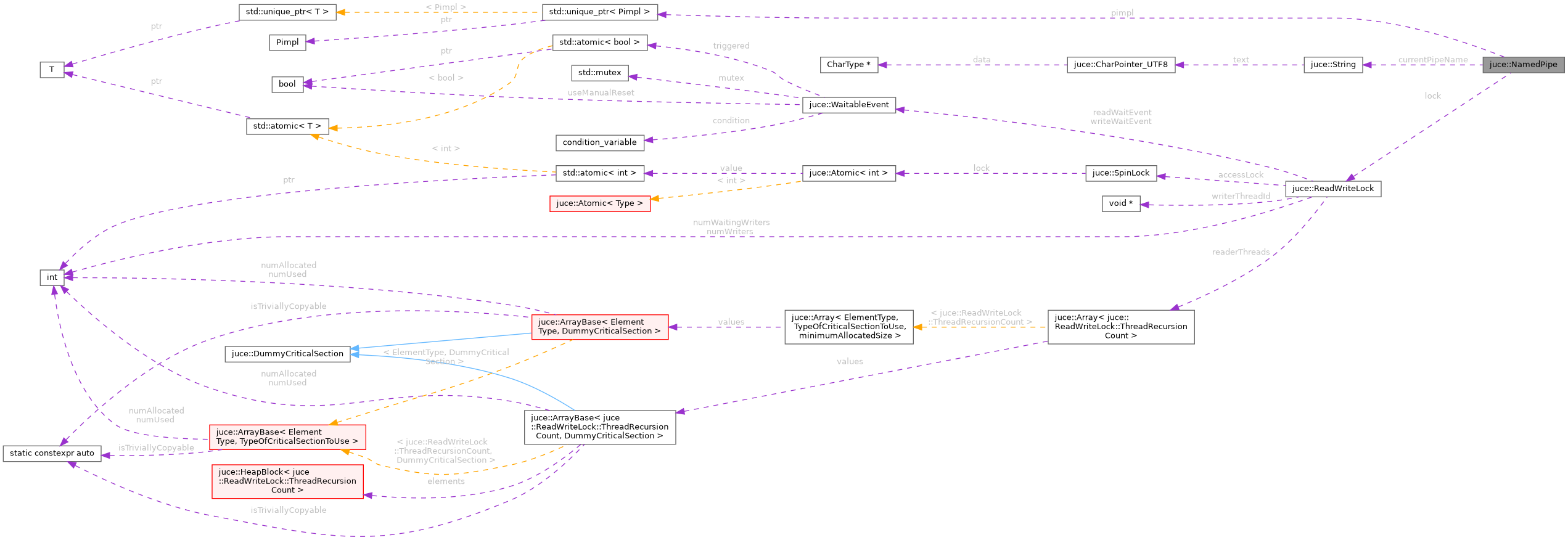

Collaboration diagram for juce::NamedPipe:

Public Member Functions
	NamedPipe ()
	Creates a NamedPipe. More...
	~NamedPipe ()
	Destructor. More...
void	close ()
	Closes the pipe, if it's open. More...
bool	createNewPipe (const String &pipeName, bool mustNotExist=false)
	Tries to create a new pipe. More...
String	getName () const
	Returns the last name that was used to try to open this pipe. More...
bool	isOpen () const
	True if the pipe is currently open. More...
bool	openExisting (const String &pipeName)
	Tries to open a pipe that already exists. More...
int	read (void *destBuffer, int maxBytesToRead, int timeOutMilliseconds)
	Reads data from the pipe. More...
int	write (const void *sourceBuffer, int numBytesToWrite, int timeOutMilliseconds)
	Writes some data to the pipe. More...

Private Member Functions
bool	openInternal (const String &pipeName, bool createPipe, bool mustNotExist)

Private Attributes
String	currentPipeName
ReadWriteLock	lock
std::unique_ptr< Pimpl >	pimpl

Detailed Description

A cross-process pipe that can have data written to and read from it.

Two processes can use NamedPipe objects to exchange blocks of data.

See also

InterprocessConnection

@tags{Core}

Constructor & Destructor Documentation

NamedPipe()

juce::NamedPipe::NamedPipe

(

)

Creates a NamedPipe.

~NamedPipe()

juce::NamedPipe::~NamedPipe

(

)

Destructor.

Member Function Documentation

close()

void juce::NamedPipe::close

(

)

Closes the pipe, if it's open.

createNewPipe()

bool juce::NamedPipe::createNewPipe	(	const String &	pipeName,
		bool	mustNotExist = false
	)

Tries to create a new pipe.

Returns true if it succeeds. If mustNotExist is true then it will fail if a pipe is already open with the same name.

getName()

String juce::NamedPipe::getName

(

)

const

Returns the last name that was used to try to open this pipe.

isOpen()

bool juce::NamedPipe::isOpen

(

)

const

True if the pipe is currently open.

openExisting()

bool juce::NamedPipe::openExisting

(

const String &

pipeName

)

Tries to open a pipe that already exists.

Returns true if it succeeds.

openInternal()

bool juce::NamedPipe::openInternal ( const String &  pipeName, bool  createPipe, bool  mustNotExist  )

private

read()

int juce::NamedPipe::read	(	void *	destBuffer,
		int	maxBytesToRead,
		int	timeOutMilliseconds
	)

Reads data from the pipe.

This will block until another thread has written enough data into the pipe to fill the number of bytes specified, or until another thread calls the cancelPendingReads() method.

If the operation fails, it returns -1, otherwise, it will return the number of bytes read.

If timeOutMilliseconds is less than zero, it will wait indefinitely, otherwise this is a maximum timeout for reading from the pipe.

write()

int juce::NamedPipe::write	(	const void *	sourceBuffer,
		int	numBytesToWrite,
		int	timeOutMilliseconds
	)

Writes some data to the pipe.

Returns

the number of bytes written, or -1 on failure.

Member Data Documentation

currentPipeName

String juce::NamedPipe::currentPipeName

private

lock

ReadWriteLock juce::NamedPipe::lock

private

pimpl

std::unique_ptr<Pimpl> juce::NamedPipe::pimpl

private

---

The documentation for this class was generated from the following file:

• juce_NamedPipe.h
