juce::OSCBundle Class Reference

An OSC bundle. More...

#include <juce_OSCBundle.h>

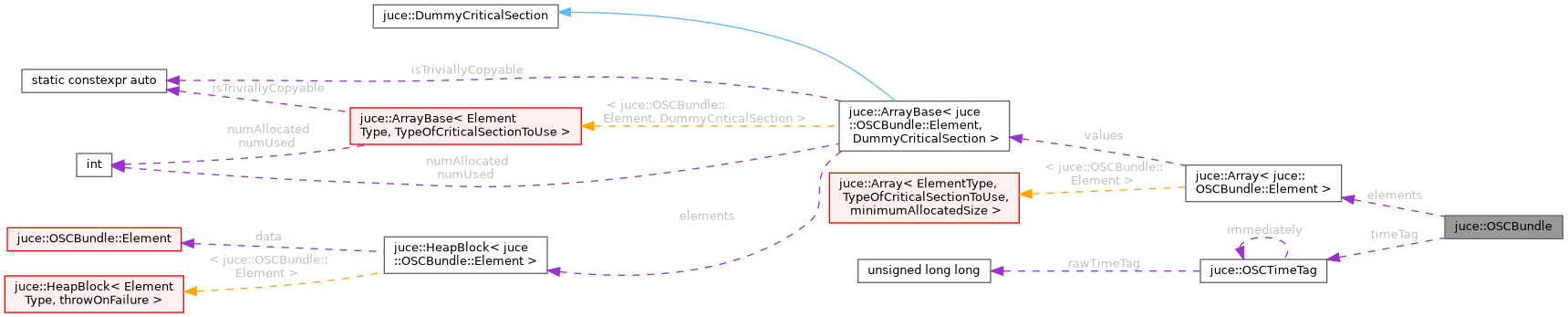

Collaboration diagram for juce::OSCBundle:

Classes
class	Element
	An OSC bundle element. More...

Public Member Functions
	OSCBundle ()
	Constructs an OSCBundle with no content and a default time tag ("immediately"). More...
	OSCBundle (OSCTimeTag timeTag)
	Constructs an OSCBundle with no content and a given time tag. More...
void	addElement (const OSCBundle::Element &element)
	Adds an OSCBundleElement to the OSCBundle's content. More...
const OSCBundle::Element *	begin () const noexcept
	Returns a pointer to the first element of the OSCBundle. More...
OSCBundle::Element *	begin () noexcept
	Returns a pointer to the first element of the OSCBundle. More...
const OSCBundle::Element *	end () const noexcept
	Returns a pointer past the last element of the OSCBundle. More...
OSCBundle::Element *	end () noexcept
	Returns a pointer past the last element of the OSCBundle. More...
OSCTimeTag	getTimeTag () const noexcept
	Returns the OSCBundle's OSC time tag. More...
bool	isEmpty () const noexcept
	Returns true if the bundle contains no elements; false otherwise. More...
const OSCBundle::Element &	operator[] (const int i) const noexcept
OSCBundle::Element &	operator[] (const int i) noexcept
	Returns a reference to the OSCBundle element at index i in this bundle. More...
void	setTimeTag (OSCTimeTag newTimeTag) noexcept
	Sets the OSCBundle's OSC time tag. More...
int	size () const noexcept
	Returns the number of elements contained in the bundle. More...

Private Attributes
Array< OSCBundle::Element >	elements
OSCTimeTag	timeTag

Detailed Description

An OSC bundle.

An OSCBundle contains an OSCTimeTag and zero or more OSCBundle Elements. The elements of a bundle can be OSC messages or other OSC bundles (this means that OSC bundles can be nested).

This is an advanced OSC structure useful to bundle OSC messages together whose effects must occur simultaneously at some given time. For most use cases it is probably enough to send and receive plain OSC messages.

@tags{OSC}

Constructor & Destructor Documentation

OSCBundle() [1/2]

juce::OSCBundle::OSCBundle

(

)

Constructs an OSCBundle with no content and a default time tag ("immediately").

OSCBundle() [2/2]

juce::OSCBundle::OSCBundle

(

OSCTimeTag

timeTag

)

Constructs an OSCBundle with no content and a given time tag.

Member Function Documentation

addElement()

void juce::OSCBundle::addElement ( const OSCBundle::Element &  element )

inline

Adds an OSCBundleElement to the OSCBundle's content.

s

begin() [1/2]

const OSCBundle::Element* juce::OSCBundle::begin ( ) const

inlinenoexcept

Returns a pointer to the first element of the OSCBundle.

begin() [2/2]

OSCBundle::Element* juce::OSCBundle::begin ( )

inlinenoexcept

Returns a pointer to the first element of the OSCBundle.

end() [1/2]

const OSCBundle::Element* juce::OSCBundle::end ( ) const

inlinenoexcept

Returns a pointer past the last element of the OSCBundle.

end() [2/2]

OSCBundle::Element* juce::OSCBundle::end ( )

inlinenoexcept

Returns a pointer past the last element of the OSCBundle.

getTimeTag()

OSCTimeTag juce::OSCBundle::getTimeTag ( ) const

inlinenoexcept

Returns the OSCBundle's OSC time tag.

isEmpty()

bool juce::OSCBundle::isEmpty ( ) const

inlinenoexcept

Returns true if the bundle contains no elements; false otherwise.

operator[]() [1/2]

const OSCBundle::Element& juce::OSCBundle::operator[] ( const int  i ) const

inlinenoexcept

operator[]() [2/2]

OSCBundle::Element& juce::OSCBundle::operator[] ( const int  i )

inlinenoexcept

Returns a reference to the OSCBundle element at index i in this bundle.

This method does not check the range and results in undefined behaviour in case i < 0 or i >= size().

setTimeTag()

void juce::OSCBundle::setTimeTag ( OSCTimeTag  newTimeTag )

inlinenoexcept

Sets the OSCBundle's OSC time tag.

size()

int juce::OSCBundle::size ( ) const

inlinenoexcept

Returns the number of elements contained in the bundle.

Member Data Documentation

elements

Array<OSCBundle::Element> juce::OSCBundle::elements

private

timeTag

OSCTimeTag juce::OSCBundle::timeTag

private

---

The documentation for this class was generated from the following file:

• juce_OSCBundle.h
