juce::OnlineUnlockStatus Class Reference

A base class for online unlocking systems. More...

#include <juce_OnlineUnlockStatus.h>

Inheritance diagram for juce::OnlineUnlockStatus:

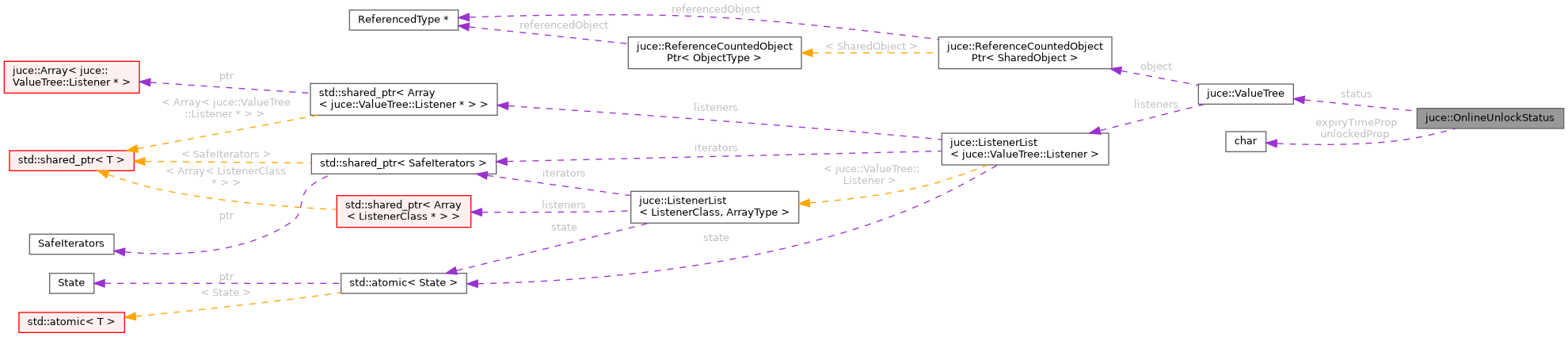

Collaboration diagram for juce::OnlineUnlockStatus:

Classes
struct	MachineIDUtilities
	This class contains some utility functions that might help with machine ID generation. More...
struct	UnlockResult
	This provides some details about the reply that the server gave in a call to attemptWebserverUnlock(). More...

Public Member Functions
	OnlineUnlockStatus ()
virtual	~OnlineUnlockStatus ()
	Destructor. More...
bool	applyKeyFile (String keyFileContent)
	Attempts to perform an unlock using a block of key-file data provided. More...
UnlockResult	attemptWebserverUnlock (const String &email, const String &password)
	Contacts the webserver and attempts to perform a registration with the given user details. More...
virtual bool	doesProductIDMatch (const String &returnedIDFromServer)=0
	This must check whether a product ID string that the server returned is OK for unlocking the current app. More...
Time	getExpiryTime () const
	Returns the Time when the keyfile expires. More...
virtual StringArray	getLocalMachineIDs ()
	Returns a list of strings, any of which should be unique to this physical computer. More...
virtual String	getMessageForConnectionFailure (bool isInternetConnectionWorking)
virtual String	getMessageForUnexpectedReply ()
virtual String	getProductID ()=0
	This must return your product's ID, as allocated by the store. More...
virtual RSAKey	getPublicKey ()=0
	This must return the RSA public key for authenticating responses from the server for this app. More...
virtual URL	getServerAuthenticationURL ()=0
	Returns the URL of the authentication API. More...
virtual String	getState ()=0
	This method must retrieve the last state that was provided by the saveState method. More...
String	getUserEmail () const
	Returns the user's email address if known. More...
virtual String	getWebsiteName ()=0
	Returns the name of the web-store website, not for communication, but for presenting to the user. More...
var	isUnlocked () const
	Returns true if the product has been successfully authorised for this machine. More...
void	load ()
	Attempts to load the status from the state retrieved by getState(). More...
virtual String	readReplyFromWebserver (const String &email, const String &password)=0
	Subclasses that talk to a particular web-store will implement this method to contact their webserver and attempt to unlock the current machine for the given username and password. More...
void	save ()
	Triggers a call to saveState which you can use to store the current unlock status in your app's settings. More...
virtual void	saveState (const String &)=0
	This method must store the given string somewhere in your app's persistent properties, so it can be retrieved later by getState(). More...
void	setUserEmail (const String &usernameOrEmail)
	Optionally allows the app to provide the user's email address if it is known. More...
virtual void	userCancelled ()
	This method will be called if the user cancels the connection to the webserver by clicking the cancel button in OnlineUnlockForm::OverlayComp. More...

Private Member Functions
UnlockResult	handleFailedConnection ()
UnlockResult	handleXmlReply (XmlElement)

Private Attributes
ValueTree	status

Static Private Attributes
static const char *	expiryTimeProp
static const char *	unlockedProp

Detailed Description

A base class for online unlocking systems.

This class stores information about whether your app has been unlocked for the current machine, and handles communication with a web-store to perform the unlock procedure.

You probably won't ever use this base class directly, but rather a store-specific subclass such as TracktionMarketplaceStatus, which knows how to talk to the particular online store that you're using.

To use it, you create a subclass which implements all the pure virtual methods (see their comments to find out what you'll need to make them do).

Then you can create an instance of your subclass which will hold the registration state. Typically, you'll want to just keep a single instance of the class around for the duration of your app. You can then call its methods to handle the various registration tasks.

Areas of your code that need to know whether the user is registered (e.g. to decide whether a particular feature is available) should call isUnlocked() to find out.

If you want to create a GUI that allows your users to enter their details and register, see the OnlineUnlockForm class.

See also

OnlineUnlockForm, KeyGeneration

@tags{ProductUnlocking}

Constructor & Destructor Documentation

OnlineUnlockStatus()

juce::OnlineUnlockStatus::OnlineUnlockStatus

(

)

~OnlineUnlockStatus()

virtual juce::OnlineUnlockStatus::~OnlineUnlockStatus ( )

virtual

Destructor.

Member Function Documentation

applyKeyFile()

bool juce::OnlineUnlockStatus::applyKeyFile

(

String

keyFileContent

)

Attempts to perform an unlock using a block of key-file data provided.

You may wish to use this as a way of allowing a user to unlock your app by drag-and-dropping a file containing the key data, or by letting them select such a file. This is often needed for allowing registration on machines without internet access.

attemptWebserverUnlock()

UnlockResult juce::OnlineUnlockStatus::attemptWebserverUnlock	(	const String &	email,
		const String &	password
	)

Contacts the webserver and attempts to perform a registration with the given user details.

The return value will either be a success, or a failure with an error message from the server, so you should show this message to your user.

Because this method blocks while it contacts the server, you must run it on a background thread, not on the message thread. For an easier way to create a GUI to do the unlocking, see OnlineUnlockForm.

doesProductIDMatch()

virtual bool juce::OnlineUnlockStatus::doesProductIDMatch ( const String &  returnedIDFromServer )

pure virtual

This must check whether a product ID string that the server returned is OK for unlocking the current app.

Implemented in juce::TracktionMarketplaceStatus.

getExpiryTime()

Time juce::OnlineUnlockStatus::getExpiryTime ( ) const

inline

Returns the Time when the keyfile expires.

If a the key file obtained has an expiry time, isUnlocked will return false and this will return a non-zero time. The interpretation of this is up to your app but could be used for subscription based models or trial periods.

getLocalMachineIDs()

virtual StringArray juce::OnlineUnlockStatus::getLocalMachineIDs ( )

virtual

Returns a list of strings, any of which should be unique to this physical computer.

When testing whether the user is allowed to use the product on this machine, this list of tokens is compared to the ones that were stored on the webserver.

The default implementation of this method will simply call MachineIDUtilities::getLocalMachineIDs(), which provides a default version of this functionality.

getMessageForConnectionFailure()

virtual String juce::OnlineUnlockStatus::getMessageForConnectionFailure ( bool  isInternetConnectionWorking )

virtual

getMessageForUnexpectedReply()

virtual String juce::OnlineUnlockStatus::getMessageForUnexpectedReply ( )

virtual

getProductID()

virtual String juce::OnlineUnlockStatus::getProductID ( )

pure virtual

This must return your product's ID, as allocated by the store.

getPublicKey()

virtual RSAKey juce::OnlineUnlockStatus::getPublicKey ( )

pure virtual

This must return the RSA public key for authenticating responses from the server for this app.

You can get this key from your marketplace account page.

getServerAuthenticationURL()

virtual URL juce::OnlineUnlockStatus::getServerAuthenticationURL ( )

pure virtual

Returns the URL of the authentication API.

Implemented in juce::TracktionMarketplaceStatus.

getState()

virtual String juce::OnlineUnlockStatus::getState ( )

pure virtual

This method must retrieve the last state that was provided by the saveState method.

On first-run, it should just return an empty string.

getUserEmail()

String juce::OnlineUnlockStatus::getUserEmail

(

)

const

Returns the user's email address if known.

getWebsiteName()

virtual String juce::OnlineUnlockStatus::getWebsiteName ( )

pure virtual

Returns the name of the web-store website, not for communication, but for presenting to the user.

Implemented in juce::TracktionMarketplaceStatus.

handleFailedConnection()

UnlockResult juce::OnlineUnlockStatus::handleFailedConnection ( )

private

handleXmlReply()

UnlockResult juce::OnlineUnlockStatus::handleXmlReply ( XmlElement  )

private

isUnlocked()

var juce::OnlineUnlockStatus::isUnlocked ( ) const

inline

Returns true if the product has been successfully authorised for this machine.

The reason it returns a variant rather than a bool is just to make it marginally more tedious for crackers to work around. Hopefully if this method gets inlined they'll need to hack all the places where you call it, rather than just the function itself.

Bear in mind that each place where you check this return value will need to be changed by a cracker in order to unlock your app, so the more places you call this method, the more hassle it will be for them to find and crack them all.

load()

void juce::OnlineUnlockStatus::load

(

)

Attempts to load the status from the state retrieved by getState().

Call this somewhere in your app's startup code.

readReplyFromWebserver()

virtual String juce::OnlineUnlockStatus::readReplyFromWebserver ( const String &  email, const String &  password  )

pure virtual

Subclasses that talk to a particular web-store will implement this method to contact their webserver and attempt to unlock the current machine for the given username and password.

The return value is the XML text from the server which contains error information and/or the encrypted keyfile.

Implemented in juce::TracktionMarketplaceStatus.

save()

void juce::OnlineUnlockStatus::save

(

)

Triggers a call to saveState which you can use to store the current unlock status in your app's settings.

saveState()

virtual void juce::OnlineUnlockStatus::saveState ( const String &  )

pure virtual

This method must store the given string somewhere in your app's persistent properties, so it can be retrieved later by getState().

setUserEmail()

void juce::OnlineUnlockStatus::setUserEmail

(

const String &

usernameOrEmail

)

Optionally allows the app to provide the user's email address if it is known.

You don't need to call this, but if you do it may save the user typing it in.

userCancelled()

virtual void juce::OnlineUnlockStatus::userCancelled ( )

virtual

This method will be called if the user cancels the connection to the webserver by clicking the cancel button in OnlineUnlockForm::OverlayComp.

The default implementation of this method does nothing but you should use it to cancel any WebInputStreams that may be connecting.

Reimplemented in juce::TracktionMarketplaceStatus.

Member Data Documentation

expiryTimeProp

const char* juce::OnlineUnlockStatus::expiryTimeProp

staticprivate

status

ValueTree juce::OnlineUnlockStatus::status

private

unlockedProp

const char* juce::OnlineUnlockStatus::unlockedProp

staticprivate

---

The documentation for this class was generated from the following file:

• juce_OnlineUnlockStatus.h
