juce::RangedAudioParameterAttributes< Derived, Value > Class Template Reference

#include <juce_RangedAudioParameter.h>

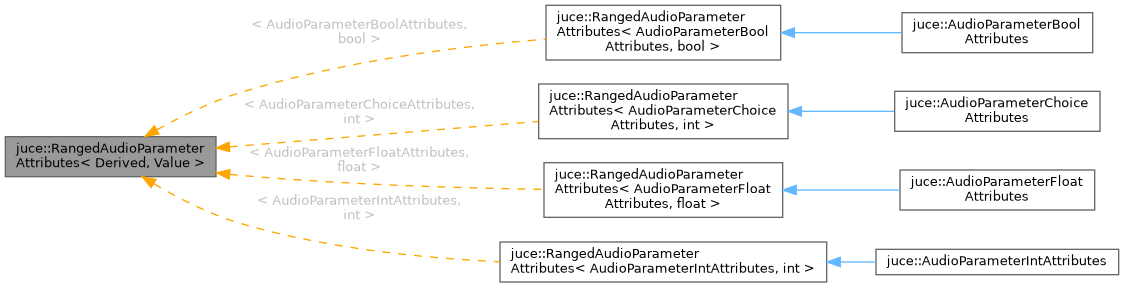

Inheritance diagram for juce::RangedAudioParameterAttributes< Derived, Value >:

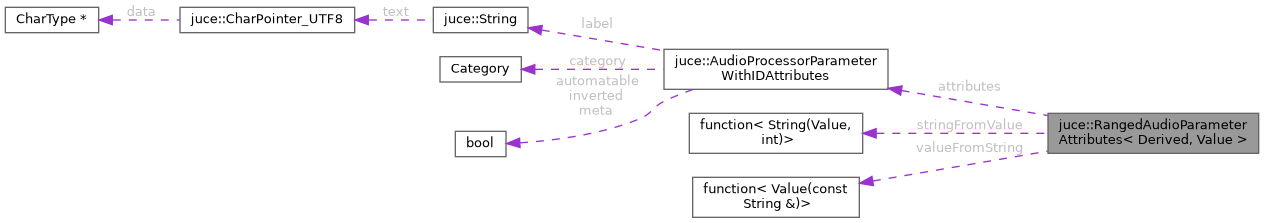

Collaboration diagram for juce::RangedAudioParameterAttributes< Derived, Value >:

Public Types
using	Category = AudioProcessorParameter::Category
using	StringFromValue = std::function< String(Value, int)>
using	ValueFromString = std::function< Value(const String &)>

Public Member Functions
const auto &	getAudioProcessorParameterWithIDAttributes () const
	Gets attributes that would also apply to an AudioProcessorParameterWithID.
const auto &	getStringFromValueFunction () const
	An optional lambda function that converts a non-normalised value to a string with a maximum length.
const auto &	getValueFromStringFunction () const
	An optional lambda function that parses a string and converts it into a non-normalised value.
auto	withAutomatable (bool x) const
	See AudioProcessorParameter::isAutomatable()
auto	withCategory (Category x) const
	See AudioProcessorParameterWithIDAttributes::withCategory()
auto	withInverted (bool x) const
	See AudioProcessorParameter::isOrientationInverted()
auto	withLabel (String x) const
	See AudioProcessorParameterWithIDAttributes::withLabel()
auto	withMeta (bool x) const
	See AudioProcessorParameter::isMetaParameter()
auto	withStringFromValueFunction (StringFromValue x) const
	An optional lambda function that converts a non-normalised value to a string with a maximum length.
auto	withValueFromStringFunction (ValueFromString x) const
	An optional lambda function that parses a string and converts it into a non-normalised value.

Private Types
using	This = RangedAudioParameterAttributes

Private Member Functions
auto &	asDerived () const

Private Attributes
AudioProcessorParameterWithIDAttributes	attributes
StringFromValue	stringFromValue
ValueFromString	valueFromString

Detailed Description

template<typename Derived, typename Value>
class juce::RangedAudioParameterAttributes< Derived, Value >

Holds common attributes of audio parameters.

CRTP is used here because we want the Attributes types for each parameter (Float, Bool, Choice, Int) to be distinct and extensible in the future. i.e. the identifiers AudioParameterFloatAttributes and RangedAudioParameterAttributes<float> should not be interchangable because we might need to add float-specific attributes in the future. Users should not refer directly to RangedAudioParameterAttributes.

@tags{Audio}

Member Typedef Documentation

Category

template<typename Derived , typename Value >

using juce::RangedAudioParameterAttributes< Derived, Value >::Category = AudioProcessorParameter::Category

StringFromValue

template<typename Derived , typename Value >

using juce::RangedAudioParameterAttributes< Derived, Value >::StringFromValue = std::function<String (Value, int)>

This

template<typename Derived , typename Value >

using juce::RangedAudioParameterAttributes< Derived, Value >::This = RangedAudioParameterAttributes

private

ValueFromString

template<typename Derived , typename Value >

using juce::RangedAudioParameterAttributes< Derived, Value >::ValueFromString = std::function<Value (const String&)>

Member Function Documentation

asDerived()

template<typename Derived , typename Value >

auto & juce::RangedAudioParameterAttributes< Derived, Value >::asDerived ( ) const

inlineprivate

Referenced by juce::RangedAudioParameterAttributes< Derived, Value >::withAutomatable(), juce::RangedAudioParameterAttributes< Derived, Value >::withCategory(), juce::RangedAudioParameterAttributes< Derived, Value >::withInverted(), juce::RangedAudioParameterAttributes< Derived, Value >::withLabel(), juce::RangedAudioParameterAttributes< Derived, Value >::withMeta(), juce::RangedAudioParameterAttributes< Derived, Value >::withStringFromValueFunction(), and juce::RangedAudioParameterAttributes< Derived, Value >::withValueFromStringFunction().

getAudioProcessorParameterWithIDAttributes()

template<typename Derived , typename Value >

const auto & juce::RangedAudioParameterAttributes< Derived, Value >::getAudioProcessorParameterWithIDAttributes ( ) const

inline

Gets attributes that would also apply to an AudioProcessorParameterWithID.

References juce::RangedAudioParameterAttributes< Derived, Value >::attributes.

getStringFromValueFunction()

template<typename Derived , typename Value >

const auto & juce::RangedAudioParameterAttributes< Derived, Value >::getStringFromValueFunction ( ) const

inline

An optional lambda function that converts a non-normalised value to a string with a maximum length.

This may be used by hosts to display the parameter's value.

References juce::RangedAudioParameterAttributes< Derived, Value >::stringFromValue.

getValueFromStringFunction()

template<typename Derived , typename Value >

const auto & juce::RangedAudioParameterAttributes< Derived, Value >::getValueFromStringFunction ( ) const

inline

An optional lambda function that parses a string and converts it into a non-normalised value.

Some hosts use this to allow users to type in parameter values.

References juce::RangedAudioParameterAttributes< Derived, Value >::valueFromString.

withAutomatable()

template<typename Derived , typename Value >

auto juce::RangedAudioParameterAttributes< Derived, Value >::withAutomatable ( bool  x ) const

inline

See AudioProcessorParameter::isAutomatable()

References juce::RangedAudioParameterAttributes< Derived, Value >::asDerived(), juce::RangedAudioParameterAttributes< Derived, Value >::attributes, juce::AudioProcessorParameterWithIDAttributes::withAutomatable(), and juce::withMember().

Referenced by juce::AudioProcessorValueTreeStateParameterAttributes::withAutomatable().

withCategory()

template<typename Derived , typename Value >

auto juce::RangedAudioParameterAttributes< Derived, Value >::withCategory ( Category  x ) const

inline

See AudioProcessorParameterWithIDAttributes::withCategory()

References juce::RangedAudioParameterAttributes< Derived, Value >::asDerived(), juce::RangedAudioParameterAttributes< Derived, Value >::attributes, juce::AudioProcessorParameterWithIDAttributes::withCategory(), and juce::withMember().

Referenced by juce::AudioProcessorValueTreeStateParameterAttributes::withCategory().

withInverted()

template<typename Derived , typename Value >

auto juce::RangedAudioParameterAttributes< Derived, Value >::withInverted ( bool  x ) const

inline

See AudioProcessorParameter::isOrientationInverted()

References juce::RangedAudioParameterAttributes< Derived, Value >::asDerived(), juce::RangedAudioParameterAttributes< Derived, Value >::attributes, juce::AudioProcessorParameterWithIDAttributes::withInverted(), and juce::withMember().

Referenced by juce::AudioProcessorValueTreeStateParameterAttributes::withInverted().

withLabel()

template<typename Derived , typename Value >

auto juce::RangedAudioParameterAttributes< Derived, Value >::withLabel ( String  x ) const

inline

See AudioProcessorParameterWithIDAttributes::withLabel()

References juce::RangedAudioParameterAttributes< Derived, Value >::asDerived(), juce::RangedAudioParameterAttributes< Derived, Value >::attributes, juce::AudioProcessorParameterWithIDAttributes::withLabel(), and juce::withMember().

Referenced by juce::AudioProcessorValueTreeStateParameterAttributes::withLabel().

withMeta()

template<typename Derived , typename Value >

auto juce::RangedAudioParameterAttributes< Derived, Value >::withMeta ( bool  x ) const

inline

See AudioProcessorParameter::isMetaParameter()

References juce::RangedAudioParameterAttributes< Derived, Value >::asDerived(), juce::RangedAudioParameterAttributes< Derived, Value >::attributes, juce::withMember(), and juce::AudioProcessorParameterWithIDAttributes::withMeta().

Referenced by juce::AudioProcessorValueTreeStateParameterAttributes::withMeta().

withStringFromValueFunction()

template<typename Derived , typename Value >

auto juce::RangedAudioParameterAttributes< Derived, Value >::withStringFromValueFunction ( StringFromValue  x ) const

inline

An optional lambda function that converts a non-normalised value to a string with a maximum length.

This may be used by hosts to display the parameter's value.

References juce::RangedAudioParameterAttributes< Derived, Value >::asDerived(), and juce::withMember().

Referenced by juce::AudioProcessorValueTreeStateParameterAttributes::withStringFromValueFunction().

withValueFromStringFunction()

template<typename Derived , typename Value >

auto juce::RangedAudioParameterAttributes< Derived, Value >::withValueFromStringFunction ( ValueFromString  x ) const

inline

An optional lambda function that parses a string and converts it into a non-normalised value.

Some hosts use this to allow users to type in parameter values.

References juce::RangedAudioParameterAttributes< Derived, Value >::asDerived(), and juce::withMember().

Referenced by juce::AudioProcessorValueTreeStateParameterAttributes::withValueFromStringFunction().

Member Data Documentation

attributes

template<typename Derived , typename Value >

AudioProcessorParameterWithIDAttributes juce::RangedAudioParameterAttributes< Derived, Value >::attributes

private

Referenced by juce::RangedAudioParameterAttributes< Derived, Value >::getAudioProcessorParameterWithIDAttributes(), juce::RangedAudioParameterAttributes< Derived, Value >::withAutomatable(), juce::RangedAudioParameterAttributes< Derived, Value >::withCategory(), juce::RangedAudioParameterAttributes< Derived, Value >::withInverted(), juce::RangedAudioParameterAttributes< Derived, Value >::withLabel(), and juce::RangedAudioParameterAttributes< Derived, Value >::withMeta().

stringFromValue

template<typename Derived , typename Value >

StringFromValue juce::RangedAudioParameterAttributes< Derived, Value >::stringFromValue

private

Referenced by juce::RangedAudioParameterAttributes< Derived, Value >::getStringFromValueFunction().

valueFromString

template<typename Derived , typename Value >

ValueFromString juce::RangedAudioParameterAttributes< Derived, Value >::valueFromString

private

Referenced by juce::RangedAudioParameterAttributes< Derived, Value >::getValueFromStringFunction().

---

The documentation for this class was generated from the following file:

• juce_RangedAudioParameter.h
