juce::XmlDocument Class Reference

Parses a text-based XML document and creates an XmlElement object from it. More...

#include <juce_XmlDocument.h>

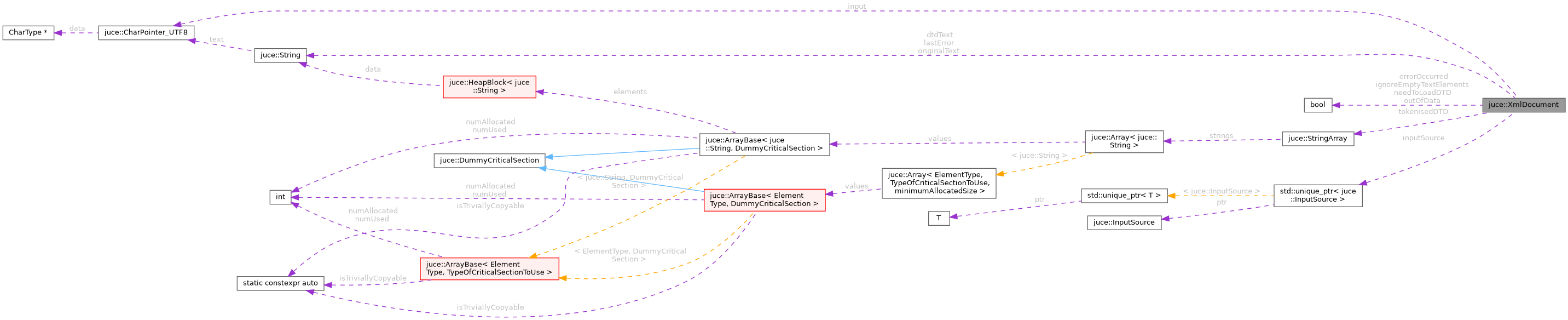

Collaboration diagram for juce::XmlDocument:

Public Member Functions
	XmlDocument (const File &file)
	Creates an XmlDocument from a file. More...
	XmlDocument (const String &documentText)
	Creates an XmlDocument from the xml text. More...
	~XmlDocument ()
	Destructor. More...
std::unique_ptr< XmlElement >	getDocumentElement (bool onlyReadOuterDocumentElement=false)
	Creates an XmlElement object to represent the main document node. More...
std::unique_ptr< XmlElement >	getDocumentElementIfTagMatches (StringRef requiredTag)
	Does an inexpensive check to see whether the outer element has the given tag name, and then does a full parse if it matches. More...
const String &	getLastParseError () const noexcept
	Returns the parsing error that occurred the last time getDocumentElement was called. More...
void	setEmptyTextElementsIgnored (bool shouldBeIgnored) noexcept
	Sets a flag to change the treatment of empty text elements. More...
void	setInputSource (InputSource *newSource) noexcept
	Sets an input source object to use for parsing documents that reference external entities. More...

Static Public Member Functions
static std::unique_ptr< XmlElement >	parse (const File &file)
	A handy static method that parses a file. More...
static std::unique_ptr< XmlElement >	parse (const String &xmlData)
	A handy static method that parses some XML data. More...

Private Member Functions
String	expandEntity (const String &)
String	expandExternalEntity (const String &)
String	getFileContents (const String &) const
String	getParameterEntity (const String &)
std::unique_ptr< XmlElement >	parseDocumentElement (String::CharPointerType, bool outer)
bool	parseDTD ()
bool	parseHeader ()
void	readChildElements (XmlElement &)
void	readEntity (String &)
juce_wchar	readNextChar () noexcept
XmlElement *	readNextElement (bool alsoParseSubElements)
void	readQuotedString (String &)
void	setLastError (const String &, bool carryOn)
void	skipNextWhiteSpace ()

Private Attributes
String	dtdText
bool	errorOccurred = false
bool	ignoreEmptyTextElements = true
String::CharPointerType	input { nullptr }
std::unique_ptr< InputSource >	inputSource
String	lastError
bool	needToLoadDTD = false
String	originalText
bool	outOfData = false
StringArray	tokenisedDTD

Detailed Description

Parses a text-based XML document and creates an XmlElement object from it.

The parser will parse DTDs to load external entities but won't check the document for validity against the DTD.

e.g.

XmlDocument myDocument (File ("myfile.xml"));

if (auto mainElement = myDocument.getDocumentElement())
{
    ..use the element
}
else
{
    String error = myDocument.getLastParseError();
}

Or you can use the helper functions for much less verbose parsing..

if (auto xml = parseXML (myXmlFile))
{
    if (xml->hasTagName ("foobar"))
    {
        ...etc
    }
}

See also

XmlElement

@tags{Core}

Constructor & Destructor Documentation

XmlDocument() [1/2]

juce::XmlDocument::XmlDocument

(

const String &

documentText

)

Creates an XmlDocument from the xml text.

The text doesn't actually get parsed until the getDocumentElement() method is called.

XmlDocument() [2/2]

juce::XmlDocument::XmlDocument

(

const File &

file

)

Creates an XmlDocument from a file.

The text doesn't actually get parsed until the getDocumentElement() method is called.

~XmlDocument()

juce::XmlDocument::~XmlDocument

(

)

Destructor.

Member Function Documentation

expandEntity()

String juce::XmlDocument::expandEntity ( const String &  )

private

expandExternalEntity()

String juce::XmlDocument::expandExternalEntity ( const String &  )

private

getDocumentElement()

std::unique_ptr<XmlElement> juce::XmlDocument::getDocumentElement

(

bool

onlyReadOuterDocumentElement = false

)

Creates an XmlElement object to represent the main document node.

This method will do the actual parsing of the text, and if there's a parse error, it may returns nullptr (and you can find out the error using the getLastParseError() method).

See also the parse() methods, which provide a shorthand way to quickly parse a file or string.

Parameters

onlyReadOuterDocumentElement

if true, the parser will only read the first section of the file, and will only return the outer document element - this allows quick checking of large files to see if they contain the correct type of tag, without having to parse the entire file

Returns

a new XmlElement, or nullptr if there was an error.

See also

getLastParseError, getDocumentElementIfTagMatches

getDocumentElementIfTagMatches()

std::unique_ptr<XmlElement> juce::XmlDocument::getDocumentElementIfTagMatches

(

StringRef

requiredTag

)

Does an inexpensive check to see whether the outer element has the given tag name, and then does a full parse if it matches.

If the tag is different, or the XML parse fails, this will return nullptr.

getFileContents()

String juce::XmlDocument::getFileContents ( const String &  ) const

private

getLastParseError()

const String& juce::XmlDocument::getLastParseError ( ) const

noexcept

Returns the parsing error that occurred the last time getDocumentElement was called.

Returns

the error, or an empty string if there was no error.

getParameterEntity()

String juce::XmlDocument::getParameterEntity ( const String &  )

private

parse() [1/2]

static std::unique_ptr<XmlElement> juce::XmlDocument::parse ( const File &  file )

static

A handy static method that parses a file.

This is a shortcut for creating an XmlDocument object and calling getDocumentElement() on it.

Returns

a new XmlElement, or nullptr if there was an error.

parse() [2/2]

static std::unique_ptr<XmlElement> juce::XmlDocument::parse ( const String &  xmlData )

static

A handy static method that parses some XML data.

This is a shortcut for creating an XmlDocument object and calling getDocumentElement() on it.

Returns

a new XmlElement, or nullptr if there was an error.

parseDocumentElement()

std::unique_ptr<XmlElement> juce::XmlDocument::parseDocumentElement ( String::CharPointerType  , bool  outer  )

private

parseDTD()

bool juce::XmlDocument::parseDTD ( )

private

parseHeader()

bool juce::XmlDocument::parseHeader ( )

private

readChildElements()

void juce::XmlDocument::readChildElements ( XmlElement &  )

private

readEntity()

void juce::XmlDocument::readEntity ( String &  )

private

readNextChar()

juce_wchar juce::XmlDocument::readNextChar ( )

privatenoexcept

readNextElement()

XmlElement* juce::XmlDocument::readNextElement ( bool  alsoParseSubElements )

private

readQuotedString()

void juce::XmlDocument::readQuotedString ( String &  )

private

setEmptyTextElementsIgnored()

void juce::XmlDocument::setEmptyTextElementsIgnored ( bool  shouldBeIgnored )

noexcept

Sets a flag to change the treatment of empty text elements.

If this is true (the default state), then any text elements that contain only whitespace characters will be ignored during parsing. If you need to catch whitespace-only text, then you should set this to false before calling the getDocumentElement() method.

setInputSource()

void juce::XmlDocument::setInputSource ( InputSource *  newSource )

noexcept

Sets an input source object to use for parsing documents that reference external entities.

If the document has been created from a file, this probably won't be needed, but if you're parsing some text and there might be a DTD that references external files, you may need to create a custom input source that can retrieve the other files it needs.

The object that is passed-in will be deleted automatically when no longer needed.

See also

InputSource

setLastError()

void juce::XmlDocument::setLastError ( const String &  , bool  carryOn  )

private

skipNextWhiteSpace()

void juce::XmlDocument::skipNextWhiteSpace ( )

private

Member Data Documentation

dtdText

String juce::XmlDocument::dtdText

private

errorOccurred

bool juce::XmlDocument::errorOccurred = false

private

ignoreEmptyTextElements

bool juce::XmlDocument::ignoreEmptyTextElements = true

private

input

String::CharPointerType juce::XmlDocument::input { nullptr }

private

inputSource

std::unique_ptr<InputSource> juce::XmlDocument::inputSource

private

lastError

String juce::XmlDocument::lastError

private

needToLoadDTD

bool juce::XmlDocument::needToLoadDTD = false

private

originalText

String juce::XmlDocument::originalText

private

outOfData

bool juce::XmlDocument::outOfData = false

private

tokenisedDTD

StringArray juce::XmlDocument::tokenisedDTD

private

---

The documentation for this class was generated from the following file:

• juce_XmlDocument.h
