#include <juce_ButtonAccessibilityHandler.h>

Inheritance diagram for juce::detail::ButtonAccessibilityHandler:

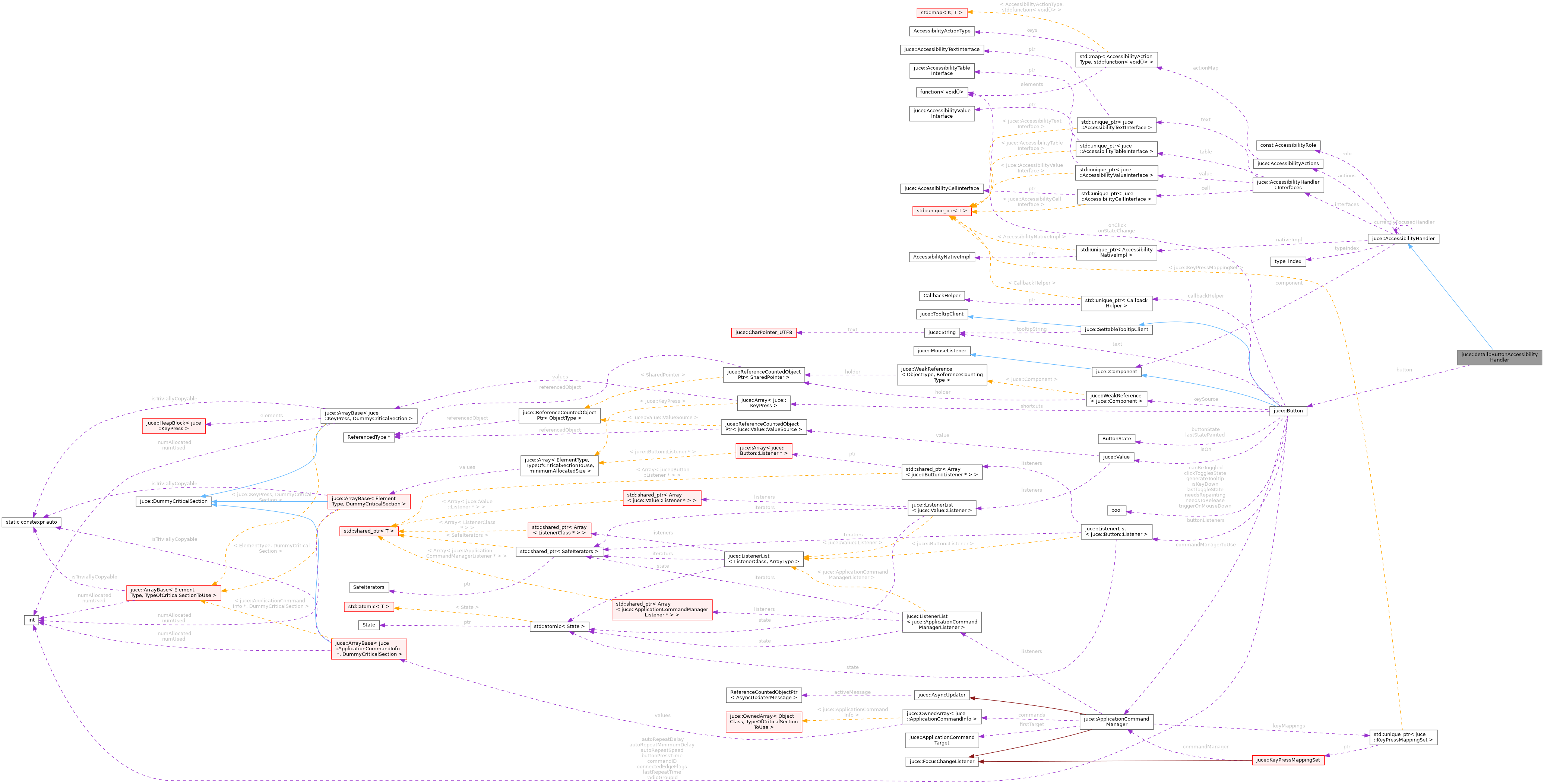

Collaboration diagram for juce::detail::ButtonAccessibilityHandler:

[legend]

Classes
class	ButtonValueInterface

Public Types
enum class	AnnouncementPriority { low , medium , high }
	A priority level that can help an accessibility client determine how to handle an announcement request. More...

Public Member Functions
	ButtonAccessibilityHandler (Button &buttonToWrap, AccessibilityRole roleIn)

const AccessibilityActions &	getActions () const noexcept
	Returns the set of actions that the UI element supports and the associated callbacks.

AccessibilityCellInterface *	getCellInterface () const
	Returns the cell interface for this UI element, or nullptr if it is not supported.

AccessibilityHandler *	getChildAt (Point< int > screenPoint)
	Returns the deepest child of this UI element in the accessibility hierarchy that contains the given screen point, or nullptr if there is no child at this point.

AccessibilityHandler *	getChildFocus ()
	Returns the deepest UI element which currently has focus.

std::vector< AccessibilityHandler * >	getChildren () const
	Returns the unignored children of this UI element in the accessibility hierarchy.

const Component &	getComponent () const noexcept
	Returns the Component that this handler represents.

Component &	getComponent () noexcept
	Returns the Component that this handler represents.

AccessibleState	getCurrentState () const override
	Returns the current state of the UI element.

virtual String	getDescription () const
	A short description of the UI element.

String	getHelp () const override
	Some help text for the UI element (if required).

AccessibilityNativeHandle *	getNativeImplementation () const

AccessibilityHandler *	getParent () const
	Returns the first unignored parent of this UI element in the accessibility hierarchy, or nullptr if this is a root element without a parent.

AccessibilityRole	getRole () const noexcept
	The type of UI element that this accessibility handler represents.

AccessibilityTableInterface *	getTableInterface () const
	Returns the table interface for this UI element, or nullptr if it is not supported.

AccessibilityTextInterface *	getTextInterface () const
	Returns the text interface for this UI element, or nullptr if it is not supported.

String	getTitle () const override
	The title of the UI element.

std::type_index	getTypeIndex () const

AccessibilityValueInterface *	getValueInterface () const
	Returns the value interface for this UI element, or nullptr if it is not supported.

void	giveAwayFocus () const
	If this UI element or any of its children in the accessibility hierarchy currently have focus, this will defocus it.

void	grabFocus ()
	Tries to give focus to this UI element.

bool	hasFocus (bool trueIfChildFocused) const
	Returns true if this UI element has the focus.

bool	isIgnored () const
	Returns true if this UI element should be ignored by accessibility clients.

bool	isParentOf (const AccessibilityHandler *possibleChild) const noexcept
	Checks whether a given UI element is a child of this one in the accessibility hierarchy.

bool	isVisibleWithinParent () const
	Returns true if this UI element is visible within its parent.

void	notifyAccessibilityEvent (AccessibilityEvent event) const
	Used to send a notification to any observing accessibility clients that something has changed in the UI element.

Static Public Member Functions
static void	clearCurrentlyFocusedHandler ()

static Component *	getComponentForNativeChild (void *nativeChild)

static void *	getNativeChildForComponent (Component &component)

static void	postAnnouncement (const String &announcementString, AnnouncementPriority priority)
	Posts an announcement to be made to the user.

static void	postSystemNotification (const String &notificationTitle, const String &notificationBody)
	Posts a local system notification.

static void	setNativeChildForComponent (Component &component, void *nativeChild)

Private Member Functions
void	giveAwayFocusInternal () const

void	grabFocusInternal (bool)

void	takeFocus ()

Static Private Member Functions
static bool	areAnyAccessibilityClientsActive ()

static std::unique_ptr< AccessibilityNativeImpl >	createNativeImpl (AccessibilityHandler &)

static AccessibilityActions	getAccessibilityActions (Button &button)

static Interfaces	getAccessibilityInterfaces (Button &button)

static bool	isRadioButton (const Button &button) noexcept

Private Attributes
AccessibilityActions	actions

Button &	button

Component &	component

Interfaces	interfaces

std::unique_ptr< AccessibilityNativeImpl >	nativeImpl

const AccessibilityRole	role

std::type_index	typeIndex

Static Private Attributes
static AccessibilityHandler *	currentlyFocusedHandler = nullptr

Member Enumeration Documentation

◆ AnnouncementPriority

enum class juce::AccessibilityHandler::AnnouncementPriority

stronginherited

A priority level that can help an accessibility client determine how to handle an announcement request.

Exactly what this controls is platform-specific, but generally a low priority announcement will be read when the screen reader is free, whereas a high priority announcement will interrupt the current speech.

Enumerator
low
medium
high

Constructor & Destructor Documentation

◆ ButtonAccessibilityHandler()

juce::detail::ButtonAccessibilityHandler::ButtonAccessibilityHandler	(	Button &	buttonToWrap,
		AccessibilityRole	roleIn
	)

inline

Member Function Documentation

◆ areAnyAccessibilityClientsActive()

static bool juce::AccessibilityHandler::areAnyAccessibilityClientsActive ( )

staticprivateinherited

◆ clearCurrentlyFocusedHandler()

static void juce::AccessibilityHandler::clearCurrentlyFocusedHandler ( )

inlinestaticinherited

◆ createNativeImpl()

static std::unique_ptr< AccessibilityNativeImpl > juce::AccessibilityHandler::createNativeImpl ( AccessibilityHandler & )

staticprivateinherited

◆ getAccessibilityActions()

static AccessibilityActions juce::detail::ButtonAccessibilityHandler::getAccessibilityActions ( Button & button )

inlinestaticprivate

References juce::AccessibilityHandler::actions, juce::AccessibilityActions::addAction(), button, juce::Button::getToggleState(), juce::Button::isToggleable(), juce::press, juce::sendNotification, juce::Button::setToggleState(), juce::toggle, and juce::Button::triggerClick().

◆ getAccessibilityInterfaces()

static Interfaces juce::detail::ButtonAccessibilityHandler::getAccessibilityInterfaces ( Button & button )

inlinestaticprivate

References button, and juce::Button::isToggleable().

◆ getActions()

const AccessibilityActions & juce::AccessibilityHandler::getActions ( ) const

noexceptinherited

Returns the set of actions that the UI element supports and the associated callbacks.

◆ getCellInterface()

AccessibilityCellInterface * juce::AccessibilityHandler::getCellInterface ( ) const

inherited

Returns the cell interface for this UI element, or nullptr if it is not supported.

See also: AccessibilityCellInterface

◆ getChildAt()

AccessibilityHandler * juce::AccessibilityHandler::getChildAt ( Point< int > screenPoint )

inherited

Returns the deepest child of this UI element in the accessibility hierarchy that contains the given screen point, or nullptr if there is no child at this point.

◆ getChildFocus()

AccessibilityHandler * juce::AccessibilityHandler::getChildFocus ( )

inherited

Returns the deepest UI element which currently has focus.

This can be a child of this UI element or, if no child is focused, this element itself.

Note that this can be different to the value of the Component with keyboard focus returned by Component::getCurrentlyFocusedComponent().

See also: hasFocus

◆ getChildren()

std::vector< AccessibilityHandler * > juce::AccessibilityHandler::getChildren ( ) const

inherited

Returns the unignored children of this UI element in the accessibility hierarchy.

◆ getComponent() [1/2]

const Component & juce::AccessibilityHandler::getComponent ( ) const

inlinenoexceptinherited

Returns the Component that this handler represents.

Referenced by juce::UIATransformProvider::getPeer(), juce::UIAWindowProvider::getPeer(), juce::UIASelectionProvider::getSelectedChildren(), and juce::AccessibilityNativeHandle::isFragmentRoot().

◆ getComponent() [2/2]

Component & juce::AccessibilityHandler::getComponent ( )

inlinenoexceptinherited

Returns the Component that this handler represents.

◆ getComponentForNativeChild()

static Component * juce::AccessibilityHandler::getComponentForNativeChild ( void * nativeChild )

staticinherited

◆ getCurrentState()

AccessibleState juce::detail::ButtonAccessibilityHandler::getCurrentState ( ) const

inlineoverridevirtual

Returns the current state of the UI element.

The default implementation of this method will set the focusable flag and, if this UI element is currently focused, will also set the focused flag.

Reimplemented from juce::AccessibilityHandler.

References button, juce::AccessibilityHandler::getCurrentState(), juce::Button::getToggleState(), and juce::Button::isToggleable().

◆ getDescription()

virtual String juce::AccessibilityHandler::getDescription ( ) const

inlinevirtualinherited

A short description of the UI element.

This may be read out by the system. It should not include the type of the UI element and should ideally be a single word, for example "Open" for a button that opens a window.

The default implementation will call Component::getDescription(), but you can override this to return a different string if required.

If neither a name nor a description is provided then the UI element may be ignored by accessibility clients.

This must be a localised string.

◆ getHelp()

String juce::detail::ButtonAccessibilityHandler::getHelp ( ) const

inlineoverridevirtual

Some help text for the UI element (if required).

This may be read out by the system. This string functions in a similar way to a tooltip, for example "Click to open window." for a button which opens a window.

The default implementation will call Component::getHelpText(), but you can override this to return a different string if required.

This must be a localised string.

Reimplemented from juce::AccessibilityHandler.

References button, and juce::SettableTooltipClient::getTooltip().

◆ getNativeChildForComponent()

static void * juce::AccessibilityHandler::getNativeChildForComponent ( Component & component )

staticinherited

The following functions provide the means to associate JUCE Components with OS specific types that provide their own accessibility mechanisms. This way accessibility navigation can move from a JUCE Component to a native, embedded window and back.

These functions assume that the concrete types behind the void* are

Windows: HWND
MacOS: NSView*
iOS: UIView*
Android: GlobalRef that points to an android.view.View

◆ getNativeImplementation()

AccessibilityNativeHandle * juce::AccessibilityHandler::getNativeImplementation ( ) const

inherited

Referenced by juce::UIAGridItemProvider::get_ContainingGrid(), and juce::UIATextProvider::UIATextRangeProvider::GetEnclosingElement().

◆ getParent()

AccessibilityHandler * juce::AccessibilityHandler::getParent ( ) const

inherited

Returns the first unignored parent of this UI element in the accessibility hierarchy, or nullptr if this is a root element without a parent.

Referenced by juce::detail::AccessibilityHelpers::getEnclosingHandlerWithInterface().

◆ getRole()

AccessibilityRole juce::AccessibilityHandler::getRole ( ) const

inlinenoexceptinherited

The type of UI element that this accessibility handler represents.

See also: AccessibilityRole

◆ getTableInterface()

AccessibilityTableInterface * juce::AccessibilityHandler::getTableInterface ( ) const

inherited

Returns the table interface for this UI element, or nullptr if it is not supported.

See also: AccessibilityTableInterface

Referenced by juce::UIAGridItemProvider::GetColumnHeaderItems(), juce::UIAGridItemProvider::withTableInterface(), juce::UIAGridProvider::withTableInterface(), and juce::UIAGridItemProvider::withTableSpan().

◆ getTextInterface()

AccessibilityTextInterface * juce::AccessibilityHandler::getTextInterface ( ) const

inherited

Returns the text interface for this UI element, or nullptr if it is not supported.

See also: AccessibilityTextInterface

◆ getTitle()

String juce::detail::ButtonAccessibilityHandler::getTitle ( ) const

inlineoverridevirtual

The title of the UI element.

This will be read out by the system and should be concise, preferably matching the visible title of the UI element (if any). For example, this might be the text of a button or a simple label.

The default implementation will call Component::getTitle(), but you can override this to return a different string if required.

If neither a name nor a description is provided then the UI element may be ignored by accessibility clients.

This must be a localised string.

Reimplemented from juce::AccessibilityHandler.

References button, juce::Button::getButtonText(), and juce::AccessibilityHandler::getTitle().

◆ getTypeIndex()

std::type_index juce::AccessibilityHandler::getTypeIndex ( ) const

inlineinherited

◆ getValueInterface()

AccessibilityValueInterface * juce::AccessibilityHandler::getValueInterface ( ) const

inherited

Returns the value interface for this UI element, or nullptr if it is not supported.

See also: AccessibilityValueInterface

Referenced by juce::UIAValueProvider::get_IsReadOnly(), and juce::UIAValueProvider::get_Value().

◆ giveAwayFocus()

void juce::AccessibilityHandler::giveAwayFocus ( ) const

inherited

If this UI element or any of its children in the accessibility hierarchy currently have focus, this will defocus it.

This will also give away the keyboard focus from the Component it represents, and notify any listening accessibility clients that the current focus has changed.

See also: hasFocus, grabFocus

◆ giveAwayFocusInternal()

void juce::AccessibilityHandler::giveAwayFocusInternal ( ) const

privateinherited

◆ grabFocus()

void juce::AccessibilityHandler::grabFocus ( )

inherited

Tries to give focus to this UI element.

If the UI element is focusable and not ignored this will update the currently focused element, try to give keyboard focus to the Component it represents, and notify any listening accessibility clients that the current focus has changed.

See also: hasFocus, giveAwayFocus

◆ grabFocusInternal()

void juce::AccessibilityHandler::grabFocusInternal ( bool )

privateinherited

◆ hasFocus()

bool juce::AccessibilityHandler::hasFocus ( bool trueIfChildFocused ) const

inherited

Returns true if this UI element has the focus.

Parameters

trueIfChildFocused if this is true, this method will also return true if any child of this UI element in the accessibility hierarchy has focus

Referenced by juce::UIATextProvider::GetCaretRange().

◆ isIgnored()

bool juce::AccessibilityHandler::isIgnored ( ) const

inherited

Returns true if this UI element should be ignored by accessibility clients.

◆ isParentOf()

bool juce::AccessibilityHandler::isParentOf ( const AccessibilityHandler * possibleChild ) const

noexceptinherited

Checks whether a given UI element is a child of this one in the accessibility hierarchy.

◆ isRadioButton()

static bool juce::detail::ButtonAccessibilityHandler::isRadioButton ( const Button & button )

inlinestaticprivatenoexcept

References button, and juce::Button::getRadioGroupId().

◆ isVisibleWithinParent()

bool juce::AccessibilityHandler::isVisibleWithinParent ( ) const

inherited

Returns true if this UI element is visible within its parent.

This will always return true for UI elements with the AccessibleState::accessibleOffscreen flag set.

◆ notifyAccessibilityEvent()

void juce::AccessibilityHandler::notifyAccessibilityEvent ( AccessibilityEvent event ) const

inherited

Used to send a notification to any observing accessibility clients that something has changed in the UI element.

See also: AccessibilityEvent

◆ postAnnouncement()

static void juce::AccessibilityHandler::postAnnouncement	(	const String &	announcementString,
		AnnouncementPriority	priority
	)

staticinherited

Posts an announcement to be made to the user.

Parameters

announcementString	a localised string containing the announcement to be read out
priority	the appropriate priority level for the announcement

◆ postSystemNotification()

static void juce::AccessibilityHandler::postSystemNotification	(	const String &	notificationTitle,
		const String &	notificationBody
	)

staticinherited

Posts a local system notification.

In order for this to do anything, the following conditions must be met.

At build time:
- The juce_gui_extra module must be included in the project.
- Push notifications must be enabled by setting the preprocessor definition JUCE_PUSH_NOTIFICATIONS=1
At run time:
- An accessibility client (narrator, voiceover etc.) must be active.

Additionally, on Android, an icon is required for notifications. This must be specified by adding the path to the icon file called "accessibilitynotificationicon" in the "Extra Android Raw Resources" setting in the Projucer.

This will use the push notification client on macOS, iOS and Android. On Windows this will create a system tray icon to post the notification.

Parameters

notificationTitle	the title of the notification
notificationBody	the main body text of the notification

◆ setNativeChildForComponent()

static void juce::AccessibilityHandler::setNativeChildForComponent	(	Component &	component,
		void *	nativeChild
	)

staticinherited

◆ takeFocus()

void juce::AccessibilityHandler::takeFocus ( )

privateinherited

Member Data Documentation

◆ actions

AccessibilityActions juce::AccessibilityHandler::actions

privateinherited

Referenced by getAccessibilityActions().

◆ button

Button& juce::detail::ButtonAccessibilityHandler::button

private

Referenced by getAccessibilityActions(), getAccessibilityInterfaces(), getCurrentState(), getHelp(), getTitle(), and isRadioButton().

◆ component

Component& juce::AccessibilityHandler::component

privateinherited

◆ currentlyFocusedHandler

AccessibilityHandler* juce::AccessibilityHandler::currentlyFocusedHandler = nullptr

inlinestaticprivateinherited

◆ interfaces

Interfaces juce::AccessibilityHandler::interfaces

privateinherited

◆ nativeImpl

std::unique_ptr<AccessibilityNativeImpl> juce::AccessibilityHandler::nativeImpl

privateinherited

◆ role

const AccessibilityRole juce::AccessibilityHandler::role

privateinherited

◆ typeIndex

std::type_index juce::AccessibilityHandler::typeIndex

privateinherited

The documentation for this class was generated from the following file:

juce_ButtonAccessibilityHandler.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Member Enumeration Documentation

◆ AnnouncementPriority

Constructor & Destructor Documentation

◆ ButtonAccessibilityHandler()

Member Function Documentation

◆ areAnyAccessibilityClientsActive()

◆ clearCurrentlyFocusedHandler()

◆ createNativeImpl()

◆ getAccessibilityActions()

◆ getAccessibilityInterfaces()

◆ getActions()

◆ getCellInterface()

◆ getChildAt()

◆ getChildFocus()

◆ getChildren()

◆ getComponent() [1/2]

◆ getComponent() [2/2]

◆ getComponentForNativeChild()

◆ getCurrentState()

◆ getDescription()

◆ getHelp()

◆ getNativeChildForComponent()

◆ getNativeImplementation()

◆ getParent()

◆ getRole()

◆ getTableInterface()

◆ getTextInterface()

◆ getTitle()

◆ getTypeIndex()

◆ getValueInterface()

◆ giveAwayFocus()

◆ giveAwayFocusInternal()

◆ grabFocus()

◆ grabFocusInternal()

◆ hasFocus()

◆ isIgnored()

◆ isParentOf()

◆ isRadioButton()

◆ isVisibleWithinParent()

◆ notifyAccessibilityEvent()

◆ postAnnouncement()

◆ postSystemNotification()

◆ setNativeChildForComponent()

◆ takeFocus()

Member Data Documentation

◆ actions

◆ button

◆ component

◆ currentlyFocusedHandler

◆ interfaces

◆ nativeImpl

◆ role

◆ typeIndex
