juce::AudioProcessor::CurveData Struct Reference

Some plug-ins support sharing response curve data with the host so that it can display this curve on a console or in the mixer panel. More...

#include <juce_AudioProcessor.h>

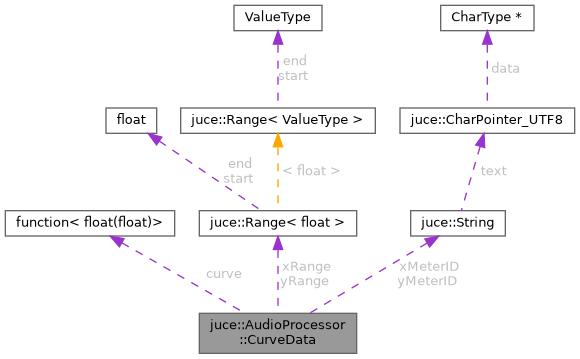

Collaboration diagram for juce::AudioProcessor::CurveData:

Public Types
enum class	Type : int {   EQ ,   Dynamics ,   GainReduction ,   Unknown = -1 }

Public Attributes
std::function< float(float)>	curve
String	xMeterID
Range< float >	xRange
String	yMeterID
Range< float >	yRange

Detailed Description

Some plug-ins support sharing response curve data with the host so that it can display this curve on a console or in the mixer panel.

For example, ProTools allows you to see the total EQ curve of a track. It does this by interrogating each plug-in for their internal EQ curve.

Member Enumeration Documentation

Type

enum class juce::AudioProcessor::CurveData::Type : int

strong

Enumerator
EQ
Dynamics
GainReduction
Unknown

Member Data Documentation

curve

std::function<float (float)> juce::AudioProcessor::CurveData::curve

xMeterID

String juce::AudioProcessor::CurveData::xMeterID

xRange

Range<float> juce::AudioProcessor::CurveData::xRange

yMeterID

String juce::AudioProcessor::CurveData::yMeterID

yRange

Range<float> juce::AudioProcessor::CurveData::yRange

---

The documentation for this struct was generated from the following file:

• juce_AudioProcessor.h
