This struct represents a playing MPE note. More...

#include <juce_MPENote.h>

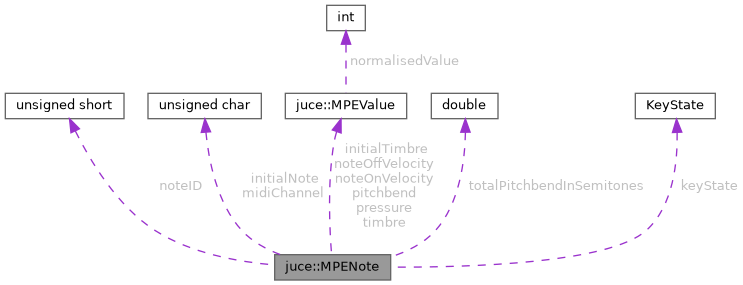

Collaboration diagram for juce::MPENote:

[legend]

Public Types
enum	KeyState { off = 0, keyDown = 1, sustained = 2, keyDownAndSustained = 3 }
	Possible values for the note key state. More...

Public Member Functions
	MPENote () noexcept
	Default constructor. More...

	MPENote (int midiChannel, int initialNote, MPEValue velocity, MPEValue pitchbend, MPEValue pressure, MPEValue timbre, KeyState keyState=MPENote::keyDown) noexcept
	Constructor. More...

double	getFrequencyInHertz (double frequencyOfA=440.0) const noexcept
	Returns the current frequency of the note in Hertz. More...

bool	isValid () const noexcept
	Checks whether the MPE note is valid. More...

bool	operator!= (const MPENote &other) const noexcept
	Returns true if two notes are different notes, determined by their unique ID. More...

bool	operator== (const MPENote &other) const noexcept
	Returns true if two notes are the same, determined by their unique ID. More...

Public Attributes
uint8	initialNote = 0
	The MIDI note number that was sent when the note was triggered. More...

MPEValue	initialTimbre { MPEValue::centreValue() }
	Initial value of timbre when the note was triggered. More...

KeyState	keyState { MPENote::off }
	Current key state. More...

uint8	midiChannel = 0
	The MIDI channel which this note uses. More...

uint16	noteID = 0
	A unique ID. More...

MPEValue	noteOffVelocity { MPEValue::minValue() }
	The release velocity ("lift") of the note after a note-off has been received. More...

MPEValue	noteOnVelocity { MPEValue::minValue() }
	The velocity ("strike") of the note-on. More...

MPEValue	pitchbend { MPEValue::centreValue() }
	Current per-note pitchbend of the note (in units of MIDI pitchwheel position). More...

MPEValue	pressure { MPEValue::centreValue() }
	Current pressure with which the note is held down. More...

MPEValue	timbre { MPEValue::centreValue() }
	Current value of the note's third expressive dimension, typically encoding some kind of timbre parameter. More...

double	totalPitchbendInSemitones
	Current effective pitchbend of the note in units of semitones, relative to initialNote. More...

Detailed Description

This struct represents a playing MPE note.

A note is identified by a unique ID, or alternatively, by a MIDI channel and an initial note. It is characterised by five dimensions of continuous expressive control. Their current values are represented as MPEValue objects.

See also: MPEValue

@tags{Audio}

Member Enumeration Documentation

◆ KeyState

enum juce::MPENote::KeyState

Possible values for the note key state.

Enumerator
off	The key is up (off).
keyDown	The note key is currently down (pressed).
sustained	The note is sustained (by a sustain or sostenuto pedal).
keyDownAndSustained	The note key is down and sustained (by a sustain or sostenuto pedal).

Constructor & Destructor Documentation

◆ MPENote() [1/2]

juce::MPENote::MPENote	(	int	midiChannel,
		int	initialNote,
		MPEValue	velocity,
		MPEValue	pitchbend,
		MPEValue	pressure,
		MPEValue	timbre,
		KeyState	keyState = `MPENote::keyDown`
	)

noexcept

Constructor.

Parameters

midiChannel	The MIDI channel of the note, between 2 and 15. (Channel 1 and channel 16 can never be note channels in MPE).
initialNote	The MIDI note number, between 0 and 127.
velocity	The note-on velocity of the note.
pitchbend	The initial per-note pitchbend of the note.
pressure	The initial pressure of the note.
timbre	The timbre value of the note.
keyState	The key state of the note (whether the key is down and/or the note is sustained). This value must not be MPENote::off, since you are triggering a new note. (If not specified, the default value will be MPENote::keyDown.)

◆ MPENote() [2/2]

juce::MPENote::MPENote ( )

noexcept

Default constructor.

Constructs an invalid MPE note (a note with the key state MPENote::off and an invalid MIDI channel. The only allowed use for such a note is to call isValid() on it; everything else is undefined behaviour.

Member Function Documentation

◆ getFrequencyInHertz()

double juce::MPENote::getFrequencyInHertz ( double frequencyOfA = 440.0 ) const

noexcept

Returns the current frequency of the note in Hertz.

This is the sum of the initialNote and the totalPitchbendInSemitones, converted to Hertz.

◆ isValid()

bool juce::MPENote::isValid ( ) const

noexcept

Checks whether the MPE note is valid.

◆ operator!=()

bool juce::MPENote::operator!= ( const MPENote & other ) const

noexcept

Returns true if two notes are different notes, determined by their unique ID.

◆ operator==()

bool juce::MPENote::operator== ( const MPENote & other ) const

noexcept

Returns true if two notes are the same, determined by their unique ID.

Member Data Documentation

◆ initialNote

uint8 juce::MPENote::initialNote = 0

The MIDI note number that was sent when the note was triggered.

This should never change during the lifetime of an MPENote object.

◆ initialTimbre

MPEValue juce::MPENote::initialTimbre { MPEValue::centreValue() }

Initial value of timbre when the note was triggered.

This should never change during the lifetime of an MPENote object.

◆ keyState

KeyState juce::MPENote::keyState { MPENote::off }

Current key state.

Indicates whether the note key is currently down (pressed) and/or the note is sustained (by a sustain or sostenuto pedal).

◆ midiChannel

uint8 juce::MPENote::midiChannel = 0

The MIDI channel which this note uses.

This should never change during the lifetime of an MPENote object.

◆ noteID

uint16 juce::MPENote::noteID = 0

A unique ID.

Useful to distinguish the note from other simultaneously sounding notes that may use the same note number or MIDI channel. This should never change during the lifetime of a note object.

◆ noteOffVelocity

MPEValue juce::MPENote::noteOffVelocity { MPEValue::minValue() }

The release velocity ("lift") of the note after a note-off has been received.

This dimension will only have a meaningful value after a note-off has been received for the note (and keyState is set to MPENote::off or MPENote::sustained). Initially, the value is undefined.

◆ noteOnVelocity

MPEValue juce::MPENote::noteOnVelocity { MPEValue::minValue() }

The velocity ("strike") of the note-on.

This dimension will stay constant after the note has been turned on.

◆ pitchbend

MPEValue juce::MPENote::pitchbend { MPEValue::centreValue() }

Current per-note pitchbend of the note (in units of MIDI pitchwheel position).

This dimension can be modulated while the note sounds.

Note: This value is not aware of the currently used pitchbend range, or an additional master pitchbend that may be simultaneously applied. To compute the actual effective pitchbend of an MPENote, you should probably use the member totalPitchbendInSemitones instead.

See also: totalPitchbendInSemitones, getFrequencyInHertz

◆ pressure

MPEValue juce::MPENote::pressure { MPEValue::centreValue() }

Current pressure with which the note is held down.

This dimension can be modulated while the note sounds.

◆ timbre

MPEValue juce::MPENote::timbre { MPEValue::centreValue() }

Current value of the note's third expressive dimension, typically encoding some kind of timbre parameter.

This dimension can be modulated while the note sounds.

◆ totalPitchbendInSemitones

double juce::MPENote::totalPitchbendInSemitones

Current effective pitchbend of the note in units of semitones, relative to initialNote.

You should use this to compute the actual effective pitch of the note. This value is computed and set by an MPEInstrument to the sum of the per-note pitchbend value (stored in MPEValue::pitchbend) and the master pitchbend of the MPE zone, weighted with the per-note pitchbend range and master pitchbend range of the zone, respectively.

See also: getFrequencyInHertz

The documentation for this struct was generated from the following file:

juce_MPENote.h
