juce::Thread::RealtimeOptions Struct Reference

A selection of options available when creating realtime threads. More...

#include <juce_Thread.h>

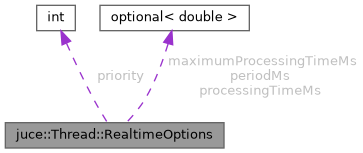

Collaboration diagram for juce::Thread::RealtimeOptions:

Public Member Functions
std::optional< double >	getMaximumProcessingTimeMs () const
	Returns the maximum amount of processing time required each time the thread wakes up.
std::optional< double >	getPeriodMs () const
	Returns the approximate amount of time between each thread wake up, or nullopt if there is no inherent periodicity.
int	getPriority () const
	Returns a value with a range of 0-10, where 10 is the highest priority.
std::optional< double >	getProcessingTimeMs () const
	Returns the expected amount of processing time required each time the thread wakes up.
RealtimeOptions	withApproximateAudioProcessingTime (int samplesPerFrame, double sampleRate) const
	Specify the maximum amount of processing time required each time the thread wakes up.
RealtimeOptions	withMaximumProcessingTimeMs (double newMaximumProcessingTimeMs) const
	Specify the maximum amount of processing time required each time the thread wakes up.
RealtimeOptions	withPeriodHz (double newPeriodHz) const
	Specify the approximate frequency at which the thread will be woken up.
RealtimeOptions	withPeriodMs (double newPeriodMs) const
	Specify the approximate amount of time between each thread wake up.
RealtimeOptions	withPriority (int newPriority) const
	A value with a range of 0-10, where 10 is the highest priority.
RealtimeOptions	withProcessingTimeMs (double newProcessingTimeMs) const
	Specify the expected amount of processing time required each time the thread wakes up.

Private Attributes
std::optional< double >	maximumProcessingTimeMs
std::optional< double >	periodMs {}
int	priority { 5 }
std::optional< double >	processingTimeMs

Detailed Description

A selection of options available when creating realtime threads.

See also

startRealtimeThread

Member Function Documentation

getMaximumProcessingTimeMs()

std::optional< double > juce::Thread::RealtimeOptions::getMaximumProcessingTimeMs ( ) const

inline

Returns the maximum amount of processing time required each time the thread wakes up.

See also

withMaximumProcessingTimeMs, getProcessingTimeMs, getPeriodMs

getPeriodMs()

std::optional< double > juce::Thread::RealtimeOptions::getPeriodMs ( ) const

inline

Returns the approximate amount of time between each thread wake up, or nullopt if there is no inherent periodicity.

See also

withPeriodMs, withPeriodHz, getProcessingTimeMs, getMaximumProcessingTimeMs

getPriority()

int juce::Thread::RealtimeOptions::getPriority ( ) const

inline

Returns a value with a range of 0-10, where 10 is the highest priority.

See also

withPriority

getProcessingTimeMs()

std::optional< double > juce::Thread::RealtimeOptions::getProcessingTimeMs ( ) const

inline

Returns the expected amount of processing time required each time the thread wakes up.

See also

withProcessingTimeMs, getMaximumProcessingTimeMs, getPeriodMs

withApproximateAudioProcessingTime()

RealtimeOptions juce::Thread::RealtimeOptions::withApproximateAudioProcessingTime ( int  samplesPerFrame, double  sampleRate  ) const

inline

Specify the maximum amount of processing time required each time the thread wakes up.

This is identical to 'withMaximumProcessingTimeMs' except it calculates the processing time from a sample rate and block size. This is useful if you want to run this thread in parallel to an audio device thread.

Only used by macOS/iOS.

See also

withMaximumProcessingTimeMs, AudioWorkgroup, ScopedWorkgroupToken

References jassert.

withMaximumProcessingTimeMs()

RealtimeOptions juce::Thread::RealtimeOptions::withMaximumProcessingTimeMs ( double  newMaximumProcessingTimeMs ) const

inline

Specify the maximum amount of processing time required each time the thread wakes up.

Only used by macOS/iOS.

See also

getMaximumProcessingTimeMs, withProcessingTimeMs, withPeriodMs, withPeriodHz

References jassert, and juce::withMember().

withPeriodHz()

RealtimeOptions juce::Thread::RealtimeOptions::withPeriodHz ( double  newPeriodHz ) const

inline

Specify the approximate frequency at which the thread will be woken up.

Alternatively call withPeriodMs().

Only used by macOS/iOS.

See also

getPeriodHz, withPeriodMs, withProcessingTimeMs, withMaximumProcessingTimeMs,

References jassert.

withPeriodMs()

RealtimeOptions juce::Thread::RealtimeOptions::withPeriodMs ( double  newPeriodMs ) const

inline

Specify the approximate amount of time between each thread wake up.

Alternatively call withPeriodHz().

Only used by macOS/iOS.

See also

getPeriodMs, withPeriodHz, withProcessingTimeMs, withMaximumProcessingTimeMs,

References jassert, and juce::withMember().

withPriority()

RealtimeOptions juce::Thread::RealtimeOptions::withPriority ( int  newPriority ) const

inline

A value with a range of 0-10, where 10 is the highest priority.

Currently only used by Posix platforms.

See also

getPriority

References juce::isPositiveAndNotGreaterThan(), jassert, juce::jlimit(), and juce::withMember().

withProcessingTimeMs()

RealtimeOptions juce::Thread::RealtimeOptions::withProcessingTimeMs ( double  newProcessingTimeMs ) const

inline

Specify the expected amount of processing time required each time the thread wakes up.

Only used by macOS/iOS.

See also

getProcessingTimeMs, withMaximumProcessingTimeMs, withPeriodMs, withPeriodHz

References jassert, and juce::withMember().

Member Data Documentation

maximumProcessingTimeMs

std::optional<double> juce::Thread::RealtimeOptions::maximumProcessingTimeMs

private

periodMs

std::optional<double> juce::Thread::RealtimeOptions::periodMs {}

private

priority

int juce::Thread::RealtimeOptions::priority { 5 }

private

processingTimeMs

std::optional<double> juce::Thread::RealtimeOptions::processingTimeMs

private

---

The documentation for this struct was generated from the following file:

• juce_Thread.h
