juce::MPEChannelRemapper Class Reference

This class handles the logic for remapping MIDI note messages from multiple MPE sources onto a specified MPE zone. More...

#include <juce_MPEUtils.h>

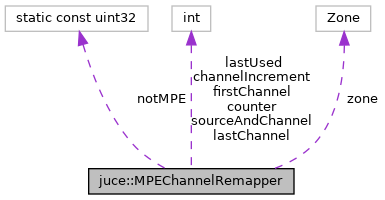

Collaboration diagram for juce::MPEChannelRemapper:

Public Member Functions
	MPEChannelRemapper (MPEZoneLayout::Zone zoneToRemap)
	Constructor. More...
void	clearChannel (int channel) noexcept
	Clears a specified channel of this MPE zone. More...
void	clearSource (uint32 mpeSourceID)
	Clears all channels in use by a specified source. More...
void	remapMidiChannelIfNeeded (MidiMessage &message, uint32 mpeSourceID) noexcept
	Remaps the MIDI channel of the specified MIDI message (if necessary). More...
void	reset () noexcept
	Resets all the source & channel combinations. More...

Static Public Attributes
static const uint32	notMPE = 0
	Used to indicate that a particular source & channel combination is not currently using MPE. More...

Private Member Functions
bool	applyRemapIfExisting (int channel, uint32 sourceAndChannelID, MidiMessage &m) noexcept
int	getBestChanToReuse () const noexcept
bool	messageIsNoteData (const MidiMessage &m)
void	zeroArrays ()

Private Attributes
int	channelIncrement
uint32	counter = 0
int	firstChannel
int	lastChannel
uint32	lastUsed [17]
uint32	sourceAndChannel [17]
MPEZoneLayout::Zone	zone

Detailed Description

This class handles the logic for remapping MIDI note messages from multiple MPE sources onto a specified MPE zone.

@tags{Audio}

Constructor & Destructor Documentation

MPEChannelRemapper()

juce::MPEChannelRemapper::MPEChannelRemapper

(

MPEZoneLayout::Zone

zoneToRemap

)

Constructor.

Member Function Documentation

applyRemapIfExisting()

bool juce::MPEChannelRemapper::applyRemapIfExisting ( int  channel, uint32  sourceAndChannelID, MidiMessage &  m  )

privatenoexcept

clearChannel()

void juce::MPEChannelRemapper::clearChannel ( int  channel )

noexcept

Clears a specified channel of this MPE zone.

clearSource()

void juce::MPEChannelRemapper::clearSource

(

uint32

mpeSourceID

)

Clears all channels in use by a specified source.

getBestChanToReuse()

int juce::MPEChannelRemapper::getBestChanToReuse ( ) const

privatenoexcept

messageIsNoteData()

bool juce::MPEChannelRemapper::messageIsNoteData ( const MidiMessage &  m )

inlineprivate

References juce::gl::m.

remapMidiChannelIfNeeded()

void juce::MPEChannelRemapper::remapMidiChannelIfNeeded ( MidiMessage &  message, uint32  mpeSourceID  )

noexcept

Remaps the MIDI channel of the specified MIDI message (if necessary).

Note that the MidiMessage object passed in will have it's channel changed if it needs to be remapped.

Parameters

message	the message to be remapped
mpeSourceID	the ID of the MPE source of the message. This is up to the user to define and keep constant

reset()

void juce::MPEChannelRemapper::reset ( )

noexcept

Resets all the source & channel combinations.

zeroArrays()

void juce::MPEChannelRemapper::zeroArrays ( )

private

Member Data Documentation

channelIncrement

int juce::MPEChannelRemapper::channelIncrement

private

counter

uint32 juce::MPEChannelRemapper::counter = 0

private

firstChannel

int juce::MPEChannelRemapper::firstChannel

private

lastChannel

int juce::MPEChannelRemapper::lastChannel

private

lastUsed

uint32 juce::MPEChannelRemapper::lastUsed[17]

private

notMPE

const uint32 juce::MPEChannelRemapper::notMPE = 0

static

Used to indicate that a particular source & channel combination is not currently using MPE.

sourceAndChannel

uint32 juce::MPEChannelRemapper::sourceAndChannel[17]

private

zone

MPEZoneLayout::Zone juce::MPEChannelRemapper::zone

private

---

The documentation for this class was generated from the following file:

• juce_MPEUtils.h
