juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType > Class Template Reference

#include <juce_RenderingHelpers.h>

Inheritance diagram for juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >:

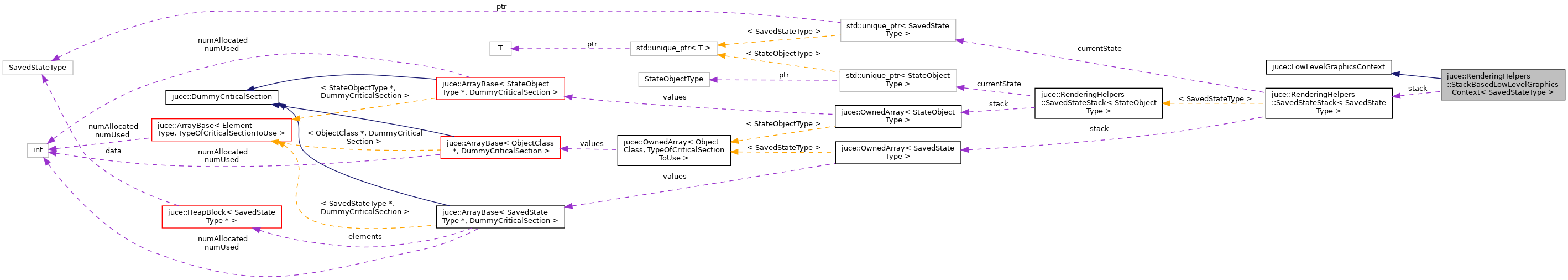

Collaboration diagram for juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >:

Public Member Functions
void	addTransform (const AffineTransform &t) override
void	beginTransparencyLayer (float opacity) override
bool	clipRegionIntersects (const Rectangle< int > &r) override
void	clipToImageAlpha (const Image &im, const AffineTransform &t) override
void	clipToPath (const Path &path, const AffineTransform &t) override
bool	clipToRectangle (const Rectangle< int > &r) override
bool	clipToRectangleList (const RectangleList< int > &r) override
void	drawGlyph (int glyphNumber, const AffineTransform &t) override
void	drawImage (const Image &im, const AffineTransform &t) override
void	drawLine (const Line< float > &line) override
virtual bool	drawTextLayout (const AttributedString &, const Rectangle< float > &)
void	endTransparencyLayer () override
void	excludeClipRectangle (const Rectangle< int > &r) override
void	fillPath (const Path &path, const AffineTransform &t) override
void	fillRect (const Rectangle< float > &r) override
void	fillRect (const Rectangle< int > &r, bool replace) override
void	fillRectList (const RectangleList< float > &list) override
Rectangle< int >	getClipBounds () const override
const Font &	getFont () override
float	getPhysicalPixelScaleFactor () override
bool	isClipEmpty () const override
bool	isVectorDevice () const override
	Returns true if this device is vector-based, e.g. More...
void	restoreState () override
void	saveState () override
void	setFill (const FillType &fillType) override
void	setFont (const Font &newFont) override
void	setInterpolationQuality (Graphics::ResamplingQuality quality) override
void	setOpacity (float newOpacity) override
void	setOrigin (Point< int > o) override
	Moves the origin to a new position. More...

Protected Member Functions
	StackBasedLowLevelGraphicsContext ()=default
	StackBasedLowLevelGraphicsContext (SavedStateType *initialState)

Protected Attributes
RenderingHelpers::SavedStateStack< SavedStateType >	stack

Constructor & Destructor Documentation

StackBasedLowLevelGraphicsContext() [1/2]

template<class SavedStateType >

juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::StackBasedLowLevelGraphicsContext ( SavedStateType *  initialState )

inlineprotected

StackBasedLowLevelGraphicsContext() [2/2]

template<class SavedStateType >

juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::StackBasedLowLevelGraphicsContext ( )

protecteddefault

Member Function Documentation

addTransform()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::addTransform ( const AffineTransform &  t )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

beginTransparencyLayer()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::beginTransparencyLayer ( float  opacity )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

clipRegionIntersects()

template<class SavedStateType >

bool juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::clipRegionIntersects ( const Rectangle< int > &  r )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

clipToImageAlpha()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::clipToImageAlpha ( const Image &  im, const AffineTransform &  t  )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

clipToPath()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::clipToPath ( const Path &  path, const AffineTransform &  t  )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

clipToRectangle()

template<class SavedStateType >

bool juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::clipToRectangle ( const Rectangle< int > &  r )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

clipToRectangleList()

template<class SavedStateType >

bool juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::clipToRectangleList ( const RectangleList< int > &  r )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

drawGlyph()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::drawGlyph ( int  glyphNumber, const AffineTransform &  t  )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

drawImage()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::drawImage ( const Image &  im, const AffineTransform &  t  )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

drawLine()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::drawLine ( const Line< float > &  line )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

drawTextLayout()

virtual bool juce::LowLevelGraphicsContext::drawTextLayout ( const AttributedString &  , const Rectangle< float > &    )

inlinevirtualinherited

Reimplemented in juce::CoreGraphicsContext, and juce::Direct2DLowLevelGraphicsContext.

endTransparencyLayer()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::endTransparencyLayer ( )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

excludeClipRectangle()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::excludeClipRectangle ( const Rectangle< int > &  r )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

fillPath()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::fillPath ( const Path &  path, const AffineTransform &  t  )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

fillRect() [1/2]

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::fillRect ( const Rectangle< float > &  r )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

fillRect() [2/2]

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::fillRect ( const Rectangle< int > &  r, bool  replace  )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

fillRectList()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::fillRectList ( const RectangleList< float > &  list )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

getClipBounds()

template<class SavedStateType >

Rectangle<int> juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::getClipBounds ( ) const

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

getFont()

template<class SavedStateType >

const Font& juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::getFont ( )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

getPhysicalPixelScaleFactor()

template<class SavedStateType >

float juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::getPhysicalPixelScaleFactor ( )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

isClipEmpty()

template<class SavedStateType >

bool juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::isClipEmpty ( ) const

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

isVectorDevice()

template<class SavedStateType >

bool juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::isVectorDevice ( ) const

inlineoverridevirtual

Returns true if this device is vector-based, e.g.

a printer.

Implements juce::LowLevelGraphicsContext.

restoreState()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::restoreState ( )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

saveState()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::saveState ( )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

setFill()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::setFill ( const FillType &  fillType )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

setFont()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::setFont ( const Font &  newFont )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

setInterpolationQuality()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::setInterpolationQuality ( Graphics::ResamplingQuality  quality )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

setOpacity()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::setOpacity ( float  newOpacity )

inlineoverridevirtual

Implements juce::LowLevelGraphicsContext.

setOrigin()

template<class SavedStateType >

void juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::setOrigin ( Point< int >  )

inlineoverridevirtual

Moves the origin to a new position.

The coordinates are relative to the current origin, and indicate the new position of (0, 0).

Implements juce::LowLevelGraphicsContext.

Member Data Documentation

stack

template<class SavedStateType >

RenderingHelpers::SavedStateStack<SavedStateType> juce::RenderingHelpers::StackBasedLowLevelGraphicsContext< SavedStateType >::stack

protected

---

The documentation for this class was generated from the following file:

• juce_RenderingHelpers.h
