A utility class for values that need smoothing to avoid audio glitches. More...

#include <juce_SmoothedValue.h>

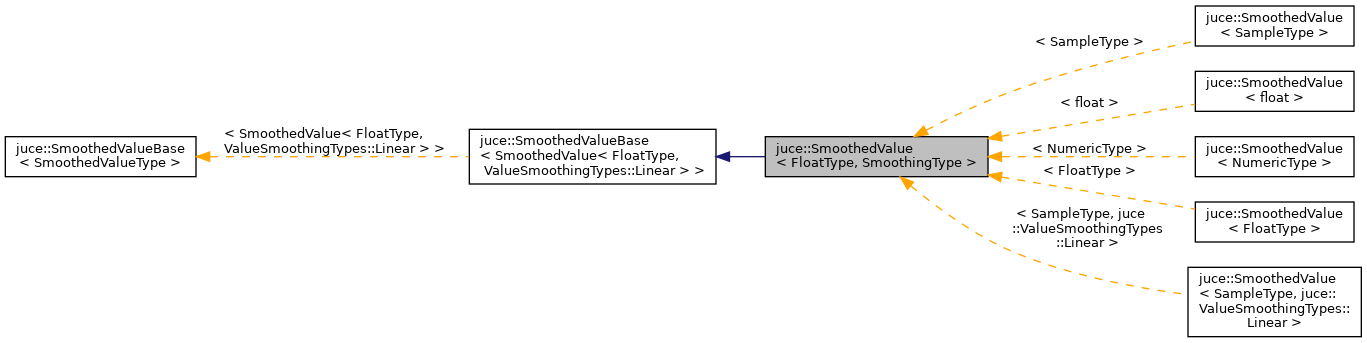

Inheritance diagram for juce::SmoothedValue< FloatType, SmoothingType >:

[legend]

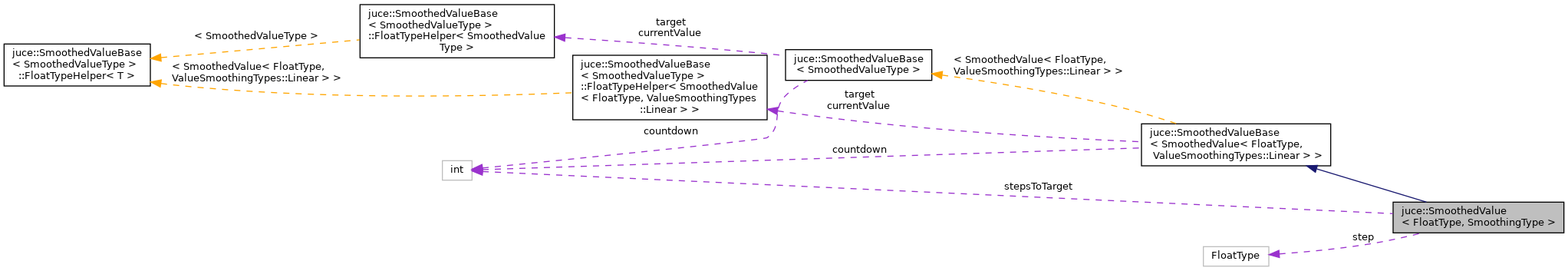

Collaboration diagram for juce::SmoothedValue< FloatType, SmoothingType >:

[legend]

Public Types
using	FloatType = typename FloatTypeHelper< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::Type

Public Member Functions
	SmoothedValue () noexcept
	Constructor. More...

	SmoothedValue (FloatType initialValue) noexcept
	Constructor. More...

void	applyGain (AudioBuffer< FloatType > &buffer, int numSamples) noexcept
	Applies a smoothed gain to a buffer. More...

void	applyGain (FloatType *samples, int numSamples) noexcept
	Applies a smoothed gain to a stream of samples S[i] *= gain. More...

void	applyGain (FloatType samplesOut, const FloatType samplesIn, int numSamples) noexcept
	Computes output as a smoothed gain applied to a stream of samples. More...

FloatType	getCurrentValue () const noexcept
	Returns the current value of the ramp. More...

FloatType	getNextValue () noexcept
	Compute the next value. More...

FloatType	getTargetValue () const noexcept
	Returns the target value towards which the smoothed value is currently moving. More...

bool	isSmoothing () const noexcept
	Returns true if the current value is currently being interpolated. More...

void	reset (double sampleRate, double rampLengthInSeconds) noexcept
	Reset to a new sample rate and ramp length. More...

void	reset (int numSteps) noexcept
	Set a new ramp length directly in samples. More...

void	setCurrentAndTargetValue (FloatType newValue)
	Sets the current value and the target value. More...

void	setTargetValue (FloatType newValue) noexcept
	Set the next value to ramp towards. More...

FloatType	skip (int numSamples) noexcept
	Skip the next numSamples samples. More...

Protected Attributes
int	countdown

FloatType	currentValue

FloatType	target

Private Types
template<typename T >
using	LinearVoid = typename std::enable_if< std::is_same< T, ValueSmoothingTypes::Linear >::value, void >::type

template<typename T >
using	MultiplicativeVoid = typename std::enable_if< std::is_same< T, ValueSmoothingTypes::Multiplicative >::value, void >::type

Private Member Functions
FloatType	getNextSmoothedValue () noexcept

template<typename T = SmoothingType>
LinearVoid< T >	setNextValue () noexcept

template<typename T = SmoothingType>
MultiplicativeVoid< T >	setNextValue () noexcept

template<typename T = SmoothingType>
MultiplicativeVoid< T >	setStepSize ()

template<typename T = SmoothingType>
LinearVoid< T >	setStepSize () noexcept

template<typename T = SmoothingType>
MultiplicativeVoid< T >	skipCurrentValue (int numSamples)

template<typename T = SmoothingType>
LinearVoid< T >	skipCurrentValue (int numSamples) noexcept

Private Attributes
FloatType	step = FloatType()

int	stepsToTarget = 0

Detailed Description

template<typename FloatType, typename SmoothingType = ValueSmoothingTypes::Linear>
class juce::SmoothedValue< FloatType, SmoothingType >

A utility class for values that need smoothing to avoid audio glitches.

A ValueSmoothingTypes::Linear template parameter selects linear smoothing, which increments the SmoothedValue linearly towards its target value.

SmoothedValue<float, ValueSmoothingTypes::Linear> yourSmoothedValue;

A ValueSmoothingTypes::Multiplicative template parameter selects multiplicative smoothing increments towards the target value.

SmoothedValue<float, ValueSmoothingTypes::Multiplicative> yourSmoothedValue;

Multiplicative smoothing is useful when you are dealing with exponential/logarithmic values like volume in dB or frequency in Hz. For example a 12 step ramp from 440.0 Hz (A4) to 880.0 Hz (A5) will increase the frequency with an equal temperament tuning across the octave. A 10 step smoothing from 1.0 (0 dB) to 3.16228 (10 dB) will increase the value in increments of 1 dB.

Note that when you are using multiplicative smoothing you cannot ever reach a target value of zero!

@tags{Audio}

Member Typedef Documentation

◆ FloatType

using juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::FloatType = typename FloatTypeHelper<SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::Type

inherited

◆ LinearVoid

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

template<typename T >

using juce::SmoothedValue< FloatType, SmoothingType >::LinearVoid = typename std::enable_if <std::is_same <T, ValueSmoothingTypes::Linear>::value, void>::type

private

◆ MultiplicativeVoid

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

template<typename T >

using juce::SmoothedValue< FloatType, SmoothingType >::MultiplicativeVoid = typename std::enable_if <std::is_same <T, ValueSmoothingTypes::Multiplicative>::value, void>::type

private

Constructor & Destructor Documentation

◆ SmoothedValue() [1/2]

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

juce::SmoothedValue< FloatType, SmoothingType >::SmoothedValue ( )

inlinenoexcept

Constructor.

◆ SmoothedValue() [2/2]

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

juce::SmoothedValue< FloatType, SmoothingType >::SmoothedValue ( FloatType initialValue )

inlinenoexcept

Constructor.

Member Function Documentation

◆ applyGain() [1/3]

void juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::applyGain	(	AudioBuffer< FloatType > &	buffer,
		int	numSamples
	)

inlinenoexceptinherited

Applies a smoothed gain to a buffer.

◆ applyGain() [2/3]

void juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::applyGain	(	FloatType *	samples,
		int	numSamples
	)

inlinenoexceptinherited

Applies a smoothed gain to a stream of samples S[i] *= gain.

Parameters

samples	Pointer to a raw array of samples
numSamples	Length of array of samples

◆ applyGain() [3/3]

void juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::applyGain	(	FloatType *	samplesOut,
		const FloatType *	samplesIn,
		int	numSamples
	)

inlinenoexceptinherited

Computes output as a smoothed gain applied to a stream of samples.

Sout[i] = Sin[i] * gain

Parameters

samplesOut	A pointer to a raw array of output samples
samplesIn	A pointer to a raw array of input samples
numSamples	The length of the array of samples

◆ getCurrentValue()

FloatType juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::getCurrentValue

inlinenoexceptinherited

Returns the current value of the ramp.

◆ getNextSmoothedValue()

FloatType juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::getNextSmoothedValue

inlineprivatenoexceptinherited

◆ getNextValue()

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

FloatType juce::SmoothedValue< FloatType, SmoothingType >::getNextValue ( )

inlinenoexcept

Compute the next value.

Returns: Smoothed value

Referenced by juce::dsp::Gain< FloatType >::process(), juce::dsp::Bias< FloatType >::process(), juce::dsp::Oscillator< SampleType >::process(), juce::Reverb::processMono(), juce::dsp::Gain< FloatType >::processSample(), juce::dsp::Bias< FloatType >::processSample(), juce::dsp::Oscillator< SampleType >::processSample(), and juce::Reverb::processStereo().

◆ getTargetValue()

FloatType juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::getTargetValue

inlinenoexceptinherited

Returns the target value towards which the smoothed value is currently moving.

◆ isSmoothing()

bool juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::isSmoothing

inlinenoexceptinherited

Returns true if the current value is currently being interpolated.

◆ reset() [1/2]

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

void juce::SmoothedValue< FloatType, SmoothingType >::reset	(	double	sampleRate,
		double	rampLengthInSeconds
	)

inlinenoexcept

Reset to a new sample rate and ramp length.

Parameters

sampleRate	The sample rate
rampLengthInSeconds	The duration of the ramp in seconds

Referenced by juce::dsp::Gain< FloatType >::reset(), juce::dsp::Bias< FloatType >::reset(), juce::dsp::Oscillator< SampleType >::reset(), juce::SmoothedValue< SampleType, juce::ValueSmoothingTypes::Linear >::reset(), juce::Reverb::setSampleRate(), and juce::dsp::Bias< FloatType >::updateRamp().

◆ reset() [2/2]

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

void juce::SmoothedValue< FloatType, SmoothingType >::reset ( int numSteps )

inlinenoexcept

Set a new ramp length directly in samples.

Parameters

numSteps The number of samples over which the ramp should be active

◆ setCurrentAndTargetValue()

void juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::setCurrentAndTargetValue ( FloatType newValue )

inlineinherited

Sets the current value and the target value.

Parameters

newValue the new value to take

◆ setNextValue() [1/2]

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

template<typename T = SmoothingType>

LinearVoid<T> juce::SmoothedValue< FloatType, SmoothingType >::setNextValue ( )

inlineprivatenoexcept

Referenced by juce::SmoothedValue< SampleType, juce::ValueSmoothingTypes::Linear >::getNextValue().

◆ setNextValue() [2/2]

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

template<typename T = SmoothingType>

MultiplicativeVoid<T> juce::SmoothedValue< FloatType, SmoothingType >::setNextValue ( )

inlineprivatenoexcept

◆ setStepSize() [1/2]

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

template<typename T = SmoothingType>

MultiplicativeVoid<T> juce::SmoothedValue< FloatType, SmoothingType >::setStepSize ( )

inlineprivate

◆ setStepSize() [2/2]

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

template<typename T = SmoothingType>

LinearVoid<T> juce::SmoothedValue< FloatType, SmoothingType >::setStepSize ( )

inlineprivatenoexcept

Referenced by juce::SmoothedValue< SampleType, juce::ValueSmoothingTypes::Linear >::setTargetValue().

◆ setTargetValue()

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

void juce::SmoothedValue< FloatType, SmoothingType >::setTargetValue ( FloatType newValue )

inlinenoexcept

Set the next value to ramp towards.

Parameters

newValue The new target value

Referenced by juce::dsp::Bias< FloatType >::setBias(), juce::Reverb::setDamping(), juce::dsp::Oscillator< SampleType >::setFrequency(), juce::dsp::Gain< FloatType >::setGainLinear(), juce::Reverb::setParameters(), juce::dsp::LadderFilter< SampleType >::updateCutoffFreq(), and juce::dsp::LadderFilter< SampleType >::updateResonance().

◆ skip()

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

FloatType juce::SmoothedValue< FloatType, SmoothingType >::skip ( int numSamples )

inlinenoexcept

Skip the next numSamples samples.

This is identical to calling getNextValue numSamples times. It returns the new current value.

See also: getNextValue

Referenced by juce::dsp::Gain< FloatType >::process(), juce::dsp::Bias< FloatType >::process(), and juce::dsp::Oscillator< SampleType >::process().

◆ skipCurrentValue() [1/2]

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

template<typename T = SmoothingType>

MultiplicativeVoid<T> juce::SmoothedValue< FloatType, SmoothingType >::skipCurrentValue ( int numSamples )

inlineprivate

◆ skipCurrentValue() [2/2]

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

template<typename T = SmoothingType>

LinearVoid<T> juce::SmoothedValue< FloatType, SmoothingType >::skipCurrentValue ( int numSamples )

inlineprivatenoexcept

Referenced by juce::SmoothedValue< SampleType, juce::ValueSmoothingTypes::Linear >::skip().

Member Data Documentation

◆ countdown

int juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::countdown

protectedinherited

◆ currentValue

FloatType juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::currentValue

protectedinherited

◆ step

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

FloatType juce::SmoothedValue< FloatType, SmoothingType >::step = FloatType()

private

Referenced by juce::SmoothedValue< SampleType, juce::ValueSmoothingTypes::Linear >::setNextValue(), juce::SmoothedValue< SampleType, juce::ValueSmoothingTypes::Linear >::setStepSize(), and juce::SmoothedValue< SampleType, juce::ValueSmoothingTypes::Linear >::skipCurrentValue().

◆ stepsToTarget

template<typename FloatType , typename SmoothingType = ValueSmoothingTypes::Linear>

int juce::SmoothedValue< FloatType, SmoothingType >::stepsToTarget = 0

private

Referenced by juce::SmoothedValue< SampleType, juce::ValueSmoothingTypes::Linear >::reset(), and juce::SmoothedValue< SampleType, juce::ValueSmoothingTypes::Linear >::setTargetValue().

◆ target

FloatType juce::SmoothedValueBase< SmoothedValue< FloatType, ValueSmoothingTypes::Linear > >::target

protectedinherited

The documentation for this class was generated from the following file:

juce_SmoothedValue.h

Public Types

Public Member Functions

Protected Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

template<typename FloatType, typename SmoothingType = ValueSmoothingTypes::Linear> class juce::SmoothedValue< FloatType, SmoothingType >

Member Typedef Documentation

◆ FloatType

◆ LinearVoid

◆ MultiplicativeVoid

Constructor & Destructor Documentation

◆ SmoothedValue() [1/2]

◆ SmoothedValue() [2/2]

Member Function Documentation

◆ applyGain() [1/3]

◆ applyGain() [2/3]

◆ applyGain() [3/3]

◆ getCurrentValue()

◆ getNextSmoothedValue()

◆ getNextValue()

◆ getTargetValue()

◆ isSmoothing()

◆ reset() [1/2]

◆ reset() [2/2]

◆ setCurrentAndTargetValue()

◆ setNextValue() [1/2]

◆ setNextValue() [2/2]

◆ setStepSize() [1/2]

◆ setStepSize() [2/2]

◆ setTargetValue()

◆ skip()

◆ skipCurrentValue() [1/2]

◆ skipCurrentValue() [2/2]

Member Data Documentation

◆ countdown

◆ currentValue

◆ step

◆ stepsToTarget

◆ target

template<typename FloatType, typename SmoothingType = ValueSmoothingTypes::Linear>
class juce::SmoothedValue< FloatType, SmoothingType >
