#include <juce_RenderingHelpers.h>

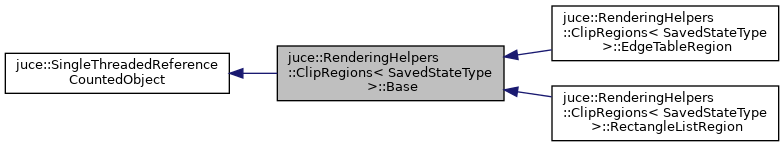

Inheritance diagram for juce::RenderingHelpers::ClipRegions< SavedStateType >::Base:

[legend]

Collaboration diagram for juce::RenderingHelpers::ClipRegions< SavedStateType >::Base:

Public Types
using	Ptr = ReferenceCountedObjectPtr< Base >

Public Member Functions
	Base ()=default

	~Base () override=default

virtual Ptr	applyClipTo (const Ptr &target) const =0

virtual bool	clipRegionIntersects (Rectangle< int >) const =0

virtual Ptr	clipToEdgeTable (const EdgeTable &)=0

virtual Ptr	clipToImageAlpha (const Image &, const AffineTransform &, Graphics::ResamplingQuality)=0

virtual Ptr	clipToPath (const Path &, const AffineTransform &)=0

virtual Ptr	clipToRectangle (Rectangle< int >)=0

virtual Ptr	clipToRectangleList (const RectangleList< int > &)=0

virtual Ptr	clone () const =0

void	decReferenceCount () noexcept
	Decreases the object's reference count. More...

bool	decReferenceCountWithoutDeleting () noexcept
	Decreases the object's reference count. More...

virtual Ptr	excludeClipRectangle (Rectangle< int >)=0

virtual void	fillAllWithColour (SavedStateType &, PixelARGB colour, bool replaceContents) const =0

virtual void	fillAllWithGradient (SavedStateType &, ColourGradient &, const AffineTransform &, bool isIdentity) const =0

virtual void	fillRectWithColour (SavedStateType &, Rectangle< float >, PixelARGB colour) const =0

virtual void	fillRectWithColour (SavedStateType &, Rectangle< int >, PixelARGB colour, bool replaceContents) const =0

virtual Rectangle< int >	getClipBounds () const =0

int	getReferenceCount () const noexcept
	Returns the object's current reference count. More...

void	incReferenceCount () noexcept
	Increments the object's reference count. More...

virtual void	renderImageTransformed (SavedStateType &, const Image &, int alpha, const AffineTransform &, Graphics::ResamplingQuality, bool tiledFill) const =0

virtual void	renderImageUntransformed (SavedStateType &, const Image &, int alpha, int x, int y, bool tiledFill) const =0

virtual void	translate (Point< int > delta)=0

Private Attributes
int	refCount = 0

Member Typedef Documentation

◆ Ptr

template<class SavedStateType >

using juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::Ptr = ReferenceCountedObjectPtr<Base>

Constructor & Destructor Documentation

◆ Base()

template<class SavedStateType >

juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::Base ( )

default

◆ ~Base()

template<class SavedStateType >

juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::~Base ( )

overridedefault

Member Function Documentation

◆ applyClipTo()

template<class SavedStateType >

virtual Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::applyClipTo ( const Ptr & target ) const

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipRegionIntersects()

template<class SavedStateType >

virtual bool juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::clipRegionIntersects ( Rectangle< int > ) const

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipToEdgeTable()

template<class SavedStateType >

virtual Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::clipToEdgeTable ( const EdgeTable & )

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipToImageAlpha()

template<class SavedStateType >

virtual Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::clipToImageAlpha	(	const Image &	,
		const AffineTransform &	,
		Graphics::ResamplingQuality
	)

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipToPath()

template<class SavedStateType >

virtual Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::clipToPath	(	const Path &	,
		const AffineTransform &
	)

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipToRectangle()

template<class SavedStateType >

virtual Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::clipToRectangle ( Rectangle< int > )

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clipToRectangleList()

template<class SavedStateType >

virtual Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::clipToRectangleList ( const RectangleList< int > & )

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ clone()

template<class SavedStateType >

virtual Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::clone ( ) const

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ decReferenceCount()

void juce::SingleThreadedReferenceCountedObject::decReferenceCount ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will be deleted.

References jassert.

◆ decReferenceCountWithoutDeleting()

bool juce::SingleThreadedReferenceCountedObject::decReferenceCountWithoutDeleting ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will not be deleted, but this method will return true, allowing the caller to take care of deletion.

References jassert.

◆ excludeClipRectangle()

template<class SavedStateType >

virtual Ptr juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::excludeClipRectangle ( Rectangle< int > )

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ fillAllWithColour()

template<class SavedStateType >

virtual void juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::fillAllWithColour	(	SavedStateType &	,
		PixelARGB	colour,
		bool	replaceContents
	)		const

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ fillAllWithGradient()

template<class SavedStateType >

virtual void juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::fillAllWithGradient	(	SavedStateType &	,
		ColourGradient &	,
		const AffineTransform &	,
		bool	isIdentity
	)		const

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ fillRectWithColour() [1/2]

template<class SavedStateType >

virtual void juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::fillRectWithColour	(	SavedStateType &	,
		Rectangle< float >	,
		PixelARGB	colour
	)		const

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ fillRectWithColour() [2/2]

template<class SavedStateType >

virtual void juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::fillRectWithColour	(	SavedStateType &	,
		Rectangle< int >	,
		PixelARGB	colour,
		bool	replaceContents
	)		const

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ getClipBounds()

template<class SavedStateType >

virtual Rectangle<int> juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::getClipBounds ( ) const

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ getReferenceCount()

int juce::SingleThreadedReferenceCountedObject::getReferenceCount ( ) const

inlinenoexceptinherited

Returns the object's current reference count.

◆ incReferenceCount()

void juce::SingleThreadedReferenceCountedObject::incReferenceCount ( )

inlinenoexceptinherited

Increments the object's reference count.

This is done automatically by the smart pointer, but is public just in case it's needed for nefarious purposes.

◆ renderImageTransformed()

template<class SavedStateType >

virtual void juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::renderImageTransformed	(	SavedStateType &	,
		const Image &	,
		int	alpha,
		const AffineTransform &	,
		Graphics::ResamplingQuality	,
		bool	tiledFill
	)		const

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ renderImageUntransformed()

template<class SavedStateType >

virtual void juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::renderImageUntransformed	(	SavedStateType &	,
		const Image &	,
		int	alpha,
		int	x,
		int	y,
		bool	tiledFill
	)		const

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

◆ translate()

template<class SavedStateType >

virtual void juce::RenderingHelpers::ClipRegions< SavedStateType >::Base::translate ( Point< int > delta )

pure virtual

Implemented in juce::RenderingHelpers::ClipRegions< SavedStateType >::RectangleListRegion, and juce::RenderingHelpers::ClipRegions< SavedStateType >::EdgeTableRegion.

Member Data Documentation

◆ refCount

int juce::SingleThreadedReferenceCountedObject::refCount = 0

privateinherited

The documentation for this struct was generated from the following file:

juce_RenderingHelpers.h
