juce::ADSR Class Reference

A very simple ADSR envelope class. More...

#include <juce_ADSR.h>

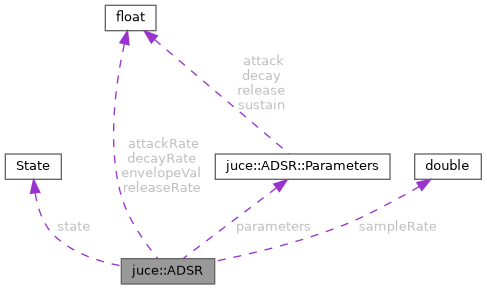

Collaboration diagram for juce::ADSR:

Classes
struct	Parameters
	Holds the parameters being used by an ADSR object. More...

Public Member Functions
	ADSR ()
template<typename FloatType >
void	applyEnvelopeToBuffer (AudioBuffer< FloatType > &buffer, int startSample, int numSamples)
	This method will conveniently apply the next numSamples number of envelope values to an AudioBuffer.
float	getNextSample () noexcept
	Returns the next sample value for an ADSR object.
const Parameters &	getParameters () const noexcept
	Returns the parameters currently being used by an ADSR object.
bool	isActive () const noexcept
	Returns true if the envelope is in its attack, decay, sustain or release stage.
void	noteOff () noexcept
	Starts the release phase of the envelope.
void	noteOn () noexcept
	Starts the attack phase of the envelope.
void	reset () noexcept
	Resets the envelope to an idle state.
void	setParameters (const Parameters &newParameters)
	Sets the parameters that will be used by an ADSR object.
void	setSampleRate (double newSampleRate) noexcept
	Sets the sample rate that will be used for the envelope.

Private Types
enum class	State {   idle ,   attack ,   decay ,   sustain ,   release }

Private Member Functions
void	goToNextState () noexcept
void	recalculateRates () noexcept

Private Attributes
float	attackRate = 0.0f
float	decayRate = 0.0f
float	envelopeVal = 0.0f
Parameters	parameters
float	releaseRate = 0.0f
double	sampleRate = 44100.0
State	state = State::idle

Detailed Description

A very simple ADSR envelope class.

To use it, call setSampleRate() with the current sample rate and give it some parameters with setParameters() then call getNextSample() to get the envelope value to be applied to each audio sample or applyEnvelopeToBuffer() to apply the envelope to a whole buffer.

Do not change the parameters during playback. If you change the parameters before the release stage has completed then you must call reset() before the next call to noteOn().

@tags{Audio}

Member Enumeration Documentation

State

enum class juce::ADSR::State

strongprivate

Enumerator
idle
attack
decay
sustain
release

Constructor & Destructor Documentation

ADSR()

juce::ADSR::ADSR ( )

inline

Member Function Documentation

applyEnvelopeToBuffer()

template<typename FloatType >

void juce::ADSR::applyEnvelopeToBuffer ( AudioBuffer< FloatType > &  buffer, int  startSample, int  numSamples  )

inline

This method will conveniently apply the next numSamples number of envelope values to an AudioBuffer.

See also

getNextSample

References jassert.

getNextSample()

float juce::ADSR::getNextSample ( )

inlinenoexcept

Returns the next sample value for an ADSR object.

See also

applyEnvelopeToBuffer

getParameters()

const Parameters & juce::ADSR::getParameters ( ) const

inlinenoexcept

Returns the parameters currently being used by an ADSR object.

See also

setParameters

goToNextState()

void juce::ADSR::goToNextState ( )

inlineprivatenoexcept

isActive()

bool juce::ADSR::isActive ( ) const

inlinenoexcept

Returns true if the envelope is in its attack, decay, sustain or release stage.

noteOff()

void juce::ADSR::noteOff ( )

inlinenoexcept

Starts the release phase of the envelope.

noteOn()

void juce::ADSR::noteOn ( )

inlinenoexcept

Starts the attack phase of the envelope.

recalculateRates()

void juce::ADSR::recalculateRates ( )

inlineprivatenoexcept

reset()

void juce::ADSR::reset ( )

inlinenoexcept

Resets the envelope to an idle state.

setParameters()

void juce::ADSR::setParameters ( const Parameters &  newParameters )

inline

Sets the parameters that will be used by an ADSR object.

You must have called setSampleRate() with the correct sample rate before this otherwise the values may be incorrect!

See also

getParameters

References jassert.

setSampleRate()

void juce::ADSR::setSampleRate ( double  newSampleRate )

inlinenoexcept

Sets the sample rate that will be used for the envelope.

This must be called before the getNextSample() or setParameters() methods.

References jassert.

Member Data Documentation

attackRate

float juce::ADSR::attackRate = 0.0f

private

decayRate

float juce::ADSR::decayRate = 0.0f

private

envelopeVal

float juce::ADSR::envelopeVal = 0.0f

private

parameters

Parameters juce::ADSR::parameters

private

releaseRate

float juce::ADSR::releaseRate = 0.0f

private

sampleRate

double juce::ADSR::sampleRate = 44100.0

private

state

State juce::ADSR::state = State::idle

private

---

The documentation for this class was generated from the following file:

• juce_ADSR.h
