juce::ARADocument Class Reference

Base class representing an ARA document. More...

#include <juce_ARAModelObjects.h>

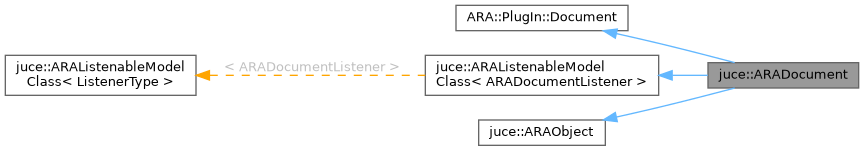

Inheritance diagram for juce::ARADocument:

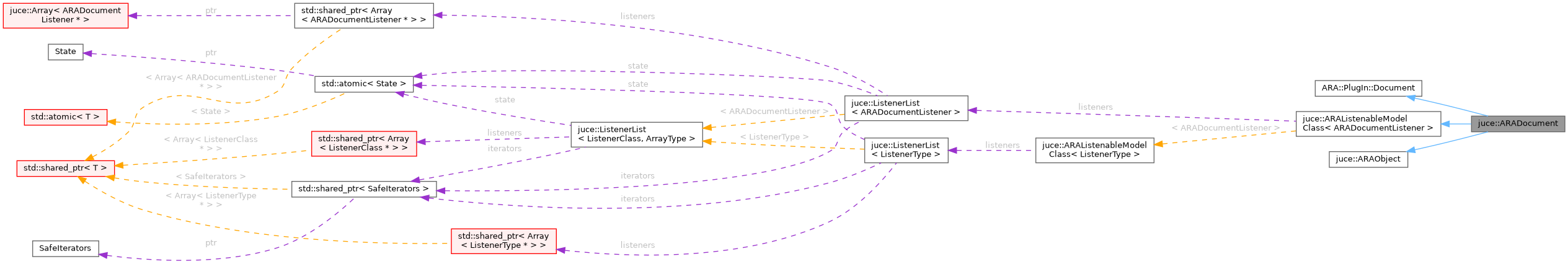

Collaboration diagram for juce::ARADocument:

Public Types
using	Listener = ARADocumentListener
using	PropertiesPtr = ARA::PlugIn::PropertiesPtr< ARA::ARADocumentProperties >

Public Member Functions
void	addListener (ARADocumentListener *l)
	Subscribe l to notified by changes to the object.
template<typename AudioSource_t = ARAAudioSource>
const std::vector< AudioSource_t * > &	getAudioSources () const noexcept
	Returns the result of ARA::PlugIn::Document::getAudioSources() with the pointers within cast to ARAAudioSource*.
ARAObject *	getChild (size_t index) override
	Returns the child object associated with the given index.
template<typename MusicalContext_t = ARAMusicalContext>
const std::vector< MusicalContext_t * > &	getMusicalContexts () const noexcept
	Returns the result of ARA::PlugIn::Document::getMusicalContexts() with the pointers within cast to ARAMusicalContext*.
size_t	getNumChildren () const noexcept override
	Returns the number of ARA model objects aggregated by this object.
ARAObject *	getParent () override
	Returns the ARA model object that aggregates this object.
template<typename RegionSequence_t = ARARegionSequence>
const std::vector< RegionSequence_t * > &	getRegionSequences () const noexcept
	Returns the result of ARA::PlugIn::Document::getRegionSequences() with the pointers within cast to ARARegionSequence*.
void	notifyListeners (Callback &&callback)
	Call the provided callback for each of the added listeners.
void	removeListener (ARADocumentListener *l)
	Unsubscribe l from object notifications.
template<typename Fn >
void	traverse (Fn &&fn)
	Implements a depth first traversal of the ARA model graph starting from the current object, and visiting its children recursively.
void	visit (ARAObjectVisitor &visitor) override
	Allows the retrieval of the concrete type of a model object.

Private Attributes
ListenerList< ARADocumentListener >	listeners

Detailed Description

Base class representing an ARA document.

@tags{ARA}

Member Typedef Documentation

Listener

using juce::ARADocument::Listener = ARADocumentListener

PropertiesPtr

using juce::ARADocument::PropertiesPtr = ARA::PlugIn::PropertiesPtr<ARA::ARADocumentProperties>

Member Function Documentation

addListener()

void juce::ARAListenableModelClass< ARADocumentListener >::addListener ( ARADocumentListener *  l )

inlineinherited

Subscribe l to notified by changes to the object.

Parameters

l	The listener instance.

getAudioSources()

template<typename AudioSource_t = ARAAudioSource>

const std::vector< AudioSource_t * > & juce::ARADocument::getAudioSources ( ) const

inlinenoexcept

Returns the result of ARA::PlugIn::Document::getAudioSources() with the pointers within cast to ARAAudioSource*.

If you have overridden ARADocumentControllerSpecialisation::doCreateAudioSource(), then you can use the template parameter to cast the pointers to your subclass of ARAAudioSource.

getChild()

ARAObject * juce::ARADocument::getChild ( size_t  index )

overridevirtual

Returns the child object associated with the given index.

The index should be smaller than the value returned by getNumChildren().

Note that the index of a particular object may change when the ARA model graph is edited.

Implements juce::ARAObject.

getMusicalContexts()

template<typename MusicalContext_t = ARAMusicalContext>

const std::vector< MusicalContext_t * > & juce::ARADocument::getMusicalContexts ( ) const

inlinenoexcept

Returns the result of ARA::PlugIn::Document::getMusicalContexts() with the pointers within cast to ARAMusicalContext*.

If you have overridden ARADocumentControllerSpecialisation::doCreateMusicalContext(), then you can use the template parameter to cast the pointers to your subclass of ARAMusicalContext.

getNumChildren()

size_t juce::ARADocument::getNumChildren ( ) const

overridevirtualnoexcept

Returns the number of ARA model objects aggregated by this object.

Objects that are merely referred to, but not aggregated by the current object are not included in this count, e.g. a referenced RegionSequence does not count as a child of the referring PlaybackRegion.

See the ARA documentation's ARA Model Graph Overview for more details.

Implements juce::ARAObject.

getParent()

ARAObject * juce::ARADocument::getParent ( )

inlineoverridevirtual

Returns the ARA model object that aggregates this object.

Returns nullptr for the ARADocument root object.

Implements juce::ARAObject.

getRegionSequences()

template<typename RegionSequence_t = ARARegionSequence>

const std::vector< RegionSequence_t * > & juce::ARADocument::getRegionSequences ( ) const

inlinenoexcept

Returns the result of ARA::PlugIn::Document::getRegionSequences() with the pointers within cast to ARARegionSequence*.

If you have overridden ARADocumentControllerSpecialisation::doCreateRegionSequence(), then you can use the template parameter to cast the pointers to your subclass of ARARegionSequence.

notifyListeners()

void juce::ARAListenableModelClass< ARADocumentListener >::notifyListeners ( Callback &&  callback )

inlineinherited

Call the provided callback for each of the added listeners.

removeListener()

void juce::ARAListenableModelClass< ARADocumentListener >::removeListener ( ARADocumentListener *  l )

inlineinherited

Unsubscribe l from object notifications.

Parameters

l	The listener instance.

traverse()

template<typename Fn >

void juce::ARAObject::traverse ( Fn &&  fn )

inlineinherited

Implements a depth first traversal of the ARA model graph starting from the current object, and visiting its children recursively.

The provided function should accept a single ARAObject& parameter.

References juce::ARAObject::getChild(), juce::ARAObject::getNumChildren(), and juce::ARAObject::traverse().

Referenced by juce::ARAObject::traverse().

visit()

void juce::ARADocument::visit ( ARAObjectVisitor &  visitor )

inlineoverridevirtual

Allows the retrieval of the concrete type of a model object.

To use this, create a new class derived from ARAObjectVisitor and override its functions depending on which concrete types you are interested in.

Calling this function inside the function passed to ARAObject::traverse() allows you to map the entire ARA model graph.

Implements juce::ARAObject.

References juce::ARAObjectVisitor::visitDocument().

Member Data Documentation

listeners

ListenerList<ARADocumentListener > juce::ARAListenableModelClass< ARADocumentListener >::listeners

privateinherited

---

The documentation for this class was generated from the following file:

• juce_ARAModelObjects.h
