juce::ARAHostModel::PlaybackRegionRegistry< RendererRef, Interface > Class Template Reference

Base class used by the PlaybackRendererInterface and EditorRendererInterface plugin extension interfaces. More...

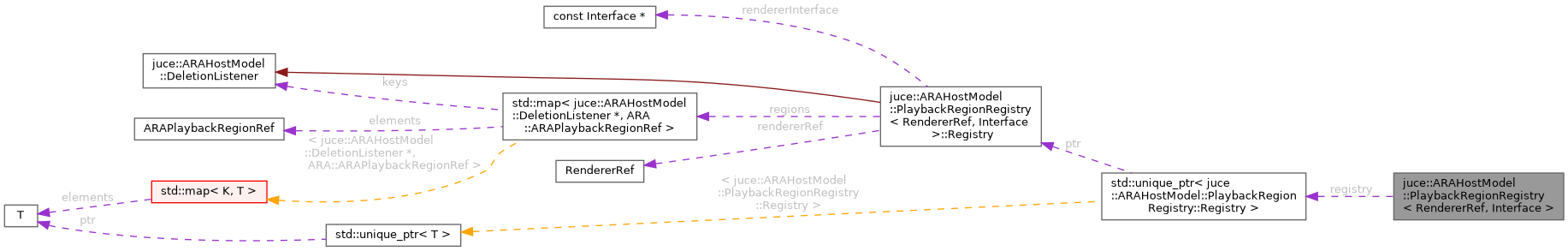

Collaboration diagram for juce::ARAHostModel::PlaybackRegionRegistry< RendererRef, Interface >:

Classes
class	Registry

Public Member Functions
	PlaybackRegionRegistry ()=default
	PlaybackRegionRegistry (RendererRef rendererRefIn, const Interface *interfaceIn)
void	add (PlaybackRegion &region)
	Adds a PlaybackRegion to the corresponding PlaybackRendererInterface or EditorRendererInterface.
bool	isValid ()
	Returns true if the underlying ARA plugin extension instance fulfills the corresponding role.
void	remove (PlaybackRegion &region)
	Removes a PlaybackRegion from the corresponding PlaybackRendererInterface or EditorRendererInterface.

Private Attributes
std::unique_ptr< Registry >	registry

Detailed Description

template<typename RendererRef, typename Interface>
class juce::ARAHostModel::PlaybackRegionRegistry< RendererRef, Interface >

Base class used by the PlaybackRendererInterface and EditorRendererInterface plugin extension interfaces.

Hosts will want to create one or typically more ARA plugin extension instances per plugin for the purpose of playback and editor rendering. The PlaybackRegions created by the host then have to be assigned to these instances through the appropriate interfaces.

Whether a PlaybackRegion or an assigned RendererInterface is deleted first depends on the host implementation and exact use case.

By using these helper classes you can ensure that the ARA DocumentController remains in a valid state in both situations. In order to use them acquire an object from PlugInExtensionInstance::getPlaybackRendererInterface() or PlugInExtensionInstance::getEditorRendererInterface().

Then call add() to register a PlaybackRegion with that particular PlugInExtensionInstance's interface.

Now when you delete that PlaybackRegion it will be deregistered from that extension instance. If however you want to delete the plugin extension instance before the PlaybackRegion, you can delete the PlaybackRegionRegistry instance before deleting the plugin extension instance, which takes care of deregistering all PlaybackRegions.

When adding or removing PlaybackRegions the plugin instance must be in an unprepared state i.e. before AudioProcessor::prepareToPlay() or after AudioProcessor::releaseResources().

auto playbackRenderer = std::make_unique<PlaybackRendererInterface> (plugInExtensionInstance.getPlaybackRendererInterface());
auto playbackRegion   = std::make_unique<PlaybackRegion> (documentController, regionSequence, audioModification, audioSource);

// Either of the following three code variations are valid
// (1) ===================================================
playbackRenderer.add (playbackRegion);
playbackRenderer.remove (playbackRegion);

// (2) ===================================================
playbackRenderer.add (playbackRegion);
playbackRegion.reset();

// (3) ===================================================
playbackRenderer.add (playbackRegion);
playbackRenderer.reset();

See also

PluginExtensionInstance

@tags{ARA}

Constructor & Destructor Documentation

PlaybackRegionRegistry() [1/2]

template<typename RendererRef , typename Interface >

juce::ARAHostModel::PlaybackRegionRegistry< RendererRef, Interface >::PlaybackRegionRegistry ( )

default

PlaybackRegionRegistry() [2/2]

template<typename RendererRef , typename Interface >

juce::ARAHostModel::PlaybackRegionRegistry< RendererRef, Interface >::PlaybackRegionRegistry ( RendererRef  rendererRefIn, const Interface *  interfaceIn  )

inline

Member Function Documentation

add()

template<typename RendererRef , typename Interface >

void juce::ARAHostModel::PlaybackRegionRegistry< RendererRef, Interface >::add ( PlaybackRegion &  region )

inline

Adds a PlaybackRegion to the corresponding PlaybackRendererInterface or EditorRendererInterface.

The plugin instance must be in an unprepared state i.e. before AudioProcessor::prepareToPlay() or after AudioProcessor::releaseResources().

isValid()

template<typename RendererRef , typename Interface >

bool juce::ARAHostModel::PlaybackRegionRegistry< RendererRef, Interface >::isValid ( )

inline

Returns true if the underlying ARA plugin extension instance fulfills the corresponding role.

remove()

template<typename RendererRef , typename Interface >

void juce::ARAHostModel::PlaybackRegionRegistry< RendererRef, Interface >::remove ( PlaybackRegion &  region )

inline

Removes a PlaybackRegion from the corresponding PlaybackRendererInterface or EditorRendererInterface.

The plugin instance must be in an unprepared state i.e. before AudioProcessor::prepareToPlay() or after AudioProcessor::releaseResources().

Member Data Documentation

registry

template<typename RendererRef , typename Interface >

std::unique_ptr<Registry> juce::ARAHostModel::PlaybackRegionRegistry< RendererRef, Interface >::registry

private

---

The documentation for this class was generated from the following file:

• juce_ARAHosting.h
