juce::ARAPlaybackRenderer Class Reference

Base class for a renderer fulfilling the ARAPlaybackRenderer role as described in the ARA SDK. More...

#include <juce_ARAPlugInInstanceRoles.h>

Inheritance diagram for juce::ARAPlaybackRenderer:

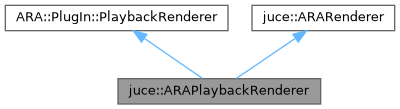

Collaboration diagram for juce::ARAPlaybackRenderer:

Public Types
enum class	AlwaysNonRealtime {   no ,   yes }

Public Member Functions
template<typename PlaybackRegion_t = ARAPlaybackRegion>
std::vector< PlaybackRegion_t * > const &	getPlaybackRegions () const noexcept
	Returns the PlaybackRegions.
virtual void	prepareToPlay (double sampleRate, int maximumSamplesPerBlock, int numChannels, AudioProcessor::ProcessingPrecision precision, AlwaysNonRealtime alwaysNonRealtime=AlwaysNonRealtime::no)
	Initialises the renderer for playback.
virtual bool	processBlock (AudioBuffer< double > &buffer, AudioProcessor::Realtime realtime, const AudioPlayHead::PositionInfo &positionInfo) noexcept
	Renders the output into the given buffer.
bool	processBlock (AudioBuffer< float > &buffer, AudioProcessor::Realtime realtime, const AudioPlayHead::PositionInfo &positionInfo) noexcept override
	Renders the output into the given buffer.
virtual bool	processBlock (AudioBuffer< float > &buffer, AudioProcessor::Realtime realtime, const AudioPlayHead::PositionInfo &positionInfo) noexcept=0
	Renders the output into the given buffer.
virtual void	releaseResources ()
	Frees render resources allocated in prepareToPlay().
virtual void	reset ()
	Resets the internal state variables of the renderer.

Detailed Description

Base class for a renderer fulfilling the ARAPlaybackRenderer role as described in the ARA SDK.

Instances of this class are constructed by the DocumentController. If you are subclassing ARAPlaybackRenderer, make sure to call the base class implementation of any overridden function, except for processBlock.

@tags{ARA}

Member Enumeration Documentation

AlwaysNonRealtime

enum class juce::ARARenderer::AlwaysNonRealtime

stronginherited

Enumerator
no
yes

Member Function Documentation

getPlaybackRegions()

template<typename PlaybackRegion_t = ARAPlaybackRegion>

std::vector< PlaybackRegion_t * > const & juce::ARAPlaybackRenderer::getPlaybackRegions ( ) const

inlinenoexcept

Returns the PlaybackRegions.

Template Parameters

PlaybackRegion_t

Returns

prepareToPlay()

virtual void juce::ARARenderer::prepareToPlay ( double  sampleRate, int  maximumSamplesPerBlock, int  numChannels, AudioProcessor::ProcessingPrecision  precision, AlwaysNonRealtime  alwaysNonRealtime = AlwaysNonRealtime::no  )

virtualinherited

Initialises the renderer for playback.

Parameters

sampleRate	The sample rate that will be used for the data that is sent to the renderer
maximumSamplesPerBlock	The maximum number of samples that will be in the blocks sent to process() method
numChannels	The number of channels that the process() method will be expected to handle
precision	This should be the same as the result of getProcessingPrecision() for the enclosing AudioProcessor
alwaysNonRealtime	yes if this renderer is never used in realtime (e.g. if providing data for views only)

processBlock() [1/3]

virtual bool juce::ARARenderer::processBlock ( AudioBuffer< double > &  buffer, AudioProcessor::Realtime  realtime, const AudioPlayHead::PositionInfo &  positionInfo  )

virtualnoexcept

Renders the output into the given buffer.

Returns true if rendering executed without error, false otherwise.

Parameters

buffer	The output buffer for the rendering. ARAPlaybackRenderers will replace the sample data, while ARAEditorRenderer will add to it.
realtime	Indicates whether the call is executed under real time constraints. The value of this parameter may change from one call to the next, and if the value is yes, the rendering may fail if the required samples cannot be obtained in time.
positionInfo	Current song position, playback state and playback loop location. There should be no need to access the bpm, timeSig and ppqPosition members in any ARA renderer since ARA provides that information with random access in its model graph.

Returns false if non-ARA fallback rendering is required and true otherwise.

Reimplemented from juce::ARARenderer.

processBlock() [2/3]

bool juce::ARAPlaybackRenderer::processBlock ( AudioBuffer< float > &  buffer, AudioProcessor::Realtime  realtime, const AudioPlayHead::PositionInfo &  positionInfo  )

overridevirtualnoexcept

Renders the output into the given buffer.

Returns true if rendering executed without error, false otherwise.

Parameters

buffer	The output buffer for the rendering. ARAPlaybackRenderers will replace the sample data, while ARAEditorRenderer will add to it.
realtime	Indicates whether the call is executed under real time constraints. The value of this parameter may change from one call to the next, and if the value is yes, the rendering may fail if the required samples cannot be obtained in time.
positionInfo	Current song position, playback state and playback loop location. There should be no need to access the bpm, timeSig and ppqPosition members in any ARA renderer since ARA provides that information with random access in its model graph.

Returns false if non-ARA fallback rendering is required and true otherwise.

Implements juce::ARARenderer.

processBlock() [3/3]

virtual bool juce::ARARenderer::processBlock ( AudioBuffer< float > &  buffer, AudioProcessor::Realtime  realtime, const AudioPlayHead::PositionInfo &  positionInfo  )

virtualnoexcept

Renders the output into the given buffer.

Returns true if rendering executed without error, false otherwise.

Parameters

buffer	The output buffer for the rendering. ARAPlaybackRenderers will replace the sample data, while ARAEditorRenderer will add to it.
realtime	Indicates whether the call is executed under real time constraints. The value of this parameter may change from one call to the next, and if the value is yes, the rendering may fail if the required samples cannot be obtained in time.
positionInfo	Current song position, playback state and playback loop location. There should be no need to access the bpm, timeSig and ppqPosition members in any ARA renderer since ARA provides that information with random access in its model graph.

Returns false if non-ARA fallback rendering is required and true otherwise.

Implements juce::ARARenderer.

releaseResources()

virtual void juce::ARARenderer::releaseResources ( )

inlinevirtualinherited

Frees render resources allocated in prepareToPlay().

reset()

virtual void juce::ARARenderer::reset ( )

inlinevirtualinherited

Resets the internal state variables of the renderer.

---

The documentation for this class was generated from the following file:

• juce_ARAPlugInInstanceRoles.h
