juce::AudioProcessorGraph::Node Class Reference

Represents one of the nodes, or processors, in an AudioProcessorGraph. More...

#include <juce_AudioProcessorGraph.h>

Inheritance diagram for juce::AudioProcessorGraph::Node:

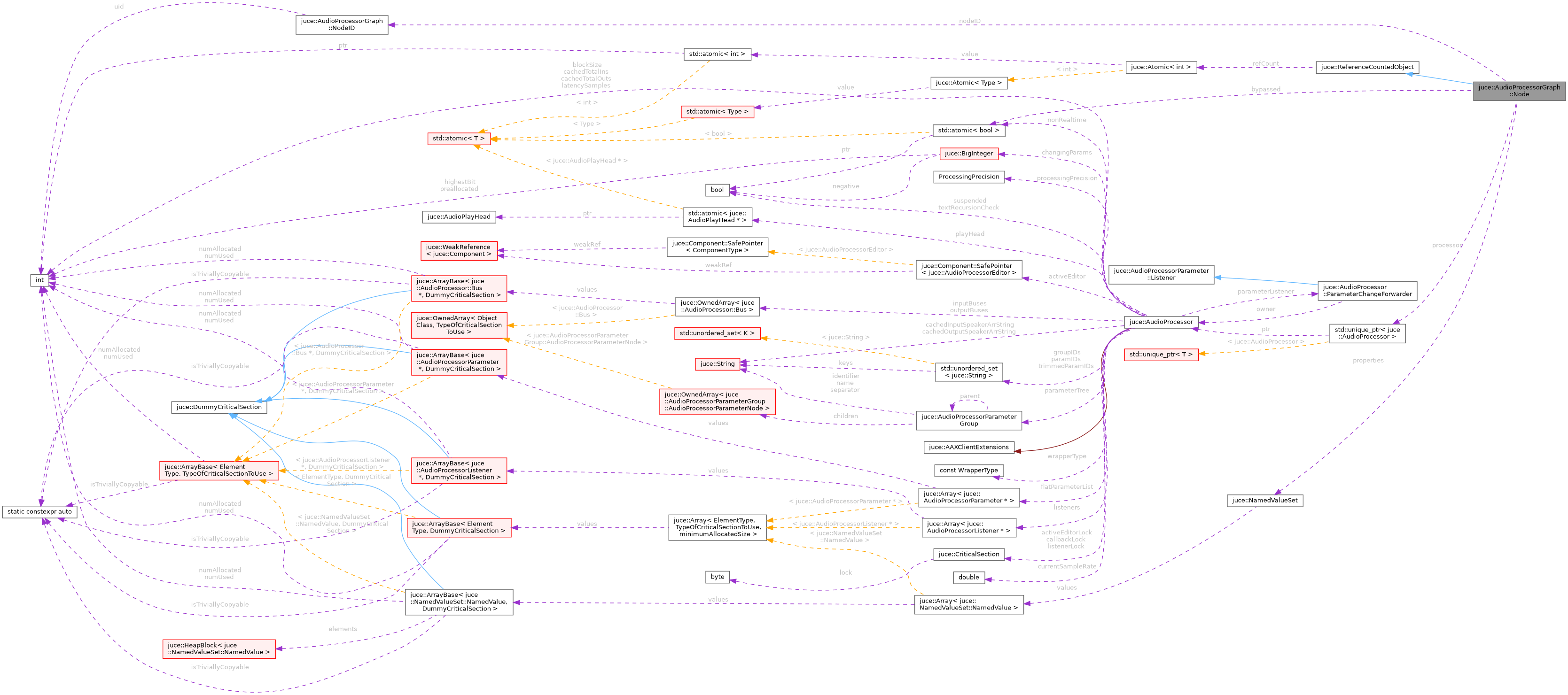

Collaboration diagram for juce::AudioProcessorGraph::Node:

Public Types
using	Ptr = ReferenceCountedObjectPtr< Node >
	A convenient typedef for referring to a pointer to a node object.

Public Member Functions
	Node (NodeID n, std::unique_ptr< AudioProcessor > p) noexcept
void	decReferenceCount () noexcept
	Decreases the object's reference count.
bool	decReferenceCountWithoutDeleting () noexcept
	Decreases the object's reference count.
AudioProcessor *	getProcessor () const noexcept
	The actual processor object that this node represents.
int	getReferenceCount () const noexcept
	Returns the object's current reference count.
void	incReferenceCount () noexcept
	Increments the object's reference count.
bool	isBypassed () const noexcept
	Returns if the node is bypassed or not.
void	setBypassed (bool shouldBeBypassed) noexcept
	Tell this node to bypass processing.
bool	userRequestedBypass () const

Public Attributes
const NodeID	nodeID
	The ID number assigned to this node.
NamedValueSet	properties
	A set of user-definable properties that are associated with this node.

Protected Member Functions
void	resetReferenceCount () noexcept
	Resets the reference count to zero without deleting the object.

Private Attributes
std::atomic< bool >	bypassed { false }
std::unique_ptr< AudioProcessor >	processor
Atomic< int >	refCount { 0 }

Detailed Description

Represents one of the nodes, or processors, in an AudioProcessorGraph.

To create a node, call AudioProcessorGraph::addNode().

Member Typedef Documentation

Ptr

using juce::AudioProcessorGraph::Node::Ptr = ReferenceCountedObjectPtr<Node>

A convenient typedef for referring to a pointer to a node object.

Constructor & Destructor Documentation

Node()

juce::AudioProcessorGraph::Node::Node ( NodeID  n, std::unique_ptr< AudioProcessor >  p  )

inlinenoexcept

To create a new node, use AudioProcessorGraph::addNode.

References jassert.

Member Function Documentation

decReferenceCount()

void juce::ReferenceCountedObject::decReferenceCount ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will be deleted.

References jassert.

decReferenceCountWithoutDeleting()

bool juce::ReferenceCountedObject::decReferenceCountWithoutDeleting ( )

inlinenoexceptinherited

Decreases the object's reference count.

If the count gets to zero, the object will not be deleted, but this method will return true, allowing the caller to take care of deletion.

References jassert.

getProcessor()

AudioProcessor * juce::AudioProcessorGraph::Node::getProcessor ( ) const

inlinenoexcept

The actual processor object that this node represents.

getReferenceCount()

int juce::ReferenceCountedObject::getReferenceCount ( ) const

inlinenoexceptinherited

Returns the object's current reference count.

incReferenceCount()

void juce::ReferenceCountedObject::incReferenceCount ( )

inlinenoexceptinherited

Increments the object's reference count.

This is done automatically by the smart pointer, but is public just in case it's needed for nefarious purposes.

isBypassed()

bool juce::AudioProcessorGraph::Node::isBypassed ( ) const

inlinenoexcept

Returns if the node is bypassed or not.

References juce::approximatelyEqual().

resetReferenceCount()

void juce::ReferenceCountedObject::resetReferenceCount ( )

inlineprotectednoexceptinherited

Resets the reference count to zero without deleting the object.

You should probably never need to use this!

setBypassed()

void juce::AudioProcessorGraph::Node::setBypassed ( bool  shouldBeBypassed )

inlinenoexcept

Tell this node to bypass processing.

userRequestedBypass()

bool juce::AudioProcessorGraph::Node::userRequestedBypass ( ) const

inline

Returns true if setBypassed (true) was called on this node. This behaviour is different from isBypassed(), which may additionally return true if the node has a bypass parameter that is not set to 0.

Member Data Documentation

bypassed

std::atomic<bool> juce::AudioProcessorGraph::Node::bypassed { false }

private

nodeID

const NodeID juce::AudioProcessorGraph::Node::nodeID

The ID number assigned to this node.

This is assigned by the graph that owns it, and can't be changed.

processor

std::unique_ptr<AudioProcessor> juce::AudioProcessorGraph::Node::processor

private

properties

NamedValueSet juce::AudioProcessorGraph::Node::properties

A set of user-definable properties that are associated with this node.

This can be used to attach values to the node for whatever purpose seems useful. For example, you might store an x and y position if your application is displaying the nodes on-screen.

refCount

Atomic<int> juce::ReferenceCountedObject::refCount { 0 }

privateinherited

---

The documentation for this class was generated from the following file:

• juce_AudioProcessorGraph.h
