juce::Point< ValueType > Class Template Reference

A pair of (x, y) coordinates. More...

#include <juce_Point.h>

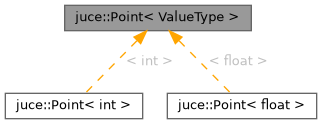

Inheritance diagram for juce::Point< ValueType >:

Collaboration diagram for juce::Point< ValueType >:

Public Types
using	FloatType = TypeHelpers::SmallestFloatType< ValueType >
	This type will be double if the Point's type is double, otherwise it will be float.

Public Member Functions
constexpr	Point ()=default
	Creates a point at the origin.
constexpr	Point (const Point &)=default
	Creates a copy of another point.
constexpr	Point (ValueType initialX, ValueType initialY) noexcept
	Creates a point from an (x, y) position.
void	addXY (ValueType xToAdd, ValueType yToAdd) noexcept
	Adds a pair of coordinates to this value.
void	applyTransform (const AffineTransform &transform) noexcept
	Uses a transform to change the point's coordinates.
FloatType	getAngleToPoint (Point other) const noexcept
	Returns the angle from this point to another one.
ValueType	getDistanceFrom (Point other) const noexcept
	Returns the straight-line distance between this point and another one.
ValueType	getDistanceFromOrigin () const noexcept
	Returns the straight-line distance between this point and the origin.
constexpr ValueType	getDistanceSquaredFrom (Point other) const noexcept
	Returns the square of the straight-line distance between this point and another one.
constexpr ValueType	getDistanceSquaredFromOrigin () const noexcept
	Returns the square of the straight-line distance between this point and the origin.
constexpr FloatType	getDotProduct (Point other) const noexcept
	Returns the dot-product of two points (x1 * x2 + y1 * y2).
Point< FloatType >	getPointOnCircumference (float radius, float angle) const noexcept
	Taking this point to be the centre of a circle, this returns a point on its circumference.
Point< FloatType >	getPointOnCircumference (float radiusX, float radiusY, float angle) const noexcept
	Taking this point to be the centre of an ellipse, this returns a point on its circumference.
constexpr ValueType	getX () const noexcept
	Returns the point's x coordinate.
constexpr ValueType	getY () const noexcept
	Returns the point's y coordinate.
constexpr bool	isFinite () const noexcept
	Returns true if the coordinates are finite values.
constexpr bool	isOrigin () const noexcept
	Returns true if the point is (0, 0).
constexpr bool	operator!= (Point other) const noexcept
template<typename OtherType >
constexpr Point	operator* (OtherType multiplier) const noexcept
	Returns a point whose coordinates are multiplied by a given scalar value.
template<typename OtherType >
constexpr Point	operator* (Point< OtherType > other) const noexcept
	Multiplies two points together.
template<typename FloatType >
Point &	operator*= (FloatType multiplier) noexcept
	Multiplies the point's coordinates by a scalar value.
template<typename OtherType >
Point &	operator*= (Point< OtherType > other) noexcept
	Multiplies another point's coordinates to this one.
constexpr Point	operator+ (Point other) const noexcept
	Adds two points together.
Point &	operator+= (Point other) noexcept
	Adds another point's coordinates to this one.
constexpr Point	operator- () const noexcept
	Returns the inverse of this point.
constexpr Point	operator- (Point other) const noexcept
	Subtracts one points from another.
Point &	operator-= (Point other) noexcept
	Subtracts another point's coordinates to this one.
template<typename OtherType >
constexpr Point	operator/ (OtherType divisor) const noexcept
	Returns a point whose coordinates are divided by a given scalar value.
template<typename OtherType >
constexpr Point	operator/ (Point< OtherType > other) const noexcept
	Divides one point by another.
template<typename FloatType >
Point &	operator/= (FloatType divisor) noexcept
	Divides the point's coordinates by a scalar value.
template<typename OtherType >
Point &	operator/= (Point< OtherType > other) noexcept
	Divides this point's coordinates by another.
Point &	operator= (const Point &)=default
	Copies this point from another one.
constexpr bool	operator== (Point other) const noexcept
template<typename T = ValueType, std::enable_if_t< std::is_floating_point_v< T >, int > = 0>
Point	rotatedAboutOrigin (ValueType angleRadians) const noexcept
	Returns the point that would be reached by rotating this point clockwise about the origin by the specified angle.
constexpr Point< int >	roundToInt () const noexcept
	Casts this point to a Point<int> object using roundToInt() to convert the values.
void	setX (ValueType newX) noexcept
	Sets the point's x coordinate.
void	setXY (ValueType newX, ValueType newY) noexcept
	Changes the point's x and y coordinates.
void	setY (ValueType newY) noexcept
	Sets the point's y coordinate.
constexpr Point< double >	toDouble () const noexcept
	Casts this point to a Point<double> object.
constexpr Point< float >	toFloat () const noexcept
	Casts this point to a Point<float> object.
constexpr Point< int >	toInt () const noexcept
	Casts this point to a Point<int> object.
String	toString () const
	Returns the point as a string in the form "x, y".
Point	transformedBy (const AffineTransform &transform) const noexcept
	Returns the position of this point, if it is transformed by a given AffineTransform.
constexpr Point	translated (ValueType deltaX, ValueType deltaY) const noexcept
	Returns a point with a given offset from this one.
constexpr Point	withX (ValueType newX) const noexcept
	Returns a point which has the same Y position as this one, but a new X.
constexpr Point	withY (ValueType newY) const noexcept
	Returns a point which has the same X position as this one, but a new Y.

Public Attributes
ValueType	x {}
	The point's X coordinate.
ValueType	y {}
	The point's Y coordinate.

Detailed Description

template<typename ValueType>
class juce::Point< ValueType >

A pair of (x, y) coordinates.

The ValueType template should be a primitive type such as int, float, double, rather than a class.

See also

Line, Path, AffineTransform

@tags{Graphics}

Member Typedef Documentation

FloatType

template<typename ValueType >

using juce::Point< ValueType >::FloatType = TypeHelpers::SmallestFloatType<ValueType>

This type will be double if the Point's type is double, otherwise it will be float.

Constructor & Destructor Documentation

Point() [1/3]

template<typename ValueType >

constexpr juce::Point< ValueType >::Point ( )

constexprdefault

Creates a point at the origin.

Referenced by juce::Point< ValueType >::isOrigin(), juce::Point< ValueType >::operator*(), juce::Point< ValueType >::operator*(), juce::Point< ValueType >::operator+(), juce::Point< ValueType >::operator-(), juce::Point< ValueType >::operator-(), juce::Point< ValueType >::operator/(), juce::Point< ValueType >::operator/(), juce::Point< ValueType >::rotatedAboutOrigin(), juce::Point< ValueType >::transformedBy(), juce::Point< ValueType >::translated(), juce::Point< ValueType >::withX(), and juce::Point< ValueType >::withY().

Point() [2/3]

template<typename ValueType >

constexpr juce::Point< ValueType >::Point ( const Point< ValueType > &  )

constexprdefault

Creates a copy of another point.

Point() [3/3]

template<typename ValueType >

constexpr juce::Point< ValueType >::Point ( ValueType  initialX, ValueType  initialY  )

inlineconstexprnoexcept

Creates a point from an (x, y) position.

Member Function Documentation

addXY()

template<typename ValueType >

void juce::Point< ValueType >::addXY ( ValueType  xToAdd, ValueType  yToAdd  )

inlinenoexcept

Adds a pair of coordinates to this value.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

applyTransform()

template<typename ValueType >

void juce::Point< ValueType >::applyTransform ( const AffineTransform &  transform )

inlinenoexcept

Uses a transform to change the point's coordinates.

This will only compile if ValueType = float!

See also

AffineTransform::transformPoint

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

getAngleToPoint()

template<typename ValueType >

FloatType juce::Point< ValueType >::getAngleToPoint ( Point< ValueType >  other ) const

inlinenoexcept

Returns the angle from this point to another one.

Taking this point to be the centre of a circle, and the other point being a position on the circumference, the return value is the number of radians clockwise from the 12 o'clock direction. So 12 o'clock = 0, 3 o'clock = Pi/2, 6 o'clock = Pi, 9 o'clock = -Pi/2

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

getDistanceFrom()

template<typename ValueType >

ValueType juce::Point< ValueType >::getDistanceFrom ( Point< ValueType >  other ) const

inlinenoexcept

Returns the straight-line distance between this point and another one.

References juce::juce_hypot(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

Referenced by juce::detail::MouseInputSourceImpl::registerMouseDrag().

getDistanceFromOrigin()

template<typename ValueType >

ValueType juce::Point< ValueType >::getDistanceFromOrigin ( ) const

inlinenoexcept

Returns the straight-line distance between this point and the origin.

References juce::juce_hypot(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

getDistanceSquaredFrom()

template<typename ValueType >

constexpr ValueType juce::Point< ValueType >::getDistanceSquaredFrom ( Point< ValueType >  other ) const

inlineconstexprnoexcept

Returns the square of the straight-line distance between this point and another one.

getDistanceSquaredFromOrigin()

template<typename ValueType >

constexpr ValueType juce::Point< ValueType >::getDistanceSquaredFromOrigin ( ) const

inlineconstexprnoexcept

Returns the square of the straight-line distance between this point and the origin.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

getDotProduct()

template<typename ValueType >

constexpr FloatType juce::Point< ValueType >::getDotProduct ( Point< ValueType >  other ) const

inlineconstexprnoexcept

Returns the dot-product of two points (x1 * x2 + y1 * y2).

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

getPointOnCircumference() [1/2]

template<typename ValueType >

Point< FloatType > juce::Point< ValueType >::getPointOnCircumference ( float  radius, float  angle  ) const

inlinenoexcept

Taking this point to be the centre of a circle, this returns a point on its circumference.

Parameters

radius	the radius of the circle.
angle	the angle of the point, in radians clockwise from the 12 o'clock position.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

getPointOnCircumference() [2/2]

template<typename ValueType >

Point< FloatType > juce::Point< ValueType >::getPointOnCircumference ( float  radiusX, float  radiusY, float  angle  ) const

inlinenoexcept

Taking this point to be the centre of an ellipse, this returns a point on its circumference.

Parameters

radiusX	the horizontal radius of the circle.
radiusY	the vertical radius of the circle.
angle	the angle of the point, in radians clockwise from the 12 o'clock position.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

getX()

template<typename ValueType >

constexpr ValueType juce::Point< ValueType >::getX ( ) const

inlineconstexprnoexcept

Returns the point's x coordinate.

References juce::Point< ValueType >::x.

getY()

template<typename ValueType >

constexpr ValueType juce::Point< ValueType >::getY ( ) const

inlineconstexprnoexcept

Returns the point's y coordinate.

References juce::Point< ValueType >::y.

isFinite()

template<typename ValueType >

constexpr bool juce::Point< ValueType >::isFinite ( ) const

inlineconstexprnoexcept

Returns true if the coordinates are finite values.

References juce::juce_isfinite(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

isOrigin()

template<typename ValueType >

constexpr bool juce::Point< ValueType >::isOrigin ( ) const

inlineconstexprnoexcept

Returns true if the point is (0, 0).

References juce::Point< ValueType >::Point(), and juce::Point< ValueType >::operator==().

Referenced by juce::detail::MouseInputSourceImpl::enableUnboundedMouseMovement(), juce::detail::MouseInputSourceImpl::handleUnboundedDrag(), and juce::detail::MouseInputSourceImpl::showMouseCursor().

operator!=()

template<typename ValueType >

constexpr bool juce::Point< ValueType >::operator!= ( Point< ValueType >  other ) const

inlineconstexprnoexcept

References juce::Point< ValueType >::operator==().

operator*() [1/2]

template<typename ValueType >

template<typename OtherType >

constexpr Point juce::Point< ValueType >::operator* ( OtherType  multiplier ) const

inlineconstexprnoexcept

Returns a point whose coordinates are multiplied by a given scalar value.

References juce::Point< ValueType >::Point(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

operator*() [2/2]

template<typename ValueType >

template<typename OtherType >

constexpr Point juce::Point< ValueType >::operator* ( Point< OtherType >  other ) const

inlineconstexprnoexcept

Multiplies two points together.

References juce::Point< ValueType >::Point(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

operator*=() [1/2]

template<typename ValueType >

template<typename FloatType >

Point & juce::Point< ValueType >::operator*= ( FloatType  multiplier )

inlinenoexcept

Multiplies the point's coordinates by a scalar value.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

operator*=() [2/2]

template<typename ValueType >

template<typename OtherType >

Point & juce::Point< ValueType >::operator*= ( Point< OtherType >  other )

inlinenoexcept

Multiplies another point's coordinates to this one.

operator+()

template<typename ValueType >

constexpr Point juce::Point< ValueType >::operator+ ( Point< ValueType >  other ) const

inlineconstexprnoexcept

Adds two points together.

References juce::Point< ValueType >::Point(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

operator+=()

template<typename ValueType >

Point & juce::Point< ValueType >::operator+= ( Point< ValueType >  other )

inlinenoexcept

Adds another point's coordinates to this one.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

operator-() [1/2]

template<typename ValueType >

constexpr Point juce::Point< ValueType >::operator- ( ) const

inlineconstexprnoexcept

Returns the inverse of this point.

References juce::Point< ValueType >::Point(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

operator-() [2/2]

template<typename ValueType >

constexpr Point juce::Point< ValueType >::operator- ( Point< ValueType >  other ) const

inlineconstexprnoexcept

Subtracts one points from another.

References juce::Point< ValueType >::Point(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

operator-=()

template<typename ValueType >

Point & juce::Point< ValueType >::operator-= ( Point< ValueType >  other )

inlinenoexcept

Subtracts another point's coordinates to this one.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

operator/() [1/2]

template<typename ValueType >

template<typename OtherType >

constexpr Point juce::Point< ValueType >::operator/ ( OtherType  divisor ) const

inlineconstexprnoexcept

Returns a point whose coordinates are divided by a given scalar value.

References juce::Point< ValueType >::Point(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

operator/() [2/2]

template<typename ValueType >

template<typename OtherType >

constexpr Point juce::Point< ValueType >::operator/ ( Point< OtherType >  other ) const

inlineconstexprnoexcept

Divides one point by another.

References juce::Point< ValueType >::Point(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

operator/=() [1/2]

template<typename ValueType >

template<typename FloatType >

Point & juce::Point< ValueType >::operator/= ( FloatType  divisor )

inlinenoexcept

Divides the point's coordinates by a scalar value.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

operator/=() [2/2]

template<typename ValueType >

template<typename OtherType >

Point & juce::Point< ValueType >::operator/= ( Point< OtherType >  other )

inlinenoexcept

Divides this point's coordinates by another.

operator=()

template<typename ValueType >

Point & juce::Point< ValueType >::operator= ( const Point< ValueType > &  )

default

Copies this point from another one.

operator==()

template<typename ValueType >

constexpr bool juce::Point< ValueType >::operator== ( Point< ValueType >  other ) const

inlineconstexprnoexcept

Referenced by juce::Point< ValueType >::isOrigin(), and juce::Point< ValueType >::operator!=().

rotatedAboutOrigin()

template<typename ValueType >

template<typename T = ValueType, std::enable_if_t< std::is_floating_point_v< T >, int > = 0>

Point juce::Point< ValueType >::rotatedAboutOrigin ( ValueType  angleRadians ) const

inlinenoexcept

Returns the point that would be reached by rotating this point clockwise about the origin by the specified angle.

References juce::Point< ValueType >::Point(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

roundToInt()

template<typename ValueType >

constexpr Point< int > juce::Point< ValueType >::roundToInt ( ) const

inlineconstexprnoexcept

Casts this point to a Point<int> object using roundToInt() to convert the values.

References juce::roundToInt(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

Referenced by juce::detail::ComponentHelpers::hitTest().

setX()

template<typename ValueType >

void juce::Point< ValueType >::setX ( ValueType  newX )

inlinenoexcept

Sets the point's x coordinate.

References juce::Point< ValueType >::x.

setXY()

template<typename ValueType >

void juce::Point< ValueType >::setXY ( ValueType  newX, ValueType  newY  )

inlinenoexcept

Changes the point's x and y coordinates.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

setY()

template<typename ValueType >

void juce::Point< ValueType >::setY ( ValueType  newY )

inlinenoexcept

Sets the point's y coordinate.

References juce::Point< ValueType >::y.

toDouble()

template<typename ValueType >

constexpr Point< double > juce::Point< ValueType >::toDouble ( ) const

inlineconstexprnoexcept

Casts this point to a Point<double> object.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

toFloat()

template<typename ValueType >

constexpr Point< float > juce::Point< ValueType >::toFloat ( ) const

inlineconstexprnoexcept

Casts this point to a Point<float> object.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

Referenced by juce::RenderingHelpers::SavedStateBase< SavedStateType >::fillRectList().

toInt()

template<typename ValueType >

constexpr Point< int > juce::Point< ValueType >::toInt ( ) const

inlineconstexprnoexcept

Casts this point to a Point<int> object.

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

toString()

template<typename ValueType >

String juce::Point< ValueType >::toString ( ) const

inline

Returns the point as a string in the form "x, y".

References juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

transformedBy()

template<typename ValueType >

Point juce::Point< ValueType >::transformedBy ( const AffineTransform &  transform ) const

inlinenoexcept

Returns the position of this point, if it is transformed by a given AffineTransform.

References juce::Point< ValueType >::Point(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

translated()

template<typename ValueType >

constexpr Point juce::Point< ValueType >::translated ( ValueType  deltaX, ValueType  deltaY  ) const

inlineconstexprnoexcept

Returns a point with a given offset from this one.

References juce::Point< ValueType >::Point(), juce::Point< ValueType >::x, and juce::Point< ValueType >::y.

withX()

template<typename ValueType >

constexpr Point juce::Point< ValueType >::withX ( ValueType  newX ) const

inlineconstexprnoexcept

Returns a point which has the same Y position as this one, but a new X.

References juce::Point< ValueType >::Point(), and juce::Point< ValueType >::y.

withY()

template<typename ValueType >

constexpr Point juce::Point< ValueType >::withY ( ValueType  newY ) const

inlineconstexprnoexcept

Returns a point which has the same X position as this one, but a new Y.

References juce::Point< ValueType >::Point(), and juce::Point< ValueType >::x.

Member Data Documentation

x

template<typename ValueType >

ValueType juce::Point< ValueType >::x {}

The point's X coordinate.

Referenced by juce::RenderingHelpers::GradientPixelIterators::Radial::Radial(), juce::Point< ValueType >::addXY(), juce::Point< ValueType >::applyTransform(), juce::detail::MouseInputSourceImpl::RecentMouseDown::canBePartOfMultipleClickWith(), juce::Point< ValueType >::getAngleToPoint(), juce::Point< ValueType >::getDistanceFrom(), juce::Point< ValueType >::getDistanceFromOrigin(), juce::Point< ValueType >::getDistanceSquaredFromOrigin(), juce::Point< ValueType >::getDotProduct(), juce::Point< ValueType >::getPointOnCircumference(), juce::Point< ValueType >::getPointOnCircumference(), juce::Point< ValueType >::getX(), juce::Point< ValueType >::isFinite(), juce::Point< ValueType >::operator*(), juce::Point< ValueType >::operator*(), juce::Point< ValueType >::operator*=(), juce::Point< ValueType >::operator+(), juce::Point< ValueType >::operator+=(), juce::Point< ValueType >::operator-(), juce::Point< ValueType >::operator-(), juce::Point< ValueType >::operator-=(), juce::Point< ValueType >::operator/(), juce::Point< ValueType >::operator/(), juce::Point< ValueType >::operator/=(), juce::Point< ValueType >::rotatedAboutOrigin(), juce::Point< ValueType >::roundToInt(), juce::Point< ValueType >::setX(), juce::Point< ValueType >::setXY(), juce::Point< ValueType >::toDouble(), juce::Point< ValueType >::toFloat(), juce::Point< ValueType >::toInt(), juce::Point< ValueType >::toString(), juce::Point< ValueType >::transformedBy(), juce::RenderingHelpers::ClipRegions::EdgeTableRegion< SavedStateType >::translate(), juce::Point< ValueType >::translated(), and juce::Point< ValueType >::withY().

y

template<typename ValueType >

ValueType juce::Point< ValueType >::y {}

The point's Y coordinate.

Referenced by juce::Point< ValueType >::addXY(), juce::Point< ValueType >::applyTransform(), juce::detail::MouseInputSourceImpl::RecentMouseDown::canBePartOfMultipleClickWith(), juce::Point< ValueType >::getAngleToPoint(), juce::Point< ValueType >::getDistanceFrom(), juce::Point< ValueType >::getDistanceFromOrigin(), juce::Point< ValueType >::getDistanceSquaredFromOrigin(), juce::Point< ValueType >::getDotProduct(), juce::Point< ValueType >::getPointOnCircumference(), juce::Point< ValueType >::getPointOnCircumference(), juce::Point< ValueType >::getY(), juce::Point< ValueType >::isFinite(), juce::Point< ValueType >::operator*(), juce::Point< ValueType >::operator*(), juce::Point< ValueType >::operator*=(), juce::Point< ValueType >::operator+(), juce::Point< ValueType >::operator+=(), juce::Point< ValueType >::operator-(), juce::Point< ValueType >::operator-(), juce::Point< ValueType >::operator-=(), juce::Point< ValueType >::operator/(), juce::Point< ValueType >::operator/(), juce::Point< ValueType >::operator/=(), juce::Point< ValueType >::rotatedAboutOrigin(), juce::Point< ValueType >::roundToInt(), juce::Point< ValueType >::setXY(), juce::Point< ValueType >::setY(), juce::Point< ValueType >::toDouble(), juce::Point< ValueType >::toFloat(), juce::Point< ValueType >::toInt(), juce::Point< ValueType >::toString(), juce::Point< ValueType >::transformedBy(), juce::RenderingHelpers::ClipRegions::EdgeTableRegion< SavedStateType >::translate(), juce::Point< ValueType >::translated(), and juce::Point< ValueType >::withX().

---

The documentation for this class was generated from the following file:

• juce_Point.h
