juce::VBlankAttachment Class Reference

Helper class to synchronise Component updates to the vertical blank event of the display that the Component is presented on. More...

#include <juce_VBlankAttachment.h>

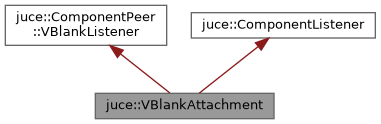

Inheritance diagram for juce::VBlankAttachment:

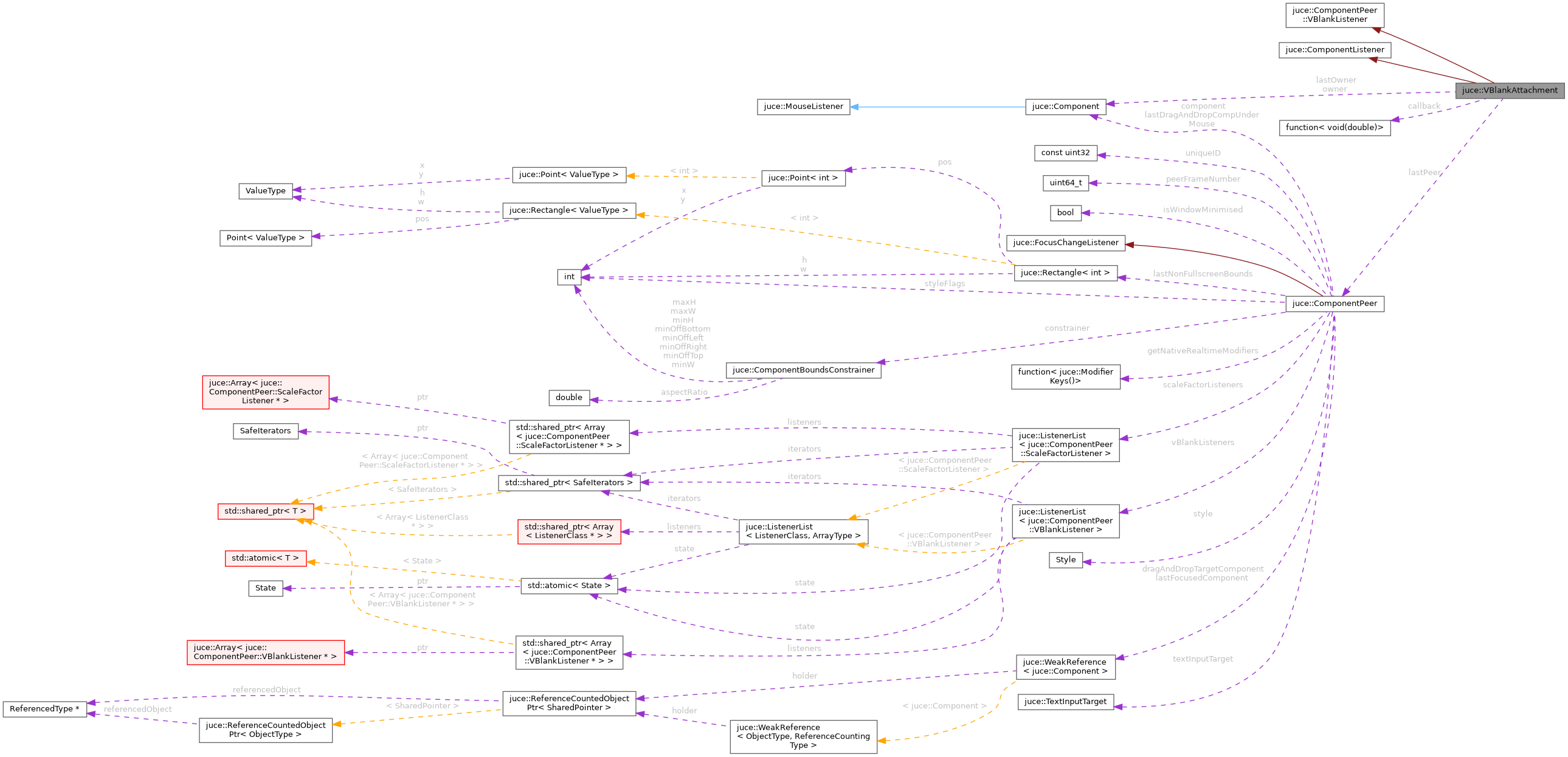

Collaboration diagram for juce::VBlankAttachment:

Public Member Functions
	VBlankAttachment ()=default
	Default constructor for creating an empty object.
	VBlankAttachment (Component *c, std::function< void()> callbackIn)
	Constructor.
	VBlankAttachment (Component *c, std::function< void(double)> callbackIn)
	Constructor.
	VBlankAttachment (VBlankAttachment &&other)
	~VBlankAttachment () override
	Destructor.
bool	isEmpty () const
	Returns true for a default constructed object.
VBlankAttachment &	operator= (VBlankAttachment &&other)

Private Member Functions
void	cleanup ()
virtual void	componentBeingDeleted (Component &component)
	Called when the component is in the process of being deleted.
virtual void	componentBroughtToFront (Component &component)
	Called when the component is brought to the top of the z-order.
virtual void	componentChildrenChanged (Component &component)
	Called when the component has children added or removed, or their z-order changes.
virtual void	componentEnablementChanged (Component &component)
virtual void	componentMovedOrResized (Component &component, bool wasMoved, bool wasResized)
	Called when the component's position or size changes.
virtual void	componentNameChanged (Component &component)
	Called when the component's name is changed.
void	componentParentHierarchyChanged (Component &) override
	Called to indicate that the component's parents have changed.
virtual void	componentVisibilityChanged (Component &component)
	Called when the component is made visible or invisible.
void	onVBlank (double timestampSec) override
	Called on every vertical blank of the display to which the peer is associated.
void	updateOwner ()
void	updatePeer ()

Private Attributes
std::function< void(double)>	callback
Component *	lastOwner = nullptr
ComponentPeer *	lastPeer = nullptr
Component *	owner = nullptr

Detailed Description

Helper class to synchronise Component updates to the vertical blank event of the display that the Component is presented on.

This is useful when animating the Component's contents.

@tags{Animations}

Constructor & Destructor Documentation

VBlankAttachment() [1/4]

juce::VBlankAttachment::VBlankAttachment ( )

default

Default constructor for creating an empty object.

VBlankAttachment() [2/4]

juce::VBlankAttachment::VBlankAttachment	(	Component *	c,
		std::function< void()>	callbackIn
	)

Constructor.

Creates an attachment that will call the passed in function at every vertical blank event of the display that the passed in Component is currently visible on.

The Component must be valid for the entire lifetime of the VBlankAttachment.

You should prefer the other constructor, where the callback also receives a timestamp parameter. This constructor is only provided for compatibility with the earlier JUCE implementation.

VBlankAttachment() [3/4]

juce::VBlankAttachment::VBlankAttachment	(	Component *	c,
		std::function< void(double)>	callbackIn
	)

Constructor.

Creates an attachment that will call the passed in function at every vertical blank event of the display that the passed in Component is currently visible on.

The Component must be valid for the entire lifetime of the VBlankAttachment.

The provided callback is called with a monotonically increasing value expressed in seconds that corresponds to the time of the next frame to be presented. Use this value to synchronise drawing across all classes using a VBlankAttachment.

VBlankAttachment() [4/4]

juce::VBlankAttachment::VBlankAttachment

(

VBlankAttachment &&

other

)

~VBlankAttachment()

juce::VBlankAttachment::~VBlankAttachment ( )

override

Destructor.

Member Function Documentation

cleanup()

void juce::VBlankAttachment::cleanup ( )

private

componentBeingDeleted()

virtual void juce::ComponentListener::componentBeingDeleted ( Component &  component )

virtualinherited

Called when the component is in the process of being deleted.

This callback is made from inside the destructor, so be very, very cautious about what you do in here.

In particular, bear in mind that it's the Component base class's destructor that calls this - so if the object that's being deleted is a subclass of Component, then the subclass layers of the object will already have been destructed when it gets to this point!

Parameters

component

the component that was deleted

Reimplemented in juce::ComponentMovementWatcher, and juce::RelativeCoordinatePositionerBase.

componentBroughtToFront()

virtual void juce::ComponentListener::componentBroughtToFront ( Component &  component )

virtualinherited

Called when the component is brought to the top of the z-order.

Parameters

component

the component that was moved

See also

Component::toFront, Component::broughtToFront

Reimplemented in juce::DropShadower, and juce::FocusOutline.

componentChildrenChanged()

virtual void juce::ComponentListener::componentChildrenChanged ( Component &  component )

virtualinherited

Called when the component has children added or removed, or their z-order changes.

Parameters

component

the component whose children have changed

See also

Component::childrenChanged, Component::addChildComponent, Component::removeChildComponent

Reimplemented in juce::DropShadower, and juce::RelativeCoordinatePositionerBase.

componentEnablementChanged()

virtual void juce::ComponentListener::componentEnablementChanged ( Component &  component )

virtualinherited

componentMovedOrResized()

virtual void juce::ComponentListener::componentMovedOrResized ( Component &  component, bool  wasMoved, bool  wasResized  )

virtualinherited

Called when the component's position or size changes.

Parameters

component	the component that was moved or resized
wasMoved	true if the component's top-left corner has just moved
wasResized	true if the component's width or height has just changed

See also

Component::setBounds, Component::resized, Component::moved

Reimplemented in juce::ComponentMovementWatcher, juce::SidePanel, juce::Viewport, juce::Label, juce::NativeScaleFactorNotifier, juce::PeerListener, juce::AudioProcessorEditor::AudioProcessorEditorListener, juce::StandaloneFilterWindow::MainContentComponent, juce::DropShadower, juce::FocusOutline, and juce::RelativeCoordinatePositionerBase.

componentNameChanged()

virtual void juce::ComponentListener::componentNameChanged ( Component &  component )

virtualinherited

Called when the component's name is changed.

Parameters

component

the component that had its name changed

See also

Component::setName, Component::getName

Reimplemented in juce::MultiDocumentPanel.

componentParentHierarchyChanged()

void juce::VBlankAttachment::componentParentHierarchyChanged ( Component &  component )

overrideprivatevirtual

Called to indicate that the component's parents have changed.

When a component is added or removed from its parent, all of its children will produce this notification (recursively - so all children of its children will also be called as well).

Parameters

component

the component that this listener is registered with

See also

Component::parentHierarchyChanged

Reimplemented from juce::ComponentListener.

componentVisibilityChanged()

virtual void juce::ComponentListener::componentVisibilityChanged ( Component &  component )

virtualinherited

Called when the component is made visible or invisible.

Parameters

component

the component that changed

See also

Component::setVisible

Reimplemented in juce::ComponentMovementWatcher, juce::DropShadower, juce::FocusOutline, juce::Label, juce::NativeScaleFactorNotifier, and juce::PeerListener.

isEmpty()

bool juce::VBlankAttachment::isEmpty ( ) const

inline

Returns true for a default constructed object.

onVBlank()

void juce::VBlankAttachment::onVBlank ( double  timestampSec )

overrideprivatevirtual

Called on every vertical blank of the display to which the peer is associated.

The timestampSec parameter is a monotonically increasing value expressed in seconds that corresponds to the time at which the next frame will be displayed.

Implements juce::ComponentPeer::VBlankListener.

operator=()

VBlankAttachment & juce::VBlankAttachment::operator=

(

VBlankAttachment &&

other

)

updateOwner()

void juce::VBlankAttachment::updateOwner ( )

private

updatePeer()

void juce::VBlankAttachment::updatePeer ( )

private

Member Data Documentation

callback

std::function<void (double)> juce::VBlankAttachment::callback

private

lastOwner

Component* juce::VBlankAttachment::lastOwner = nullptr

private

lastPeer

ComponentPeer* juce::VBlankAttachment::lastPeer = nullptr

private

owner

Component* juce::VBlankAttachment::owner = nullptr

private

---

The documentation for this class was generated from the following file:

• juce_VBlankAttachment.h
